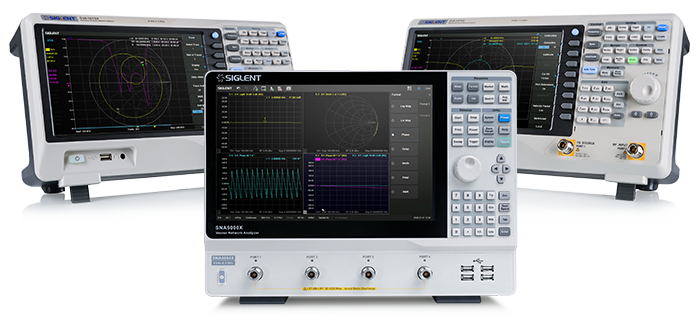

Vector Network Analyzer
Siglent's Vector Network Analyzer offer a frequency range of 9 kHz to 8.5 GHz, 2 or 4 ports. It includes digital and analog modulation analysis, Cable and antenna measurement, power analysis, EMI pre-compliance test.Applications include research and development, education, production, maintenance, and pre-compliance.
Comparison
Model
Frequency range
Ports
Dynamic range
Trace noise
Range of output level
Comparison
0
/
3

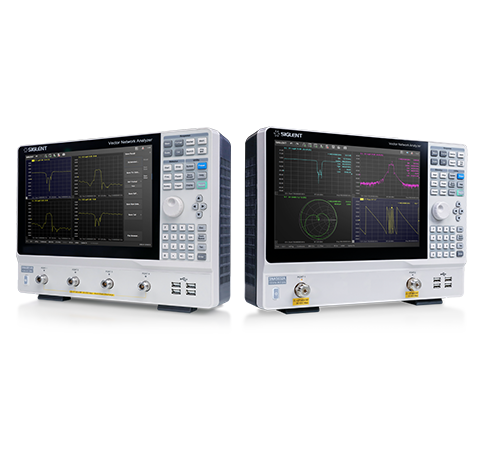

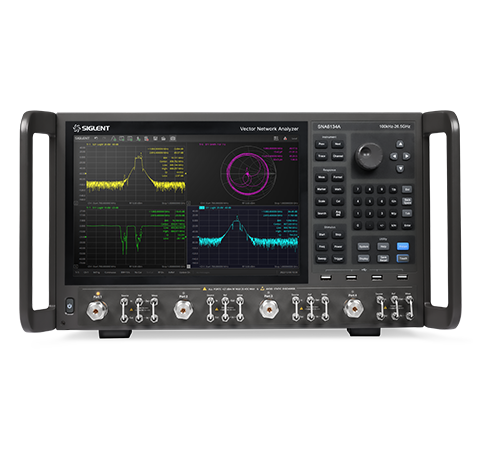

SNA6000A
100 kHz to 13.5/26.5 GHz
4
135 dB
0.005 dB rms, 0.012° rms
-55 dBm ~ +10 dBm
Comparison
0
/
3

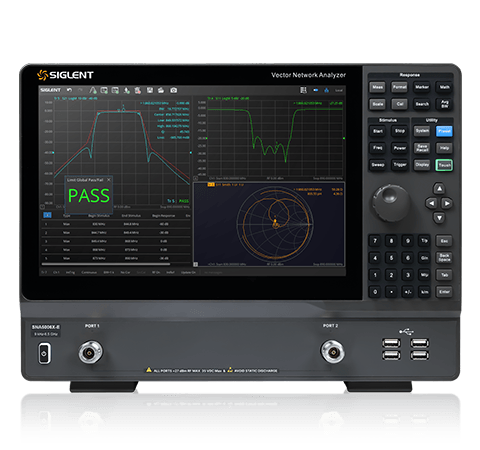

SNA5000A
9 kHz - 8.5 GHz and 100 kHz - 26.5 GHz
2/4
125dB
0.003dB rms,0.03°rms
-55 dBm ~ +10 dBm
Comparison
0
/
3

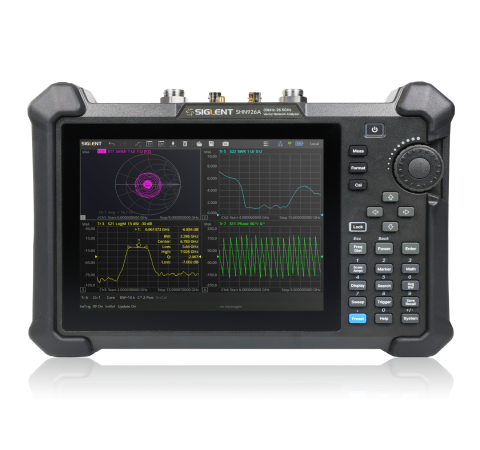

SHN900A
30kHz-14/20/26.5GHz
2
100 dB
0.003 dB rms, 0.03° rms
-45 dBm ~ +10 dBm
Options
SNA5000-TDR
Enhanced Time-Domain analysis
SNA5000-TDA
Time-Domain analysis
SNA5000-SA
Spectrum analysis
SNA5000-HPR
High performance reference source
Accessories
USB Cable
USB-A to USB-B. Used to connect instrument to PC for communication.
Power cord
The instrument comes standard with one power cord that meets the standards of the user's country. Additional power cords for different regions can be purchased separately.
Certificate of calibration
Factory calibration certificate
SNA5000A QuickStart
SNA5000A QuickStart
