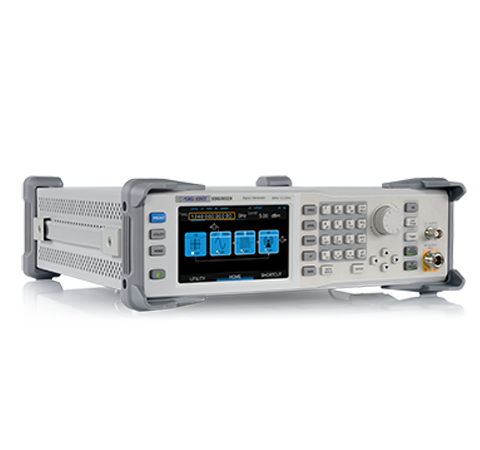

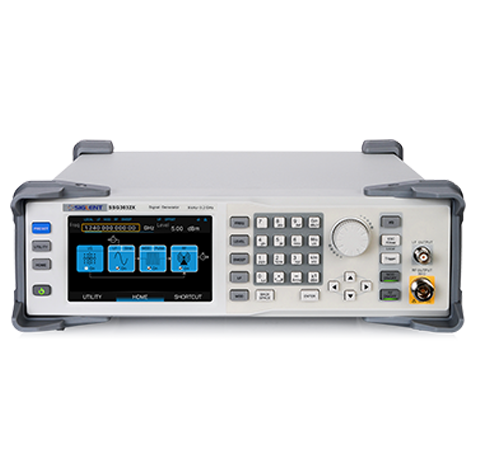

SSG3000X Series RF Generator
Main Features
- Frequency up to 2.1 GHz / 3.2 GHz
- Maximum level up to +20 dBm (typ.)
- Level output from -110 dBm to +13 dBm
- Level accuracy ≤0.7 dB (typ.)
- Standard AM & FM & PM & pulse modulation
- Pulse train Generator (optional)
- External IQ signal Generator （optional）
×

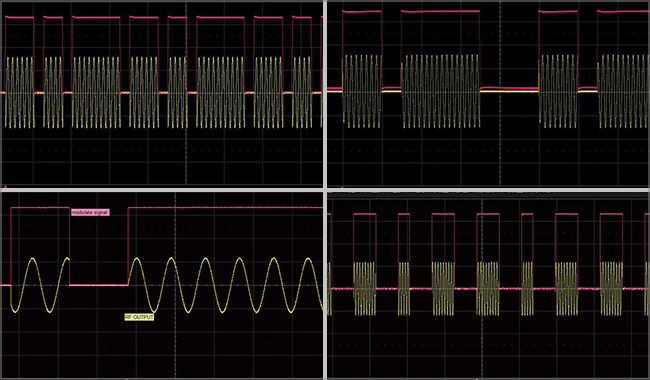

Abundant Modulation Function
Standard AM & FM & PM analog modulation, with pulse modulation, pulse train generator and other functions, can produce a wider variety of signals to meet different needs.

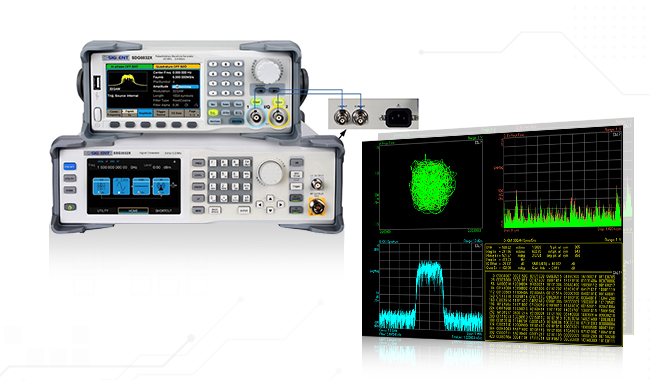

IQ modulation Function
External IQ modulation using the SDG6000X as the baseband source.
Provides two-tone signals with IQ modulation, can easily measure TOI
Provides two-tone signals with IQ modulation, can easily measure TOI

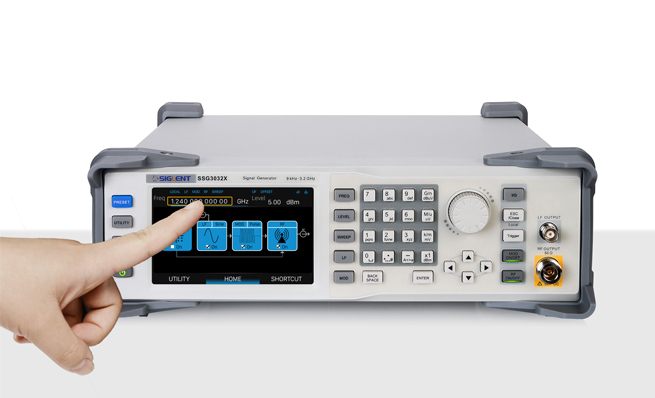

Convenient and Easy-to-use
Excellent and user-friendly UI design, , support keyboard, mouse and web remote control

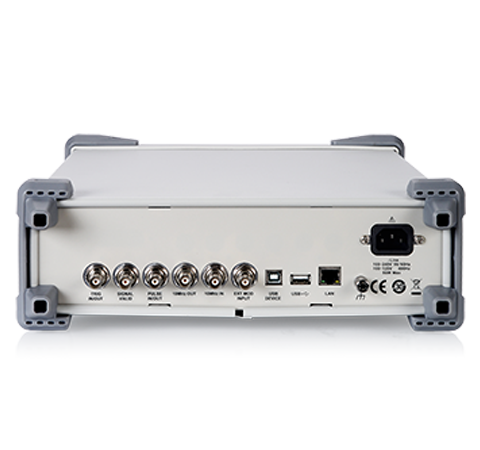

With standard PC software, SCPI commands, USB and LAN interface can be used for various communication
Web browser remote control on PC and mobile terminals
With standard PC software, SCPI commands, USB and LAN interface can be used for various communication
Web browser remote control on PC and mobile terminals
规格参数
| Frequency(Max.) | 2.1 GHz/3.2 GHz |
| Frequency Resolution | 0.01 Hz |
| Level setting range | +13 dBm ~ -110 dBm |
| Phase Noise | -110 dBc/Hz @1 GHz ,offset 20 kHz (typ.) |
| Level Accuracy | 0.7 dB (typ.) |
| Modulation types | AM/FM/PM,Pulse,I/Q |
| Display | TFT LCD, RGB (800*480), 5 inch capacitive touch screen |
| Interface | Standard：USB-HOST, USB DEVICE (USBTMC), LAN (VXI-11,Socket,Telnet)； Option：GPIB |
Model
Frequency range
Frequency resolution
IQ modulation
Max output power
Phase noise
Display
SSG3032X
9 kHz ~ 3.2 GHz
0.01 Hz
NO
+20 dBm
-110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.)
5 inch TFT capacitive touch screen，RGB (800*480)
SSG3021X
9 kHz ~ 2.1GHz
0.01 Hz
NO
+20 dBm
-110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.)
5 inch TFT capacitive touch screen，RGB (800*480)
SSG3032X-IQE
9 kHz ~ 3.2 GHz
0.01 Hz
YES
+20 dBm
-110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.)
5 inch TFT capacitive touch screen，RGB (800*480)
SSG3021X-IQE
9 kHz ~ 2.1 GHz
0.01 Hz
YES
+20 dBm
-110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.)
5 inch TFT capacitive touch screen，RGB (800*480)
