SHS800 Series Handheld Digital Oscilloscopes(Discontinued)
Main Features
- Bandwidth 60 MHz-200 MHz
- Real-time sampling rate 1 GSa/S, equivalent sampling 50 GSa/S
- 3-instruments –in- 1, oscilloscope, multimeter, and recorder
- Oscilloscope and multimeter safety level up to CATIII 300 V

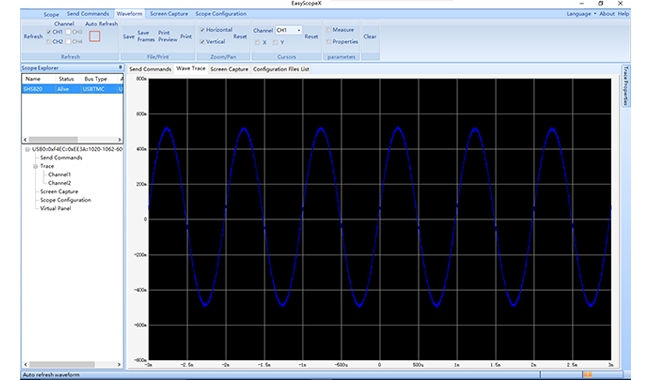

- Support USB drive storage and PC remote control
- 5.7" TFT LCD large screen display
×

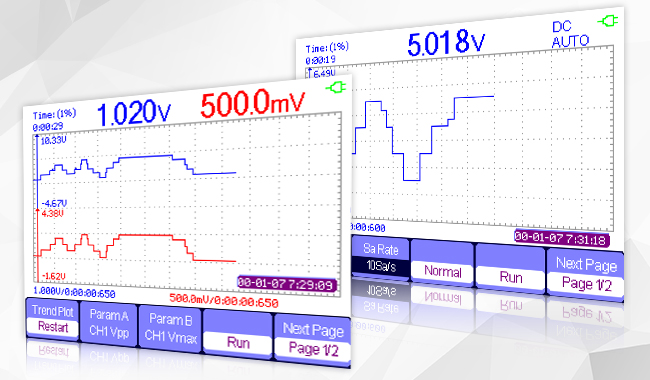

Trend Plot
You can draw a picture to display the changes of a parameter value (measured in oscilloscope or multimeter mode) in a specified period of to find the source of a problem quickly.

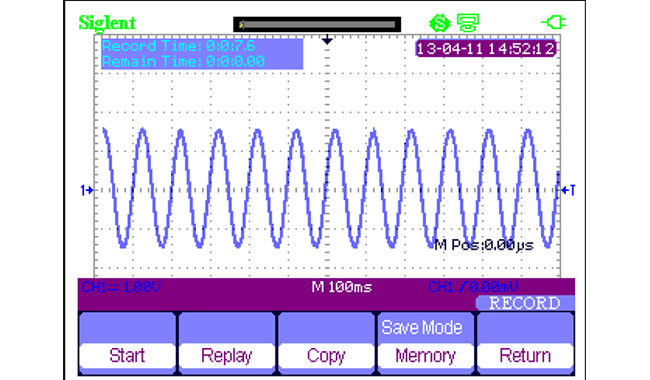

Data Recorder
· Continuously record waveforms
· Support recording and playback of waveforms
· Internal storage of up to 7 M points waveform data, with a maximum recording time of approximately 18 hours
· USB drive storage is up to 4 GB, and the maximum recording time is about 3000 hours
· Support recording and playback of waveforms
· Internal storage of up to 7 M points waveform data, with a maximum recording time of approximately 18 hours
· USB drive storage is up to 4 GB, and the maximum recording time is about 3000 hours

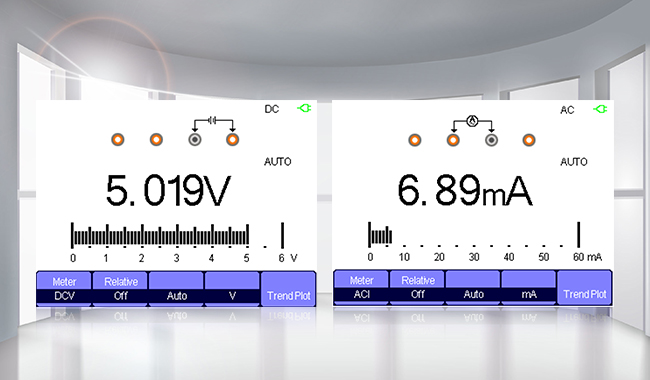

Precision Multimeter
The multimeter has a resolution of 6000 counts and offers many popular test functions, including voltage, current, resistance, capacitance, diode, continuity and other test items.
Portable and Easy to Use

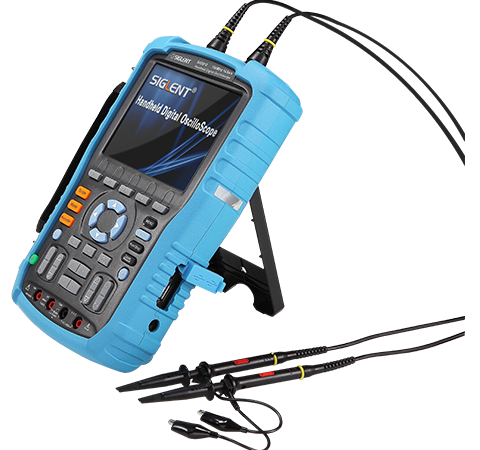

Compact unit is battery operated for industrial and field use.
Suitable for automotive electronics, electric vehicle testing
Support USB drive storage and software upgrade
Support PC remote control
Suitable for automotive electronics, electric vehicle testing
Support USB drive storage and software upgrade
Support PC remote control
Specifications
| SHS806 | SHS810 | SHS815 | SHS820 | |
| Bandwidth | 60 MHz | 100 MHz | 150 MHz | 200 MHz |
| Rise Time | ≤5.8 ns | ≤3.5 ns | ≤2.3 ns | ≤1.7 ns |
| Real time sample rate | Single Channel: 1GSa/s ; Double Channels: 500MSa/s | Single Channel: 1GSa/s ; Double Channels: 500MSa/s | Single Channel: 1GSa/s ; Double Channels: 500MSa/s | 500 MSa/s |
| Equivalent samp rate | 50 GSa/s | 50 GSa/s | 50 GSa/s | 50 GSa/s |
| Time base range | 5 ns/DIV ～ 50 s/DIV | 2.5 ns/DIV ～ 50 s/DIV | 2.5 ns/DIV ～ 50 s/DIV | 2.5 ns/DIV ～ 50 s/DIV |
| Vertical sensitivity | 2 mv/div~100 v/div | 2 mv/div~100 v/div | 2 mv/div~100 v/div | 2 mv/div~100 v/div |
| Vertical Resolution | 8 bit | 8 bit | 8 bit | 8 bit |
| Modulation Type | Edge,Pulse,Video,Slope,Alternative | |||
| Data Recorder | 7 Mpts | |||
| Trend plot | 800 Kpts | |||
| Triggering Frequency Counter | 6 digits | |||
| Interface | USB Device,USB Host | |||
| Math Operation | +,-,*,/,FFT | |||
| Maximum Resolution | 6000 | |
| DC Voltage | 60 mV-1000 V | ±1%±15 digit |
| AC Voltage | 60 mV-750 V | ±1.5%±15 digit |
| DC Current | 60 mA-10 A | ±5%±5 digit |
| AC Current | 60 mA-10 A | ±5%±5 digit |
| Capacitance | 40 nF 400 nF-400 μF |
±4%±10digit ±5%±5 digit |
| Resistance | 600 Ω-6 MΩ 60 MΩ |
±1%±5 digit ±4%±5 digit |
| Continuity | <50 Ω | |
| Diode | 0-2 V | |
| Trend Plot | 1.2 Mpts | |
| Display | 5.7 inch color TFT-LCD,320*234 |
| Power Supply | Charging/Battery |
| Net Weight | 1.5 kg |
| Domesion | 163.2 mm * 259.5 mm * 53.3 mm |
| Accessories | Two Passive Probes,Multimeter pen,USB data cable,DC adapter,Manual |
Model
Bandwidth
Channels
Max real time sampling rate
Multimeter
Isolation level
Memory depth
SHS820(Discontinued)
200 MHz
2 CH
500 MSa/s
voltage,current,resistance.etc eight regular function
No
32 kpts
SHS810(Discontinued)
100 MHz
2 CH
1 GSa/s
voltage,current,resistance.etc eight regular function
No
2 Mpts
SHS806(Discontinued)
60 MHz
2 CH
1 GSa/s
voltage,current,resistance.etc eight regular function
No
2 Mpts
SHS815(Discontinued)
150 MHz
2 CH
1 GSa/s
voltage,current,resistance.etc eight regular function
No
2 Mpts
