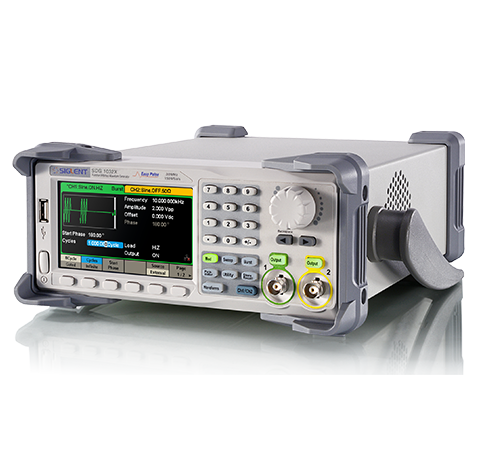

SDG1000X Series Function/Arbitrary Waveform Generators
Main Features
- Dual output channels
- Maximum 60 MHz Square and Sine wave output frequency
- 150 MSa/s Sampling rate, 14 bit vertical resolution
- TrueArb technology, Arbitrary wave length 2 ~ 16 kpts
- Pulse width and rise/fall time finely adjustable
- Complex signal synthesis
×

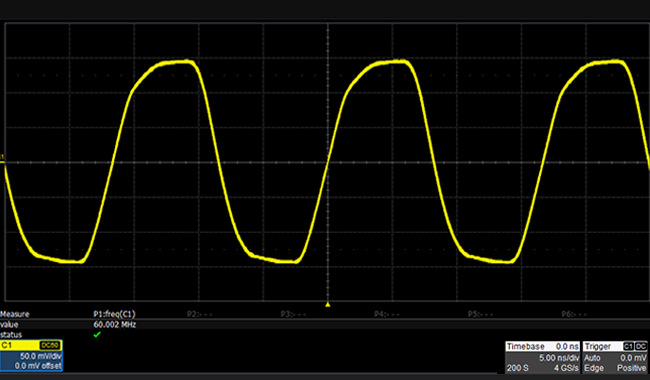

High Quality Square Wave
The SDG1000X break the 60 MHz channel bandwidth limit and achieve a high performance square wave with a dedicated square wave generation circuit.
· The SDG1000X series has a bandwidth of 60 MHz, but can output a high-performance square wave of 60 MHz.
· Rise/fall time is less than 4.2 ns
· Square wave has the equivalent jitter performance with pulse wave
· The SDG1000X series has a bandwidth of 60 MHz, but can output a high-performance square wave of 60 MHz.
· Rise/fall time is less than 4.2 ns
· Square wave has the equivalent jitter performance with pulse wave

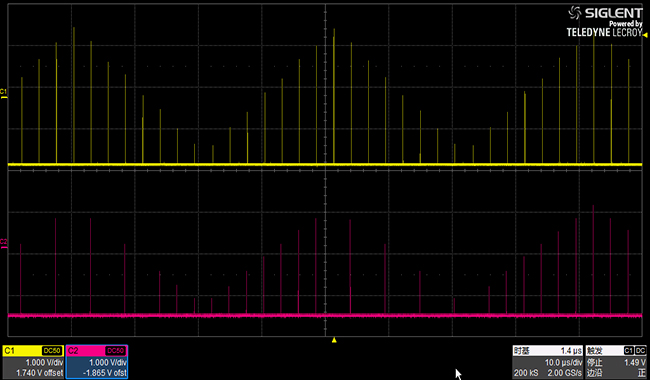

Innovative EasyPulse Technology
With traditional DDS technology, there will be a jitter of one sampling period when sampling rate and output frequency are not integer multiple. With EasyPulse technology, this can be solved perfectly. In addition to output low jitter Square and Pulse signals, EasyPulse tech has advantages of:
· Pulse frequency up to 12.5 MHz
· The rise and fall time can be set separately, fastest 16.8 ns
· Pulse width finely adjustable, down to 32.6 ns
· Duty cycle as low as 0.001%
· Low jitter
· Pulse frequency up to 12.5 MHz
· The rise and fall time can be set separately, fastest 16.8 ns
· Pulse width finely adjustable, down to 32.6 ns
· Duty cycle as low as 0.001%
· Low jitter

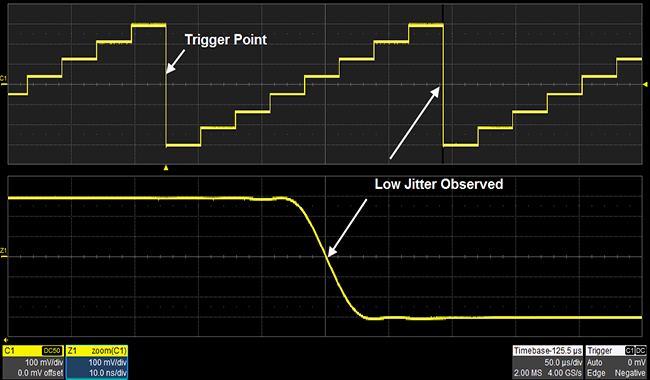

TrueArb Technology
TrueArb technology has advantages of low jitter and low distortion over traditional DDS technology. TrueArb technology features by output arbitrary waveforms point by point. It will not leak any waveform info and has other advantages :
· 16 kpts arbitrary waveform length, keep more details
· 14 bit vertical resolution, higher signal fidelity
· Generate and output arb wave per customer request with standard PC software EasyWave
· 16 kpts arbitrary waveform length, keep more details
· 14 bit vertical resolution, higher signal fidelity
· Generate and output arb wave per customer request with standard PC software EasyWave

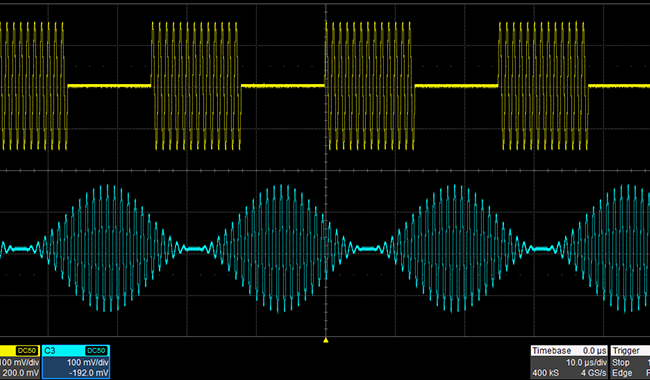

Complex Signal Generation Capability
The SDG1000X can perform various kinds of modulations, sweeps, burst and signal synthesis. It supports internal, external and manual trigger sources.
· Support AM, FM, PM, FSK, ASK, PSK, DSB-AM and PWM modulations
· Support linear and logarithmic sweeps.
· Support "N cycle" and "Gate" burst mode
· Support output combined waveforms of two channels. Combine signals with noise, modulated signal, sweep, burst and arbitrary waveform

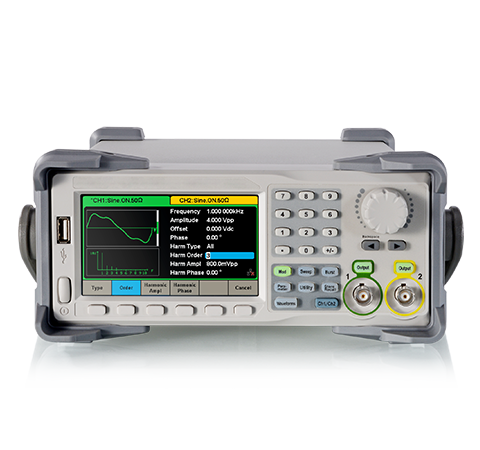

· Harmonic function can simulate the synthesis process of signals
· Support AM, FM, PM, FSK, ASK, PSK, DSB-AM and PWM modulations
· Support linear and logarithmic sweeps.
· Support "N cycle" and "Gate" burst mode
· Support output combined waveforms of two channels. Combine signals with noise, modulated signal, sweep, burst and arbitrary waveform
· Harmonic function can simulate the synthesis process of signals
Specifications
| Bandwidth | 30 MHz、60 MHz |
| Sample Rate | 150 MSa/s |
| Channels | 2 |
| Arbitrary Waveform Length | 16 Kpts |
| Frequency Resolution | 1 μHz |
| Vertical Resolution | 14 bit |
| Waveform | Sine,Square,Ramp,Pulse,Gaussian white noise,196 types of built-in Arb |
| Max.Amplitude | ±10 V |
| Size | Width×Height×Depth=229 mm×105 mm×281 mm |
| Interface | Standard : USB Host, USB Device，LAN |
| Modulation Types | AM, DSB-AM, FM,PM, FSK, ASK, PSK and PWM |
| Display | 4.3” TFT-LCD display |
Model
Max output frequency
Max sampling rate
Vertical resolution
Waveform length
Channels
SDG1032X
30 MHz
150 MSa/s
14-bit
16 kpts
2 CH
SDG1062X
60 MHz
150 MSa/s
14-bit
16 kpts
2 CH
