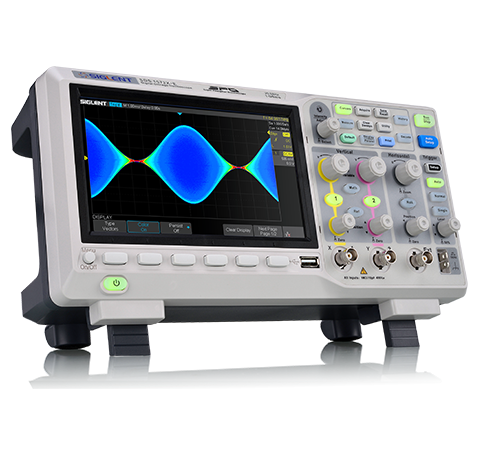

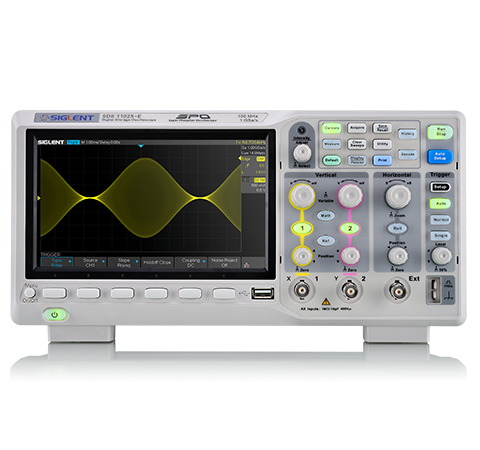

SDS1000X-E Series Super Phosphor Oscilloscopes
Main Features
- 100 and 200 MHz bandwidth models
- 2 or 4 analog channels, 16 logic/MSO optional on 4 channel only
- Real-time sampling rate up to 1 GSa/s
- Math co-processor speeds front panel operation
- Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
- Record length up to 14 Mpts, 1 Mpts FFT
- On-screen Bode plot and web-browser control (standard on 4 channel only)
×
Deep Memory Depth, High Capture Rate
Digital trigger system, high trigger sensitivity and low jitter

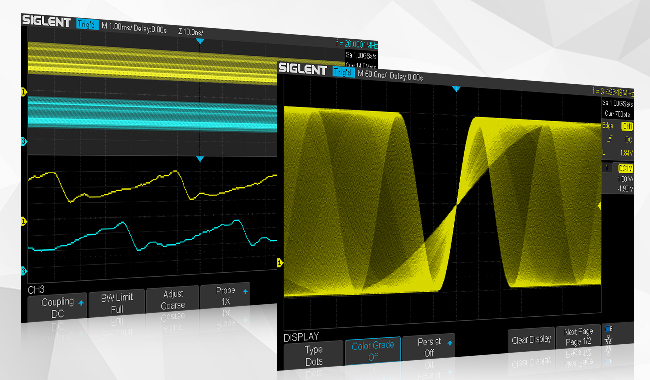

256-level Intensity Grading and Color Temperature Display
With a waveform capture rate of up to 400,000 wfm/s (sequence mode), the oscilloscope can easily capture the transients or low-probability events
Using max record length of up to 14 Mpts, users are able to oversample to capture for longer time periods at higher resolution
256-level Intensity Grading and Color Temperature Display
With a waveform capture rate of up to 400,000 wfm/s (sequence mode), the oscilloscope can easily capture the transients or low-probability events
Using max record length of up to 14 Mpts, users are able to oversample to capture for longer time periods at higher resolution
Revolution in Data Analysis Processing
True fast measurement and math to all of 14M sample points so that there is minimal distortion on analysis
With hardware co-processor, faster data operations
1 M point FFT operation
Support Zoom, Gating, Math measurement and statistics
Support 38 automatic measurement functions
With hardware co-processor, faster data operations
1 M point FFT operation
Support Zoom, Gating, Math measurement and statistics
Support 38 automatic measurement functions

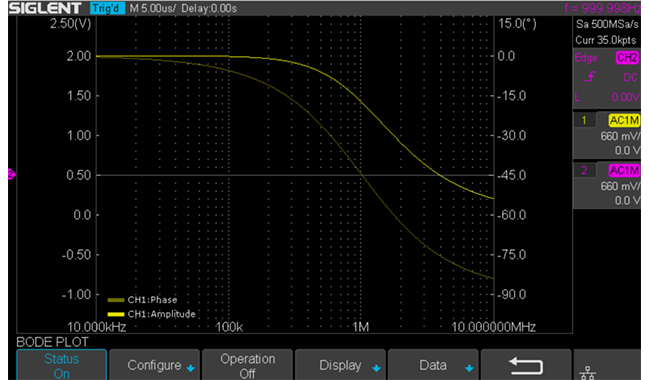

Power Loop Response Analysis / Bode Plot
(4-channel series only)
(4-channel series only)
Stability is a very important indicator in power supply design. In general, stability measurement requires a special frequency response analyzer, but it is very expensive. Siglent offers an affordable solution: SDS1000X-E oscilloscope and signal source Power loop measurement with standard Free Bode Plot II software.
· higher measurement sensitivity and accuracy
· Variable excitation scan mode allowed for complex test scenarios of the power control loop test box
· User-friendly UI design
· List and cursor measurements, more intuitive
· higher measurement sensitivity and accuracy
· Variable excitation scan mode allowed for complex test scenarios of the power control loop test box
· User-friendly UI design
· List and cursor measurements, more intuitive

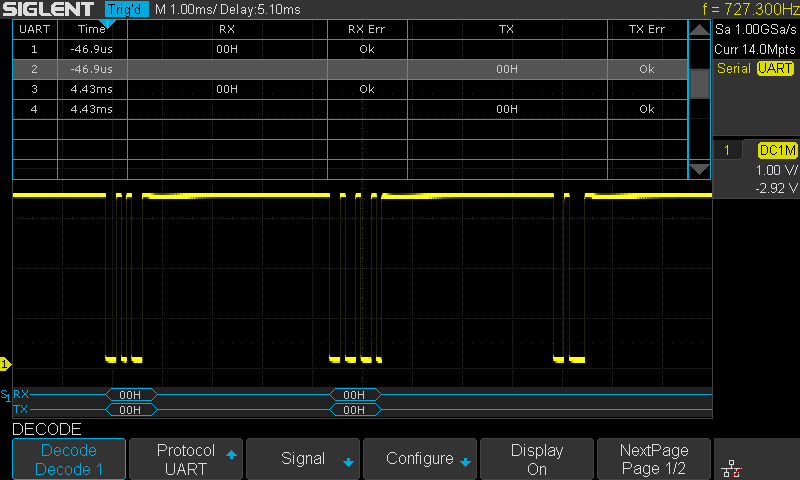

Standard Serial Decoding
Most oscilloscopes on the market do not offer serial decoding for free but SDS1000X-E does. Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN.
The waveform and data can be displayed at the same time and the detailed decoding information is displayed in the form of a list, and the data can be stored and exported.
The waveform and data can be displayed at the same time and the detailed decoding information is displayed in the form of a list, and the data can be stored and exported.
Powerful Debugging and Analysis Capabilities
Event search and navigation to quickly locate events of interest.
MSO logic analyzer integration, mixed signal analysis tool
The combination of history and sequence mode, quickly capture abnormal waveforms
Hardware-based Pass/Fail mode for long-term monitoring signals
MSO logic analyzer integration, mixed signal analysis tool
The combination of history and sequence mode, quickly capture abnormal waveforms
Hardware-based Pass/Fail mode for long-term monitoring signals
Remote Control via Web Pages
With built-in Web Server, there is no need to install driver software and PC software. You can control the instrument, observe waveforms, obtain measurement results using the browser remotely. Especially when instruments used in high pressure, high temperature and other special environments. The SDS1000X-E supports both web and mobile web layouts, making it easier to control the instrument even on your phone.
Specifications
| Bandwidth | 100 MHz 、200 MHz |
| Sample Rate(Max.) | 1 GSa/s |
| Waveform capture rate(Max.) | 400,000 wfm/s |
| Channels | 4 (four channel series) 2+EXT (two channel series) |
| Memory Depth (Max.) | 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) |
| Trigger type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video |
| Serial trigger and decoder(Standard) | I2C, SPI, UART, CAN, LIN |
| 16 Digital channel (four channel series only, option) | Maximum waveform capture rate up to 1 GSa/s, Record length up to 14 Mpts/CH |
| USB AWG module (four channel series only, option) | One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts |
| Bode plot ( four channel series only) | Minimum start frequency of 10 Hz, minimum scan bandwith of 500 Hz, maximum scan bandwidth of 120 MHz (dependent on Oscilloscope and AWG bandwidth), 500 maximum scan frequency points |
| I/O | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus(Siglent MSO) |
| Probe (standard) | SDS1104X-E: 4 pcs passive probe PP510; SDS1204X-E/SDS1202X-E：4/2 pcs passive probe PP215 |
| Display | 7 inch TFT–LCD (800 x 480 pixels) |
| Weight | Four channel series: Without package 2.6 kg; With package 3.8 kg; Two channel series: Without package 2.5 kg; With package 3.5 kg |
Model
Bandwidth
Channels
Real time sampling rate
Capture rate
Memory depth
SDS1104X-E
100 MHz
4 CH
1 GSa/s
100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
14 Mpts (single-channel); 7 Mpts/CH (dual-channel)
SDS1202X-E
200 MHz
2 CH + EXT
1 GSa/s
100,000 wfm/s (normal mode),400,000 wfm/s (sequence mode)
14 Mpts (single-channel); 7 Mpts (dual-channel)
SDS1204X-E
200 MHz
4 CH
1 GSa/s
100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
14 Mpts (single-channel); 7 Mpts (dual-channel)
