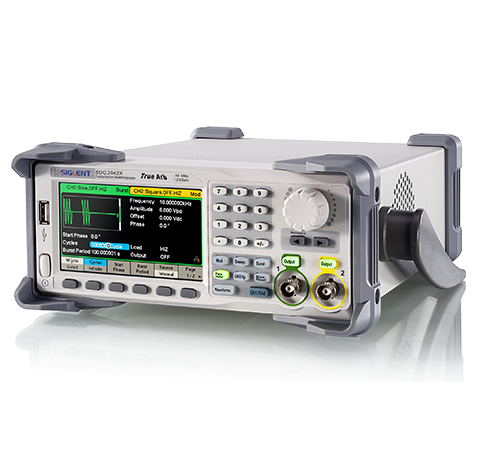

SDG2000X Series Function/Arbitrary Waveform Generators
Main Features
  • Dual output channels
  • Maximum 120 MHz output frequency
  • 1.2 GSa/s Sampling rate, 16 bit vertical resolution
  • TrueArb technology, Arbitrary wave length 8 – 8 Mpts
  • Low jitter square and pulse wave
  • Pulse width and rise/fall time finely adjustable
×
Excellent Channel Performance
SDG2000X features high performance dual-channel and high signal fidelity

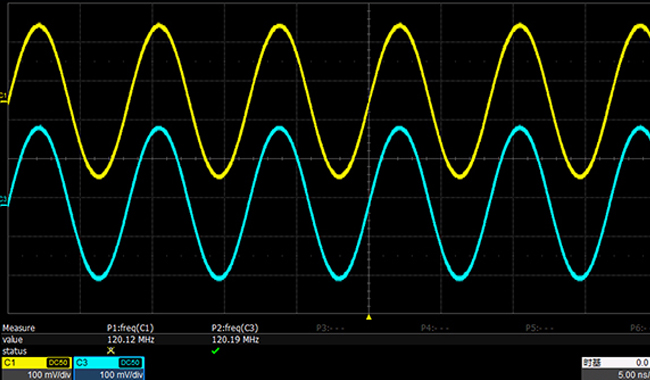

· Maximum output frequency 120 MHz
· High amplitude output at high frequencies. 20 V signal output capability at 20 MHz
· Extremely low noise floor, high signal to noise ratio
Innovative EasyPulse Technology

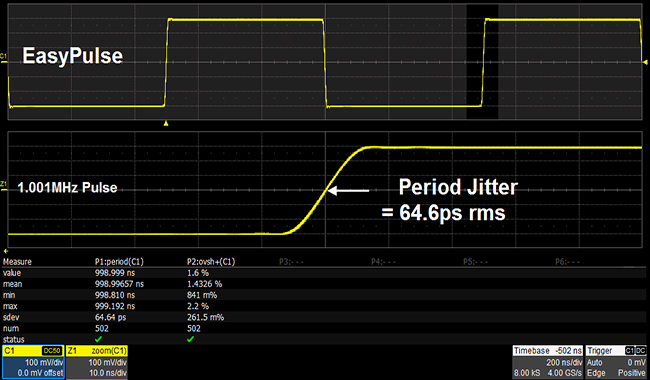

With traditional DDS technology, there will be a jitter of one sampling period when sampling rate and output frequency are not integer multiple. With EasyPulse technology, this can be solved perfectly. In addition to output low jitter Square and Pulse signals, EasyPulse tech has advantages of:

· Pulse frequency up to 25 MHz
· The rise and fall time can be set separately, fastest 8.4 ns
· Pulse width finely adjustable, down to 16.3 ns
· Duty cycle as low as 0.001%
· Low jitter
TrueArb Technology
TrueArb technology has advantages of low jitter and low distortion over traditional DDS technology. TrueArb technology features by output arbitrary waveforms point by point. It will not leak any waveform info and has other advantages:
· 8 Mpts arbitrary waveform length, keep more details
· 16 bit vertical resolution, higher signal fidelity
· Generate and output arb wave per customer request with standard PC software EasyWave

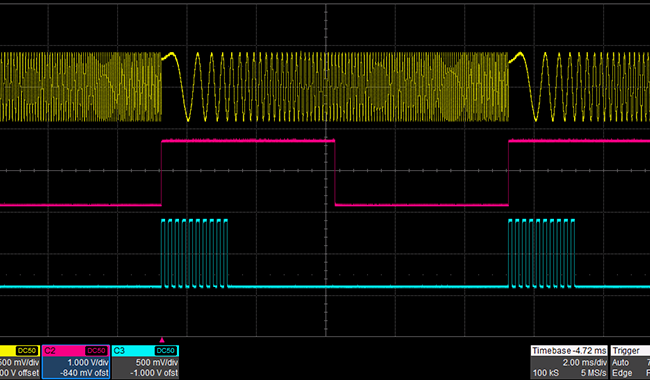

Complex Signal Generation Capability
The SDG2000X can perform various kinds of modulations, sweeps, burst and signal synthesis. It supports internal, external and manual trigger sources.
· Support AM, FM, PM, FSK, ASK, PSK, DSB-AM and PWM modulations
· Support linear and logarithmic sweeps.
· Support "N cycle" and "Gate" burst mode
· Support output combined waveforms of two channels. Combine signals with noise, modulated signal, sweep, burst and arbitrary waveform

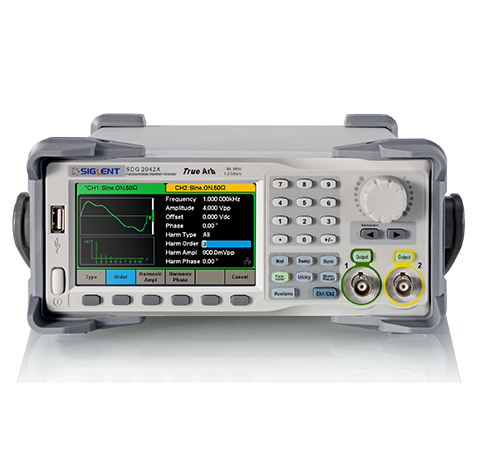

· Harmonic function can simulate the synthesis process of signals

Specifications
Bandwidth 40 MHz,80 MHz,120 MHz
Sample Rate 1.2 GSa/s(4X Interpolation)
Channels 2
Arbitrary Waveform Length 8 pts ~ 8 Mpts
Square Frequency 1 μHz ~ 25 MHz
Pulse Frequency 1 μHz ~ 25 MHz
Vertical Resolution 16 bit
Max.amplitude ±10 V
Display 4.3 inch touch screen, 480 x 272 x RGB

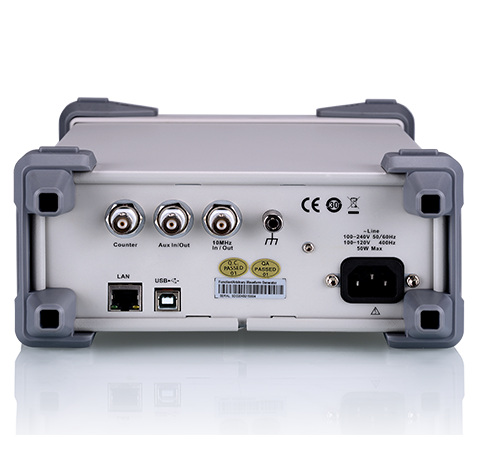

Interface Standard : USB Host, USB Device, LAN
Option : GPIB (USB-GPIB adapter )
Modulation AM、 FM、PM、FSK、ASK、PSK、DSB-AM、PWM
Built-in Frequency Meter Support
Model
Max output frequency
Max sampling rate
Vertical resolution
Waveform length
Channels
SDG2042X
40 MHz
1.2 GSa/s
16 bit
8 pts ~ 8 Mpts
2
SDG2082X
80 MHz
1.2 GSa/s
16 bit
8 pts ~ 8 Mpts
2
SDG2122X
120 MHz
1.2 GSa/s
16 bit
8 pts ~ 8 Mpts
2
