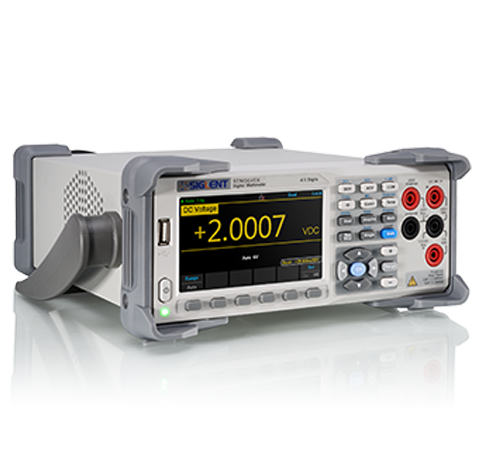

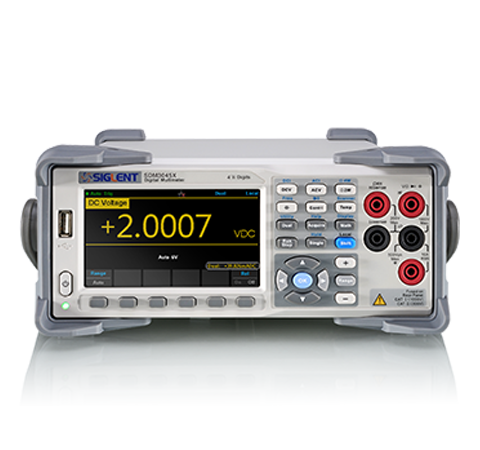

SDM3045X Digital Multimeter
Main Features
- Real 4½ digit (66,000 count) readings resolution
- Up to 150 rdgs/s measurement speed
- True-RMS AC Voltage and AC Current measuring
- 1 Gb NAND flash size, Mass storage configuration files and data files
- Built-in cold terminal compensation for thermocouple
- With easy, convenient and flexible PC software: EasyDDM
×
Multi-function Measurement, Dual Display
- 4 1⁄2-digit reading resolution
- ACV, ACI, DCV, DCI, resistance, capacitance, frequency, period, temperature and other parameters can be measured
- Support diode and connectivity test
Graphical and Statistical
Graphically display the collected data , intuitively observe changes of measured parameters; provide data statistics based on collected data for analysis

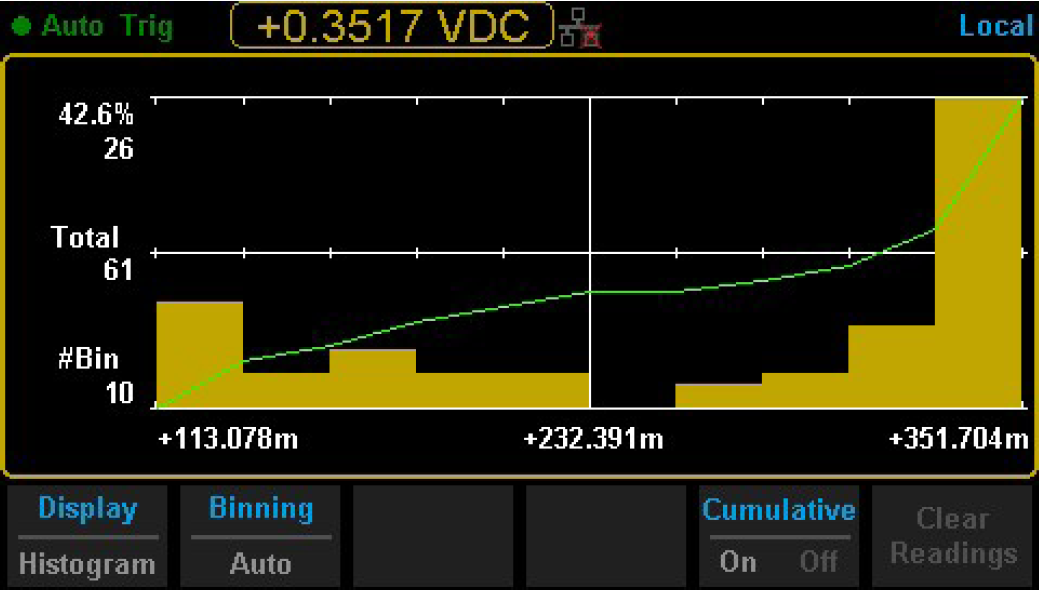

- Support bar chart, trend chart, histogram display
- Data statistics show the maximum, minimum, average, deviation range, standard deviation, and number of samples of the measurement data during the test
- The collected data can be stored in external memory for long-term data storage and data processing.
Model
Reading resolution
DC voltage measurement range
AC voltage measurement range
DC current measurement range
AC current
Scanner card
SDM3045X
4 1/2
600 mV~ 1000 V
600 mV ~ 750 V
600 μA ~ 10 A
60 mA ~ 10 A
Not Support
