SDG1000 Series Function/Arbitrary Waveform Generators (Discontinued)
Main Features
- Sine wave frequency up to 50 MHz
- 125 MSa/s Sampling Rate
- 16 kpts Arbitrary Waveform Length
- Abundant Modulation types: AM\DSB-AM\FM\PM\FSK\ASK\PWM\SWEEP\BURST
- Standard Arbitrary wave edit software
- 3.5 inch display
×
Multiple Types of Waveform Output

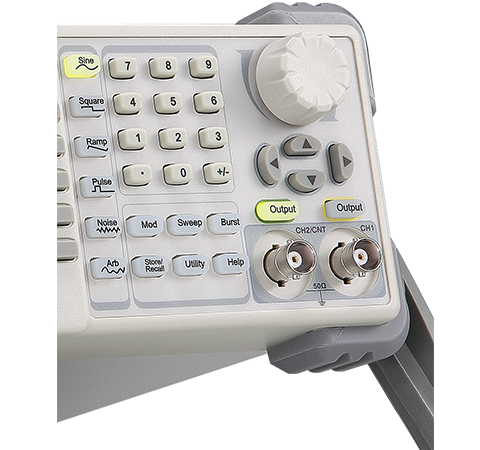

SDG1000 supports Sine, Square, Pulse, Triangle, Gaussian White Noise and other waveforms output.

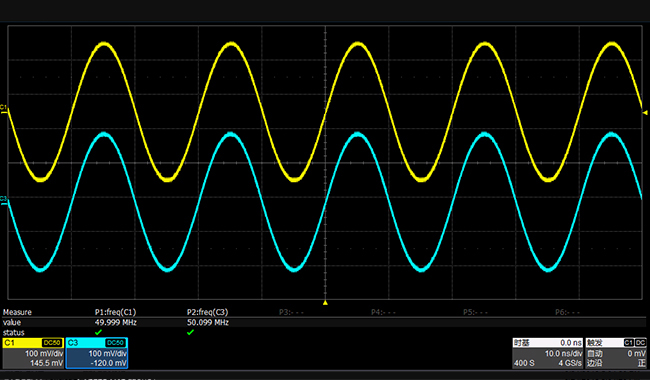

• Sine wave - maximum output frequency 50 MHz
• Square wave characteristics - duty cycle up to 20% -80%; rise time less than 24 ns
• Pulse characteristics - minimum pulse width 16 ns; rise/fall time down to 7 ns
• Triangle wave characteristics - symmetry 0% - 100%
• DC signal - 0 to ±10 V output
• Sine wave - maximum output frequency 50 MHz
• Square wave characteristics - duty cycle up to 20% -80%; rise time less than 24 ns
• Pulse characteristics - minimum pulse width 16 ns; rise/fall time down to 7 ns
• Triangle wave characteristics - symmetry 0% - 100%
• DC signal - 0 to ±10 V output
Complex Signal Generation Capability
The SDG1000 has powerful waveform generation capabilities. It can implement various types of modulations, sweeps, burst output and signal synthesis. It supports internal, external, and manual trigger sources.

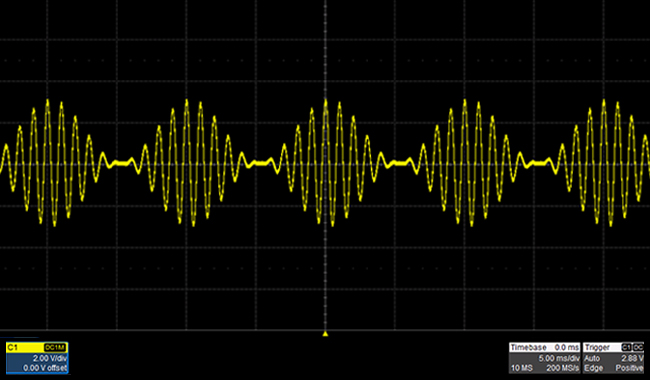

• Supports multiple modulations such as AM, FM, PM, FSK, ASK, DSB-AM and PWM
• Support linear and logarithmic sweep mode
• Support "N Cycle" and "Gate" burst mode
• Supports multiple modulations such as AM, FM, PM, FSK, ASK, DSB-AM and PWM
• Support linear and logarithmic sweep mode
• Support "N Cycle" and "Gate" burst mode
Arbitrary Waveform Output
· 16 kpts arbitrary waveform length
· 14 bit vertical resolution
· Built-in 46 kinds of arbitrary waveforms

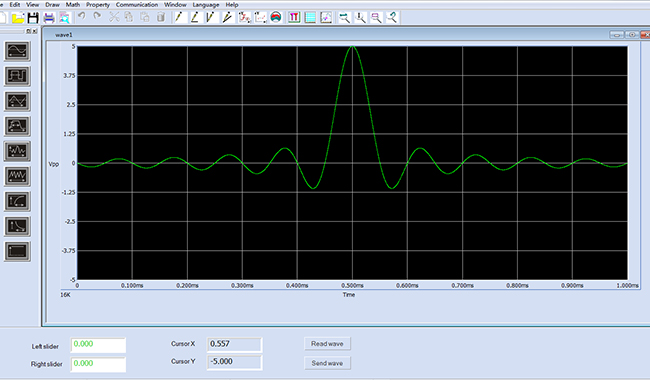

· Standard powerful arbitrary waveform editing software, equipped with standard waveforms (Sine, Square, Ramp, Pulse, ExpRise, ExpFall, Sinc, Noise and DC) and manual, line, coordinates, formula to create arbitrary waveforms per your needs.
· 14 bit vertical resolution
· Built-in 46 kinds of arbitrary waveforms
· Standard powerful arbitrary waveform editing software, equipped with standard waveforms (Sine, Square, Ramp, Pulse, ExpRise, ExpFall, Sinc, Noise and DC) and manual, line, coordinates, formula to create arbitrary waveforms per your needs.
Specifications
| Bandwidth | 25 MHz 、50 MHz |
| Sample Rate | 125 MSa/s |
| Channels | 2 |
| Frequency Resolution | 1 μHz |
| Vertical resolution | 14 bit |
| Waveform Length | 16 kpts |
| Waveform | Sine,Square,Ramp,Pulse,Gaussian white noise,48 types of built-in function waveforms,Arb |
| Max. amplitude | ±10 V |
| Modulation type | AM, DSB-AM, FM, PM, PSK, FSK, ASK, PWM, Burst |
| Frequency counter | Frequency range:100 mHz~200 MHz |
| Standard interface | USB Host,USB Device |
| Optional interface | USB-GPIB Adapter |
| Display | 3.5” display, 480 x 272 x RGB |
Model
Max output frequency
Max sampling rate
Vertical resolution
Waveform length
Channels
SDG1050 (Discontinued)
50 MHz
125 MSa/s
14 bit
16 kpts
2 CH
SDG1025 (Discontinued)
25 MHz
125 MSa/s
14 bit
16 kpts
2 CH
