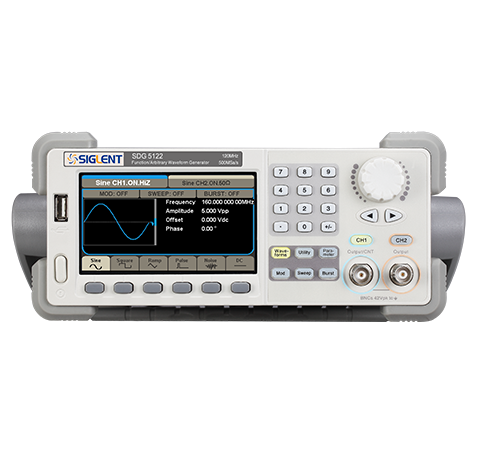

SDG5000 Series Function/Arbitrary Waveform Generator （Discontinued）
Main Features
- Up to 160 MHz Output Frequency
- 500 MSa/S Sampling Rate
- 14-bit Vertical Resolution
- 2 Isolated/Floating Outputs
- Hardware frequency counter
- Recommended model：SDG2000X or SDG6000X
×

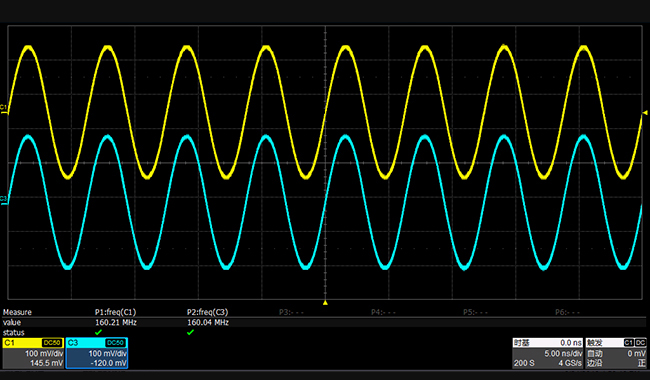

Excellent Channel Performance
The SDG5000 features dual isolated channels and high signal fidelity.
· Maximum output frequency 160 MHz.
· High amplitude output at high frequencies. 20 V signal output capability at 40 MHz
· Extremely low noise floor, high signal to noise ratio
· Maximum output frequency 160 MHz.
· High amplitude output at high frequencies. 20 V signal output capability at 40 MHz
· Extremely low noise floor, high signal to noise ratio

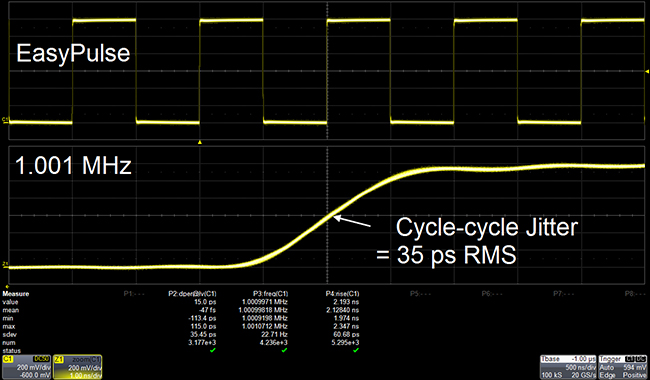

Innovative EasyPulse Technology
With traditional DDS technology, there will be a jitter of one sampling period when sampling rate and output frequency are not integer multiple. With EasyPulse technology, this can be solved perfectly. In addition to output low jitter Square and Pulse signals, EasyPulse tech has advantages of:
· Pulse frequency up to 40 MHz
· The rise and fall time can be set separately, fastest 12 ns
· Pulse width finely adjustable, down to 6 ns
· Duty cycle as low as 0.0001%
· Low jitter
· Pulse frequency up to 40 MHz
· The rise and fall time can be set separately, fastest 12 ns
· Pulse width finely adjustable, down to 6 ns
· Duty cycle as low as 0.0001%
· Low jitter

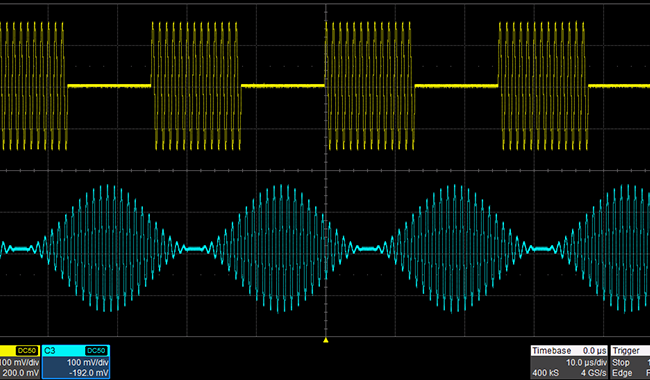

Complex Signal Generation Capability
The SDG5000 can perform various kinds of modulations, sweeps, burst and signal synthesis. It supports internal, external and manual trigger sources.
· Support AM, FM, PM, FSK, ASK, PSK, DSB-AM and PWM modulations
· Support linear and logarithmic sweeps.
· Support "N cycle" and "Gate" burst mode
· Support AM, FM, PM, FSK, ASK, PSK, DSB-AM and PWM modulations
· Support linear and logarithmic sweeps.
· Support "N cycle" and "Gate" burst mode
Arbitrary Waveform Output
· 16 kpts and 512 kpts arbitrary waveform length selectable
· 14 bit vertical resolution
· Build-in 46 kinds of arbitrary waveforms
· Standard powerful arbitrary waveform editing software, equipped with standard waveforms (Sine, Square, Ramp, Pulse, ExpRise, ExpFall, Sinc, Noise and DC) and manual, line, coordinates, formula to create arbitrary waveforms per your needs.
· 14 bit vertical resolution
· Build-in 46 kinds of arbitrary waveforms
· Standard powerful arbitrary waveform editing software, equipped with standard waveforms (Sine, Square, Ramp, Pulse, ExpRise, ExpFall, Sinc, Noise and DC) and manual, line, coordinates, formula to create arbitrary waveforms per your needs.
Specifications
| Bandwidth | 80 MHz ,120 MHz,160 MHz |
| Sample Rate | 500 MSa/s |
| Channels | 2 |
| Vertical resolution | 14 bit |
| Waveform length | CH1:16 Kpts, CH2:512 Kpts |
| Frequency resolution | 1 μHz |
| Waveform | Sine, Square, Ramp, Pulse, Gaussian Noise, DC, Built-in arbitrary waveforms |
| Modulation | AM,DSB-AM,FM,PM,FSK,ASK,PWM,Sweep,Burst |
| Frequency counter | Frequency range:100 mHz ~ 200 MHz |
| Standard interface | USB Host & Device |
| Optional interface | USB-GPIB Adapter |
| Dimension | Width×Height×Depth=261 mm × 105 mm × 344 mm |
Model
Max output frequency
Max sampling rate
Vertical resolution
Waveform length
Channels
SDG5082 (Discontinued)
80 MHz
500 MSa/s
14 bit
CH1:16 Kpts, CH2:512 Kpts
2 CH
SDG5112 (Discontinued)
110 MHz
500 MSa/s
14 bit
CH1:16 Kpts, CH2:512 Kpts
2 CH
SDG5122 (Discontinued)
120 MHz
500 MSa/s
14 bit
CH1:16 kpts, CH2:512 kpts
2 CH
SDG5162 (Discontinued)
160 MHz
500 MSa/s
14 bit
CH1:16 kpts, CH2:512 kpts
2 CH
