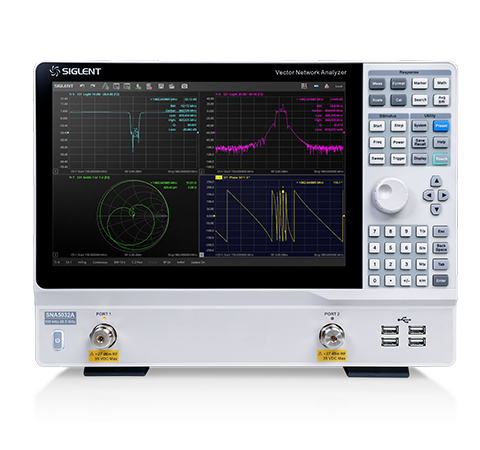

SNA5000A Vector Network Analyzer
Features
- Frequency range: 9 kHz ~ 8.5 GHz and 100 kHz - 26.5 GHz
- Setting range of output level: -55 dBm ~ +10 dBm
- Dynamic range: 125 dB
- Support 2/4-ports scattering-parameter, differential-parameter, and time-domain parameter measurements
- Support one-key measurement of Q-factor, bandwidth and insertion loss of a filter
- Support impedance conversion, fixture simulation and adapter removal/insertion adjustments
- Optional spectrum analyzer and TDR functions
×
Low noise floor and a wide dynamic range for accurate measurements

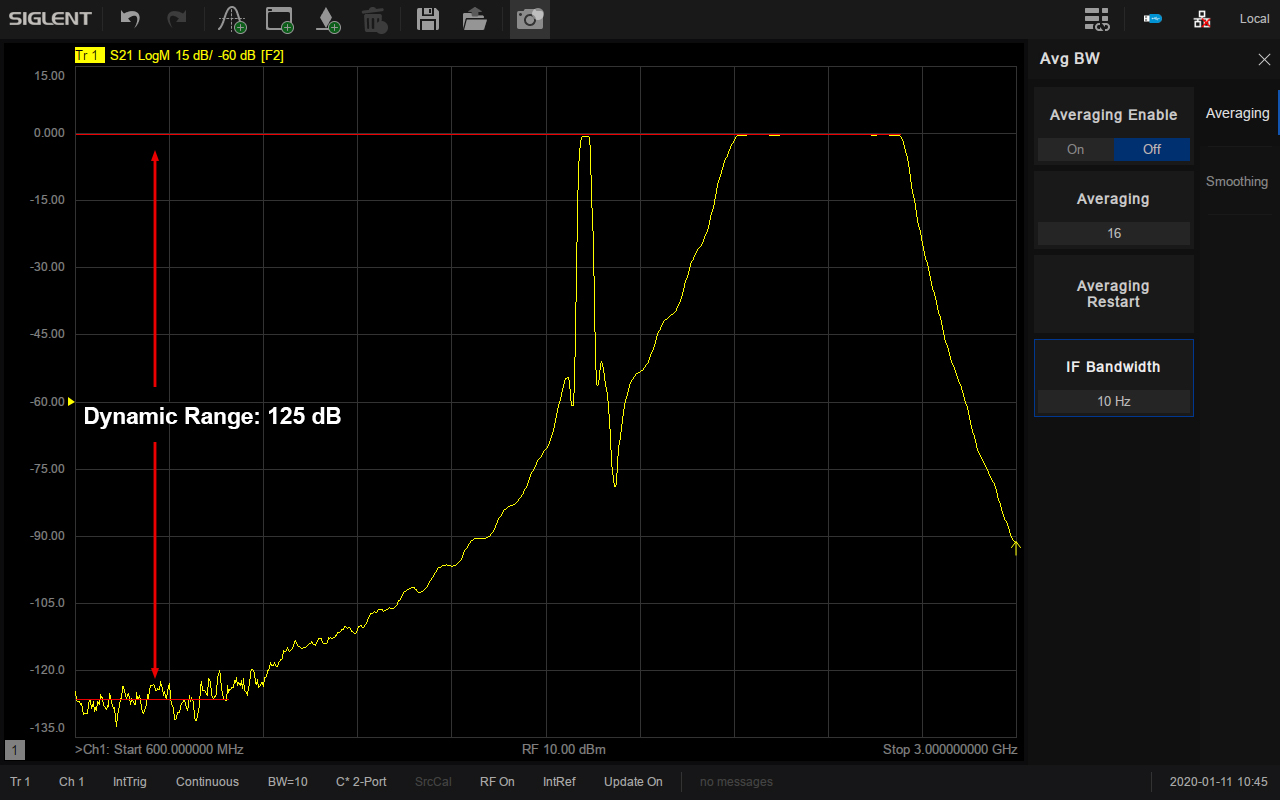

System Dynamic range, the difference between the measurement power available at the test port and the noise floor of the receiver is critical parameter of a VNA. The SIGLENT SNA5000A dynamic range is up to 125 dB@10 Hz IFBW, noise floor is down to -125 dBm/Hz, satisfies specific RF test requirements like test passband and out-of-band rejection of filters simultaneously.
Abundant measurements and display formats
SNA5000A supports scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, enchanced time-domain parameter analysis (TDR).

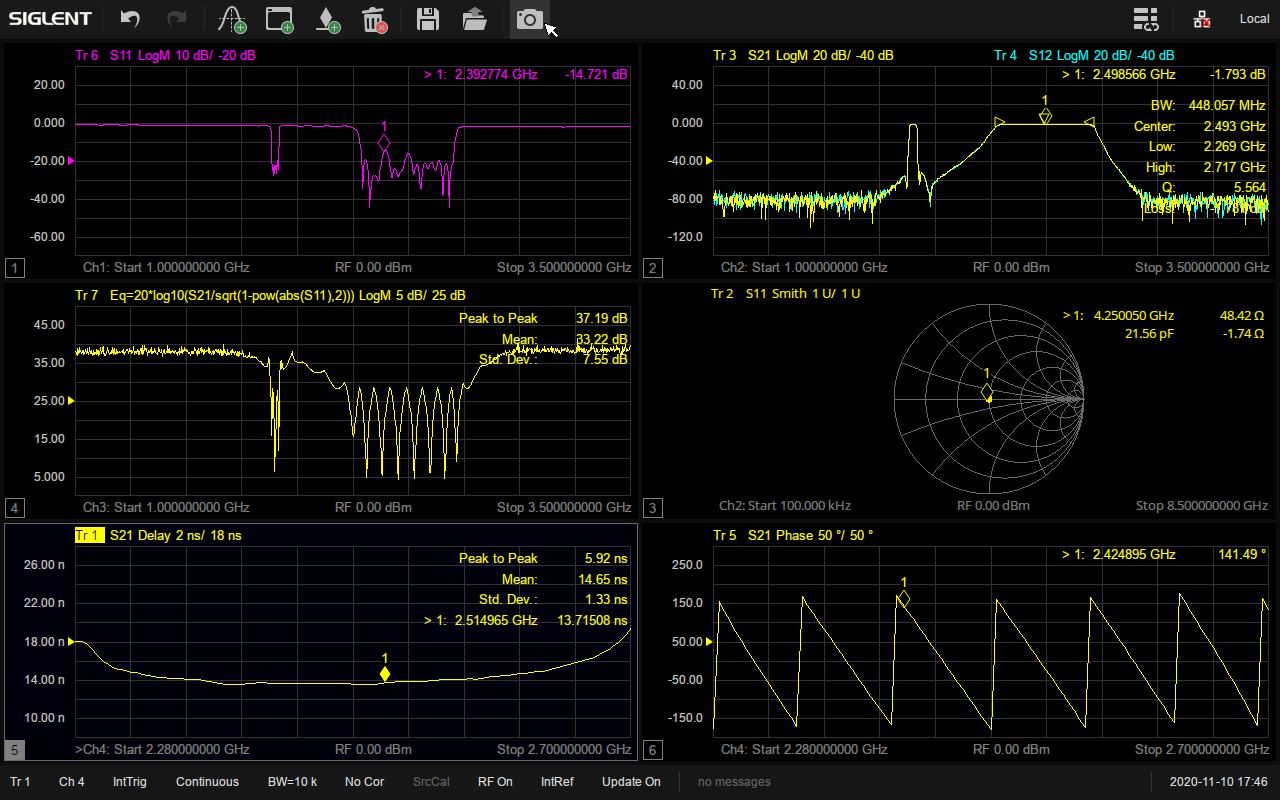

There are shortcuts to add traces and windows to perform full 4 port S parameters measurements. Various kinds of display formats incluing Log Mag, Lin Mag, Phase, Delay, Smith, SWR, Polar provide convenience to analyze DUT transmission and reflection coefficients, SWR, impedance match, phase, delay. In antenna and filter manufacturing, reference trace and limit test is an efficiency booster for production.
There are shortcuts to add traces and windows to perform full 4 port S parameters measurements. Various kinds of display formats incluing Log Mag, Lin Mag, Phase, Delay, Smith, SWR, Polar provide convenience to analyze DUT transmission and reflection coefficients, SWR, impedance match, phase, delay. In antenna and filter manufacturing, reference trace and limit test is an efficiency booster for production.
Enhanced Time-Domain Analysis (TDR)
The SNA5000A TDR option contains two parts: TDR/TDT(Time Domain Reflection/Transmission) and Eye/Mask.
TDR intuitively display impedance discontinuous position and characteristics. It can indicate the impedance of every point along the transmission line, helps to locate fault points. With time domain gating, easily eliminate influences of some kinds of mismatch. It helps to analyze the influences of malfunctions to DUT characteristics.

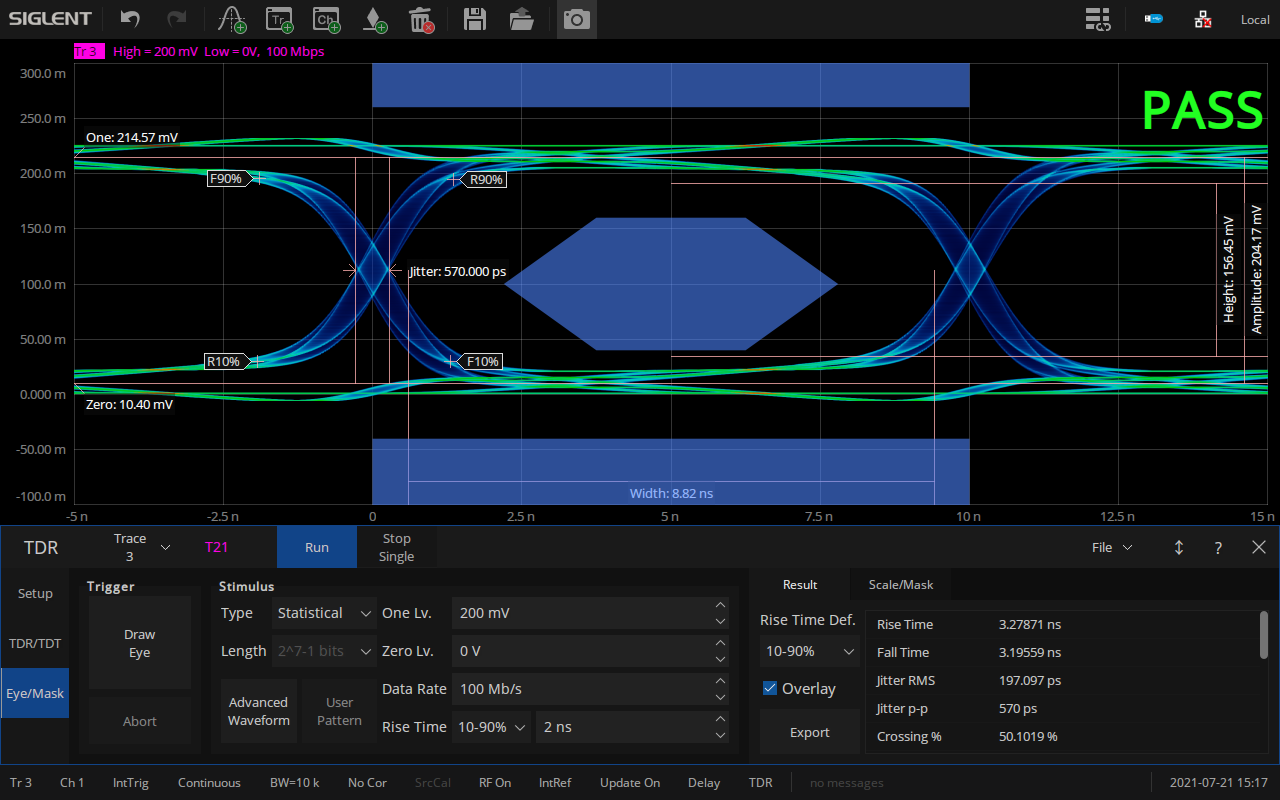

Without the need of an external generator, it can generate eye diagram with internal virtual pattern generator. Eye/Mask is a genuine signal integration analysis tool.
Eye function provides high performance waveform simulation ability. Without need to change external connections, it can easily improve signal transmission quality at the transmit end with application of pre-emphasis/de-emphasis technology, while at receive end the equalization technique.
Eye function also provides jitter injection function to simulate signals with jitter and to see what effects can it bring to signal transmission.
TDR intuitively display impedance discontinuous position and characteristics. It can indicate the impedance of every point along the transmission line, helps to locate fault points. With time domain gating, easily eliminate influences of some kinds of mismatch. It helps to analyze the influences of malfunctions to DUT characteristics.
Without the need of an external generator, it can generate eye diagram with internal virtual pattern generator. Eye/Mask is a genuine signal integration analysis tool.
Eye function provides high performance waveform simulation ability. Without need to change external connections, it can easily improve signal transmission quality at the transmit end with application of pre-emphasis/de-emphasis technology, while at receive end the equalization technique.
Eye function also provides jitter injection function to simulate signals with jitter and to see what effects can it bring to signal transmission.
Extend the Power to Multiport Devices

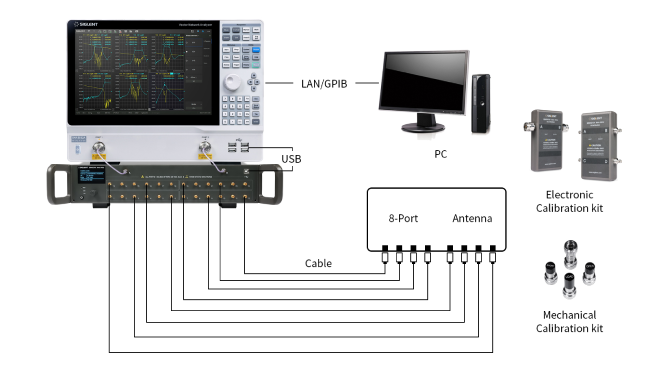

SSM single unit can expand the output ports to 24 and can be easily integrated, greatly adapt to the automatic test system and production line scenarios. The multi-port measurement capability of VNA can improve test throughput and thereby significantly reduce device test costs. Typical applications include design, verification and production of antenna, data converter interfaces, automatic test of RF components and other devices, etc.
Future-Proof Your Material Test
SIGLENT deliver a comprehensive material measurement solution ideal for lab, manufacture and university environments, including SNA series precision instruments, MT materials measurement software, KWR42A waveguide calibration kit. The measurement wizard guides the user through the measurement process and the results can be plotted in a variety of formats.
Advanced Calibration
SIGLENT offers a variety of calibration kits with the frequency range up to 26.5 GHz for both general purpose and precision-level requirements. Other electronics test equipment manufacturers Cal kits are available in SNA5000A VNAs, and the importing of user-defined Cal kits are supported, saves the customers investment on calibration.
Specifications
Frequency range | 9kHz - 4.5GHz/8.5GHz and 100kHz-13.5/26.5GHz |
Frequency resolution | 1Hz |
Level resolution | 0.05dB |
Range of IFBW | 10Hz~3MHz |
Setting range of output level | -55dBm ~ +10dBm |
Dynamic range | 125dB |
Types of calibration | Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration |
Support Bias-Tees | Yes |
Interface | LAN,USB Device,USB Host(USB-GPIB) |
Remote control | SCPI / Labview / IVI based on USB-TMC / VXI-11/ Socket / Telnet / Webserver |
Touch control | Multi Touch,Mouse,Keyboard |
Screen | 12.1-inch touch screen |
Video output | HDMI |
Types of measurement | Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement |
Model
Frequency range
Ports
Dynamic range
Trace noise
Range of output level
SNA5002A
9kHz ~ 4.5GHz
2
125dB
0.003dB rms,0.03°rms
-55 dBm ~ +10 dBm
SNA5004A
9kHz ~ 4.5GHz
4
125dB
0.003dB rms,0.03°rms
-55 dBm ~ +10 dBm
SNA5012A
9kHz ~ 8.5GHz
2
125dB
0.003dB rms,0.03°rms
-55 dBm ~ +10 dBm

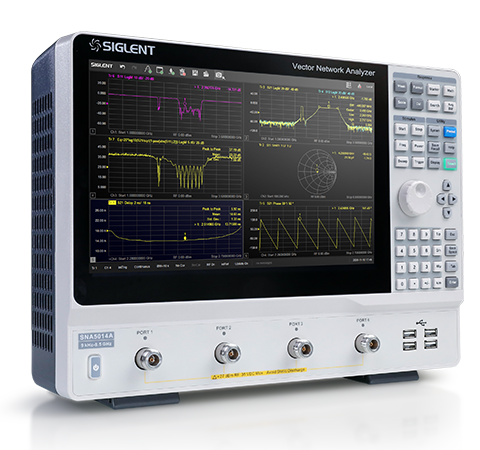

SNA5014A
9 kHz ~ 8.5 GHz
4
125dB
0.003dB rms,0.03°rms
-55 dBm ~ +10 dBm
SNA5022A
100 kHz ~ 13.5 GHz
2
125 dB
0.003dB rms,0.03°rms
-55 dBm ~ +10 dBm
SNA5032A
100 kHz ~ 26.5 GHz
2
125 dB
0.003dB rms,0.03°rms
-55 dBm ~ +10 dBm
