DC Power Supplies

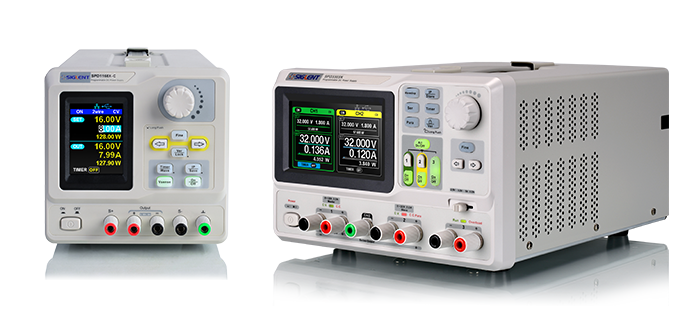

The SPD3303 series is the latest high-precision programmable linear DC power supply family from SIGLENT Technologies. The new SPD3303 series design is based on previous SIGLENT designs and not only combines the outstanding features of its predecessors but also brings many new features; including front panel programming, timing output, graphical display, smart temperature-controlled fan and remote control communications.
The SPD3303 series DC Power Supply has separate output channel control and independent triple outputs, independent, series and parallel output modes which allow you to quickly add output voltage (series mode) or add output current (parallel mode) limits by internally linking output 1 and 2. It also includes many advanced features, including comprehensive over voltage/current/temperature protection, 100/120/220/230 V compatible design, low ripple and noise, fast transient response, and a USB remote control interface.
The SPD3303 series DC Power Supply has separate output channel control and independent triple outputs, independent, series and parallel output modes which allow you to quickly add output voltage (series mode) or add output current (parallel mode) limits by internally linking output 1 and 2. It also includes many advanced features, including comprehensive over voltage/current/temperature protection, 100/120/220/230 V compatible design, low ripple and noise, fast transient response, and a USB remote control interface.
Comparison
Model
Output channel
Display
Resolution
Setting accuracy
Readback accuracy
Comparison
0
/
3

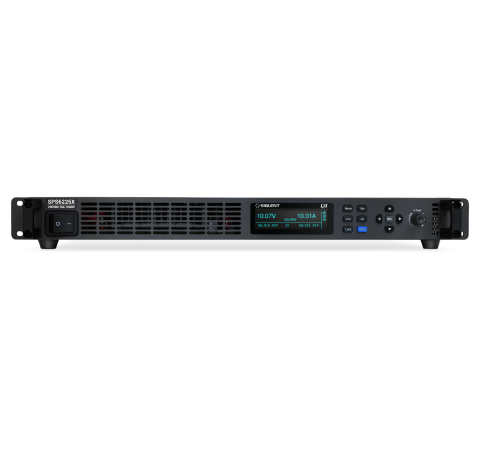

SPS5000X
40V/30A/360WX3;40V/60A/720W;40V/90A/1080W;80V/15A/360W;80V/15A/360WX2;80V/15A/360WX3;80V/30A/720W;80V/45A/1080W;160V/7.5A/360W;160V/7.5A/360WX2;160V/7.5A/360WX3;160V/15A/720W;160V/22.5A/1080W
2.4-inch OLED high brightness liquid crystal display
1mV/1mA
40/80V model:0.1%±10mV,160V model:0.1%±100mV;40V 30/60/90A/ model:0.1%±30/60/100mA,80V 15/30/45A model:0.1%±10/30/40mA,160V 7.5/15/22.5A model:0.1%±5/15/20mA
40/80/160V model:1mV;40V 30/60/90A model:0.1%±40/70/100mA,80V 15/30/45A model:0.1%±20/40/50mA,160V 7.5/15/22.5A model:0.1%±5/15/20mA
Comparison
0
/
3

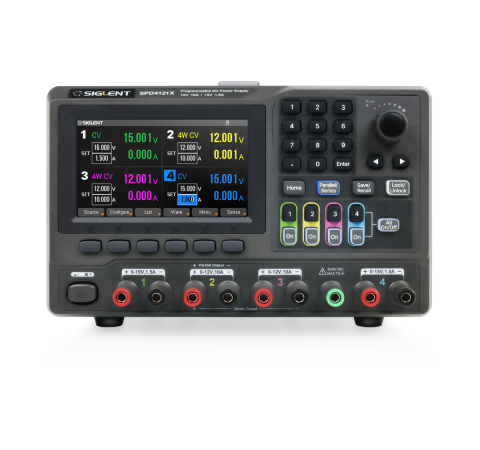

SPD4000X
6V / 12V / 15V / 30V / 32V, 1A / 1.5A / 3.2A / 6A / 10A
4.3" TFT-LCD 5-digit voltage and current display
1mV, 1mA
Voltage:±(0.3% of reading+10) mV Current:±(0.3% of reading+10) mA
Voltage:±(0.3% of reading+10) mV Current:±(0.3% of reading+10) mA
Comparison
0
/
3

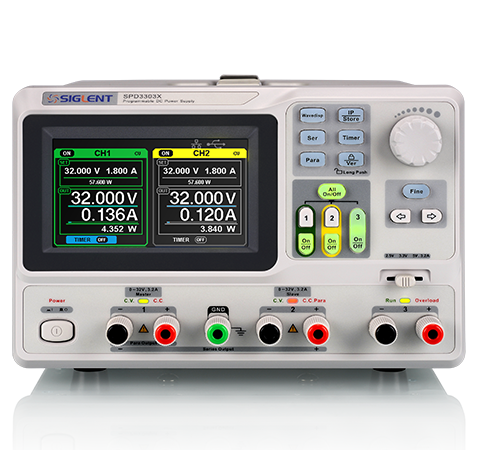

SPD3303X/X-E
CH1/CH2: output voltage 0~32 V output current 0~3.2 A CH3: output voltage 2.5/3.3/5.0 V output current 0~3 A
4.3 inch
10 mV,10 mA / 1 mV,1 mA
Voltage ±(0.5% of reading + 2 digits); current ±(0.5% of reading + 2 digits)
Voltage ±(0.5% of reading + 2digits); current±(0.5% of reading + 2digits)
Comparison
0
/
3

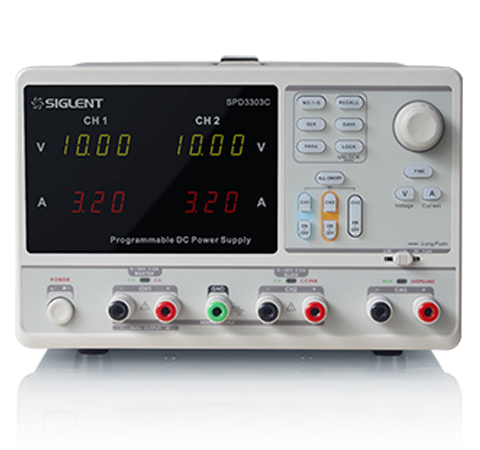

SPD3303C
CH1/CH2： output voltage 0 ~ 32 V output current 0 ~ 3.2 A CH3： output voltage 2.5 / 3.3 / 5.0 V output current 0 ~ 3 A
LED display 4 bits voltage display,3 bits current display
10 mV / 10 mA
voltage ± (0.5% of reading + 2 digits) current ± (0.5% of reading + 2 digits)
voltage ± (0.5% of reading + 2 digits) current ± (0.5% of reading + 2 digits)
Comparison
0
/
3

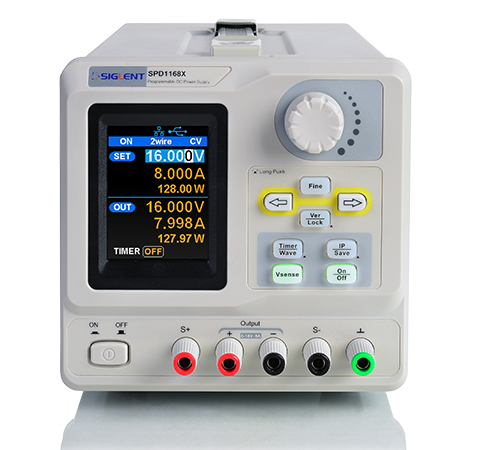

SPD1000X
30 V / 5 A , 16 V / 8 A
2.8 inch true color TFT-LCD 5 digit voltage/4 digit current
1 mV / 1 mA
Voltage: ±(0.03% of reading + 10 mV) Current: ±(0.3% of reading + 10 mA)
Voltage: ±(0.03% of reading + 10 mV) Current: ±(0. 3% of reading + 10 mA)
Options
SPD3000-RMK
Rackmount kit,compatible with SPD3000X/X-E/D/S/C models
SPS5000X-SEC
Series connection cable for SPS5000X power supplies
SPS5000X-PAC
Parallel connection cable for SPS5000X power supplies
Accessories
SPD1000X QuickStart
SPD1000X QuickStart
SPD3303C QuickStart
SPD3303C QuickStart
SPD3303X QuickStart
SPD3303X QuickStart
USB Cable
USB-A to USB-B. Used to connect instrument to PC for communication.
