SNA5000X-E Vector Network Analyzer
Features
- Frequency range: 9 kHz to 6.5 GHz
- Range of IFBW: 1 Hz to 10 MHz
- Dynamic range: 125 dB (typ.)
- Setting range of output level: -40 dBm to +10 dBm
- OCXO and standard Bias-Tee
- 2 ports: Spectrum Analysis, Time Domain, Enhanced Time Domain
- Compact chassis (12.6 cm depth) and lightweight (<5.4 kg)
×
Advanced Analysis Functions

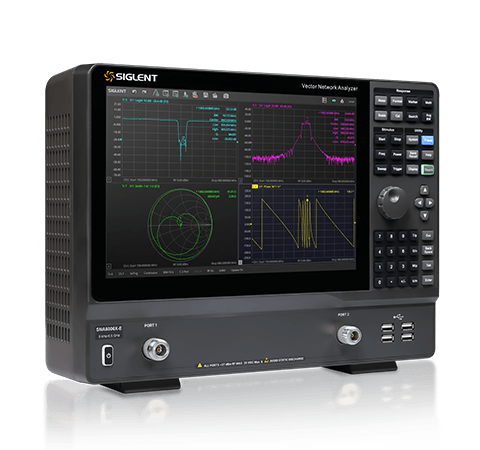

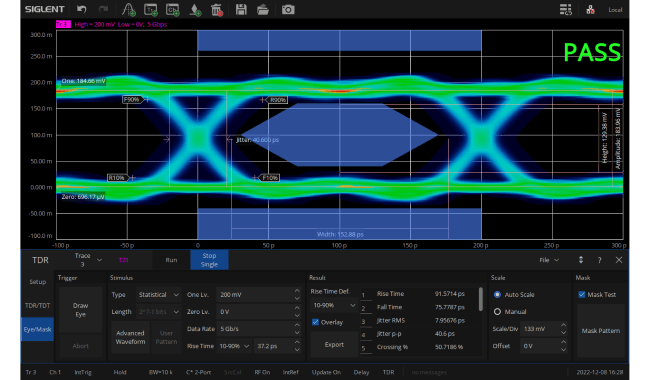

The SNA5000X-E supports comprehensive S-parameter and differential measurements, along with integrated time-domain analysis, enhanced time-domain analysis, and spectrum analysis functions. These capabilities enable engineers to evaluate frequency-domain characteristics, analyze impedance discontinuities, and quickly locate faults within devices under test. A built-in eye diagram function further supports high-speed signal integrity analysis, improving debugging efficiency during development.
Fixture Error Compensation

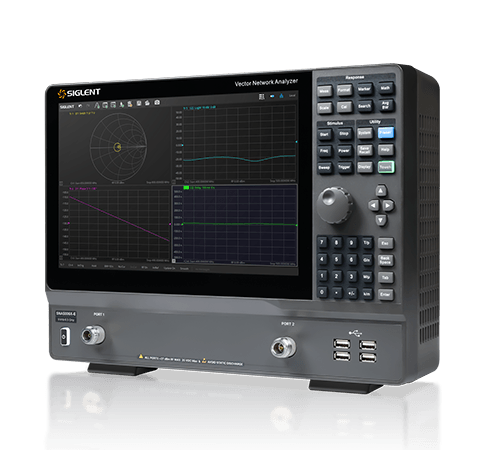

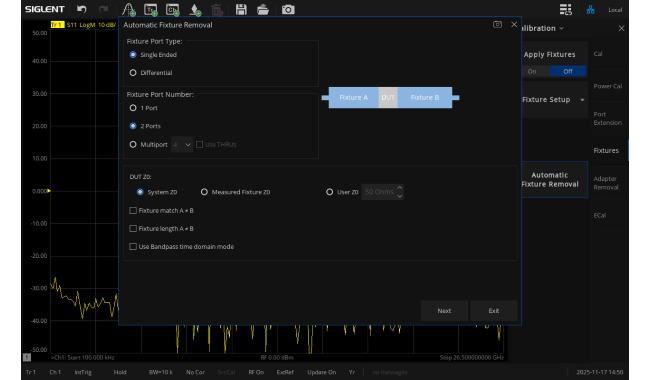

To address fixture-induced measurement errors commonly encountered in RF testing, the SNA5000X-E incorporates automatic fixture removal, port extension, de-embedding, and impedance conversion functions. These tools effectively compensate for cable delay and loss, minimizing systematic errors and ensuring high confidence in measurement results.
Compact and User-Friendly Design

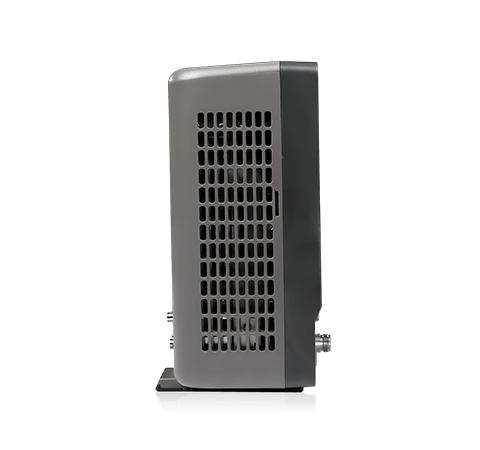

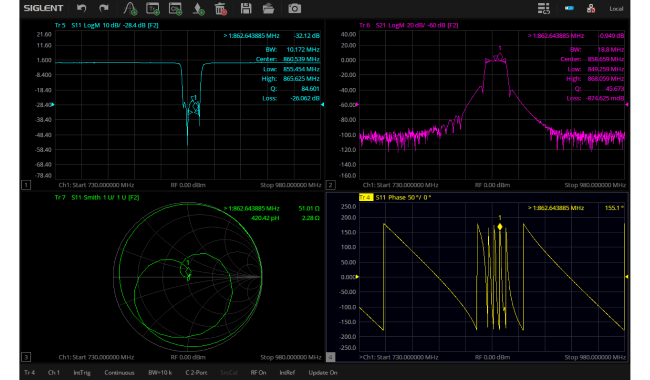

Designed for modern laboratories and production lines, the SNA5000X-E features a compact form factor with an instrument depth of only 12.6 cm and a weight of less than 5.4 kg. This significantly reduces workspace requirements compared to traditional network analyzers. The instrument is equipped with a 12.1-inch touchscreen that supports multi-window display and multiple data formats, creating an intuitive and efficient operating experience.
Automation and Production Test

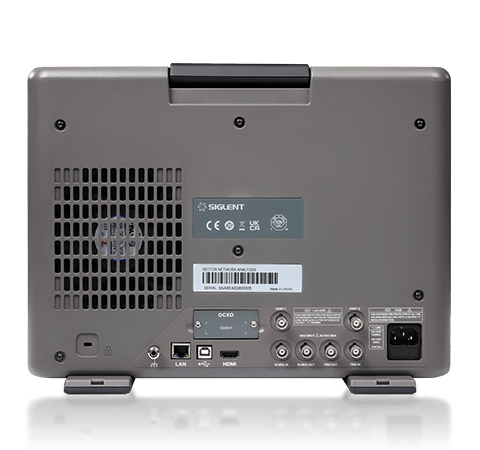

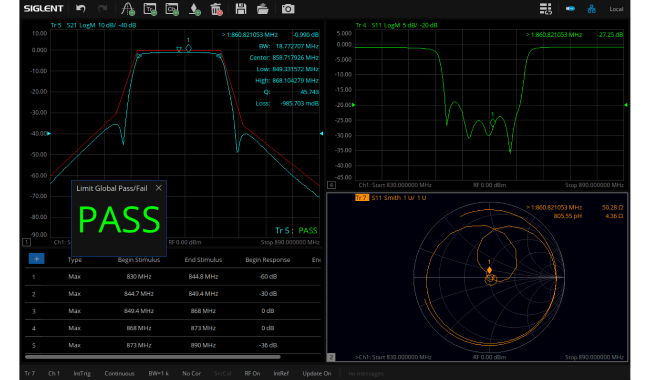

For production and automated test environments, the SNA5000X-E offers one-click filter characteristic analysis to quickly obtain key parameters such as insertion loss and bandwidth. It also supports custom formula operations and remote control via SCPI and WebServer, enabling seamless integration into automated systems and helping standardize and streamline testing workflows.
Specifications
| Frequency range | 9kHz-6.5GHz |
| Frequency resolution | 1Hz |
| Level resolution | 0.05dB |
| Range of IFBW | 1Hz~10MHz |
| Setting range of output level | -40dBm ~ +10dBm |
| Dynamic range | 117dB |
| Types of calibration | Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration |
| Support Bias-Tees | Yes |
| Interface | LAN，USB Device，USB Host(USB-GPIB) |
| Remote control | SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer |
| Screen | 12.1-inch touch screen |
| Video output | HDMI |
| Types of measurement | Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis |
Model
Frequency range
Ports
Dynamic range
Trace noise
Range of output level
SNA5003X-E
9 kHz to 3 GHz
2
117 dB
0.006 dB rms, 0.05° rms
-40 dBm ~ 10 dBm
SNA5006X-E
9 kHz to 6.5 GHz
2
117 dB
0.006 dB rms, 0.05° rms
-40 dBm ~ 10 dBm
