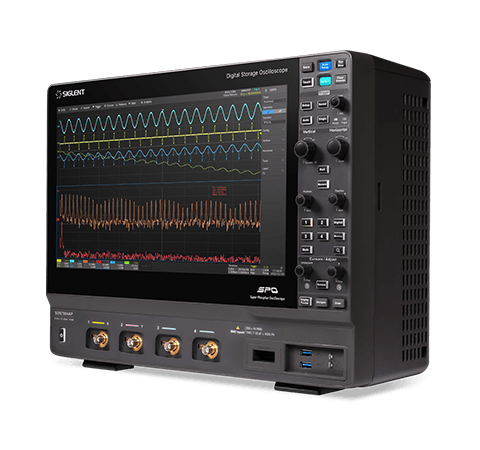

SDS7000A Digital Storage Oscilloscope
Main Features
  • Bandwidth up to 8 GHz, 12-bit ADC resolution
  • Real-time sampling rate up to 20 GSa/s
  • Record Length up to 2 Gpts/ch
  • Waveform capture rate up to 1,000,000 wfm/s
  • RTSA, SigVSA, Eye diagram, Jitter analysis, Compliance Test, Power analysis, Bode plot, MSO, AWG
  • SAP5000D, 5 GHz High-speed differential probe
×

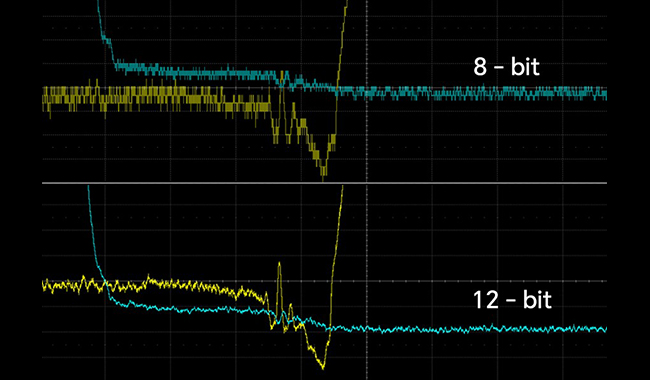

Restore the signal perfectly
The sampling rate of 20 GSa/s eliminates signal distortion. With a long storage depth of up to 2 Gpts/ch, capture complete signal sequences for up to 50 millisec at max sampling rate without any gaps. Utilize search and navigate or history tools to analyze the entire stored trace. Each sample utilizes the 12-bit ADC, limiting the quantization error, which can help engineers to observe the details of the waveform clearly and measure the waveform accurately.

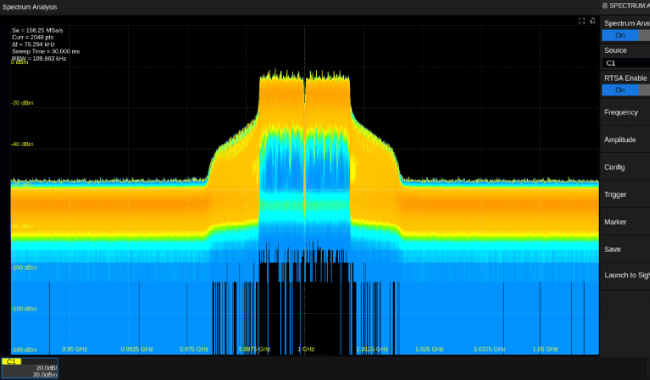

Real-Time Spectrum Analysis (RTSA)
Equipped with RTSA and digital down-conversion (DDC) technologies, the SDS7000A supports up to 1 GHz Real-Time analysis bandwidth. Advanced display modes include density plots, spectrum monitoring, and 3D visualizations. Compared to traditional superheterodyne spectrum analyzers, the SDS7000A offers higher bandwidth and faster signal acquisition — ideal for capturing transient events in 5G NR, 4G LTE, and Wi-Fi.

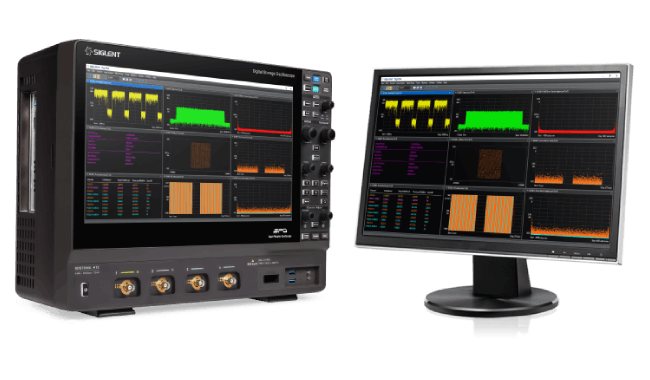

Integrated Vector Signal Analysis (SigVSA)
The SDS7000A features SigVSA vector signal analysis software, allowing direct signal analysis from DDC output without external equipment. It supports demodulation of signal types ranging from basic BPSK to complex wideband signals, such as those in 4G LTE, 5G NR, IEEE 802.11b/a/g/n/ac/ax/be standards, and 4096QAM. Both real-time and offline waveform analysis are supported, providing flexibility for laboratory and post-processing workflows.

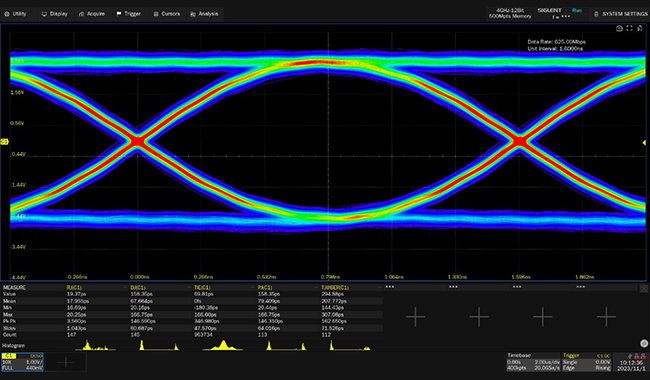

Eye/Jitter analysis
As the core of signal integrity analysis of high-speed systems, eye diagrams characterize high speed communication signals. The quality of the system can be evaluated by observing the influence of inter-symbol crosstalk, noise, and bandwidth. Jitter analysis characterizes the statistical distribution of small timing changes in a systems and is often used to debug digital communication systems and high-speed signal transmission. The SDS7000A series supports automatic parameter measurements for jitter and eye characterization. Easy setup and automatic measurements speed debugging and simplify engineering design testing.

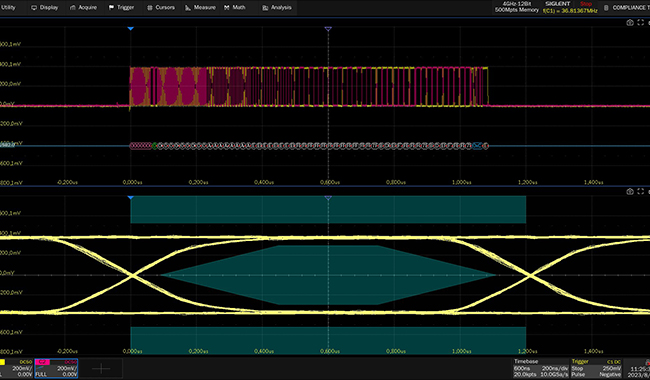

Protocol consistency analysis
USB 2.0, 100Base-TX, 1000Base-T, 2.5G/5G/10GBase-T, 100Base-T1, 1000Base-T1, MIPI-DPHY protocol conformance testing are available. When the user sets up the environment according to the prompts, by using the related test fixture, the oscilloscope and related instruments can be automatically set up and related measurement, calculation, decoding and other functions will be used for testing, helping the user to complete each test project quickly and efficiently, and reports are generated automatically.
SAP5000D active differential probe(5GHz)
The SAP5000D is our highest performing active differential probe kit providing up to 5 GHz of bandwidth and low noise for detailed signal analysis. Its high input resistance and low input capacitance can ensure that the load introduced by the measurement system is minimized. SAP5000D active probe utilizes the SAPBus interface, making it suitable for oscilloscopes including the SDS5000X, SDS6000A and SDS7000A series. These probes do not need an additional external power supply and are automatically recognized by the oscilloscope.
Specifications
Bandwidth 3、4 、6、8 GHz
Sample Rate(Max.) A Models:20 GSa/s (dual-channel)
                   10 GSa/s (3 or 4 channels)
AP Models:20 GSa/s @ all channels
Waveform capture rate(Max.) 1,000,000 wfm/s
Analog channels 4 + EXT
Trigger type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode Standard: I2C, SPI, UART, CAN, LIN
Optional: CAN FD, CAN XL(decode only), FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429, USB 2.0 (decode only)
Data analysis Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis, Eye/Jitter Analysis, SignalScan, Compliance Test (USB 2.0, 100Base-TX, 1000Base-T, 2.5G/5G/10GBase-T, 100Base-T1, 1000Base-T1, MIPI-DPHY), Spectrum Analyzer mode (RTSA/DDC/Sigal analysis, for A models only)
Digital channel  16-channel; maximum sample rate up to 1 GSa/s;
record length up to 50 Mpts
Waveform generator (optional) Builit-in, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory

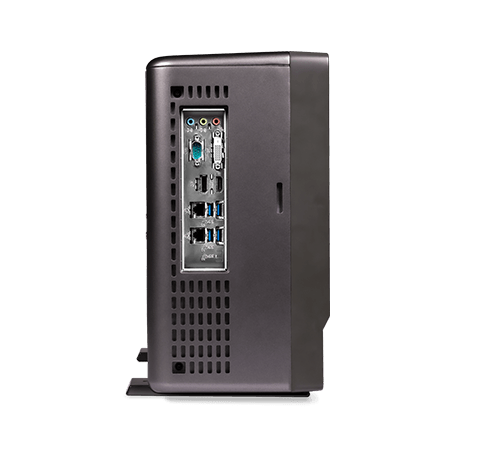

I/O 4x USB Host 3.1 Gen 1,2x USB 3.0 Host,USB 2.0 Device (USBTMC),2x 1000M LAN (VXI-11+SCPI, Telnet (5024)+SCPI,Socket (5025)+SCPI,LXI,WebServer)
Display: 1x DVI-D: up to 1920x1200 @ 60Hz; 1x DP 1.2: up to 4096x2304 @ 60Hz; 1x HDMI 1.4: up to 4096x2160 @ 60Hz
Audio: Mic input, Audio Output
Others: External Trigger In, Aux Out (TRIG OUT,PASS/FAIL),10 MHz In,10 MHz Out
Probe (standard) 500 MHz, 1 probe supplied for each channel
Display  15.6” HD TFT-LCD with capacitive touch screen (1920*1080)
Model
Bandwidth
Channel
Sampling Rate
Waveform Update Rate
Memory Depth
SDS7304A H12
3 GHz
4 + EXT
20 GSa/s (dual-channel)
1,000,000 wfm/s
Standard: 500 Mpts/ch Optional: 1 Gpts/ch
SDS7404A H12
4 GHz
4 + EXT
20 GSa/s (dual-channel)
1,000,000 wfm/s
Standard: 500 Mpts/ch Optional: 1 Gpts/ch
SDS7604A H12
6 GHz
4 + EXT
20 GSa/s (dual-channel)
1,000,000 wfm/s
Standard: 500 Mpts/ch Optional: 1 Gpts/ch
SDS7804A H12
8 GHz
4 + EXT
20 GSa/s (dual-channel)
1,000,000 wfm/s
Standard: 500 Mpts/ch Optional: 1 Gpts/ch
SDS7604AP
6 GHz
4 + EXT
20 GSa/s(all channel)
1,000,000 wfm/s
Standard: 1 Gpts/ch
Optional: 2 Gpts/ch
SDS7804AP
8 GHz
4 + EXT
20 GSa/s(all channel)
1,000,000 wfm/s
Standard: 1 Gpts/ch
Optional: 2 Gpts/ch
