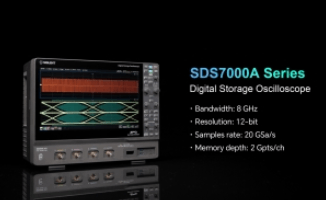

SDS7000A Digital Storage Oscilloscope
Main Features
- Bandwidth up to 6 GHz, 12-bit ADC resolution
- Real-time sampling rate up to 20 GSa/s
- Record Length up to 1 Gpts
- Waveform capture rate up to 1,000,000 wfm/s
- Eye diagram, Jitter analysis, Compliance Test, Power analysis, Bode plot, MSO, AWG
- SAP5000D, 5 GHz High-speed differential probe
SDS7000A Series Introduction
SDS7000A provides 4 analog channels and 16 digital channels, with bandwidths of 3GHz and 4GHz, expanding design applications to new test requirements. The sampling rate is as high as 20GSa/s, vertical resolution is 12-bit (by hardware), the storage depth is 500 Mpts/ch as standard, and 1 Gpts/ch is optional. The noise floor is as low as 220μVrms at 4 GHz bandwidth. The waveform capture rate is as high as 1 million wfm/s, which can easily capture abnormal events, and has a 15.6-inch high-definition touch screen, which can quickly complete the setting and improve the user's efficiency.
