Digital Oscilloscopes
SIGLENT oscilloscopes provide the perfect balance between features and price. With bandwidths from 50 MHz to 4 GHz, low noise vertical scales down to 500 uV/div, and features like compliance test，serial decoding, sequence function, Eye diagram / Jitter analysis and MSO capabilities, SIGLENT will quickly become your scope of choice.
Comparison
Model
Bandwidth
Channel
Sampling Rate
Waveform Update Rate
Memory Depth
Comparison
0
/
3

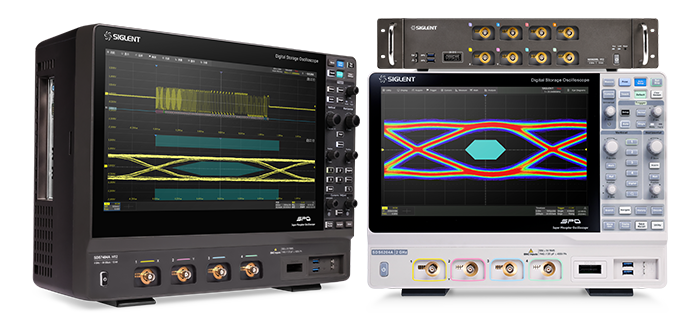

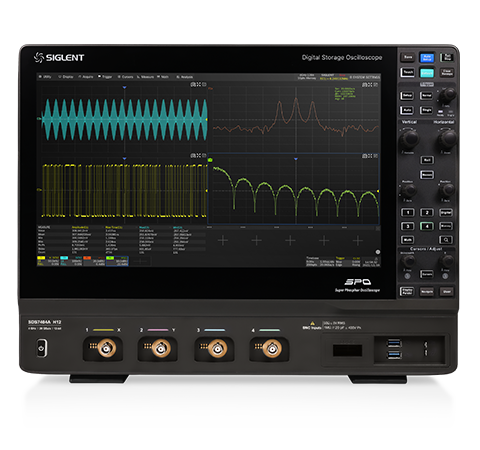

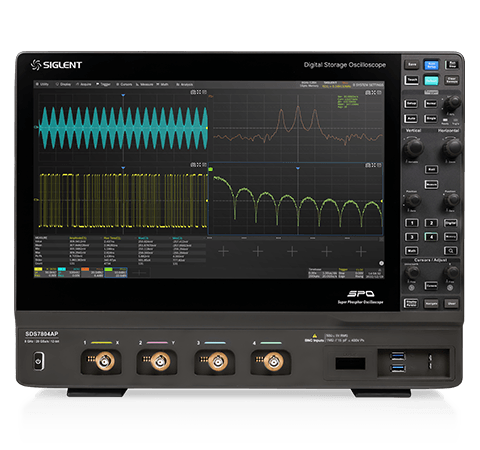

SDS7000A
3、4、6 GHz
4 + EXT
20 GSa/s (dual-channel)
1,000,000 wfm/s
Standard: 500 Mpts/ch
Optional: 1 Gpts/ch
Optional: 1 Gpts/ch
Comparison
0
/
3

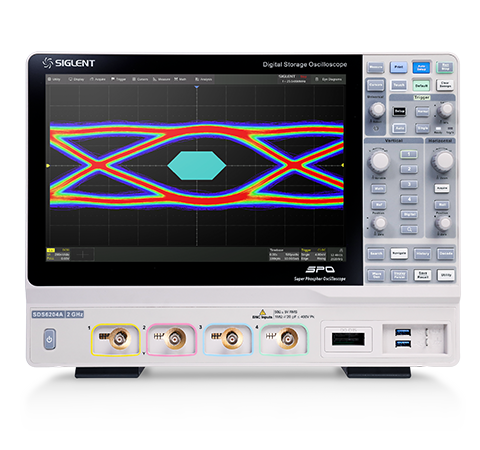

SDS6000A
500 MHz,1 GHz,2 GHz
4 + EXT
5 GSa/s (10 GSa/s ESR) per channel
170,000 wfm/s (normal mode), 750,000 wfm/s (sequence mode)
500 Mpts
Comparison
0
/
3

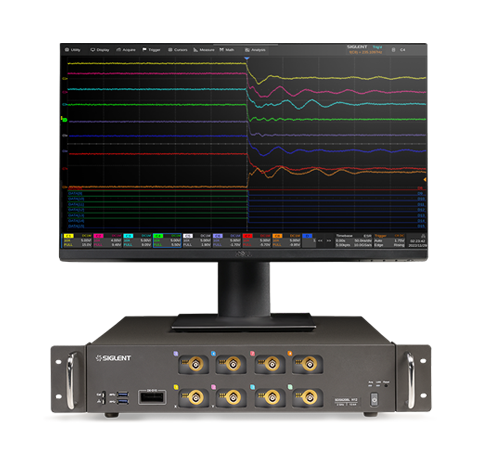

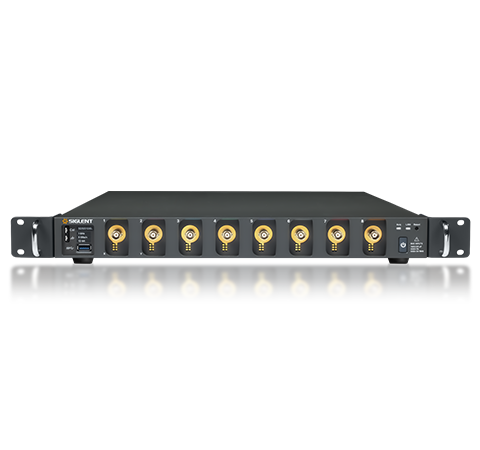

SDS6000L
500 MHz,1 GHz,2 GHz
8/4 + EXT
5 GSa/s (10 GSa/s ESR) per channel
170,000 wfm/s (normal mode), 750,000 wfm/s (sequence mode)
500 Mpts
Comparison
0
/
3
SDS5000X
350 MHz,500 MHz,1 GHz
2/4 + EXT
5 GSa/s (single-channel)
2.5 GSa/s (dual-channel)
2.5 GSa/s (dual-channel)
110,000 wfm/s (normal mode)
500,000 wfm/s (sequence mode)
500,000 wfm/s (sequence mode)
250 Mpts (single-channel)
125 Mpts (dual-channel)
125 Mpts (dual-channel)
Comparison
0
/
3
SDS3000X HD
350 MHz、500 MHz、1 GHz
4 + EXT
12-bit
4 GSa/s
890,000 wfm/s
Comparison
0
/
3

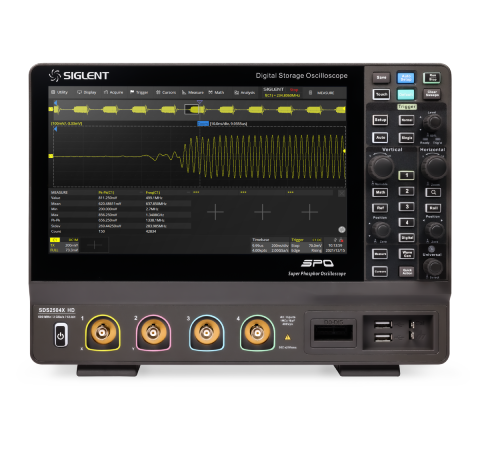

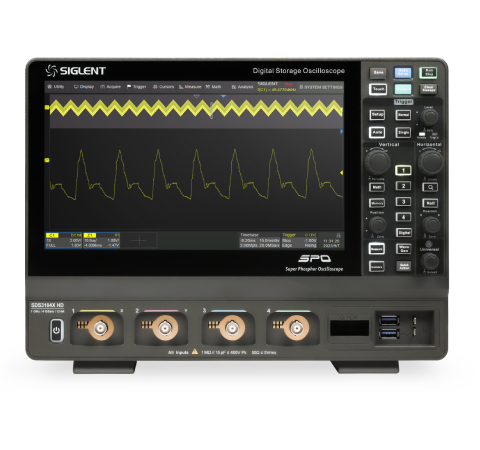

SDS2000X HD
200MHz, 350MHz
4 + EXT
2 GSa/s (interleaving mode）
Normal mode：100,000 wfm/s;
Sequence mode：500,000 wfm/s
Sequence mode：500,000 wfm/s
200 Mpts/ch (interleaving mode)
Comparison
0
/
3

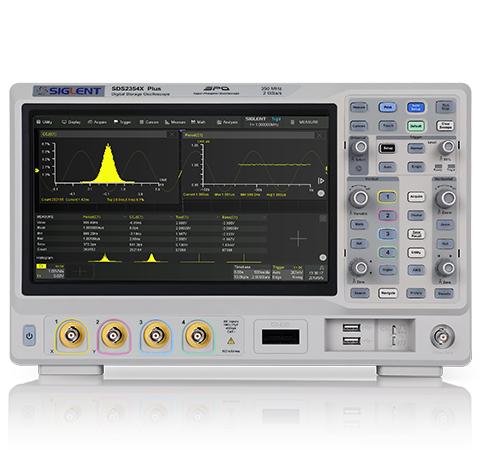

SDS2000X Plus
100 MHz,200 MHz,350 MHz
2/4 + EXT
2 GSa/s
500,000 wfm/s
200 Mpts/ch
Comparison
0
/
3
SDS2000X (Discontinued)
70 MHz,100 MHz,200 MHz,
300 MHz
300 MHz
2/4 + EXT
2 GSa/s (single-channel)
1 GSa/s (dual-channel)
1 GSa/s (dual-channel)
140,000 wfm/s (normal mode)
500,000 wfm/s (sequence mode)
500,000 wfm/s (sequence mode)
140 Mpts (single-channel)
70 Mpts (dual-channel)
70 Mpts (dual-channel)
Comparison
0
/
3

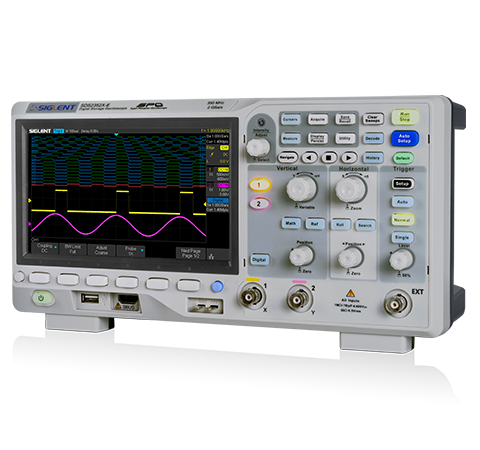

SDS2000X-E(Discontinued)
200 MHz,350 MHz
2 + EXT
2 GSa/s
110,000 wfm/s (normal mode)
400,000 wfm/s (sequence mode)
400,000 wfm/s (sequence mode)
28 Mpts (single-channel)
14 Mpts (dual-channel)
14 Mpts (dual-channel)
Comparison
0
/
3

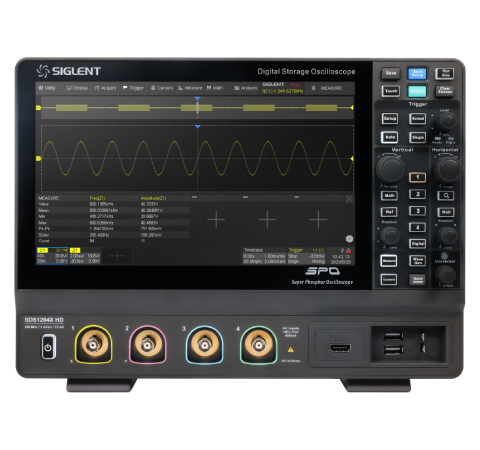

SDS1000X HD
100 MHz、200 MHz
2 + EXT、4 + EXT
12-bit
2 GSa/s
500,000 wfm/s
Comparison
0
/
3

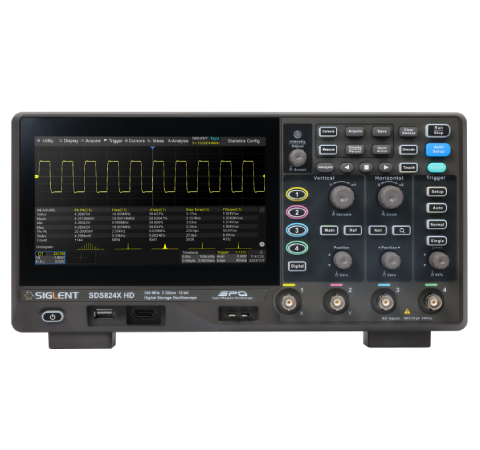

SDS800X HD
70 MHz、100 MHz、200 MHz
2 、4
12-bit
2 GSa/s
500,000 wfm/s
Comparison
0
/
3

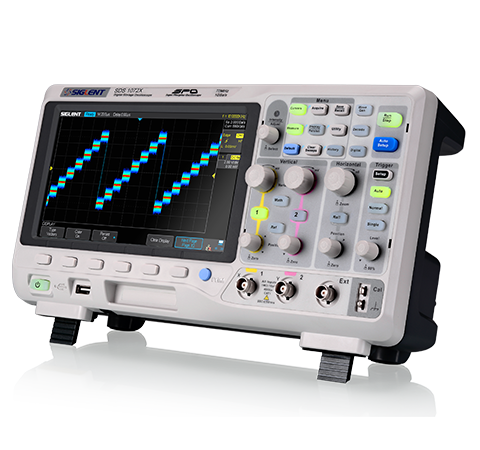

SDS1000X/X+ (Discontinued)
100 MHz,200 MHz
2 + EXT
1 GSa/s
60,000 wfm/s (normal mode)
400,000 wfm/s (sequence mode)
400,000 wfm/s (sequence mode)
14 Mpts (single-channel)
7 Mpts (dual-channel)
7 Mpts (dual-channel)
Comparison
0
/
3

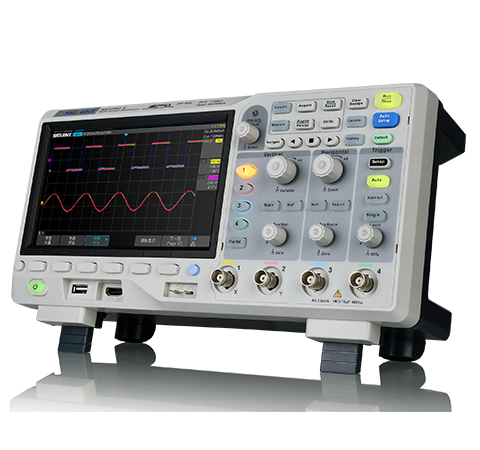

SDS1000X-E
100 MHz,200 MHz
2 CH + EXT / 4 CH
1 GSa/s
100,000 wfm/s (normal mode)
400,000 wfm/s (sequence mode)
400,000 wfm/s (sequence mode)
14 Mpts (single-channel)
7 Mpts (dual-channel)
7 Mpts (dual-channel)
Comparison
0
/
3

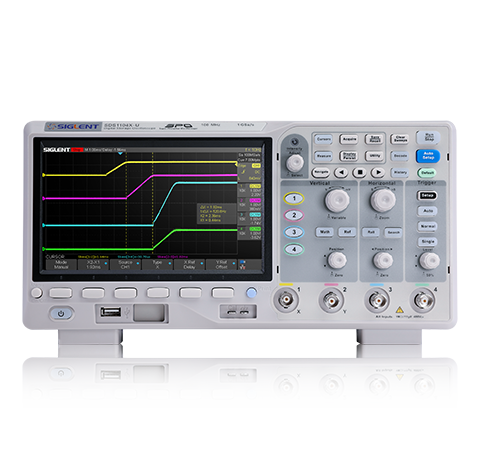

SDS1000X-U
100 MHz
4 CH
1 GSa/s
4 00,000 wfm/s (Sequence mode)
14 Mpts
Comparison
0
/
3

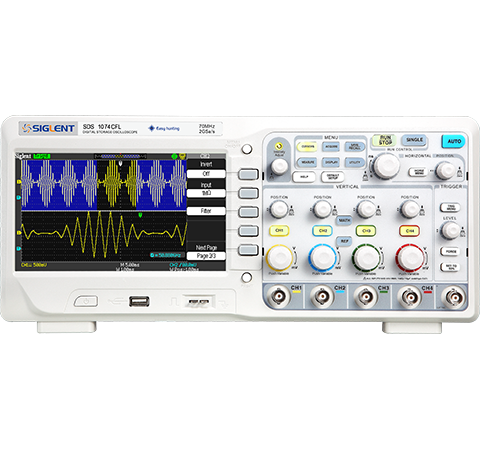

SDS1000CFL (Discontinued)
70 MHz,100 MHz,200 MHz,
300 MHz
300 MHz
2/4 + EXT
2 GSa/s (sigle-channel)
1 GSa/s(dual-channel)
1 GSa/s(dual-channel)
-
24 kpts (single-channel)
12 kpts(dual-channel)
12 kpts(dual-channel)
Comparison
0
/
3

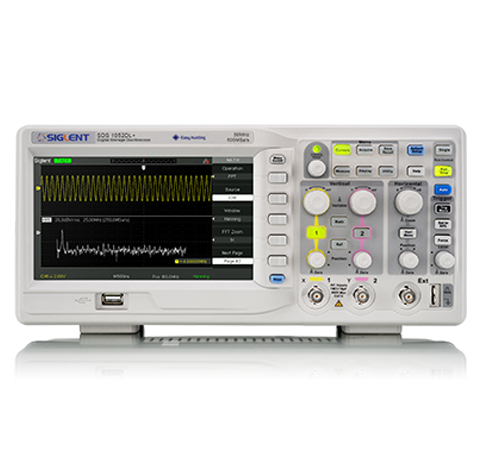

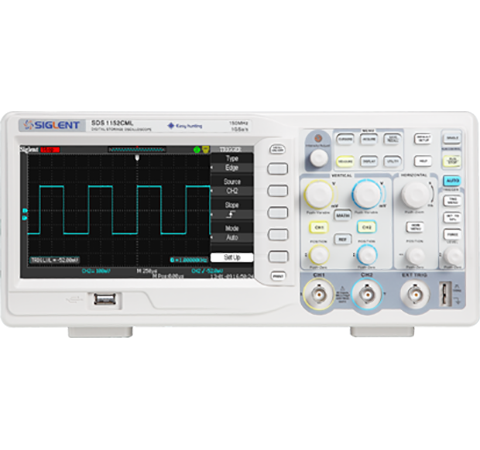

SDS1000CML+
100 MHz, 150 MHz
2 + EXT
1 GSa/s
-
2 Mpts
Comparison
0
/
3

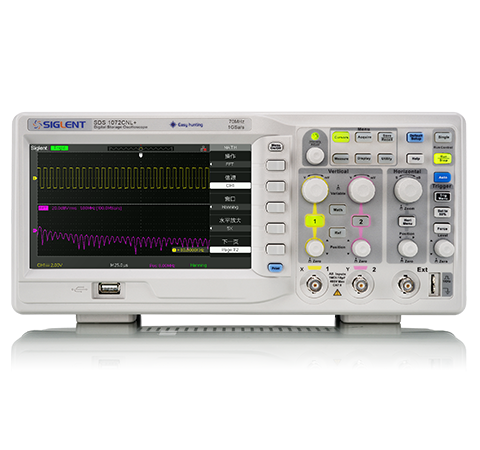

SDS1000CNL+(Discontinued)
200 MHz
2 CH
1 GSa/s
-
40 Kpts
Comparison
0
/
3
SDS1000DL+
50 MHz
2 CH
500 MSa/s
-
32 Kpts
Options
SDS2000XP-CANFD
CAN FD trigger & decode (software)
SDS2000XP-FlexRay
FlexRay trigger & decode (software)
SAG1021I
Isolated USB function/arbitrary waveform generator.
The frequency depends on the frequency defined by the oscilloscope FG option.
The frequency depends on the frequency defined by the oscilloscope FG option.
SDS2000XP-1553B
MIL-STD-1553B trigger & decode (software)
Accessories
SDS1000CFL QuickStart
SDS1000CFL QuickStart
SDS1000CML+ QuickStart
SDS1000CML+ QuickStart
SDS1000X QuickStart
SDS1000X QuickStart
SDS1000X-E/SDS1000X-U QuickStart
SDS1000X-E/SDS1000X-U QuickStart
