RF Generators

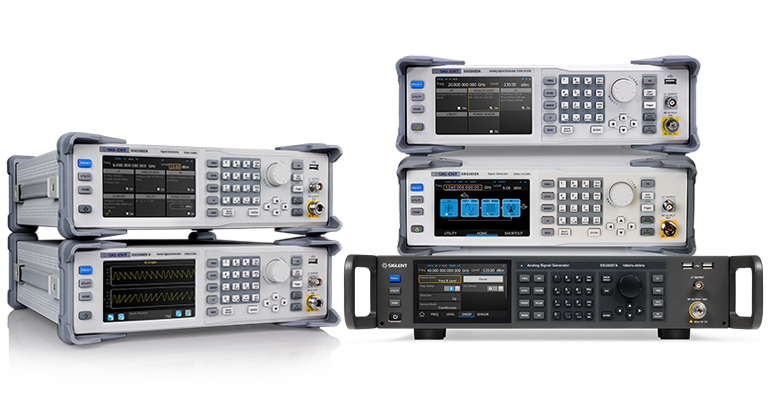

SIGLENT SSG3000X, SSG5000X, SSG5000A, SSG6000A series RF signal generators have output frequency up to 40 GHz, maximum output power of +26 dBm, high-purity phase noise as low as -135 dBc/Hz, and internal baseband source bandwidth of 150 MHz; Support a variety of modulation methods, including AM/FM/ PM modulation, pulse modulation, IQ modulation, etc. SSG5000X has built-in IQ baseband source, which can generate commonly used digital modulation signals, as well as 5G NR, WLAN, LTE, WCDMA, GSM, CDMA, BLUETOOTH.
Comparison
Model
Frequency Range
Frequency Resolution
I/Q Modulation
Max output power
Phase Noise
Display
Comparison
0
/
3

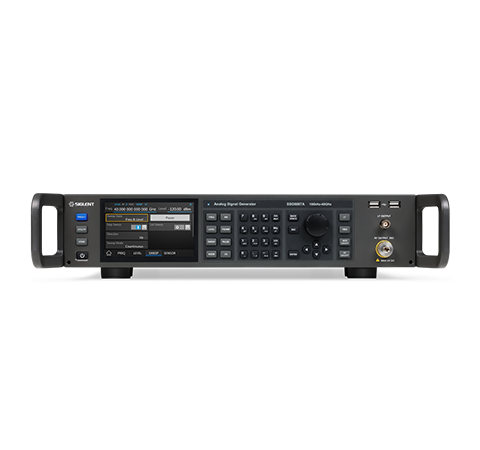

SSG6000A
100 kHz ~ 40 GHz
0.001 Hz
NO
+22 dBm
-135 dBc/Hz @1 GHz, offset 10 kHz（typ.）
5 inch TFT-LCD (800*480)
HOW TO BUY
Comparison
0
/
3

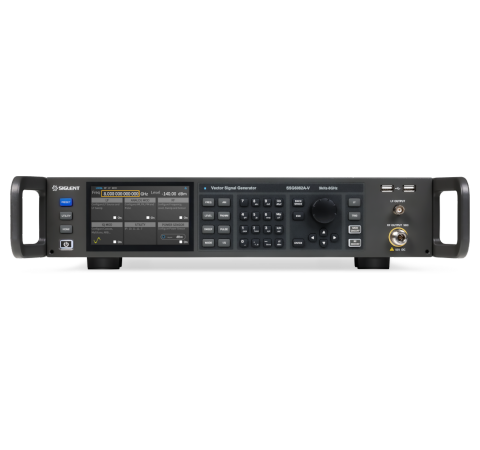

SSG6082A-V
CW MODE 9 kHz to 8 GHzIQ MODE 10 MHz to 8 GHz
0.001 Hz
Yes
+30 dBm
-132 dBc/Hz @ 1 GHz， offset 10 kHz (typ.)
5-inch capacitive touchscreen，800 (RGB) × 480
Comparison
0
/
3

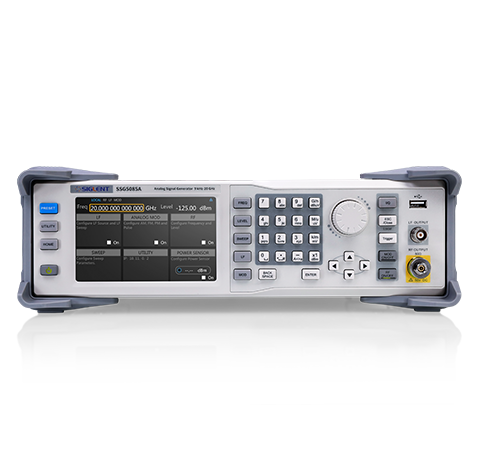

SSG5000A
9 kHz ~ 13.6/20 GHz
0.001 Hz
NO
+25 dBm
-120 dBc/Hz @1 GHz, offset 20 kHz（typ.）
5 inch TFT-LCD(800*480)
Comparison
0
/
3

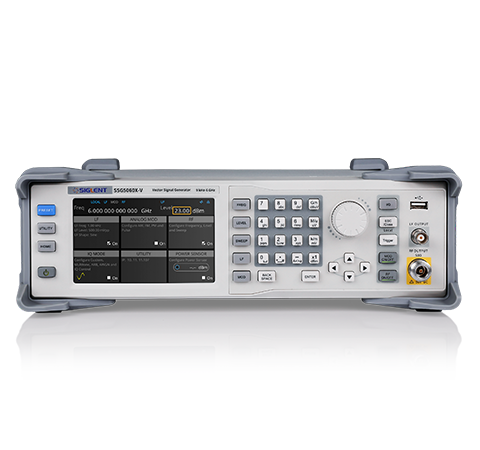

SSG5000X
9 kHz ~ 4/6 GHz
0.001 Hz
YES
+26 dBm
-120dBc/Hz @1 GHz, offset 20 kHz（typ.）
5 inch TFT-LCD(800*480)
Comparison
0
/
3

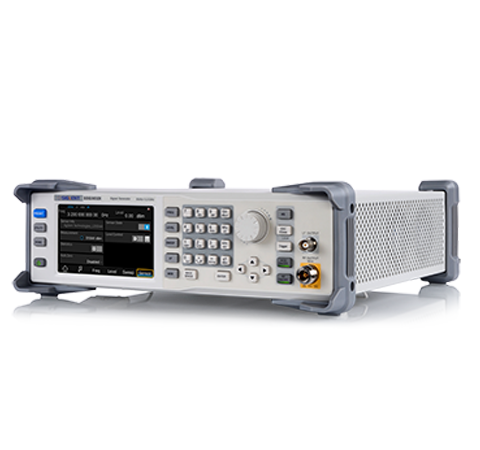

SSG3000X
9 kHz ~ 3.2 GHz
0.01 Hz
YES
+20 dBm
-110 dBc/Hz offset 20 kHz@1 GHz（typ.）
5 inch TFT-LCD (800*480)
Options
SSG3000X-PT
pulse train generator
SSG-RMK
rack mount kit
N-SMA-6L
6 GHz bandwidth, Length 0.7 m (27.6 inches).
N-N-6L
6 GHz bandwidth, Length 0.7 m (27.6 inches)
Accessories
SSG3000X QuickStart
SSG3000X QuickStart
USB Cable
USB-A to USB-B. Used to connect instrument to PC for communication.
Power cord
The instrument comes standard with one power cord that meets the standards of the user's country. Additional power cords for different regions can be purchased separately.
SSG5000X QuickStart
SSG5000X QuickStart
