RF Generators
SIGLENT SSG3000X, SSG5000X, SSG5000A, SSG6000A series RF signal generators have output frequency up to 40 GHz, maximum output power of +26 dBm, high-purity phase noise as low as -135 dBc/Hz, and internal baseband source bandwidth of 150 MHz; Support a variety of modulation methods, including AM/FM/ PM modulation, pulse modulation, IQ modulation, etc. SSG5000X has built-in IQ baseband source, which can generate commonly used digital modulation signals, as well as 5G NR, WLAN, LTE, WCDMA, GSM, CDMA, BLUETOOTH.
Options
SSG3000X-PT
pulse train generator
SSG-RMK
rack mount kit
N-SMA-6L
6 GHz bandwidth, Length 0.7 m (27.6 inches).
N-N-6L
6 GHz bandwidth, Length 0.7 m (27.6 inches)
10M_OCXO_L
Precision Frequency Reference
Assembled and calibrated in factory only
Assembled and calibrated in factory only
USB-GPIB Adapter
For expanding the tripod with two handles instrument GPIB function, compatible to third party GPIB bus controller.
N-BNC-2L
2 GHz bandwidth, Length 0.7 m (27.6 inches)
SSG5000X-PT
Pulse train generator
SSG5000X_F60
Upgrade 4 GHz to 6 GHz
SSG5000XV_B150
Upgrade IQ bandwidth from 75 MHz to 150 MHz
N-N-18L
18 GHz bandwidth, Length 1.0 m
N-SMA-18L
18 GHz bandwidth, Length 1.0 m
SMA-SMA-18L
18 GHz bandwidth, Length : 1000 + 10 (mm)
SMA-SMA-26L
SMA(M)-SMA(M) cable, 26.5 GHz, 1000 mm
SMAF-SMA-26L
SMA(F)-SMA(M) cable, 26.5 GHz, 1000 mm
SSG5080A-PU
| Pulse modulation |
SSG5080A-PT
| Pulse train generator |
SSG5080A-LP
| 110dB Attenuator module |
SSG5080A-F85
Upgrade 13.6 GHz to 20 GHz
.jpg)
SSG6080A-F85
Upgrade 13.6 GHz to 20 GHz
.png)

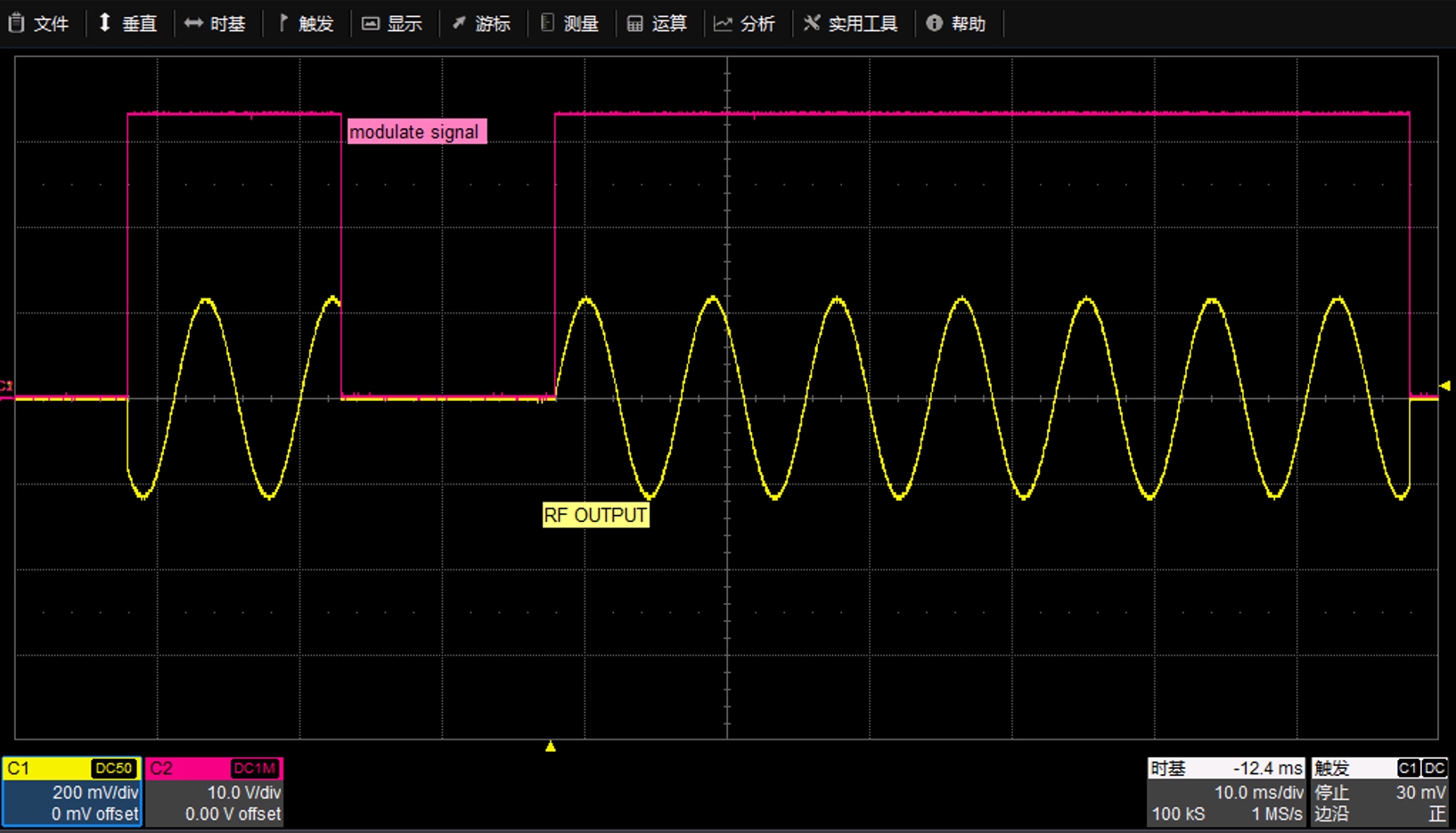

SSG6080A-PU
Pulse Modulation
.png)

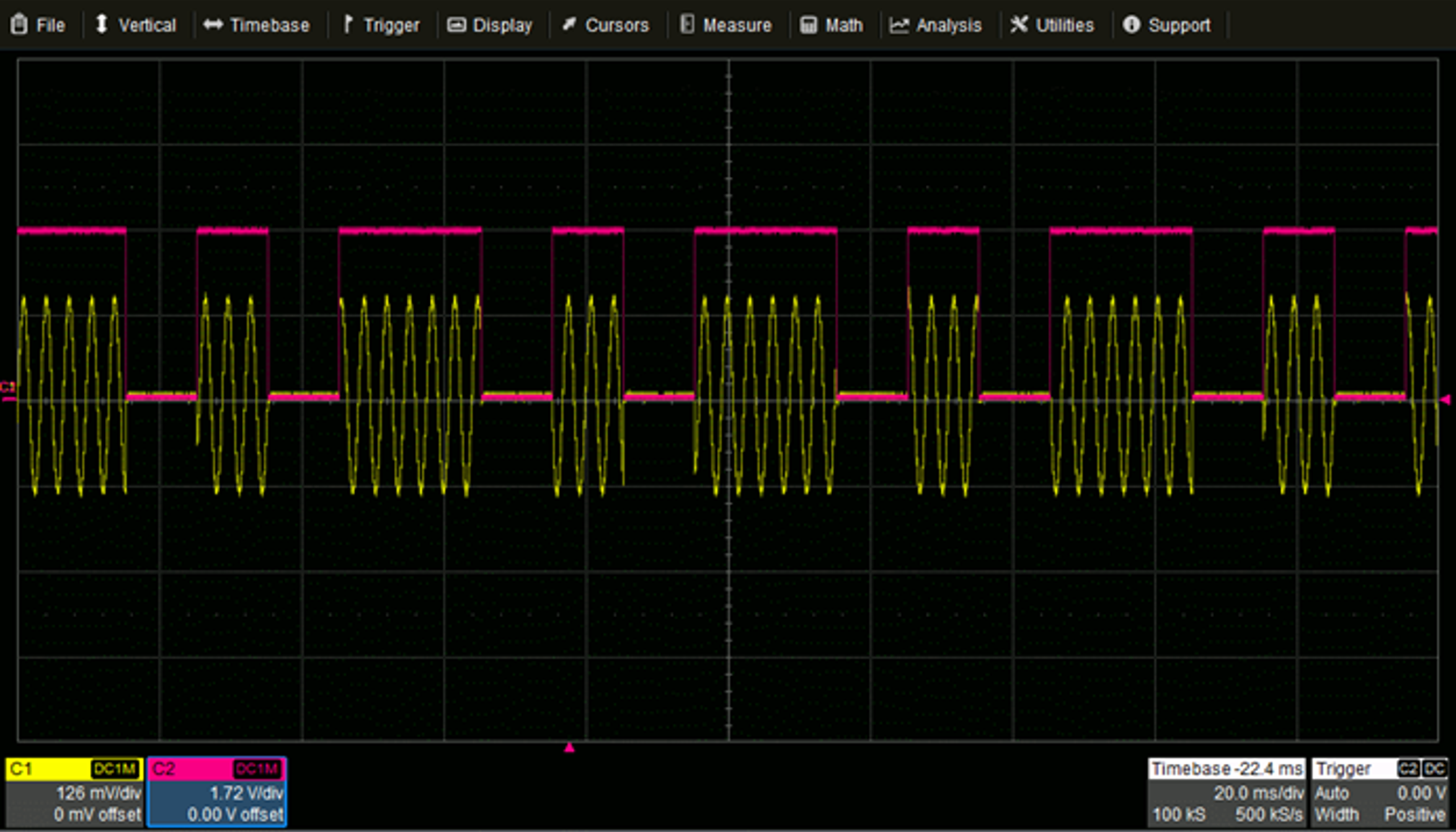

SSG6080A-PT
Pulse Train Generator
SSG6000A-RMK
Rack Mount kit, Height 2U
