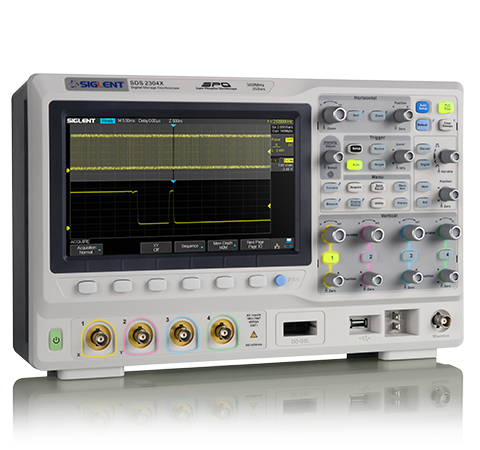

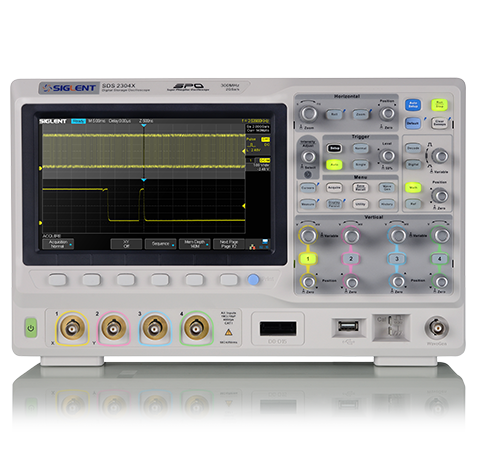

SDS2000X Series Super Phosphor Oscilloscopes
Main Features
  • 70 MHz,100 MHz,200 MHz,300 MHz models
  • Real-time Sampling Rate 2 GSa/s
  • Record length up to 140 Mpts
  • Waveform Capture Rate 140,000 wfm/s (Normal Mode); 500,000 wfm/s (Sequence mode)
  • Promotional discount on 100, 200, 300 MHz models (-30%)
×
Innovative SPO Technology
In traditional digital oscilloscopes, data process and display are all implemented in CPU, which becomes the bottleneck of data acquire, process and display. SDS2000X adopts SIGLENT unique SPO technology, waveform process and display are implemented via FPGA.

· Waveform capture rate up to 500, 000 wfm/s, capture rare events quickly
· 256-level intensity and color temperature display
· Digital trigger, low jitter and high trigger sensitivity
· Memory depth up to 140 Mpts

With these features, you can quickly locate sporadic glitches and anomalies to find the source of the problem.
Sequence Mode
The Sequence mode divides the storage into multiple segments, each segment stores a triggered frame. It can acquire up to 80,000 trigger events, which minimize the dead time down to 2 μs.It improves the probability of capturing abnormal events.

Waveforms captured in Sequence mode can also be played back in the History mode.

History Mode
History mode is running in background. It can save up to 80,000 frames of waveforms and get time stamp on each of them.

History waveforms can be replayed anytime to observe abnormal events. With Cursors and Measurements, it is convenient to locate the source of problem.

History function can be turned on with one button operation on front panel.
10 kinds of One-button Operations
The frequently used functions can be accessed with one button press. Zoom, Roll, Print, Intensity, Measure, History, Default, Cursors, Clear Sweeps, Auto Setup.
ERES Enhanced Resolution Mode
ERES mode can improve signal to noise ratio independent of signal periods and stability of trigger point as Average mode does.

The SDS2000X supports ERES mode with an equivalent resolution of 11 bits.


Specifications
Bandwidth 70 MHz, 100 MHz, 200 MHz, 300 MHz
Sample Rate(Max.) 2 GSa/s
Waveform Capture rate(Max.) 500,000 wfm/s
Analog Channels 2/4 + EXT
Trigger Type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video
Serial Trigger  I2C, SPI, UART/RS232, CAN, LIN
Decoder Type  I2C, SPI, UART/RS232, CAN, LIN
16 Digital Channels (MSO Optional) Maximum waveform capture rate up to 500 MSa/s, Record length up to 14 Mpts/CH
Waveform Generator (optional) Single channel, Max. frequency up to 25 MHz, 125 MSa/s sampling rate, 16 kpts wave length
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out
Display 8 inch TFT LCD (800x480)
Model
Bandwidth
Channels
Real time sampling rate
Capture rate
Memory depth
SDS2074X (Discontinued)
70 MHz
4 CH + EXT
2 GSa/s
140,000 wfm/s
140 Mpts
SDS2072X (Discontinued)
70 MHz
2 CH + EXT
2 GSa/s
140,000 wfm/s
140 Mpts
SDS2104X (Discontinued)
100 MHz
4 CH + EXT
2 GSa/s
140,000 wfm/s
140 Mpts
SDS2102X (Discontinued)
100 MHz
2 CH + EXT
2 GSa/s
140,000 wfm/s
140 Mpts
SDS2204X (Discontinued)
200 MHz
4 CH + EXT
2 GSa/s
140,000 wfm/s
140 Mpts
SDS2202X (Discontinued)
200 MHz
2 CH + EXT
2 GSa/s
140,000 wfm/s
140 Mpts
SDS2304X (Discontinued)
300 MHz
4 CH + EXT
2 GSa/s
140,000 wfm/s
140 Mpts
SDS2302X (Discontinued)
300 MHz
2 CH + EXT
2 GSa/s
140,000 wfm/s
140 Mpts
