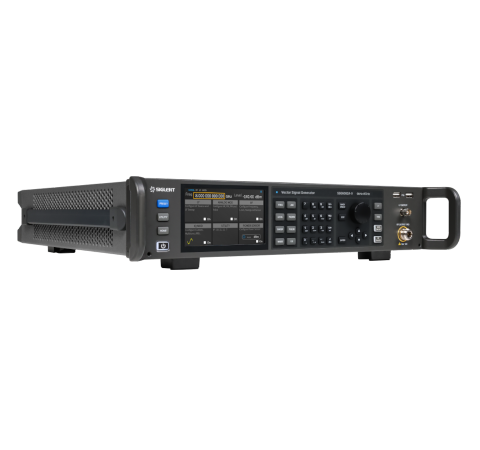

SSG6082A-V Series RF Vector Signal Generator
Main Features
- Frequency up to 8 GHz
- 0.001 Hz frequency setting resolution
- Level setting range: -140 dBm to 30 dBm
- Phase noise: < -132 dBc/Hz @ 1 GHz, offset 10 kHz (typ.)
- RF modulation bandwidth 1 GHz
- Support vector mode S-parameter compensation
- Support common protocols such as LTE, 5G NR and WLAN, etc.
×
Ultralow Phase Noise

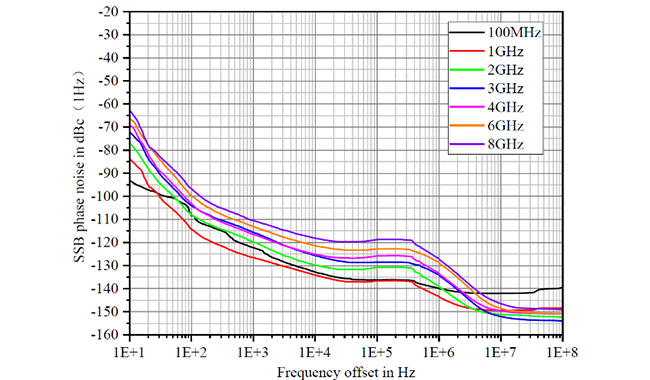

SSG6082A-V series features ultra-low phase noise, reaching -132 dBc/Hz at a 10 kHz offset for a 1 GHz signal. Higher spectral purity reduces test errors, enhancing the accuracy and reliability of measurement results. In wireless communication, low phase noise signals help minimize bit error rates (BER), improving communication stability and reliability.
Superior Signal Quality

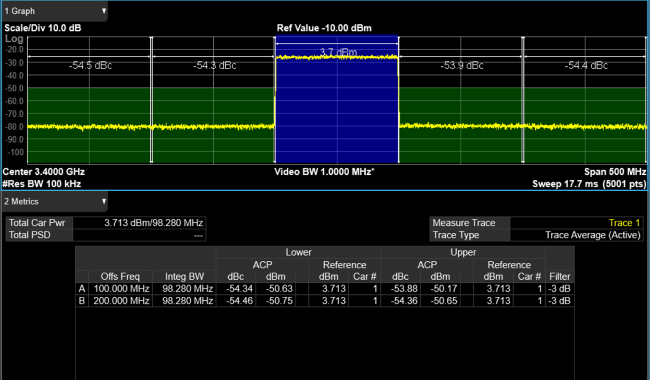

SSG6082A-V has excellent 1GHz RF modulation bandwidth and ACPR characteristics, meeting most communication test requirements. When generating common communication protocol signals such as WLAN, 5G NR and LTE, it consistently achieves excellent EVM performance. Excellent ACPR minimizes neighboring channel interference during multi-channel testing, enabling more accurate simulation of real-world communication environments.
More Accurate Transmitter Simulation

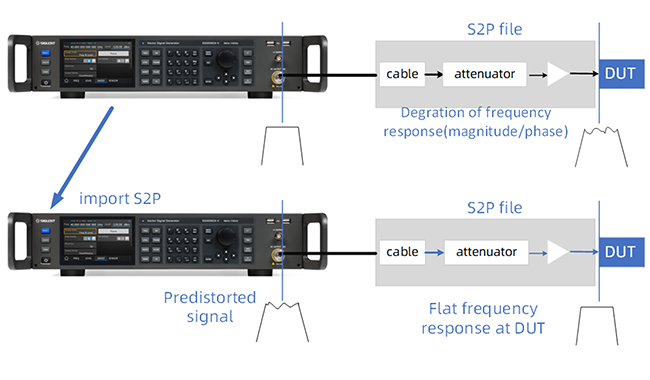

SSG6082A-V supports automatic amplitude, frequency, and phase compensation based on the S2P file of the test system. This compensation minimizes phase fluctuations and phase noise while flattening the signal amplitude across the entire frequency range, ensuring consistent signal levels at different frequencies. With enhanced system compatibility, the SSG6082A-V accommodates a broader range of applications, delivering precise and efficient test system performance.
Simplify Signal Creation and Accelerate Test

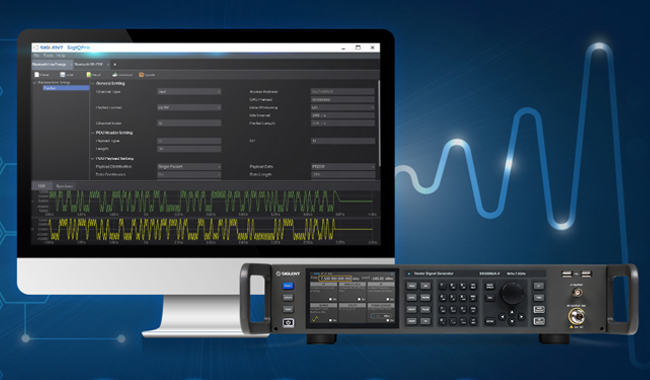

· SSG6082A-V and SigIQPro signal generation software integrate simulation, design and test to easily meet the needs of users at all stages of design, R&D, and production.
· SigIQPro is a flexible PC-based signal generation software that takes signal generation to a whole new level, supporting Bluetooth, IoT, 5G NR, LTE and WLAN, and more.
· SigIQPro is specially developed for easy generation of protocol and modulated signals, with a user interface that supports intuitive operation and provides relevant · documentation that makes it easy to create standards-compliant waveforms for a wide range of applications.
· TRY BEFORE YOU BUY! SigIQPro provides 30 free trials of each feature for unrestricted use of the functions with your existing compatible signal generators.
· Click to view more SigIQPro signal generation software configuration, pricing, and device details.
· SigIQPro is a flexible PC-based signal generation software that takes signal generation to a whole new level, supporting Bluetooth, IoT, 5G NR, LTE and WLAN, and more.
· SigIQPro is specially developed for easy generation of protocol and modulated signals, with a user interface that supports intuitive operation and provides relevant · documentation that makes it easy to create standards-compliant waveforms for a wide range of applications.
· TRY BEFORE YOU BUY! SigIQPro provides 30 free trials of each feature for unrestricted use of the functions with your existing compatible signal generators.
· Click to view more SigIQPro signal generation software configuration, pricing, and device details.
Model
Frequency Range
Frequency Resolution
I/Q Modulation
Max output power
Phase Noise
Display
SSG6082A-V
CW MODE 9 kHz to 8 GHzIQ MODE 10 MHz to 8 GHz
0.001 Hz
Yes
+30 dBm
-132 dBc/Hz @ 1 GHz， offset 10 kHz (typ.)
5-inch capacitive touchscreen，800 (RGB) × 480
