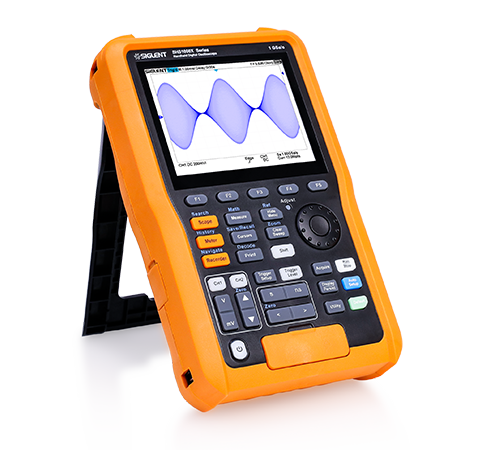

SHS1000X Handheld Oscilloscope
- Isolation voltage：CATIII 600 Vrms, CATII 1000 Vrms
- Integrate oscilloscope, serial trigger and decoder, spectrum analysis, data logger and multimeter functions into a convenient and portable design
- 100 MHz or 200 MHz bandwidth models
- sample rate of 1 GSa/s (single-channel), sample rate of 500 MSa/s (two-channels)
- record length up to 12 Mpts.
- Hardware-based ture RMS multimeter
- IP51 certified
×
Full Isolation
IEC61010-2-030 defines measurement categories that rate the ability of measuring instruments to withstand short-term transient overvoltages outside the operating voltage.
For SHS1000X series, the max voltage input to the analog scope inputs is CATIII 600 Vrms, CATII 1000 Vrms, and the max input for the multimeter is CATIII 600 Vrms, CATII 1000 Vrms.

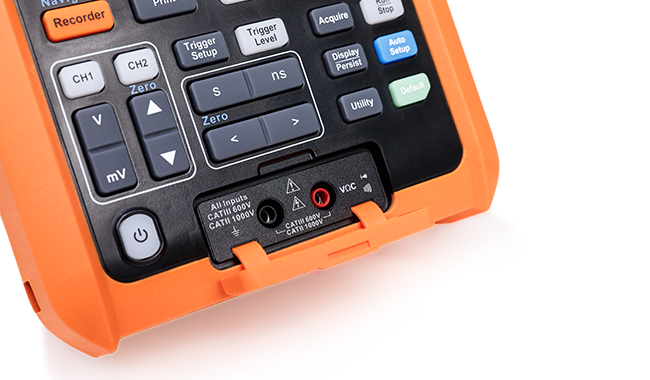

SHS1000X series features full isolation between the two oscilloscope channels, one multimeter channel, power adapter and the USB host/device port. The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits.
For SHS1000X series, the max voltage input to the analog scope inputs is CATIII 600 Vrms, CATII 1000 Vrms, and the max input for the multimeter is CATIII 600 Vrms, CATII 1000 Vrms.
SHS1000X series features full isolation between the two oscilloscope channels, one multimeter channel, power adapter and the USB host/device port. The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits.

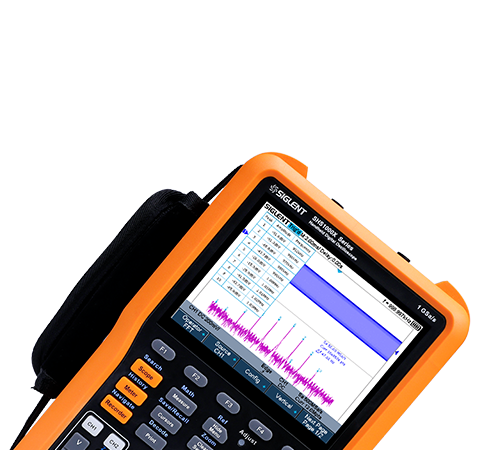

Standard Serial trigger and decode

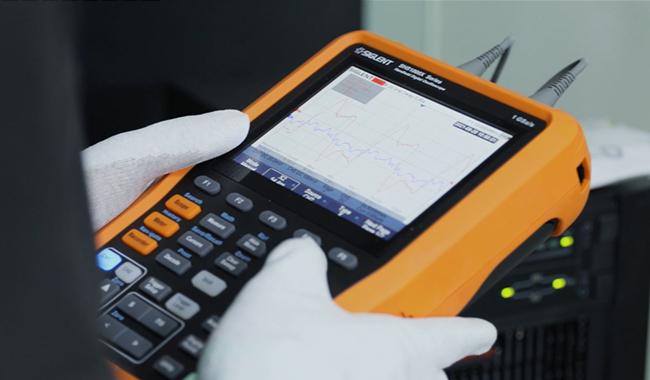

Standard Serial trigger and decode: IIC, SPI, UART, CAN, LIN, widely used in automotive and embedded industries. Because of its unique portable design and battery power supply, it can better meet the testing needs of the automotive and embedded industries that require on-site decoding.
Hardware-based True RMS multimeter

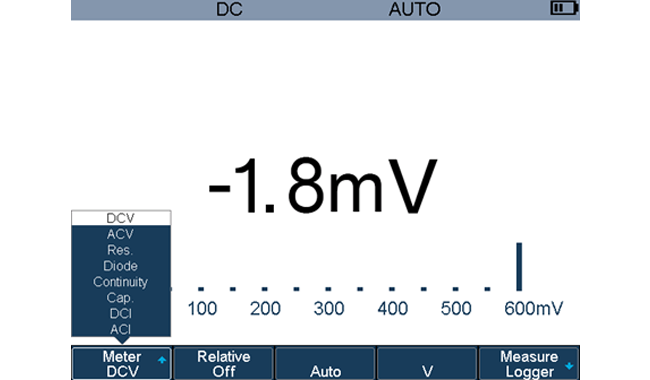

Integrated 6000 count (~ 3.5 digit) digital multimeter
Hardware-Based True RMS Measurement
Features up to 4-channel measurement value trend graphing that can store 3.5 M measurement points
Hardware-Based True RMS Measurement
Features up to 4-channel measurement value trend graphing that can store 3.5 M measurement points

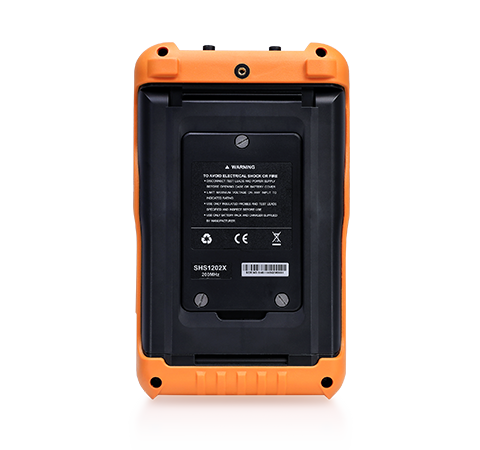

IP51 certified

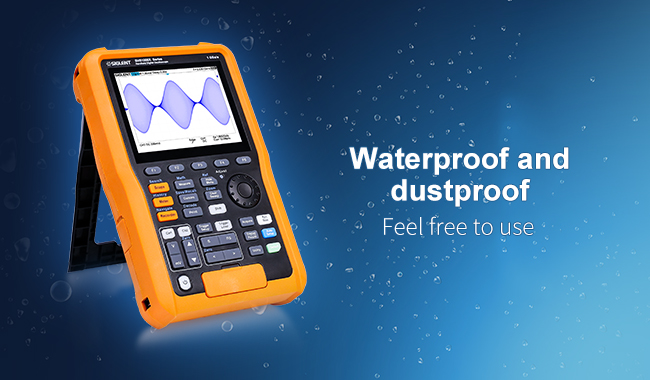

The handheld oscilloscopes feature a sealed IP51 dust and drip-proof housing and has been tested to IEC60529 to guarantee the ruggedness that is needed to survive harsh environments. A rubberized surface with large keys also makes it easy to use in difficult environments.
Specifications
| SHS1102X | SHS1202X | |||
| 100 MHz | 200 MHz | |||
| Sample rate (Max.) | Two-channel share a single 1 GSa/s ADC. When two channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel is active, that channel has a sample rate of 1 GSa/s | |||
| Channels | 2 analog oscilloscope channels, 1 multimeter channel | |||
| Memory depth (Max.) | 6 Mpts/CH (dual-channel mode),12 Mpts/CH (single channel mode) | |||
| Waveform capture rate (Max.) | 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) | |||
| Trigger type | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video | |||
| Serial Trigger and decoder | IIC, SPI, UART, CAN, LIN | |||
Data Logger(Recorder) |
Sample Logger. The Max sample rate is 25 kSa/s, the Min sample rate is 1 Sa/s | |||
| Measurement Logger. The Max interval is 10 minutes, the Min interval is 0.1second. The Max items of logging is 4 | ||||
| I/O | USB Host, USB Device | |||
Max input Voltage (Scope) |
CAT III 600 Vrms, CAT II 1000 Vrms Between BNC Signal and Protecting Earth CAT III 600 Vrms, CAT II 1000 Vrms Between BNC GND and Protecting Earth CAT III 300 Vrms Between BNC Signal and BNC GND |
|||
| Max input Voltage (Meter) | CAT III 600 Vrms, CAT II 1000 Vrms | |||
| Probe | PB925 | |||
| Maximum Resolution | 6000 | |
| DC Voltage | 60 mV 600 mV-600 V |
±1%±15 digit ±1%±5 digit |
| AC Voltage(45 Hz～400 Hz) | 60 mV-750 V | ±1.5%±15 digit |
| DC Current | 60 mA-600 mA 6 A-10 A |
±1.5%±5 digit ±2%±5 digit |
| AC Current (45 Hz～400 Hz) | 60 mA 600 mA 6 A-10 A |
±1.5%±5 digit ±2%±5 digit ±3%±5 digit |
| Capacitance | 40 nF 400 nF-400 μF |
±3%±10 digit ±4%±5 digit) |
| Resistance | 600 Ω-6 MΩ 60 MΩ |
±1%±5 digit ±3%±5 digit |
| Continuity | Continuous beep when resistance < 50 Ω | |
| Diode | 0～2 V | |
| Display | 5.6-inch TFT-LCD (640x480) |
| Power Supply | Rechargeable 6900 mA high-capacity lithium battery |
| Weight | Without package 1.75 kg. With package 3.5 kg |
| Domesion | 276 mm * 168 mm * 68 mm |
| Accessories | Two Passive Probes,Multimeter pen,USB data cable,DC adapter,Power cord |
Model
Bandwidth
Channels
Max real time sampling rate
Multimeter
Isolation level
Memory depth
SHS1102X
100 MHz
2 CH
1 GSa/s
Voltage, current, resistance and other eight common functions
CAT III 600 Vrms, CAT II 1000 Vrms
12 Mpts
SHS1202X
200 MHz
2 CH
1 GSa/s
Voltage, current, resistance and other eight common functions
CAT III 600 Vrms, CAT II 1000 Vrms
12 Mpts
