SIGLENT: Home / Products

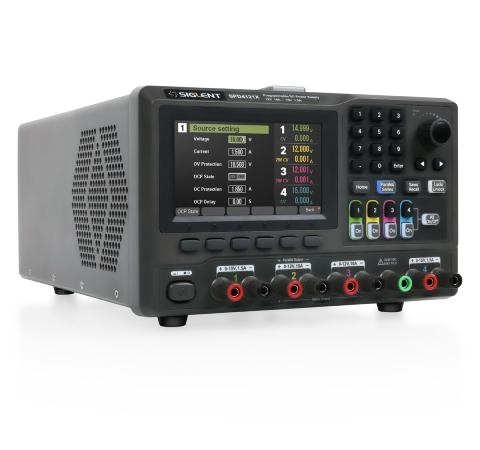

SPD4000X Series
Programmable Linear DC Power Supply
Main Feature:
  • Four independent outputs
  • Max. Voltage: 15V, 30V, 32V ,  Max. Current: 3.2A, 6A, 10A
  • Rated output power: 240W, 285W, 400W
  • 5-digit voltage and current display with minimum resolution of 1mV, 1mA
  • Clear graphical interface with waveform and timer display modes
  • Support remote voltage compensation sense function
×

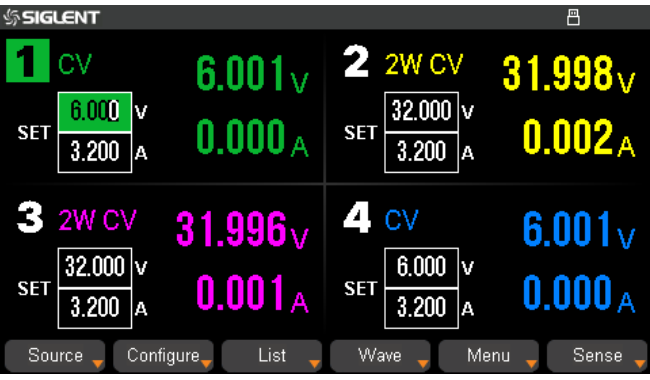

Higher Resolution and Accuracy
The SPD4000X supports five-digit voltage and five-digit current display with excellent setting and read back resolution of 1mV/1mA. Four output channels can be independently controlled and turned on or off simultaneously. Series and parallel functions allow two channels combined into one output with more power output capability. SPD4306X can output 60V/6A in series, and SPD4121X can output 12V/20A in parallel.

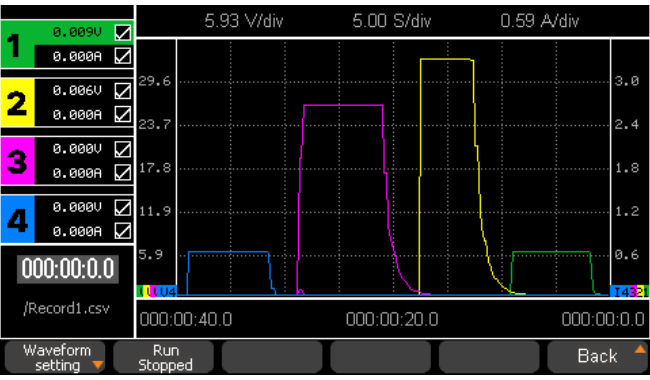

Real-time waveform display
The SPD4000X series is equipped with a 4.3-inch true color TFT-LCD display. Four channels of voltage and current waveform run chart can be set, users can observe the waveform run chart through the colors corresponding to the channels to understand the output status of the four channels.

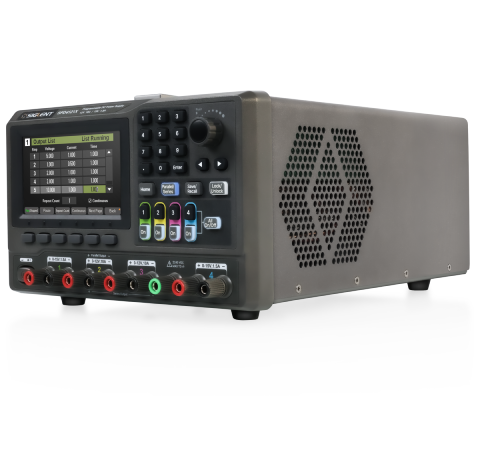

List Operation
By editing the single-step setting value and duration, the list function can generate multiple sequences to meet complex test requirements. Users can edit the sequence by 50 steps, with 8 sets of built-in list sequence files. Voltage, Current, Time, etc. can be set directly in each List, which can be excellent for simulating a variety of voltage and current states such as sudden rise and fall, interruption. For complex waveforms that are not easy to edit, List sequence files can be imported via USB for list output to quickly improve test efficiency. List time accuracy <50 ms, setting resolution 1 ms, with fast voltage rise/fall time and very short voltage change time can meet the user's fine requirements for pulse voltage testing.
Fast output response time
Output response is the instantaneous change of output voltage when the load current changes dynamically. Output response time is the time required for the voltage to return to the set range when the load current suddenly changes.The SPD4000X series achieves fast output response time of < 50us, enabling fast compensation for output voltage changes.

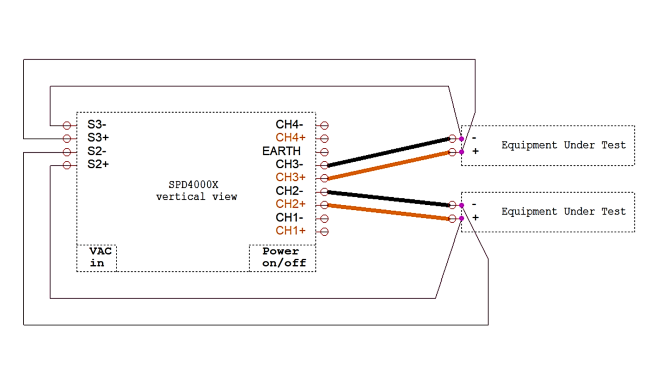

Voltage compensation sense function
CH2 and CH3 can use the included 4 wire sense mode, which can automatically compensate for the voltage drop of the positive and negative output lines, ensuring that the voltage at the remote device to be tested is equal to the set voltage of the power supply. It can realize the maximum compensation voltage of 0.6V in high precision test or long cable test.

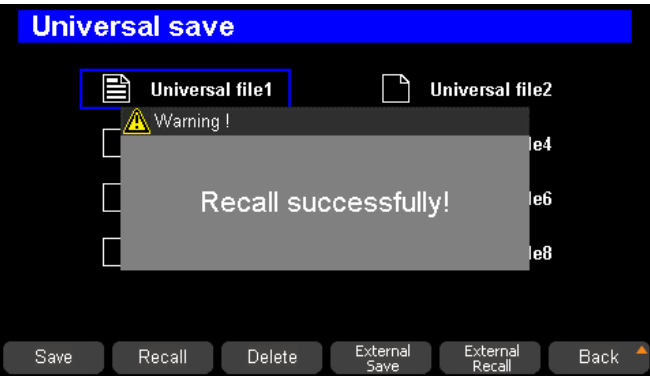

Save/Recall Settings Parameters
The SPD4000X series allows users to save multiple types of files to local or external memory for later recall. It supports saving of output voltage/current values, independent/series/parallel output mode, and can take a screen shot by long pressing the Save/Recall key in any state, which is very beneficial for capturing dynamic test conditions.

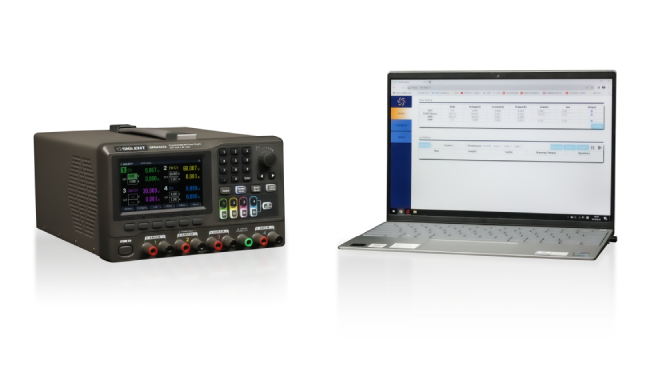

Powerful Web Control

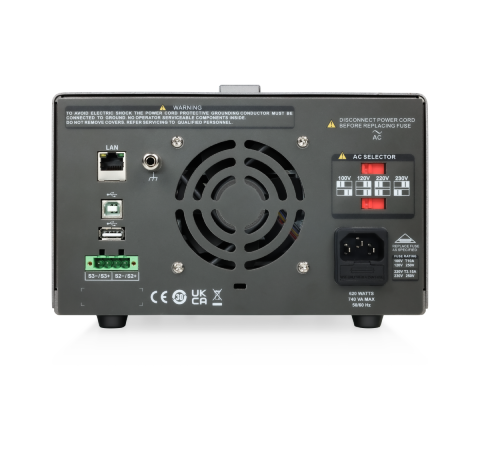

The power supply includes USB and LAN communication interfaces as standard and a USB-GPIB converter module as optional. The embedded Web Server enables control and monitor of the power supply directly from a web browser, eliminating the need to install software drivers or applications.
Specifications
Channel output SPD4323X:6V/3.2A, 32V/3.2A, 32V/3.2A, 6V/3.2A
SPD4121X:  15V/1.5A, 12V/10A, 12V/10A, 15V/1.5A
SPD4306X:  15V/1.5A, 30V/6A, 30V/6A, 15V/1A
Display 4.3" TFT-LCD
5-digit voltage and current display
Resolution 1 mV/1 mA
Setting accuracy voltage ±(0.03% of reading+10)mV
current ±(0.3% of reading+10)mA
Readback accuracy voltage ±(0.03% of reading+10)mV
current ±(0.3% of reading+10)mA
Constant Voltage Mode
Line Regulation 0.01%+2 mV
Load Regulation 0.01%+10 mV(Two-wire mode)
0.01%+2 mV (Four-wire mode)
Ripple&Noise 350μVrms/5mVpp(5Hz - 1MHz)
Recovery Time 50 μs
Constant Current Mode
Line Regulation 0.1%+3 mA
Load Regulation 0.1%+3 mA
Ripple&Noise 2 mArms
Parallel Mode
Line Regulation 0.01%+5 mV
Load Regulation 0.01%+50 mV
Series Mode
Line Regulation 0.01%+5 mV
Load Regulation < 100/150/200 mV
Model
Channel output
Display
Resolution
Setting accuracy
Readback accuracy
SPD4323X
CH1: Voltage 0 to 6 V
Current 0 to 3.2 A
CH2: Voltage 0 to 32 V
Current 0 to 3.2 A
CH3: Voltage 0 to 32 V
Current 0 to 3.2 A
CH4: Voltage 0 to 6 V
Current 0 to 3.2 A
4.3" TFT-LCD 5-digit voltage and current display
1mV, 1mA
Voltage:±(0.03% of reading+10) mV
Current:±(0.3% of reading+10) mA
Voltage:±(0.03% of reading+10) mV
Current:±(0.3% of reading+10) mA
SPD4121X
CH1: Voltage 0 to 15 V
Current 0 to 1.5 A
CH2: Voltage 0 to 12 V
Current 0 to 10 A
CH3: Voltage 0 to 12 V
Current 0 to 10 A
CH4: Voltage 0 to 15 V
Current 0 to 1.5 A
4.3" TFT-LCD 5-digit voltage and current display
1mV, 1mA
Voltage:±(0.03% of reading+10) mV
Current:±(0.3% of reading+10) mA
Voltage:±(0.03% of reading+10) mV
Current:±(0.3% of reading+10) mA
SPD4306X
CH1: Voltage 0 to 15 V
Current 0 to 1.5 A
CH2: Voltage 0 to 30 V
Current 0 to 6 A
CH3: Voltage 0 to 30 V
Current 0 to 6 A
CH4: Voltage 0 to 15 V
Current 0 to 1 A
4.3" TFT-LCD 5-digit voltage and current display
1mV, 1mA
Voltage:±(0.03% of reading+10) mV
Current:±(0.3% of reading+10) mA
Voltage:±(0.03% of reading+10) mV
Current:±(0.3% of reading+10) mA
