SSA3000X Plus Series Spectrum Analyzers
Specifications
- Frequency range from 9 kHz to 1.5/2.1/3.2/7.5 GHz
- -165 dBm/Hz Displayed average noise level (typical)
- -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
- 1 Hz Minimum Resolution Bandwidth (RBW)
- Tracking generator (TG) included at no charge
- 10.1 inch Touch Screen

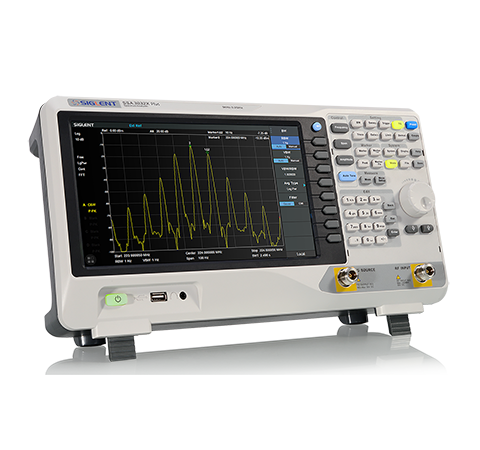

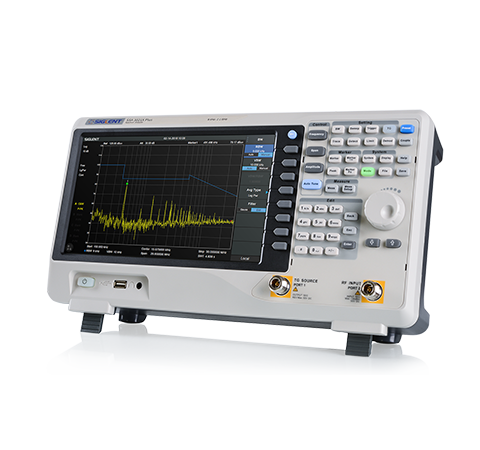

![](/u_file/product/19_09_12/ea2e0e194c.png)
![](/u_file/product/19_09_12/a56b97f864.png)
![](/u_file/product/19_09_12/7f76d91881.png)

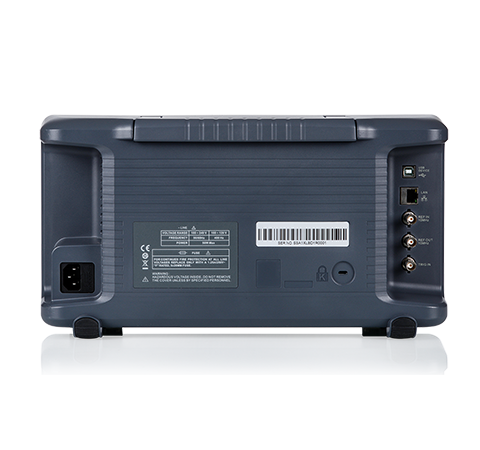

![](/u_file/product/19_09_12/67b33f7576.png)
![](/u_file/product/19_09_12/ea2e0e194c.png)
![](/u_file/product/19_09_12/a56b97f864.png)
![](/u_file/product/19_09_12/7f76d91881.png)
![](/u_file/product/19_09_12/67b33f7576.png)
×
Excellent Performance
· With their light weight, small size, and friendly user interface, the SSA3000X Plus present a large, bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications include research and development, education, production, maintenance, and pre-compliance testing.
· Bandwidth 9 kHz to 1.5 / 2.1 / 3.2 / 7.5 GHz, minimum resolution bandwidth 1 Hz
· Display average noise level below -165 dBm/Hz, full amplitude accuracy better than 0.7 dB
· Standard preamplifier, free tracking generator, remote control instruction set, EasySpectrum PC software, Webserver, Touch screen
· Transmission response, VSWR measurement, signal power measurement, EMI pre-compliance test
· Bandwidth 9 kHz to 1.5 / 2.1 / 3.2 / 7.5 GHz, minimum resolution bandwidth 1 Hz
· Display average noise level below -165 dBm/Hz, full amplitude accuracy better than 0.7 dB
· Standard preamplifier, free tracking generator, remote control instruction set, EasySpectrum PC software, Webserver, Touch screen
· Transmission response, VSWR measurement, signal power measurement, EMI pre-compliance test
![](/u_file/article/19_09_17/e880a9c03f.png)

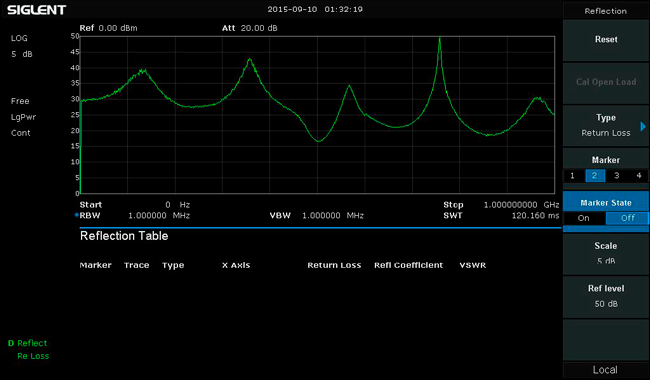

SWR and Transmission Response Measurement
The SSA3000X Plus can be used as a network analyzer:
· With the tracking generator, the filter transmission response and the cable insertion loss can be measured.
· With tracking source and external directional coupler (RB3X20), it can measure antenna and cable standing wave ratio VSWR, return loss.
· With the tracking generator, the filter transmission response and the cable insertion loss can be measured.
· With tracking source and external directional coupler (RB3X20), it can measure antenna and cable standing wave ratio VSWR, return loss.
![](/u_file/article/19_09_17/a1deeb7142.png)

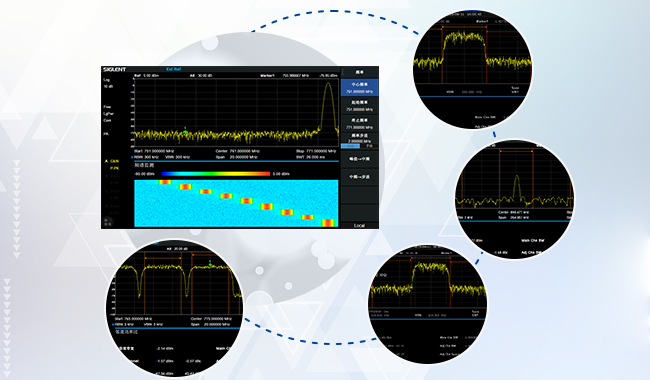

Abundant Power Measurement
With variety of wireless communication signal power measurement capabilities:
· CHP, Channel Power
· ACPR, Adjacent Channel Power Ratio
· OBW, Occupied Bandwidth
· T-Power, Time Domain Power
· TOI, Third-Order Intercept
· Spectrum Monitor
· CHP, Channel Power
· ACPR, Adjacent Channel Power Ratio
· OBW, Occupied Bandwidth
· T-Power, Time Domain Power
· TOI, Third-Order Intercept
· Spectrum Monitor
![](/u_file/article/19_09_17/15ee2e2029.jpg)

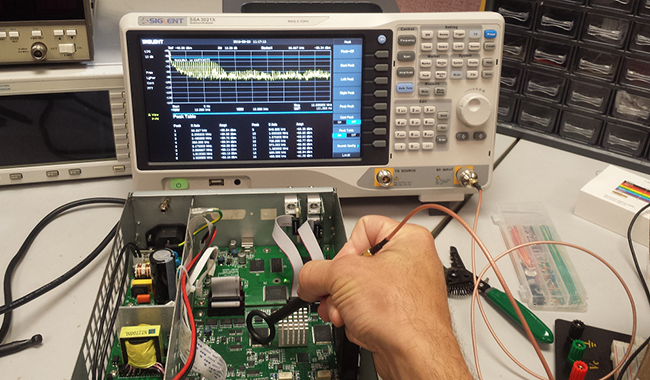

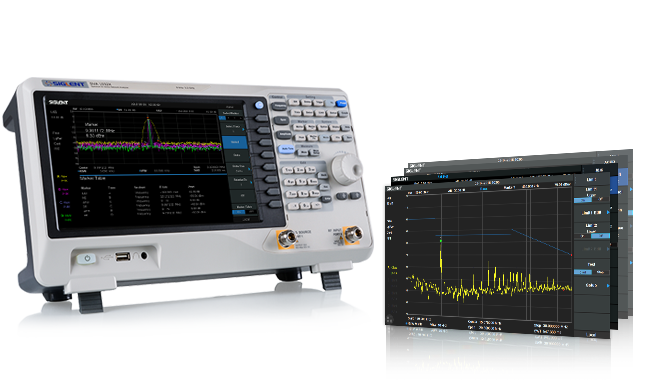

EMI Pre-compliance Solution
Extensive features and accessory support for EMI diagnostics and EMI pre-compliance testing, including:
· Test compensation Correction, frequency response compensation for probe, antenna, LISN, cable
· Support Limit line , Including EMI international standard limit template, or user-defined limit line
· Compliant CISPR 16 EMI filter and quasi-peak detector for quasi-peak measurement dwell time
· Support SRF5030T near-field probe set to find interference sources for radiation, cables, PCBs, etc.
· Provide SEM5040A artificial power network for single-phase device conducted disturbance voltage measurement
· EasySpectrum PC software, supports complete EMI pre-compliance test automation implementation process
· The PC software also supports the file configuration of the whole process, which is convenient for project management.
· Test compensation Correction, frequency response compensation for probe, antenna, LISN, cable
· Support Limit line , Including EMI international standard limit template, or user-defined limit line
· Compliant CISPR 16 EMI filter and quasi-peak detector for quasi-peak measurement dwell time
· Support SRF5030T near-field probe set to find interference sources for radiation, cables, PCBs, etc.
· Provide SEM5040A artificial power network for single-phase device conducted disturbance voltage measurement
· EasySpectrum PC software, supports complete EMI pre-compliance test automation implementation process
· The PC software also supports the file configuration of the whole process, which is convenient for project management.
![](/u_file/article/19_09_17/1aa4a4d113.png)

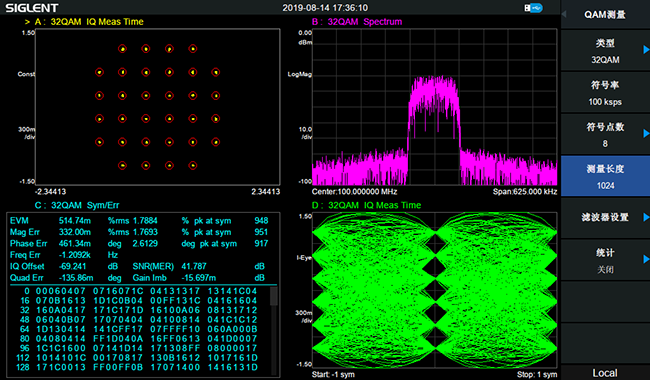

Deep Analysis of Modulated Signals
Abundant demodulation analysis:
· Supports AM/FM analog modulation analysis and complex modulation analysis functions such as ASK/FSK/PSK/MSK/QAM
· EVM, amplitude and phase offset error, IQ offset error, gain imbalance and many other data analysis capabilities
· It has various analysis formats such as eye diagram, constellation diagram, phase diagram, time domain, frequency domain and error domain
· Supports AM/FM analog modulation analysis and complex modulation analysis functions such as ASK/FSK/PSK/MSK/QAM
· EVM, amplitude and phase offset error, IQ offset error, gain imbalance and many other data analysis capabilities
· It has various analysis formats such as eye diagram, constellation diagram, phase diagram, time domain, frequency domain and error domain
![](/u_file/article/19_09_17/c2d6ce2fca.png)
Model
Frequency range
DANL
Phase noise
Real time analysis bandwidth
Resolution bandwidth
SSA3015X Plus
9 kHz ~ 1.5 GHz
-156 dBm/Hz
< -99 dBc/Hz
-
1 Hz ~ 1 MHz
SSA3021X Plus
9 kHz ~ 2.1 GHz
-161 dBm/Hz
< -98 dBc/Hz
-
1 Hz ~ 1 MHz
SSA3032X Plus
9 kHz ~ 3.2 GHz
-161 dBm/Hz
< -98 dBc/Hz
-
1 Hz ~ 1 MHz
SSA3075X Plus
9 kHz ~ 7.5 GHz
-165 dBm/Hz
< -98 dBc/Hz
-
1 Hz ~ 3 MHz
