SDS1000CNL+ Series Digital Storage Oscilloscopes (DISCONTINUED)
Main Features
- 32 auto measurements/5 displayed
- Digital Recorder
- One key storage
- Pass/Fail
- Abundant Interfaces
![](/u_file/product/19_06_05/770fb9705f.png)
![](/u_file/product/19_06_05/d9f677b23f.png)
![](/u_file/product/19_06_05/770fb9705f.png)
![](/u_file/product/19_06_05/d9f677b23f.png)
×

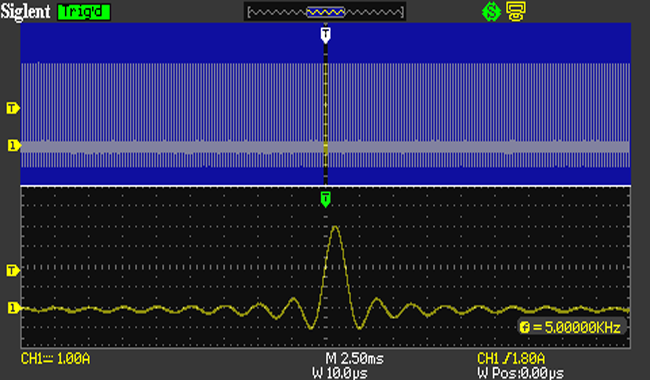

One Key Zoom
Press Timebase knob to zoom in.
![](/u_file/article/19_06_21/49ed40c9c9.png)

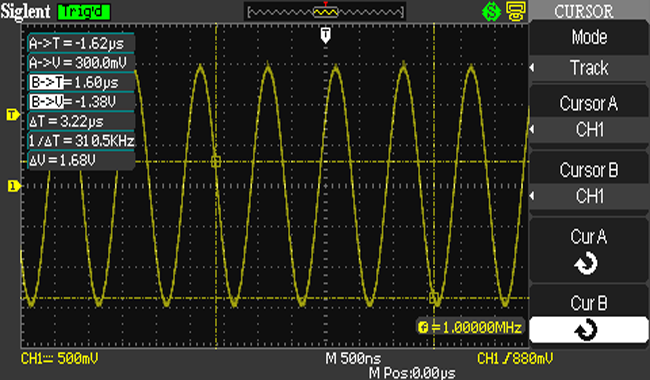

Cursors
Support horizontal and vertical cursors.
![](/u_file/article/19_06_21/c26a95d20d.png)

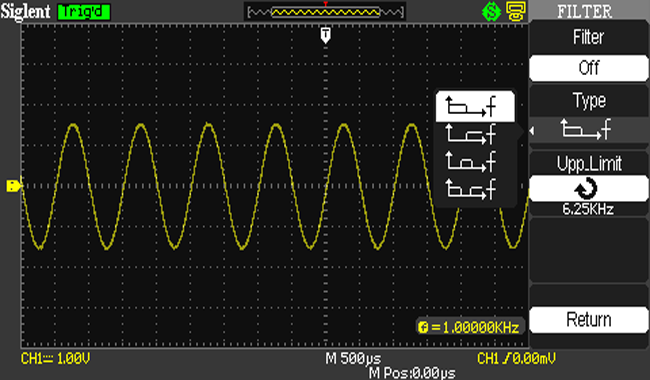

Digital Filter
Several types of filter, leave out uninterested frequency signals.
![](/u_file/article/19_06_21/a9dc386c81.png)
Model
Bandwidth
Channels
Real time sampling rate
Capture rate
Memory depth
SDS1202CNL+
200 MHz
2 CH + EXT
2 GSa/s(single-channel),1 GSa/s(dual-channel)
-
18 kpts
