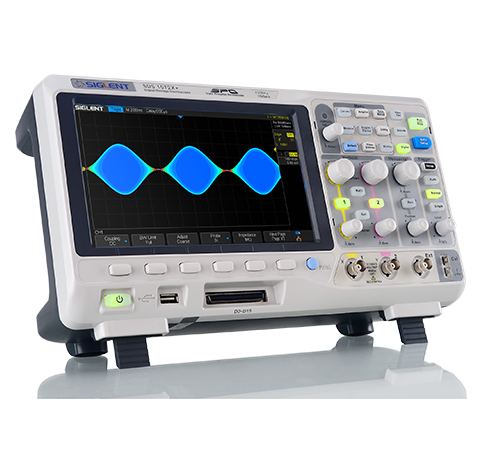

SDS1000X/X+ Series Super Phosphor Oscilloscopes(Discontinued)
Main Features
- 100, 200 MHz bandwidth models
- Real-time sampling rate up to 1 GSa/s
- X+ series features MSO and internal AWG options
- Record length up to 14 Mpts
- Serial trigger and decode (Standard)
- Waveform capture rate up to 60,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
×

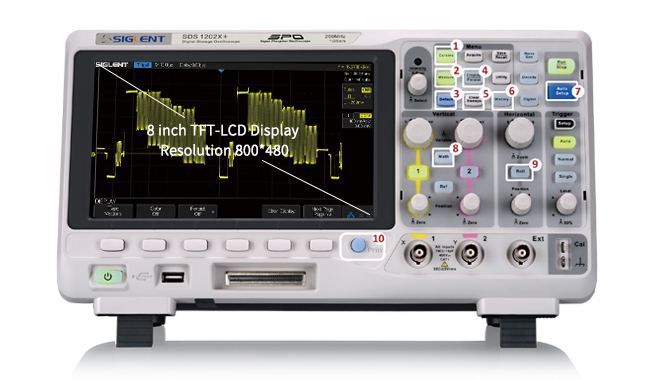

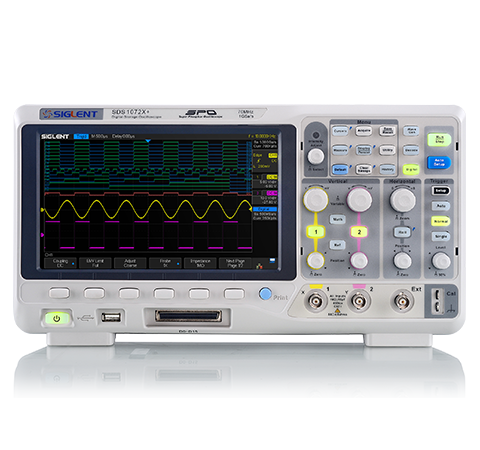

8-inch Color Display and 10 kinds of One-button Operation
The SDS1000X/SDS1000X+ series is equipped with an 8-inch TFT-LCD display with a resolution of 800*480.
It enables 10 kinds of one button operations with the frequent functions include Cursors, Measure, Default, Persist, Clear Sweeps, History, Auto Setup, Math , Roll mode and Print.
It enables 10 kinds of one button operations with the frequent functions include Cursors, Measure, Default, Persist, Clear Sweeps, History, Auto Setup, Math , Roll mode and Print.
Comprehensive Measurement and Statistics Function
The SDS1000X/SDS1000X+ supports 37 kinds of automatic measurements and statistics.
The statistics can display five kinds of values: Current, Average, Minimum, Maximum, Standard deviation. It can measure up to five different parameters with statistics simultaneously. In addition, SDS1000X/X+ series also support Gating, Math, History and Ref measurements.
The statistics can display five kinds of values: Current, Average, Minimum, Maximum, Standard deviation. It can measure up to five different parameters with statistics simultaneously. In addition, SDS1000X/X+ series also support Gating, Math, History and Ref measurements.

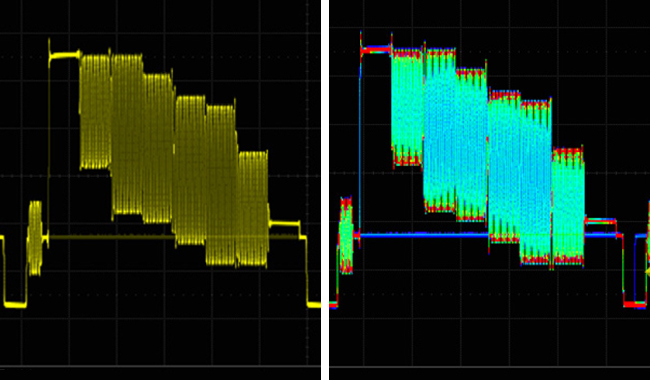

256-level Intensity and Color Temperature Display Intensity Display
SPO technology features high update rate and multi-frame superposition. The higher the probability of a waveform appears, the brighter it displays.
Color temperature display Represent the probability of signal by different colors. The warmer the chromaticity value, the higher the probability of waveform appearance.
Color temperature display Represent the probability of signal by different colors. The warmer the chromaticity value, the higher the probability of waveform appearance.
Integrated Logic Analyzer and Signal Generator Functions

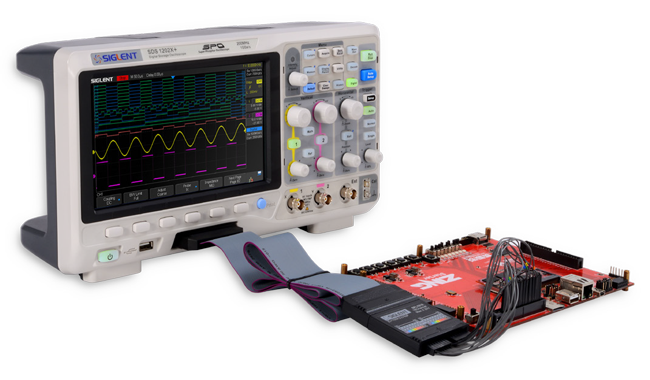

The SDS1000X+ Series integrate a 16-channel digital logic analyzer. You can acquire, trigger, and analyze signals of up to 18 channels on the same instrument, providing a complete solution for mixed-signal testing.
In addition, the SDS1000X+ comes standard with a 25 MHz function/arbitrary waveform generator, which integrates 10 common waveforms. You can also edit arbitrary waveforms through the EasyWave PC software.
In addition, the SDS1000X+ comes standard with a 25 MHz function/arbitrary waveform generator, which integrates 10 common waveforms. You can also edit arbitrary waveforms through the EasyWave PC software.
Specifications
| Bandwidth | 100 MHz 、200 MHz |
| Sample Rate(Max.) | 1 GSa/s |
| Waveform capture rate(Max.) | 400,000 wfm/s |
| Channels | 2 + EXT |
| Memory Depth (Max.) | 7 Mpts/CH (Dual-Channel); 14 Mpts/CH (Single-Channel) |
| Trigger type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video |
| DDS Waveform Generator | Single Channel, Max. Frequency up to 25 MHz, 125 MSa/s sampling rate, 16 Kpts wave length |
| SDS1000X+ Supported (Standard); SDS1000X Not supported |
| Serial trigger | I2C, SPI, UART, CAN, LIN |
| Decod Type (Optional) | I2C, SPI, UART, CAN, LIN |
| 16 Digital channel (option) | Maximum waveform capture rate up to 500 MSa/s, Record length up to 14 Mpts/CH |
| SDS1000X+ Supported (Optional); SDS1000X Not supported | |
| Logic Probe | SPL1016 (Optional) |
| I/O | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 1 kHz cal |
| Probe (standard) | SDS1102X/X+: 2 pcs passives probe PP510; SDS1202X/X+: 2 pcs passive probe SP215 |
| Display | 8 inch TFT–LCD (800 x 480 pixels) |
| Weight | Without package 3.26 Kg; With package 4.25 Kg |
Model
Bandwidth
Channels
Real time sampling rate
Capture rate
Memory depth
SDS1102X(Discontinued)
100 MHz
2 CH + EXT
1 GSa/s
60,000 wfm/s(normal mode), 400,000 wfm/s (sequence mode)
14 Mpts
SDS1102X+(Discontinued)
100 MHz
2 CH + EXT
1 GSa/s
60,000 wfm/s(normal mode), 400,000 wfm/s (sequence mode)
14 Mpts
SDS1202X(Discontinued)
200 MHz
2 CH + EXT
1 GSa/s
60,000 wfm/s(normal mode), 400,000 wfm/s (sequence mode)
14 Mpts
SDS1202X+(Discontinued)
200 MHz
2 CH + EXT
1 GSa/s
60,000 wfm/s(normal mode), 400,000 wfm/s (sequence mode)
14 Mpts
