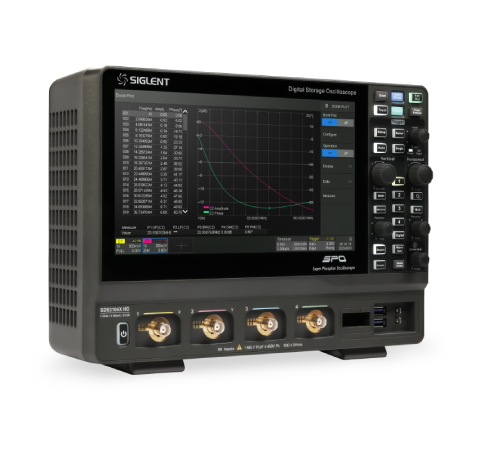

SDS3000X HD Digital Storage Oscilloscope
Main Features
- 350 MHz, 500 MHz, 1GHz models
- 12-bit high resolution
- Sampling rate up to 4 GSa/s
- Memory depth up to 400 Mpts
- Waveform capture rate up to 890,000 wfm/s (Sequence mode)
- Noise floor as low as 125 μVrms at 1 GHz full bandwidth
×

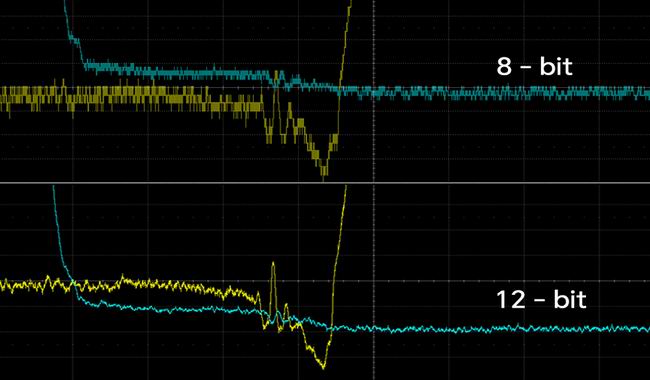

12-bit ADC：waveform details are clearly visible
SDS3000X HD series oscilloscopes are equipped with 12-bit high-resolution ADC, with quantization level up to 4096, and the resolution can be increased to 16-bit in high-resolution mode (ERES), which together with the vertical and horizontal zoom functions, helps users observe the details of waveforms in a more complete and clearer way.

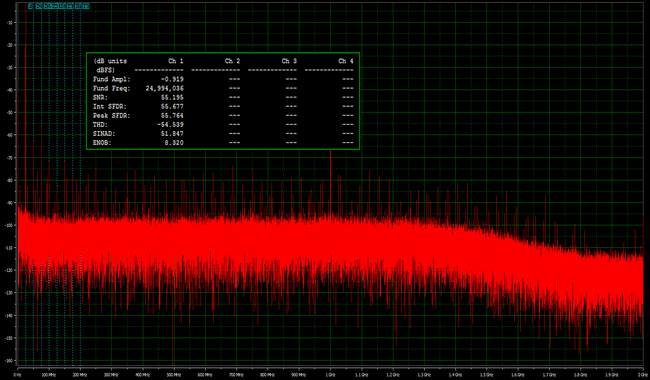

ENOB - Effective Number of ADC Bits
When a high-speed ADC performs data acquisition, the signal-to-noise-to-distortion ratio of the actual ADC falls short of the desired performance that its nominal number of bits should achieve due to noise and distortion. Since the ADC is only a part of the oscilloscope system and cannot be used independently, the ENOB indicator of the whole oscilloscope system will be more meaningful.
SDS3000X HD is up to 8.3 to 8.6-bit, with less time error and frequency spuriousness, which can effectively ensure the accuracy of measurement.
SDS3000X HD is up to 8.3 to 8.6-bit, with less time error and frequency spuriousness, which can effectively ensure the accuracy of measurement.
Multiple trigger types

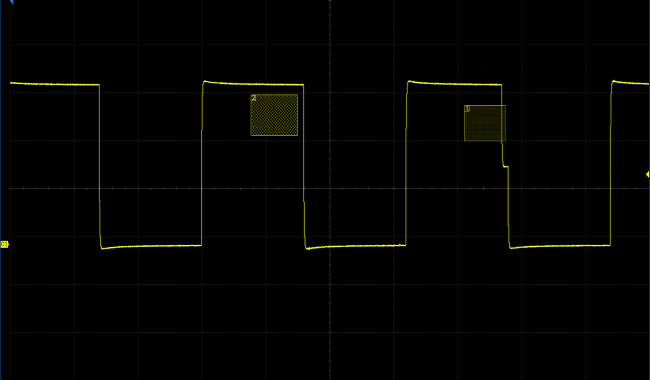

SDS3000X HD series oscilloscopes provide a variety of trigger types, including edge, interval, video, serial bus, area triggering, etc. Among them, area triggering is different from traditional triggering, which can be applied to episodic signals whose parameter characteristics are not yet clear, and the signal capture can be completed by creating and defining an area using only the mouse or touch.
Bus trigger supports I2C, SPI, CAN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and other buses, providing test solutions for embedded, automotive, computer and other serial buses.
Bus trigger supports I2C, SPI, CAN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and other buses, providing test solutions for embedded, automotive, computer and other serial buses.

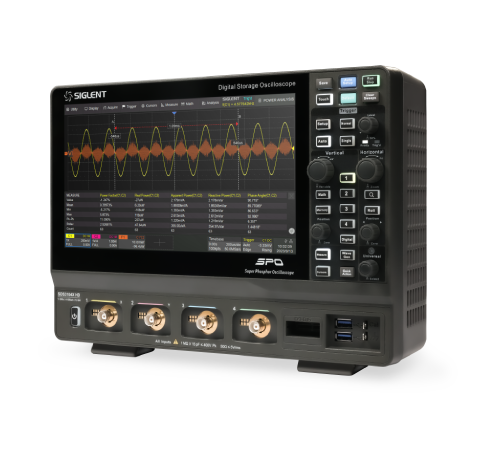

Power analysis：quickly get power parameters

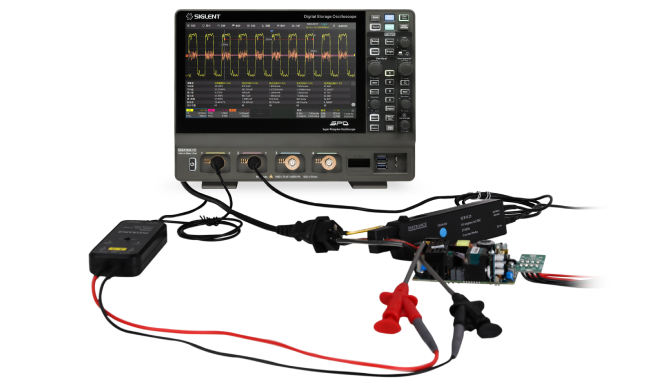

SDS3000X HD can be equipped with optional power supply analysis function, together with Siglent's voltage probes (e.g., DPB5000 series) and current probes (e.g., CP6000 series), it can quickly and accurately analyze 12 parameters of power supply such as power quality, current harmonics, inrush current, transient response, etc.
For example, to improve the efficiency of the power supply by minimizing switching loss, to evaluate the working stability of the device by counting the probability that the power device transients exceed the safe working zone under all working conditions.
For example, to improve the efficiency of the power supply by minimizing switching loss, to evaluate the working stability of the device by counting the probability that the power device transients exceed the safe working zone under all working conditions.
50MHz waveform generator

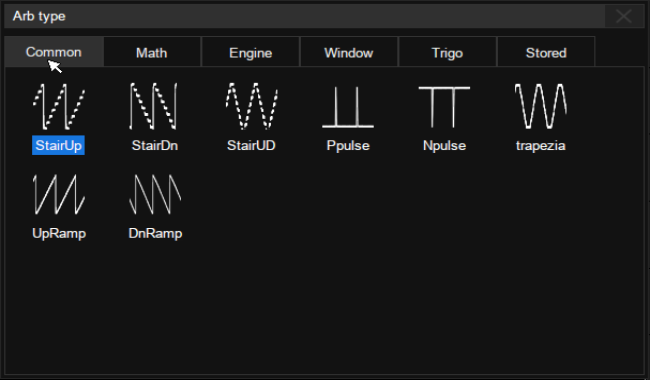

SDS3000X HD can be directly connected to the waveform generator SAG1021I via the USB interface. With a sampling rate of 125MSa/s and 14-bit resolution, the SAG1021I provides predefined waveform outputs of up to 50MHz, including sine, square, triangle, pulse, noise, DC, and 45 built-in arbitrary waveforms.
Users can also edit arbitrary waveforms through the EasyWave host computer software. The plug-and-play nature of the SAG1021I allows users to quickly and easily set up tests for a wide range of scientific experiments and industrial control applications.
Users can also edit arbitrary waveforms through the EasyWave host computer software. The plug-and-play nature of the SAG1021I allows users to quickly and easily set up tests for a wide range of scientific experiments and industrial control applications.
Specification
| Bandwidth | 350 MHz, 500 MHz, 1GHz |
| Vertical resolution | 12-bit |
| Sample rate (Max.) |
One or Two channel mode: 4 GSa/s, Four channel mode: 2 GSa/s |
| Analog channels | 4 + EXT |
| Memory depth (Max.) |
One channel mode: 400 Mpts/ch, Two channel mode: 200 Mpts/ch, Four channel mode: 100 Mpts/ch |
| Waveform capture rate (Max.) |
Normal mode : 200,000 wfm/s; Sequence mode : 890,000 wfm/s |

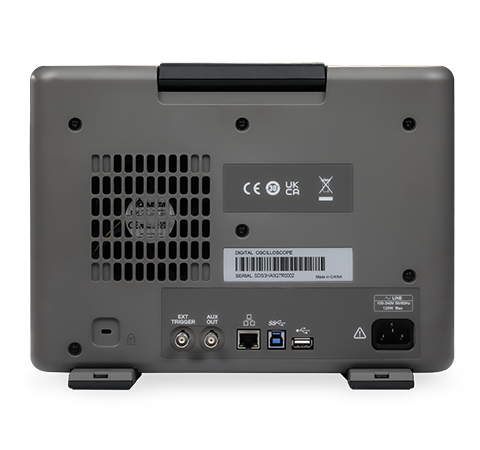

| I/O | USB 2.0 Host x3, USB 2.0 Device, 10 M / 100 M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Siglent MSO) |
| Serial trigger and decode(Standard) | I2C, SPI, UART, CAN, LIN, CAN FD(Decode Only), FlexRay(Decode Only) |
| Trigger type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial |
| Digital channel(optional) | 16-channel; maximum sample rate up to 1 GSa/s; record length up to 10 Mpts |
| Math | 4 traces 2 Mpts FFT, Filter, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average. Supports formula editor |
| Data analysis | Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis |
| USB AWG module (option) | Single-channel SAG1021I, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory |
| Display | 10.1 TFT-LCD with capacitive touch screen (1024*600) |
Model
Bandwidth
Channels
Resolution
Sampling Rate
Waveform Update Rate
Memory Depth
Price
SDS3034X HD
350 MHz
4 + EXT
12-bit
4 GSa/s
890,000 wfm/s
400 Mpts/ch
$3,619
SDS3054XHD
500 MHz
4 + EXT
12-bit
4 GSa/s
890,000 wfm/s
400 Mpts/ch
$5,269
SDS3104X HD
1 GHz
4 + EXT
12-bit
4 GSa/s
890,000 wfm/s
400 Mpts/ch
$6,569
