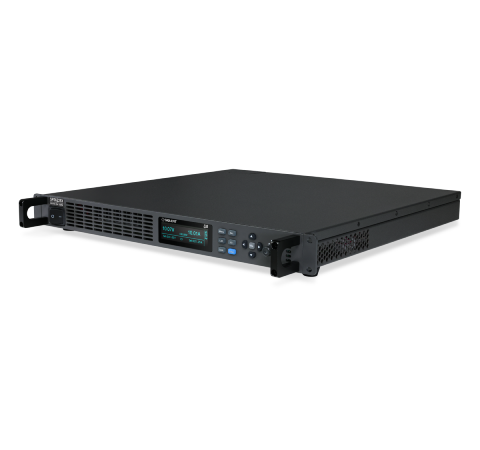

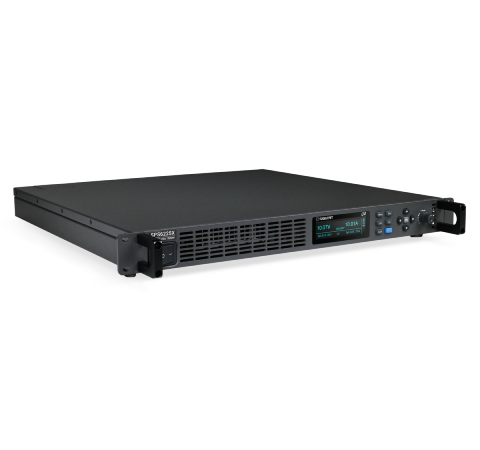

SPS6000X Series Wide Range Programmable Switching DC Power Supply
Main Features:
  • Rated Voltage: 200 V / 100 V
  • Rated Current: 25 A / 50 A
  • Rated power: 1500 W
  • Setting and readback resolution: 10 mV, 10 mA
  • OVP, OCP, LPP, OTP protection
×

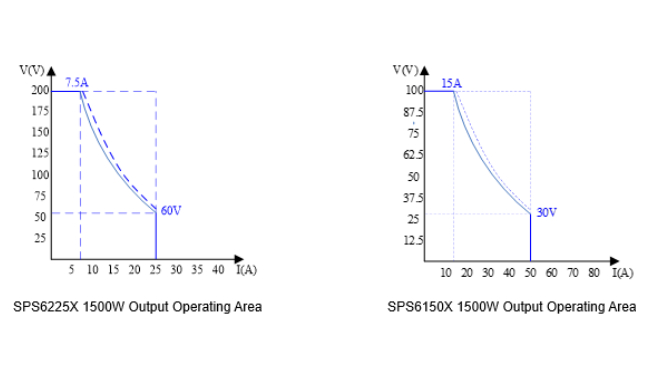

Wide range input and output
Under the condition of limited output power, the voltage and current ranges are automatically switched, and a variety of voltage and current output combinations can be realized on one power supply. As shown in the figure on the right, two traditional rectangular output power supply can only realize and voltage and current output combination, but one can meet, and can also realize more parameter output in the arc area. Compared with the traditional rectangular output range, the power supply provides a wider voltage and current output range, which greatly improves the utilization of the power supply.

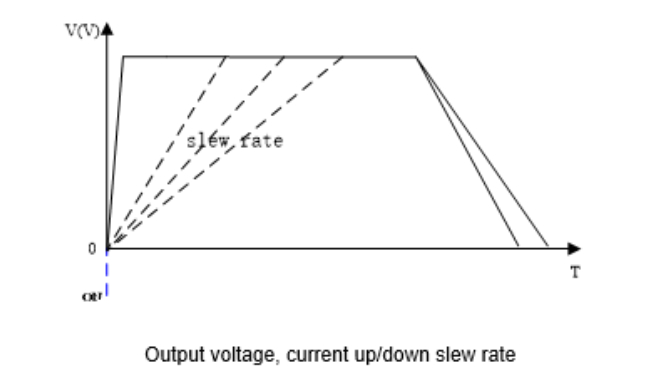

Adjustable Ramp Up/Down Rates for Output Voltage and Current
The SPS6000X power supply supports customized setting of voltage/current ramp up/down, which can verify the performance of the object to be measured during the voltage/current change. The voltage rise/fall slope ranges from 0.001~4V/ms, and the current rise/fall slope ranges from 0.001~2.4A/ms, which can effectively avoid the damage of inrush current to the DUT in special applications, such as the testing of capacitors and strong current absorbing devices. Reduce the harm of inrush current to the load under test.

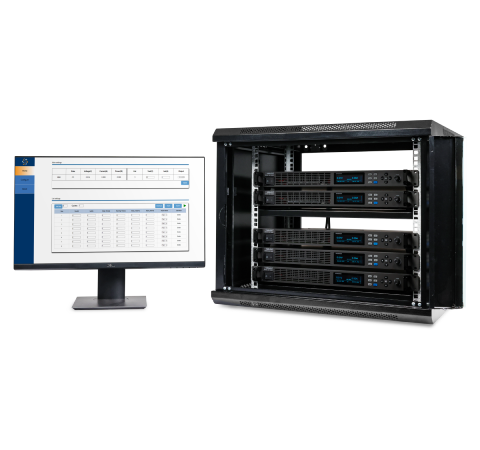

Efficient and convenient remote control

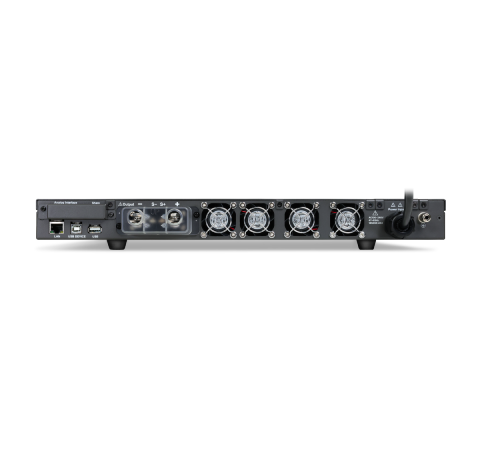

SPS6000X is equipped with USB, LAN communication interface and optional USB-GPIB module. With the embedded Web Server function, the instrument can be remotely controlled through a browser without the need to install complicated driver software and host computer software, which can more conveniently meet the needs of high-pressure, high-temperature and other special environment applications.
Users can also save various types of files to internal and external memories, which can be read and recalled when needed. All of these are originated from the modernized design language of SPS6000X, which makes the power supply products reach a new height of practicality.
Multiple Protection Functions
CV/CC Priority Mode: Effectively limits the occurrence of inrush current and overshoot voltage.
Self-contained Drain Circuit: When the power is turned off and the load is disconnected, the drain circuit will drain the power from the output filter capacitor. If there is no drain circuit, the output capacitor will remain charged, which may cause danger, the drain circuit can also be used to adjust the voltage drop slope.
Multiple strategic protection modes: The protection functions of the power supply include: over-current protection (OCP), over-voltage protection (OVP), and over-temperature protection (OTP). Entering Limit Power Protection (LPP), the system will start the power-limit mode, and the maximum output power is about 102% of the rated power.
Specifications
Output SPS6225X   200V/25A/1500W
SPS6150X   100V/50A/1500W
Display 3.12-inch OLED display
Resolution  10mV/10mA
Setting Accuracy Current: 0.2%±30mA
Voltage: 0.1%±10mV
Readback Accuracy Current: 0.2%±40mA
Voltage: 0.1%±20mV
C.V Mode
Line Regulation SPS6225X:40mV
SPS6150X:5mV
Load Regulation SPS6225X:100mV
SPS6150X : 50mV
Ripple and Noise
  SPS6225X SPS6150X
Vpp 220 mV 120 mV
Vrm 39 mV 30 mV
Series/Parallel Mode
Max. units in series ≥2 SPS6225X
≥4 SPS6150X
Max. units in parallel  5
CC/CV priority mode Support
Web remote control Support
List function Support, up to 50 steps, edit locally or import from USB memory
Model
Output channel
Display
Resolution
Setting accuracy
Readback accuracy
SPS6225X
One, 200V/25A/1500W
3.12-inch OLED display
10 mV/10 mA
Current: 0.2%±30mA
Voltage: 0.1%±10mV
Current: 0.2%±40mA
Voltage: 0.1%±20mV
SPS6150X
One, 100V/50A/1500W
3.12-inch OLED display
10 mV/10 mA
Current: 0.2%±30mA
Voltage: 0.1%±10mV
Current: 0.2%±40mA
Voltage: 0.1%±20mV
