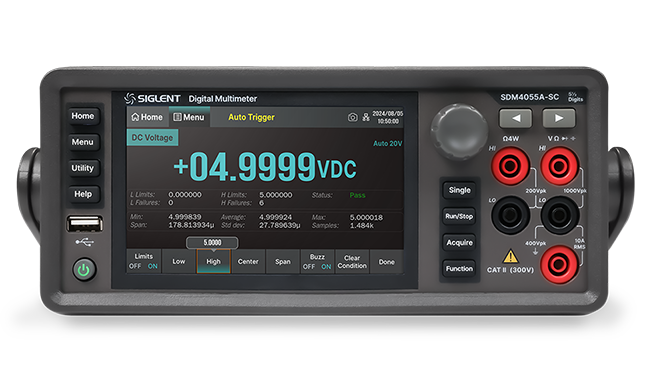

SDM4055A / SDM4055A-SC 5½ Digital Multimeters
Main Features
- Real 5½ digits readings resolution (220,000 counts)
- Reading rate from 5 rdgs/s to 4.8k rdgs/s
- 512 MB RAM, capable of saving up to 2M readings for caching
- Equipped with EasyDMM-X host computer control and sampling software
- 5-inch true color TFT-LCD display
×

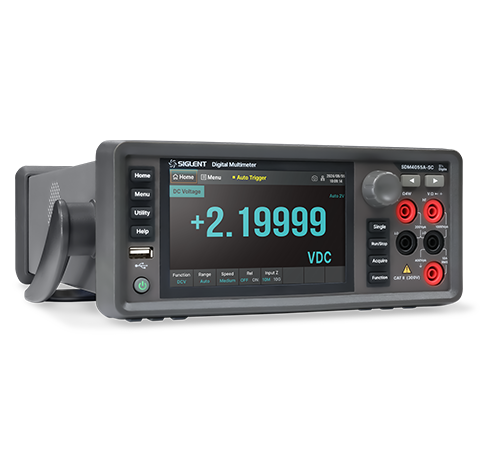

True 5½-digit precision
SDM4000A Series offers 5½-digit (220,000 counts) with a full-scale display range from -219,999 to +219,999. Its exceptional performance ensures precise capture of subtle current variations and large voltage fluctuations.

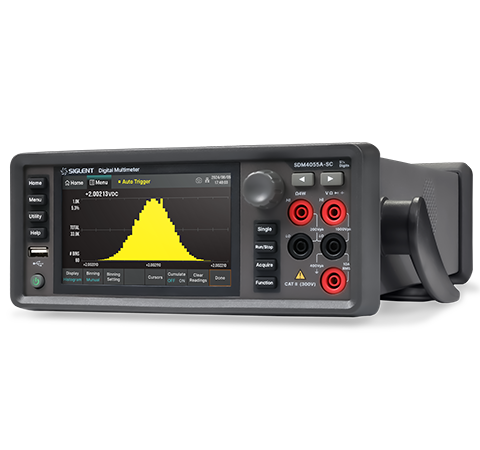

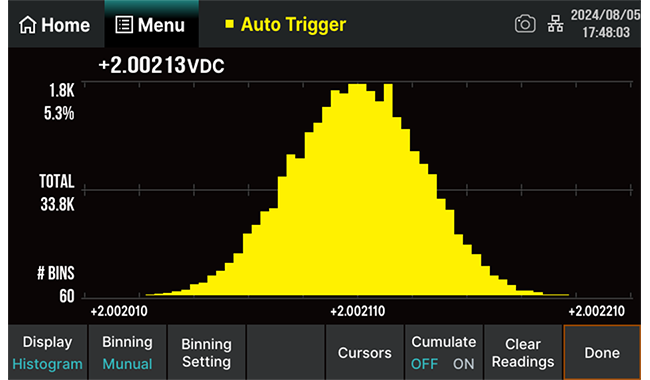

Four Display Modes
SDM4055A offers four modes: Numeric for instant clarity, Histogram for data distribution analysis, Trend Chart for dynamic data pattern observation and trend prediction, and Bar Chart for cross-condition comparisons and rapid analysis of variations and patterns under different conditions, empowering users to visualize and analyze data with deeper insights.

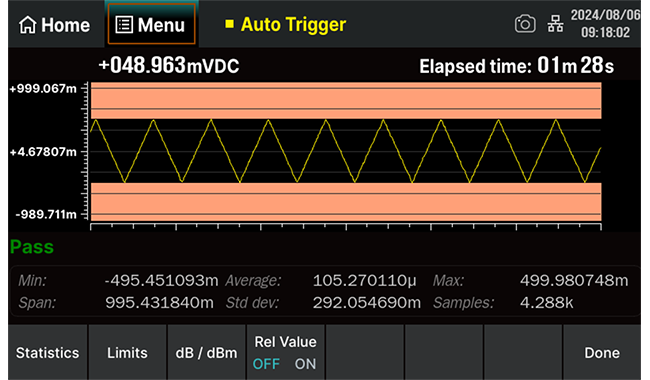

Advanced Math Functions
SDM4055A supports five operations: statistics, limits, dBm, dB, and relative measurements. It rapidly calculates max/min, average, peak-to-peak, standard deviation, and sample count, while enabling pass/fail testing via preset thresholds. Voltage-to-power conversion, dB-based relative measurements, and deviation analysis further enhance versatility.

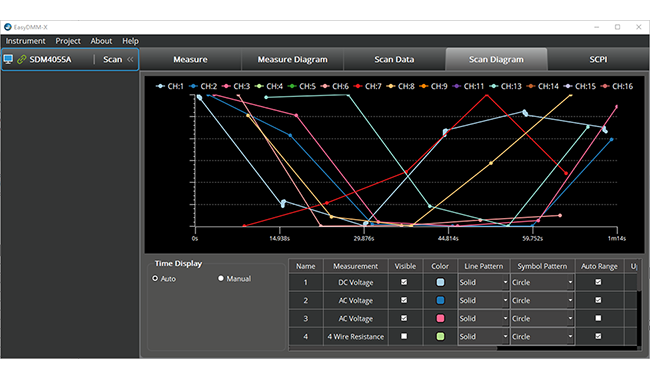

Remote Control & Programming
SDM4000A integrates USB Host, USB Device, and LAN interfaces, with an optional USB-GPIB module. It supports standard SCPI remote control commands, PC-based software, and compatibility with the latest mainstream multimeter command sets. Its embedded web server enables direct remote control and programming via a browser, fulfilling diverse communication and automation needs.
Specifications
| DC Voltage | 200 mV ，2 V，20 V，200 V，1000 V |
| DC Current | 200 μA，2 mA，20 mA，200 mA，2 A，10 A |
| AC Voltage | True-RMS，200 mV，2 V，20 V，200 V，750 V |
| AC Current | True-RMS，200 μA，2 mA，20 mA，200 mA，2 A，10 A |
| 2/4-Wire Resistance | 200 Ω，2 KΩ，20 KΩ，200 KΩ，1 MΩ，10 MΩ，100 MΩ |
| Capacitance | 2 nF，20 nF，200 nF，2 μF，20 μF，200 μF，2 mF，20 mF，100 mF |
| Continuity Test | Range is fxed at 2 kΩ |
| Diode Test | Adjustable range is 0 - 4 V |
| Frequency Measurement | 3 Hz~1 MHz |
| Temperature | Support for TC and RTD sensor |
| Math Function | Max, Min, Average, Standard Deviation,dBm/dB, Relative Measurement ,Pass/Fail Histogram, Trend Chart, Bar Meter, etc. |
| Dispay | 5-inch TFT-LCD display, 800 * 480 |
| Size | 256 MB Nand Flash |

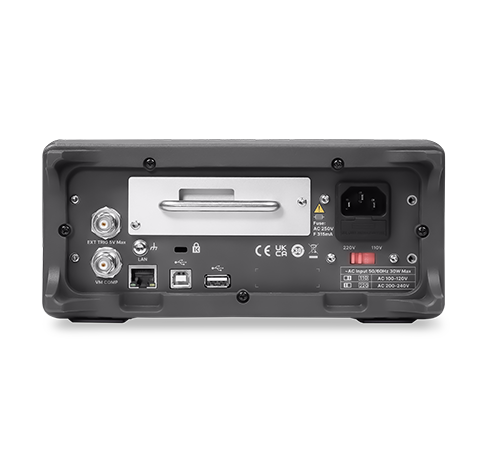

| Standard Interface | USB Device, USB Host, LAN |

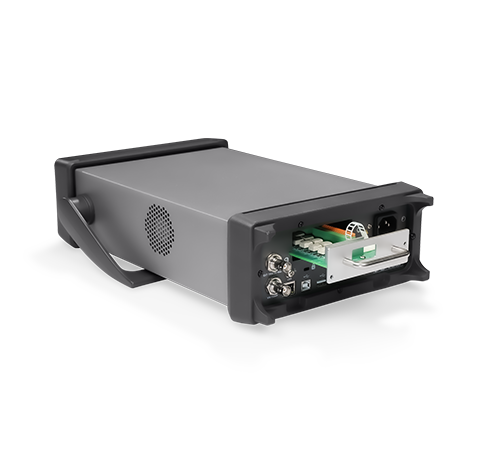

| Optional Interface | USB-GPIB Adapter and Scanner Card SC1016 |
| Scanner Card SC1016 | Only for SDM4055A-SC |
Model
Reading resolution
DC voltage measurement range
AC voltage measurement range
DC current measurement range
AC current
Scanner card
SDM4055A
5 1/2
200 mV ~ 1000 V
200 mV ~ 750 V
200 μA ~ 10 A
20 mA ~ 10 A
Not Support
SDM4055A-SC
5 1/2
200 mV ~ 1000 V
200 mV ~ 750 V
200 μA ~ 10 A
20 mA ~ 10 A
Support
