SSA3000X-R Real-time Spectrum Analyzers
- Spectrum Analyzer Frequency Range from 9 kHz up to 3.2 GHz / 5.0 GHz / 7.5 GHz
- Now with VNA and DTF functions, free!
- -165 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
- Level Measurement Uncertainty < 0.7 dB (Typ.)
- Up to 40 MHz Real Time Analysis Bandwidth Option
- Minimum Signal Duration with 100% POI, 7.2 us
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
×

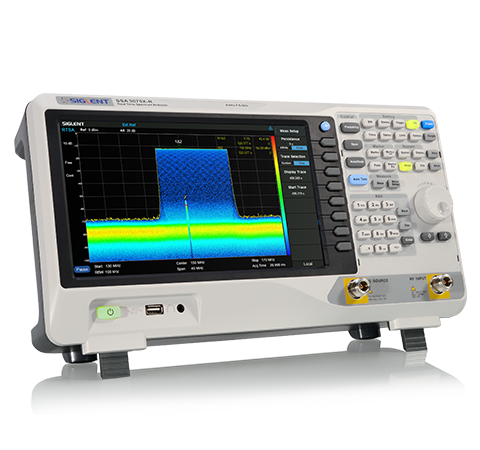

High-speed and stable real-time spectrum acquisition, analysis and display
The SSA3000X-R real-time spectrum analyzer can set the frequency template trigger function to seamlessly collect and analyze signals. It is perfect tool for observation and analysis of small, elusive and frequency hopping signals.
· Optional real-time analysis bandwidth: standard 25 MHz, 40 MHz
· Multiple display modes: Density, Spectrogram, PvT, 3D.
· Configurable frequency mask trigger function
· Optional real-time analysis bandwidth: standard 25 MHz, 40 MHz
· Multiple display modes: Density, Spectrogram, PvT, 3D.
· Configurable frequency mask trigger function

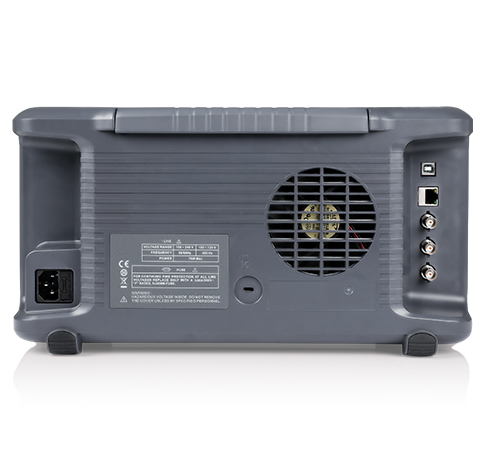

Versatile Controllability

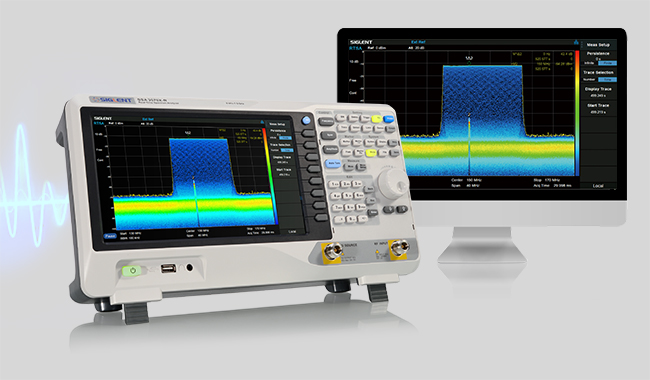

SSA3000X-R series RTSA succeed the ease-to-use UI style of SVA1000X and SSA3000X Plus series. It adopts 10.1 inch touch screen and supports external mouse & keyboard. Connection to PC is possible via LAN or USB interface. Free EasySpecturm software and Web Control support control of the unit, send SCPI commands, save files and screen shots.

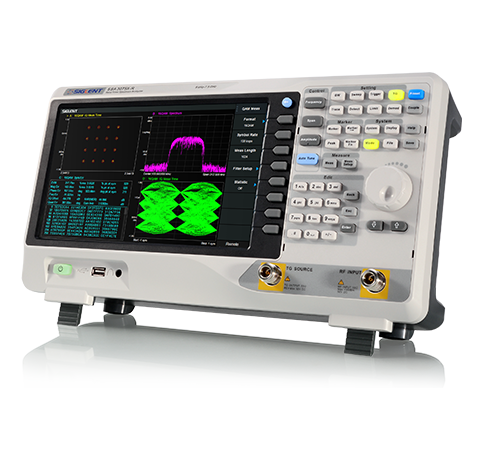

Multi-function SA
SSA3000X-R is not only a RTSA, but a versatile instruments.

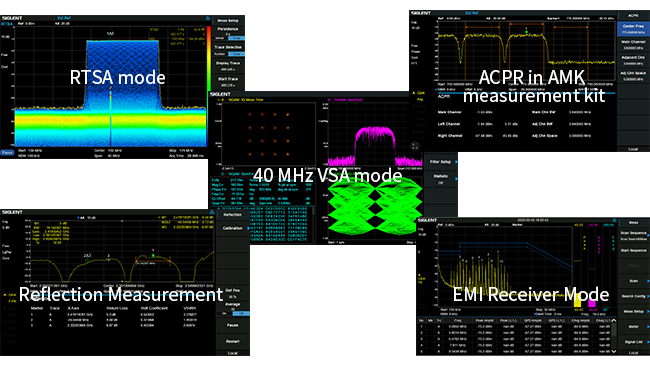

· RTSA mode: Analyze elusive signals in real-time.
· SA mode: Perform as a normal spectrum analyzer - reflection and advanced measurements.
· Modulation analysis: Up to 40 MHz (option) wideband modulation analysis.
· EMI Receiver Mode: Newly added EMI reicever Mode to perform EMI-pre compliance tests.
· RTSA mode: Analyze elusive signals in real-time.
· SA mode: Perform as a normal spectrum analyzer - reflection and advanced measurements.
· Modulation analysis: Up to 40 MHz (option) wideband modulation analysis.
· EMI Receiver Mode: Newly added EMI reicever Mode to perform EMI-pre compliance tests.
Specifications
| Frequency Range | SSA3032X-R：9 kHz ~ 3.2 GHz SSA3050X-R：9 kHz ~ 5.0 GHz SSA3075X-R：9 kHz ~ 7.5 GHz |
| Resolution Bandwidth | 1 Hz ~ 3 MHz |
| Displayed Average Noise Level | -165 dBm/Hz |
| SSB Phase Noise | < -98 dBc/Hz@1 GHz |
| Real Time Band Width | 25 MHz, 40 MHz (Option) |
| Tracking Generator | SSA3032X-R：100 kHz ~ 3.2 GHz SSA3050X-R：100 kHz ~ 5.0 GHz SSA3075X-R：100 kHz ~ 7.5 GHz |
| Total Amplitude Accuracy | < 0.7 dB |
| SFDR | 60 dB |
| 100% POI | 7.20 μs |
| RTSA Measurement | Density, Spectrogram, 3D, PvT |
| Touch Screen | Multi Touch, Mouse and Keyboard supported |
| Advanced Measurement | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor |
| Modulation Analysis | AM, FM, ASK, FSK, MSK, PSK, QAM |
| Reflection Measurement | VSWR measurement using Reflection Bridge |
| EMI Test | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line |
| Communication Interface | LAN, USB Device, USB Host (USB-GPIB) |
| Remote Control Capability | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet |
| Remote Controller | NI-MAX, Web Browser, Easy Spectrum software, File Explorer |
| VNA Measurement | Vector S11, Vector S21 |
| Distance to Fault | Standard |
Model
Frequency range
DANL
Phase noise
Real time analysis bandwidth
Resolution bandwidth
SSA3032X-R
9 kHz ~ 3.2 GHz
-165 dBm/Hz
< -98 dBc/Hz
25 MHz, 40 MHz(Optional)
1 Hz ~ 3 MHz
SSA3050X-R
9 kHz ~ 5.0 GHz
-165 dBm/Hz
< -98 dBc/Hz
25 MHz, 40 MHz(Optional)
1 Hz ~ 3 MHz
SSA3075X-R
9 kHz ~ 7.5 GHz
-165 dBm/Hz
< -98 dBc/Hz
25 MHz, 40 MHz(Optional)
1 Hz ~ 3 MHz
