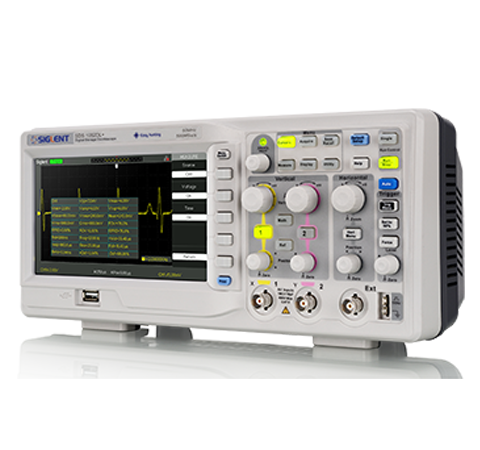

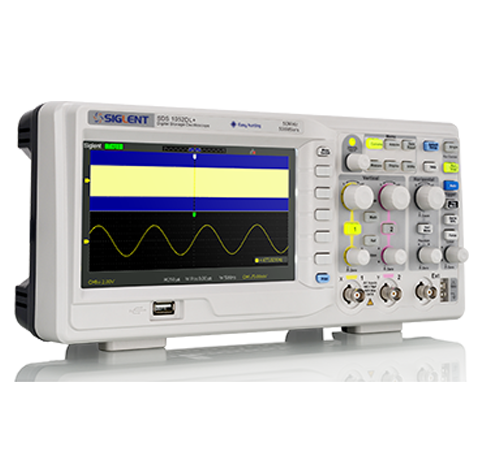

SDS1000DL+ Series Digital Storage Oscilloscopes
Main Features
- 32 auto measurements/5 displayed
- Digital Recorder
- One key storage
- Pass/Fail
- Abundant Interfaces
![](/u_file/product/19_06_21/0d669e9c57.png)
![](/u_file/product/19_06_21/f40fd6c71c.png)
![](/u_file/product/19_06_21/69fe9f0a4e.png)
![](/u_file/product/19_06_21/0d669e9c57.png)
![](/u_file/product/19_06_21/f40fd6c71c.png)
![](/u_file/product/19_06_21/69fe9f0a4e.png)
×

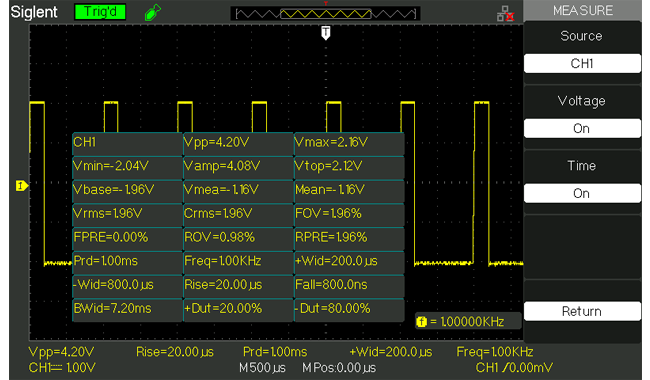

32 Auto Measurements/5 Displayed
Support display 32 kinds of automatically measurements on screen or 5 kinds of measurements below the waveforms.
![](/u_file/article/19_06_21/2a2e8995eb.png)

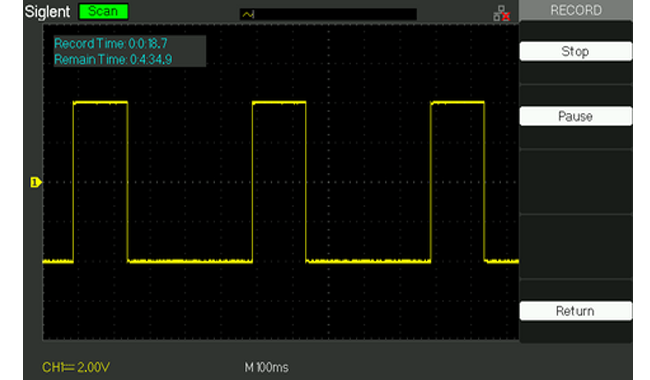

Digital Recorder
The digital recorder is able to record data in real-time and without any dead time. The SDS1000DL+ has 7 M of memory for the recorder and supports a USB disk.
![](/u_file/article/19_06_21/4cddab2512.png)

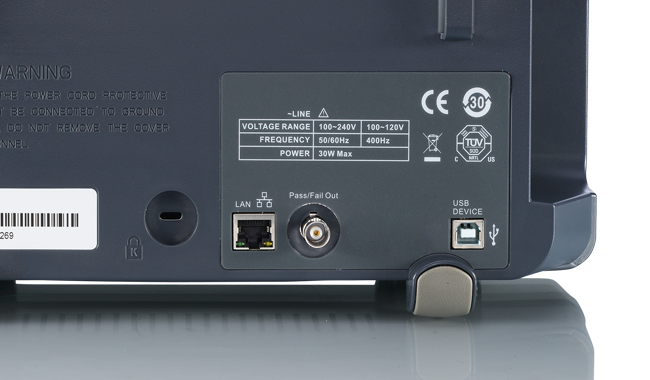

Abundant Interfaces
SDS1000DL+ support USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail.
![](/u_file/article/19_06_21/3237a04870.png)
Model
Bandwidth
Channels
Real time sampling rate
Capture rate
Memory depth
SDS1052DL+
50 MHz
2+EXT
500 MSa/s
-
32 Kpts
