SDG1000X Plus Series Function/Arbitrary Waveform Generators
Main Features
- Dual output channels, maximum 60 MHz output frequency, maximum 20 Vpp output amplitude
- 1 GSa/s Sampling rate, 16-bit vertical resolutio
- Arbitrary wave length 8 Mpts/CH
- Maximum 40 Mbps PRBS output
- Multi-pulse output function
- 4.3-inch display
×
High-performance Sampling System

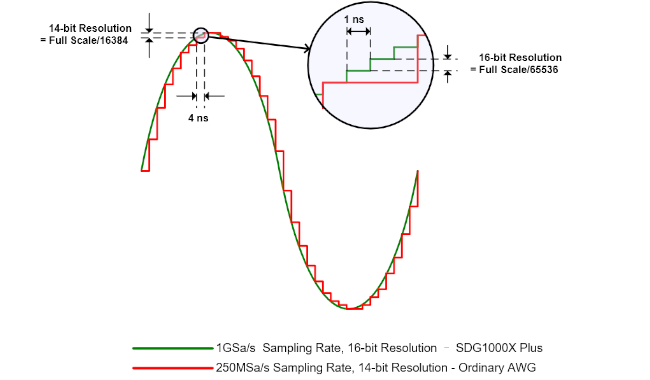

High resolution and sampling rates are critical for accurate signal simulation and analysis. The SDG1000X Plus series offers a high-performance sampling system with 16-bit vertical resolution and a 1 GSa/s sampling rate, delivering precise signal details and ensuring high fidelity. It is well-suited for applications requiring accurate signal generation, such as the development and testing of communication equipment.

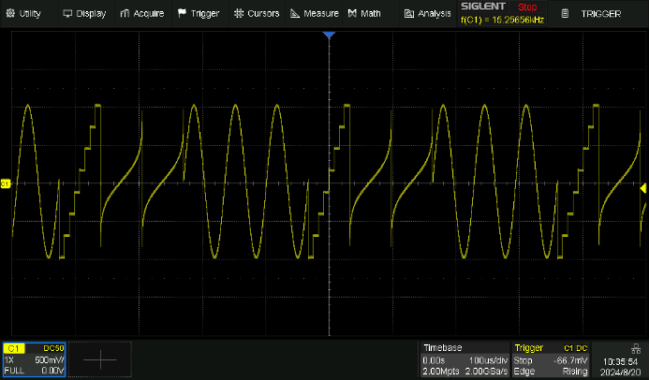

8 Mpts/CH Arbitrary Waveform
The SDG1000X Plus supports 8 Mpts of waveform memory, enabling the generation of long-duration, complex modulated signals for high-precision testing. It accurately simulates modulated signals and pulse sequences for modern communication systems, ensuring system performance. It is also suited for high-speed chip testing in the semiconductor industry, where precise timing and amplitude control are critical for achieving test accuracy. Furthermore, researchers in the biomedical field can utilize it to simulate complex bioelectric signals, advancing the study of electrical signal transmission in living organisms and facilitating the development of medical devices.

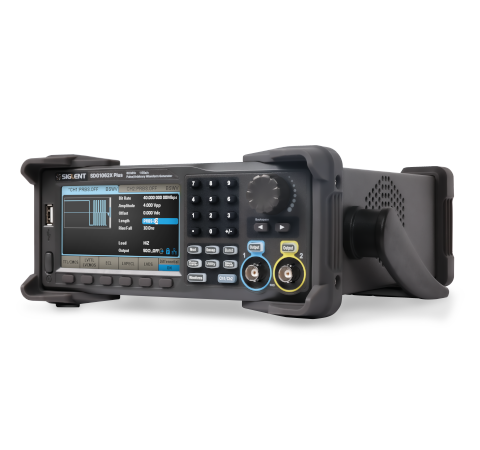

Ideal for Communication System Testing

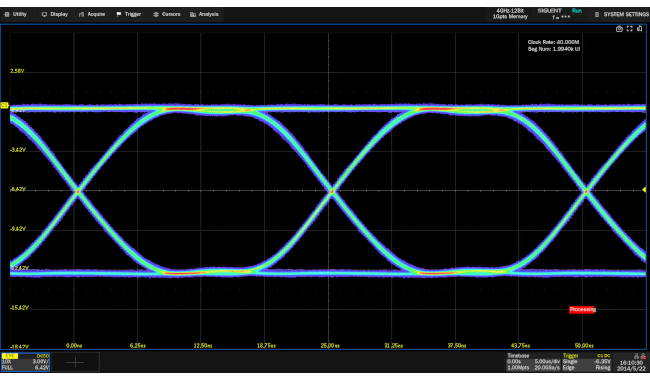

The SDG1000X Plus offers PRBS pattern output ranging from PRBS3 to PRBS32, generating high-speed pseudo-random binary sequences (PRBS) with bit rates from 1 μbps to 40 Mbps. It is ideal for testing high-speed serial communication systems. Whether testing protocols such as Ethernet, USB, or HDMI, the SDG1000X Plus can simulate real-world communication environments, allowing engineers to identify potential issues. With built-in logic level support for TTL, LVCMOS, and other standards, it easily generates differential signals, making it particularly suited for applications requiring high common-mode rejection ratios.

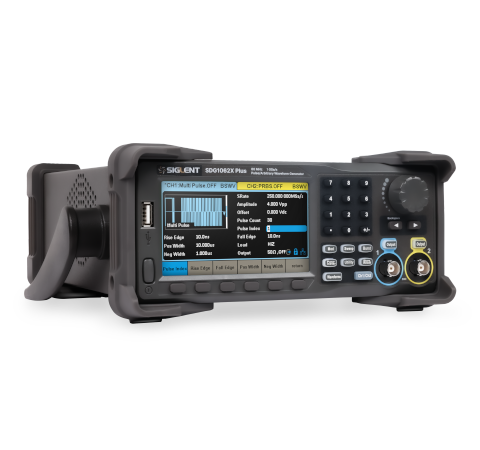

Double Pulse Testing for Power Devices

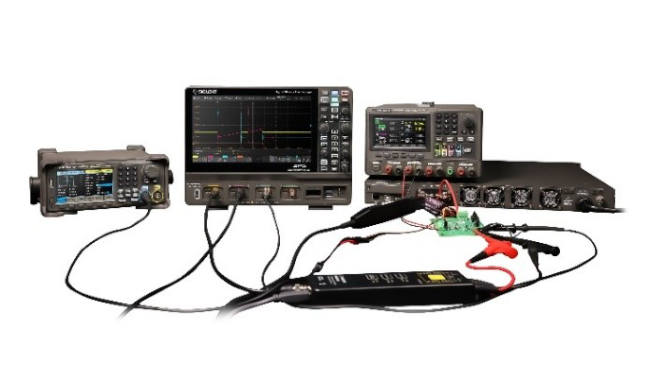

The SDG1000X Plus incorporates multi-pulse output functionality with rise/fall times as low as 10 ns. Each pulse can be individually configured, allowing engineers to generate precise gate drive signals and measure switching parameters and dynamic characteristics of power devices. This functionality significantly enhances the testing efficiency and accuracy of power devices such as IGBTs and MOSFETs.
Webserver Remote Control

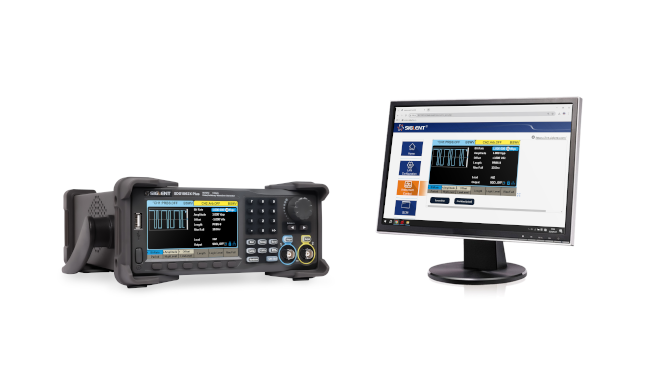

The built-in Webserver function offers engineers a convenient way to remotely control and configure the instrument via a network, simplifying testing workflows, particularly in environments that require frequent parameter adjustments.
Specifications

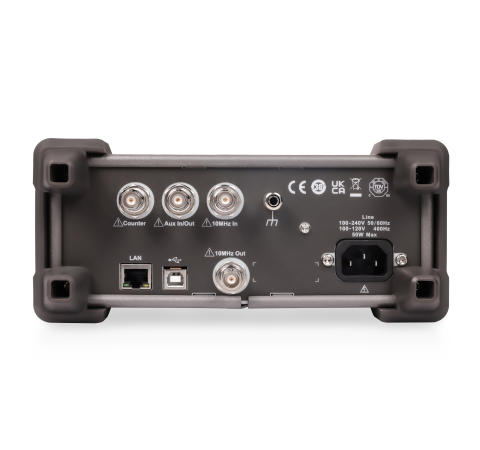

| Bandwidth | 25MHz、30 MHz、60 MHz |
| Sample Rate | 1 GSa/s |
| Channels | 2 |
| Arbitrary Waveform Length | 8 Mpts |
| Frequency Resolution | 1 μHz |
| Vertical Resolution | 16-bit |
| Waveform | Sine,Square,Ramp,Pulse,Gaussian white noise,196 types of built-in Arb |
| Max.Amplitude | ±10 V |
| Size | Width×Height×Depth=260.3 mm×107.2 mm×295.7 mm |
| Interface | USB Host, USB Device, LAN, GPIB(opt.) |
| Modulation Types | AM、 FM、PM、FSK、ASK、DSB-AM、PWM、Sweep、Burst |
| Frequency Counter | 0.1 Hz ~ 200 MHz |
| Display | 4.3”TFT-LCD display |
Model
Max output frequency
Max sampling rate
Vertical resolution
Waveform length
Channels
SDG1022X Plus
25 MHz
1 GSa/s
16-bit
8 Mpts
2 CH
SDG1032X Plus
30 MHz
1 GSa/s
16-bit
8 Mpts
2 CH
SDG1062X Plus
60 MHz
1 GSa/s
16-bit
8 Mpts
2 CH
