SSA5000A Series Spectrum Analyzer
  • Frequency Range from 9 kHz up to 13.6 /26.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
  • 25 MHz/40 MHz Analysis Bandwidth
  • Analog Modulation Analysis and Vector Digital Modulation Analysis
  • Channel power, ACPR, OBW, Harmonic, TOI measurement etc.
×
Bluetooth Analysis

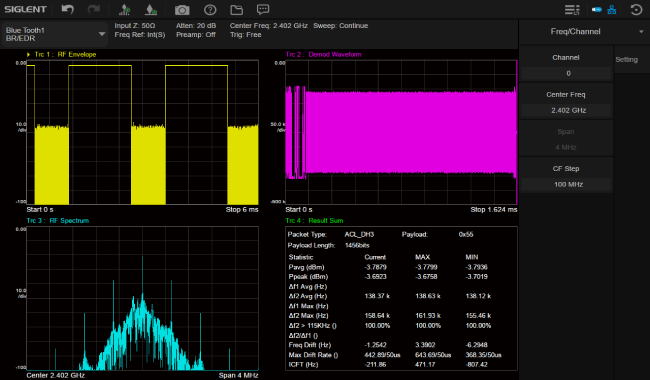

The measurement application follows the Bluetooth® RF test specification issued by Bluetooth SIG to calculate the measurement results, and automatically detects the protocol version of the signal for Bluetooth BR/EDR/LE with one-click measurements to help you design, evaluate and manufacture Bluetooth devices with confidence. Together with the new SigIQPro signal generation software and a SSG5000X-V generator, it forms an economical and efficient SIGLENT Bluetooth signal generation and signal analysis solution, accelerating the process from signal generation to data to evaluation.
Noise Figure Measurement

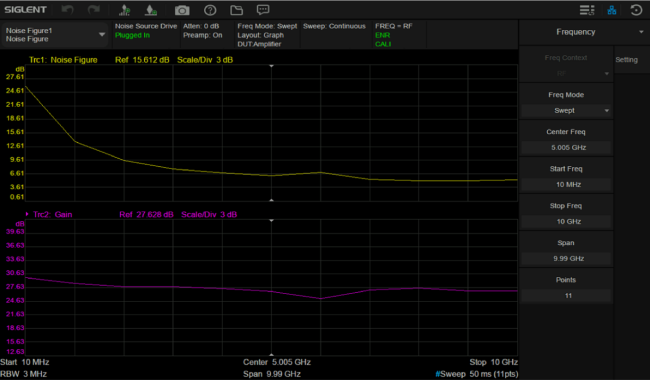

The noise figure measurement function of SIGLENT SSA5000A provides engineers with a simple tool, which can quickly and effectively measure the noise figure with high accuracy. Engineers can characterize noise figure and gain of connectorized devices and system blocks with graph, meter, and table layouts, and support the measurement of noise factor, Y-factor, effective temperature, and hot/cold power density.
Phase Noise Measurement

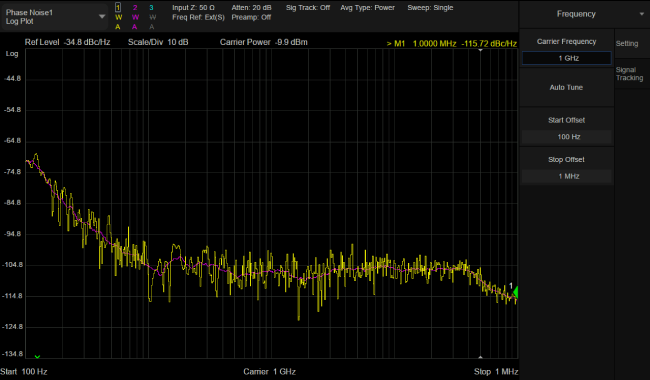

Siglent's SSA5000A Spectrum analyzers now provide a one-button phase noise measurement. The SSA5000A features lower Display Average Noise Level (DANL) and phase noise ensuring the accuracy of your tests. The smaller resolution bandwidth avoids measuring both carrier power and noise power together, and the measurement results are automatically calculated and graphed.
Pulse Measurement

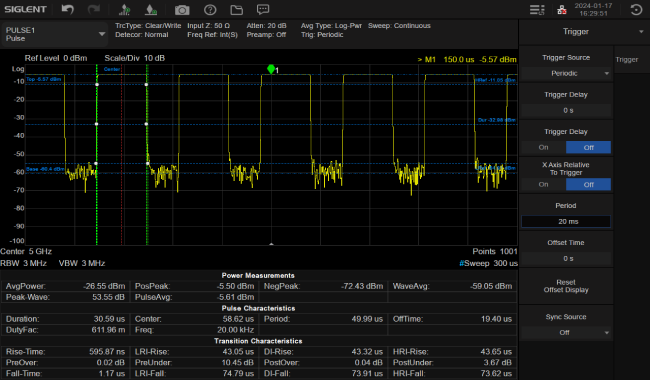

Siglent's SSA5000A Pulse Measurement option can help engineers better analyze today's dynamic signal environments with automatic power level, pulse characteristic, and conversion characteristic measurements. With high resolution bandwidth up to 10MHz the rise time measurement result can be as low as 66ns, making accurate measurements on a wide range of pulse types with a variety of triggering methods to cleanly capture the pulse shape.

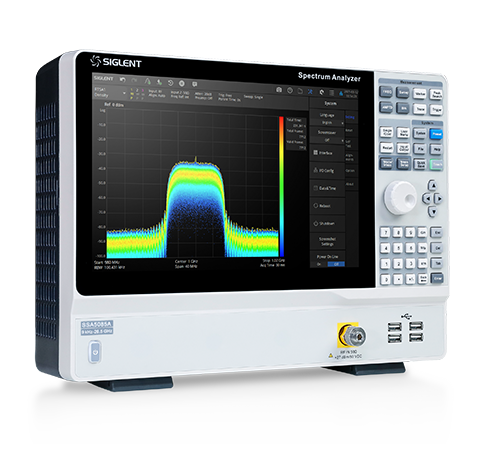

Real Time Analysis Mode
The SSA5000A series has real-time spectrum analysis capability. The analyzer can provide multi-dimensions data displays, advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, spectrum interference.

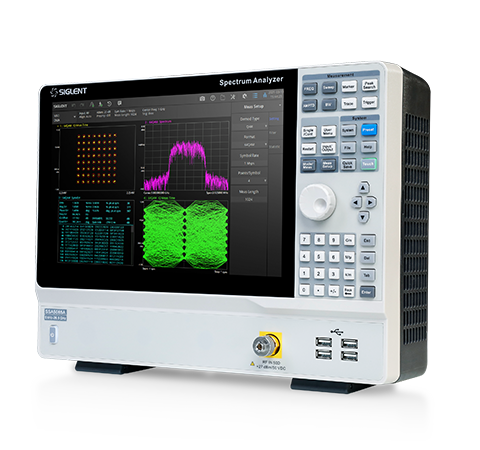

Modulation Analysis Mode

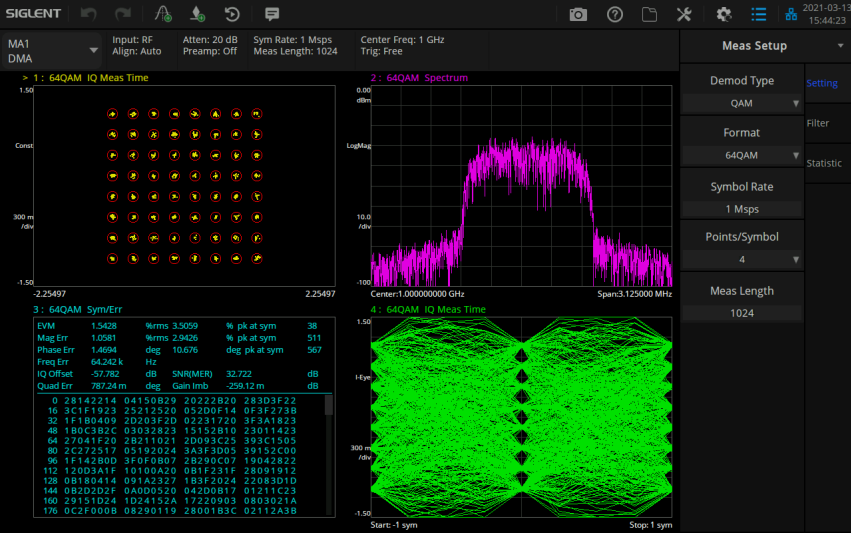

AM/FM/PM analog modulation, and ASK/FSK/PSK/MSK/QAM vector modulation analysis are useful in transceiver testing. With measurement of EVM, constellation and eye-diagram display, there are plenty of methods to evaluate communication quality.

Specifications
Frequency Range SSA5083A:9 kHz~13.6 GHz
SSA5085A:9 kHz~26.5 GHz
Resolution Bandwidth 1 Hz~10 MHz
Displayed Average Noise Level -165 dBm/Hz
SSB Phase Noise -105 dBc/Hz
Analysis Bandwidth 40 MHz
Frequency resolution 1 Hz
Advanced Measurement (opt.) CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor
Modulation Analysis (opt.) AM, FM, ASK, FSK, MSK, PSK, QAM

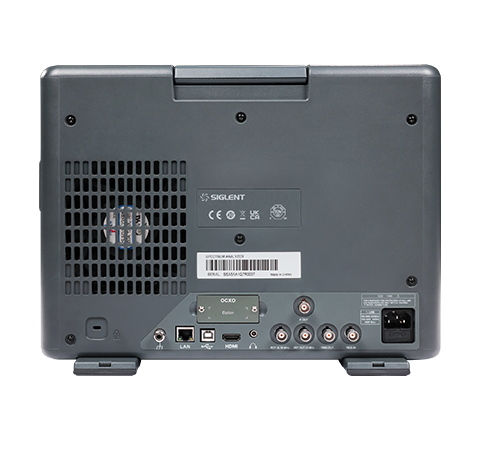

Communication Interface LAN, USB Device, USB Host(USB-GPIB)
Remote Control Capability SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet/I-MAX, Web Browser, Easy Spectrum software, File Explorer
Display TFT LCD, 1200 ×800, 12.1 inch capacitive multi-touch screen
Model
Frequency range
DANL
Phase Noise
Analysis Bandwidth
Resolution bandwidth
SSA5083A
9 kHz ~ 13.6 GHz
-165 dBm/Hz
<-105 dBc/Hz
25 MHz, 40 MHz(opt.)
1 Hz ~ 10 MHz, in 1-3-10 sequence
SSA5085A
9 kHz ~ 26.5 GHz
-165 dBm/Hz
<-105 dBc/Hz
25 MHz, 40 MHz(opt.)
1 Hz ~ 10 MHz, in 1-3-10 sequence
