SSA5000A Series Spectrum Analyzer
- Frequency Range from 9 kHz up to 13.6 /26.5 GHz
- -165 dBm/Hz Displayed Average Noise Level (Typ.)
- -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
- 25 MHz/40 MHz Analysis Bandwidth
- Analog Modulation Analysis and Vector Digital Modulation Analysis
- Channel power, ACPR, OBW, Harmonic, TOI measurement etc.
×

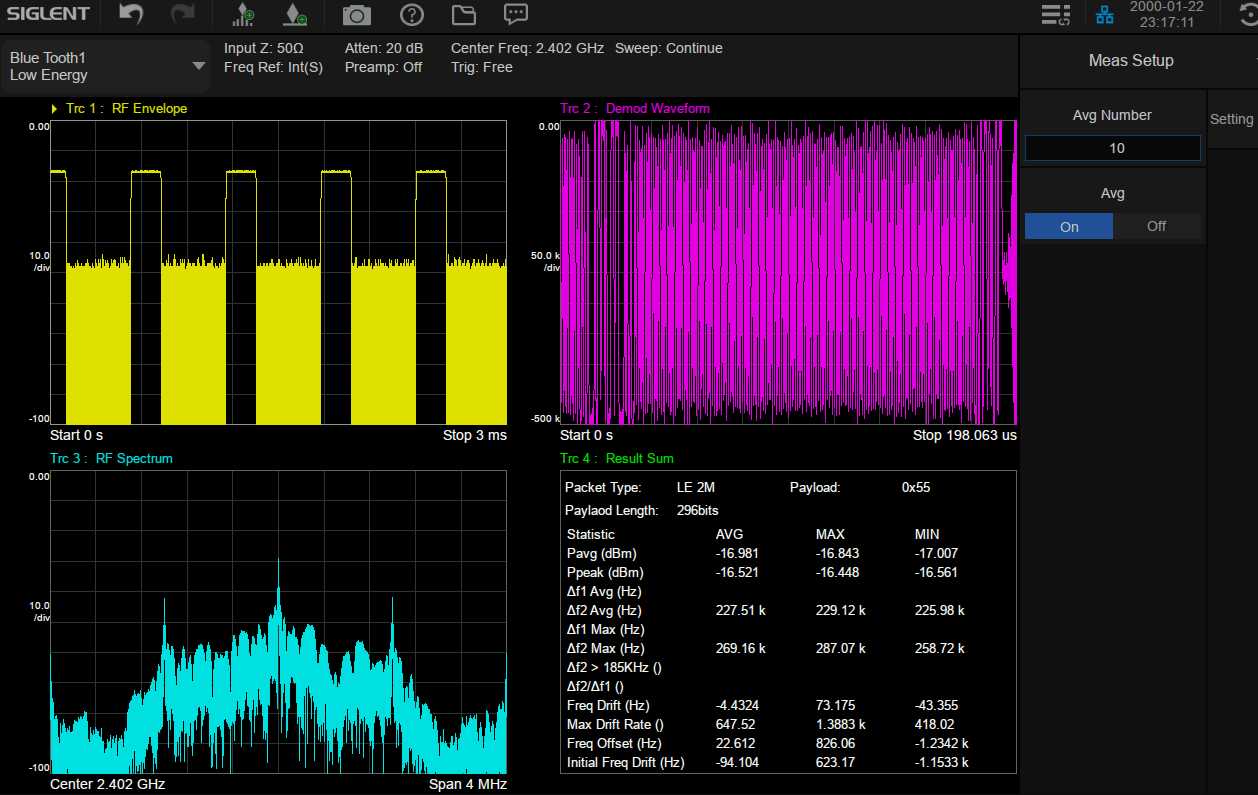

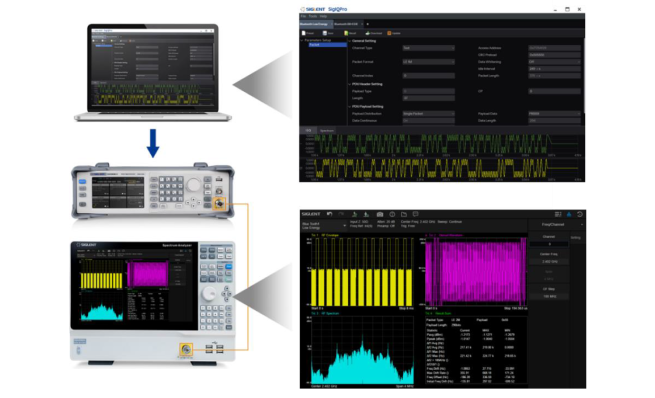

Demonstration of the SIGIQPro Bluetooth signal generation and SSA5000A Bluetooth analysis function
Download
More
As a wireless communication technology, Bluetooth technology is widely used in various devices and application scenarios. The article aims at RF verification of Bluetooth transmitter. Through fast one-click RF measurement, SSA5000A spectrum analyzer is transformed into a standard-based Bluetooth RF transmission tester to help you design, evaluate and manufacture Bluetooth devices. The measurement application conforms to the standard of Bluetooth core specification, and can safely verify your Bluetooth design, covering Bluetooth BR, EDR and LE. The article will demonstrate how to use the Bluetooth analysis function of SSA5000A to carry out Bluetooth analysis and measurement quickly and effectively.

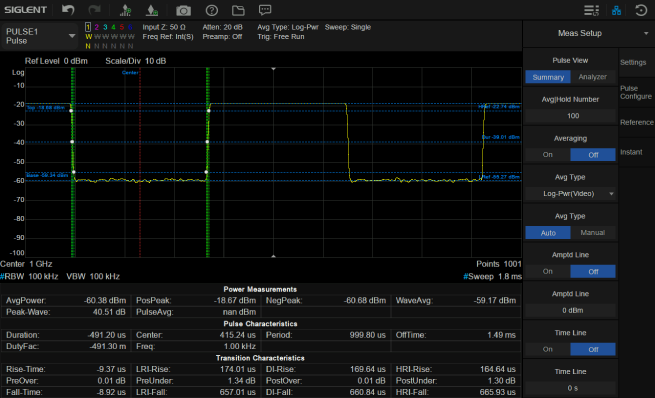

Using the SSA5000A pulse measurement option
Download
More
RF pulse signals are widely used in pules modulated radar, and testing of pulse signals is necessary for engineers working in related fields. In some critical areas such as aerospace national defense and radar EW applications, signal design and verification require integrated time domain/frequency domain/modulation test tools for pulse radar signal analysis. SIGLENT SSA5000A’s Pulse function provides pulse analysis that can help engineers better analyze today’s dynamic signal environment.

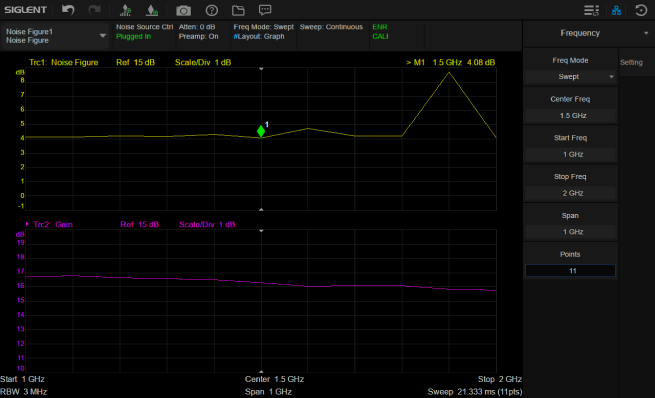

Using the SSA5000A noise figure measurement option
Download
More
The article demonstrates how to use the noise figure analysis function of SIGLENT SSA5000A spectrum analyzer to make high quality noise figure measurements quickly and efficiently.

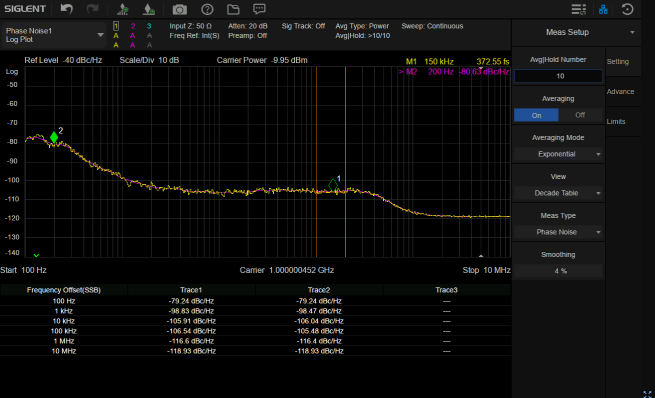

Using the SSA5000A phase noise analysis function
Download
More
A stable frequency source is a common need for many electronic devices and most RF equipment. Phase noise can be used to characterize the short-term frequency stability of these frequency sources. In this document, we will briefly describe how to use the phase noise analysis function of Siglent SSA5000A Spectrum analyzers.
