Waveform Generators
SIGLENT's Arbitrary Waveform Generators includes models with up to 500 MHz bandwidth, 2.4 GSa/s sample rate, 16-bit vertical resolution and 20 Mpts of data. Common analog and digital modulations, sweep and burst are provided to support complex signal generation. Proprietary TrueArb & EasyPulse technology included in some of the models helps to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the X-series provide true dual channels with internal waveform combination, flexible phase/channel control and copy/ coupling/ tracking between channels. These features enable SIGLENT’s Arbitrary Waveform Generators to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.
![](/u_file/product/19_06_19/ef5ecc1d40.png)
Comparison
Model
Max output frequency
Max sampling rate
Vertical resolution
Waveform length
Channels
Comparison
0
/
3
![](/u_file/product/22_03_02/CH settings.png)

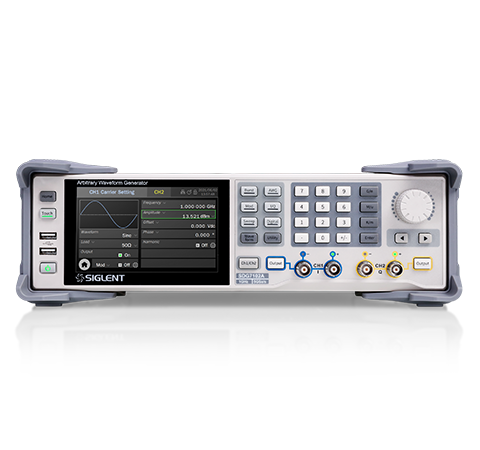

SDG7000A
1 GHz
5 GSa/s
14-bit
512 Mpts
2 Differential/Single-ended
Comparison
0
/
3
![](/u_file/product/19_06_05/8ba5abb4b3.png)

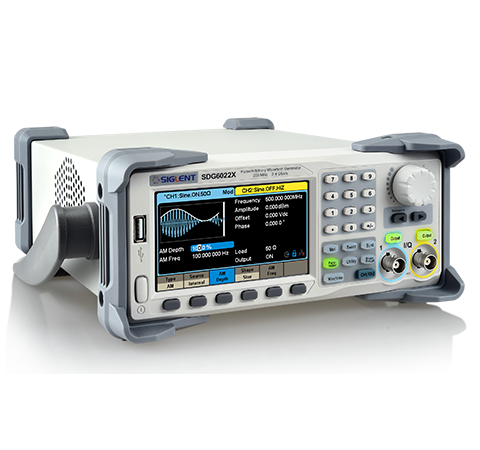

SDG6000X
200 MHz,350 MHz,500 MHz
2.4 GSa/s
16 bit
20 Mpts
2 CH
Comparison
0
/
3
![](/u_file/product/19_06_05/d2ab05d951.png)
SDG5000 (Discontinued)
80 MHz, 110 MHz, 120 MHz,
160 MHz
160 MHz
500 MSa/s
14 bit
CH1: 16 Kpts CH2: 512 Kpts
2 CH
Comparison
0
/
3
![](/u_file/product/19_06_05/0c5627891a.png)

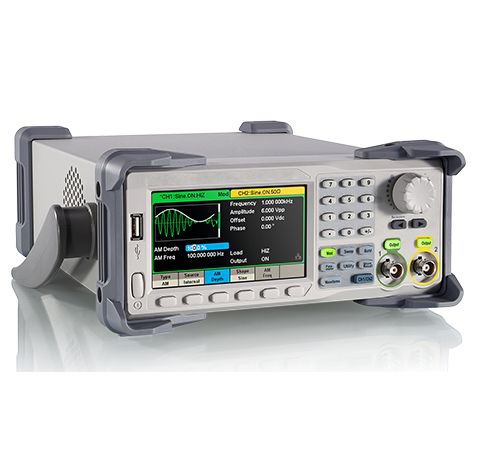

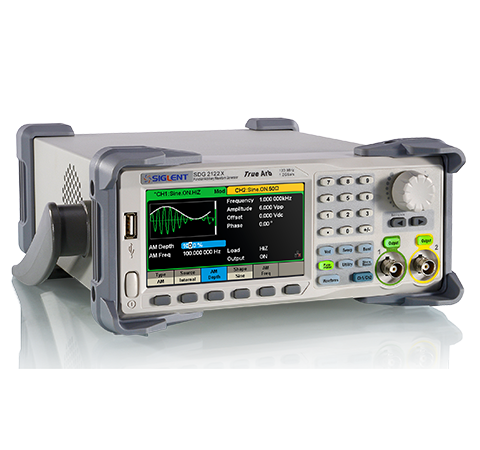

SDG2000X
40 MHz, 80 MHz, 120 MHz
1.2 GSa/s
16 bit
8 pts ~ 8 Mpts
2 CH
Comparison
0
/
3
![](/u_file/product/19_06_05/5085b1e220.png)
SDG1000X
60 MHz
150 MSa/s
14 bit
16 kpts
2 CH
Comparison
0
/
3
![](/u_file/product/19_06_05/eea7f0be02.png)
SDG1000 (Discontinued)
25 MHz,50 MHz
125 MSa/s
14 bit
16 Kpts
2 CH
Comparison
0
/
3
![](/u_file/product/19_06_05/21b8510e40.png)
SDG800
5 MHz,10 MHz,30 MHz
125 MSa/s
14 bit
16 Kpts
1 CH
Options
SDG-6000X-IQ
IQ Signal Generator Function
ATT-20dB
20 dB Attenuator
SPA1010
10 W Power Amplifier
BNC Cable
Dual BNC signal line.
