SDS1000CFL Series Digital Storage Oscilloscopes (DISCONTINUED)
Main Features
- 7″ Color TFT LCD display
- 2/4 channels, Bandwidth: 70 MHz-300 MHz
- Single channel real-time sampling rate is: 2 GSa/s, Equivalent sampling rate is 50 GSa/s
- Memory depth: 24 kpts
- Trigger types: Edge, Pulse, Video, Slope and Alternate
- Powerful Digital Filter function and Waveform recorder function
![](/u_file/product/19_06_05/b8b9ff4759.png)

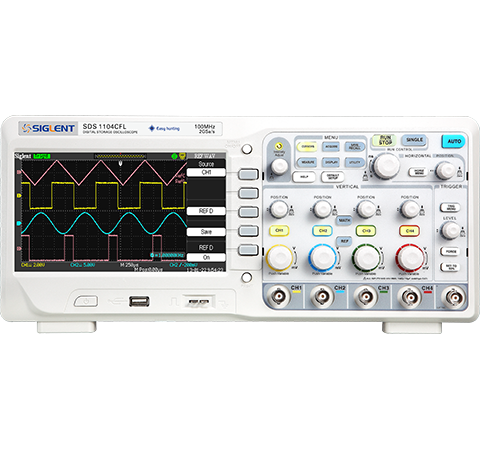

![](/u_file/product/19_06_05/eddb1a248f.png)

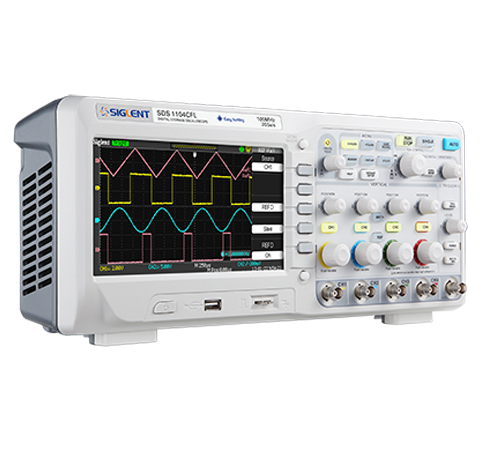

![](/u_file/product/19_06_05/921d0d0fd5.png)
![](/u_file/product/19_06_05/b8b9ff4759.png)
![](/u_file/product/19_06_05/eddb1a248f.png)
![](/u_file/product/19_06_05/921d0d0fd5.png)
×

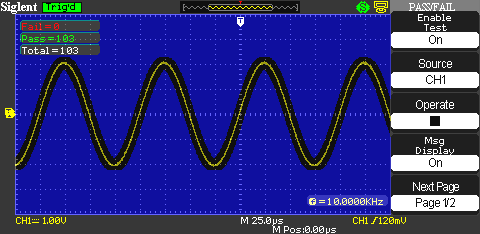

Pass / Fail
Automatically detect signals out of bound and can stop on the failed ones.
![](/u_file/article/19_06_21/ebb8f79652.png)
Data Recorder
For long time recording and replay waveforms recorded.
![](/u_file/article/19_06_21/4323225641.png)

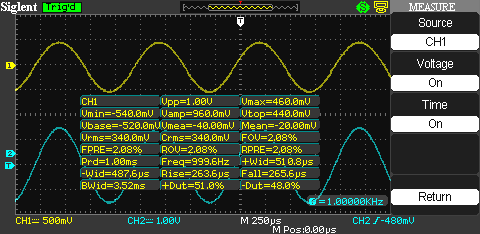

Multiple Kinds of Auto Measurements
Automatically measure Voltage and Time parameters.
![](/u_file/article/19_06_21/c8f93124b3.jpg)
Model
Bandwidth
Channels
Real time sampling rate
Capture rate
Memory depth
SDS1304CFL (Discontinued)
300 MHz
4 CH + EXT
2 GSa/s(single-channel),1 GSa/s(dual-channel)
-
24 kpts(single-channel),12 kpts(dual-channel)
SDS1302CFL (Discontinued)
300 MHz
2 CH + EXT
2 GSa/s(single-channel) 1 GSa/s(dual-channel)
-
24 kpts(single-channel),12 kpts(dual-channel)
SDS1204CFL (Discontinued)
200 MHz
4 CH + EXT
2 GSa/s(single-channel), 1 GSa/s(dual-channel)
-
24 kpts(single-channel),12 kpts(dual-channel)
SDS1202CFL (Discontinued)
200 MHz
2 CH + EXT
2 GSa/s(single-channel), 1 GSa/s(dual-channel)
-
24 kpts(single-channel),12 kpts(dual-channel)
SDS1104CFL (Discontinued)
100 MHz
4 CH + EXT
2 GSa/s(single-channel), 1 GSa/s(dual-channel)
-
24 kpts(single-channel),12 kpts(dual-channel)
SDS1102CFL (Discontinued)
100 MHz
2 CH + EXT
2 GSa/s(single-channel), 1 GSa/s(dual-channel)
-
24 kpts(single-channel),12 kpts(dual-channel)
SDS1074CFL (Discontinued)
70 MHz
4 CH + EXT
2 GSa/s(single-channel), 1 GSa/s(dual-channel)
-
24 kpts(single-channel),12 kpts(dual-channel)
SDS1072CFL (Discontinued)
70 MHz
2 CH + EXT
2 GSa/s(single-channel),1 GSa/s(dual-channel)
-
24 kpts(single-channel),12 kpts(dual-channel)
