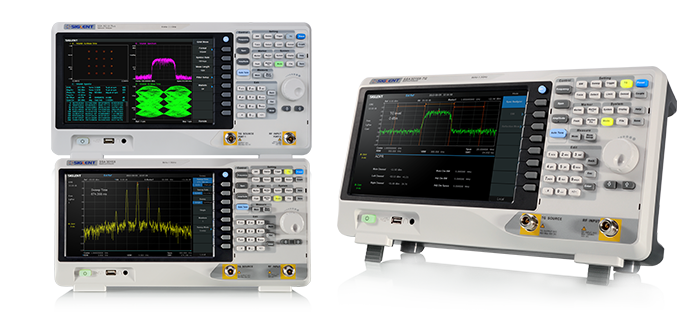

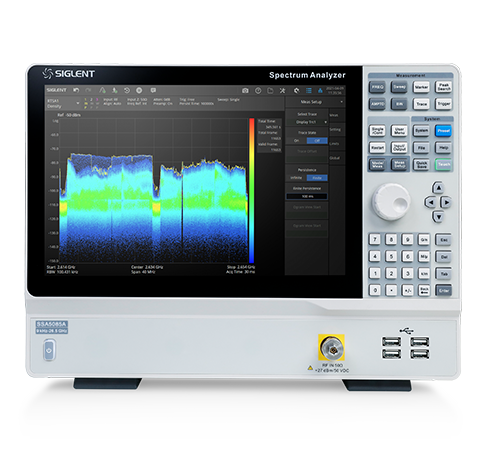

Spectrum Analyzers
Siglent's spectrum analyzers offer a frequency range of 9 kHz to 1.5/2.1/3.2/7.5/13.6/26.5 GHz. With their light weight, small size, and friendly user interface, they present a bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features.
Siglent's spectrum analyzers include EasySpectrum software, which provides a remote control interface for SIGLENT SSA3000 Series of spectrum analyzers. It can be used to ease data collection, remote monitoring, and pre-compliance test sequencing.
Applications include research and development, education, production, maintenance, and pre-compliance.
Siglent's spectrum analyzers include EasySpectrum software, which provides a remote control interface for SIGLENT SSA3000 Series of spectrum analyzers. It can be used to ease data collection, remote monitoring, and pre-compliance test sequencing.
Applications include research and development, education, production, maintenance, and pre-compliance.
Comparison
Model
Frequency range
DANL
Phase Noise
Analysis Bandwidth
Resolution bandwidth
Comparison
0
/
3
SSA5000A
9 kHz ~ 13.6/26.5 GHz
-165 dBm/Hz
<-105 dBc/Hz
25 MHz, 40 MHz(opt.)
1 Hz ~ 10 MHz,
in 1-3-10 sequence
in 1-3-10 sequence
Comparison
0
/
3

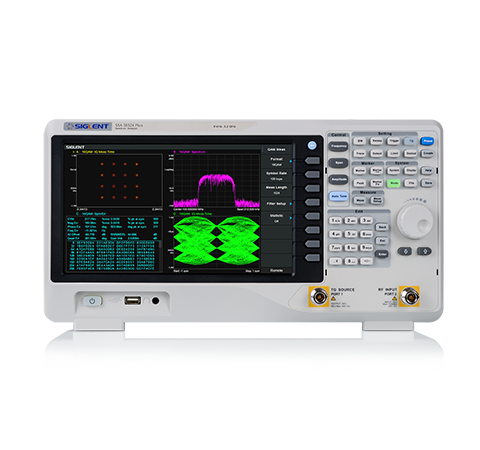

SSA3000X Plus
9 kHz to 1.5/2.1/3.2/7.5 GHz
-165 dBm/Hz
< -98 dBc/Hz
-
1 Hz ~ 3 MHz
Comparison
0
/
3

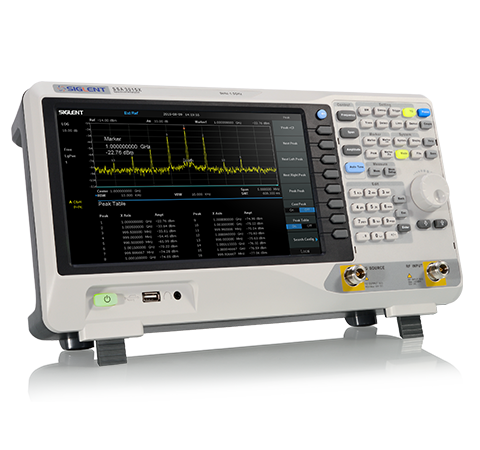

SSA3000X
9 kHz to 2.1/3.2 GHz
-161 dBm/Hz
<-98 dBc/Hz
-
1 Hz ~ 1 MHz
Comparison
0
/
3

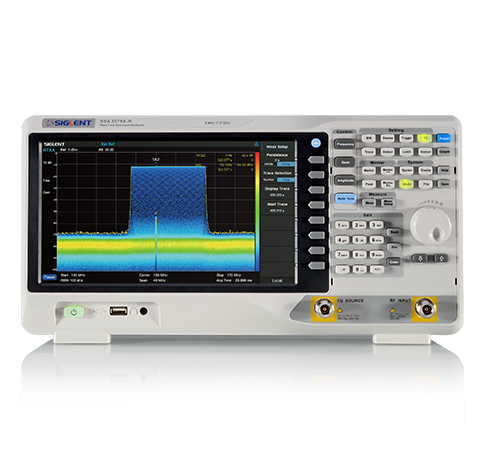

SSA3000X-R
9 kHz to 3.2/5.0/7.5 GHz
-165 dBm/Hz
<-98 dBc/Hz
25 MHz, 40 MHz(Optional)
1 Hz ~ 3 MHz
Comparison
0
/
3

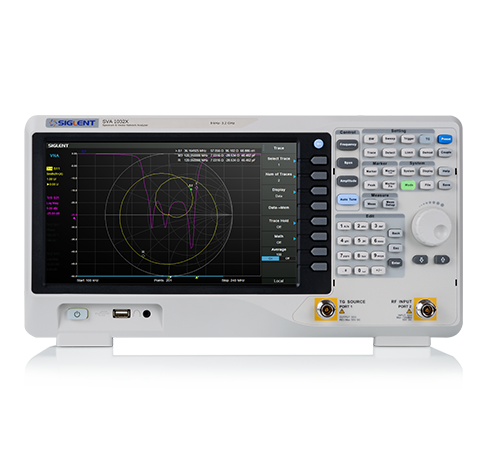

SVA1000X
9 kHz ~ 7.5 GHz
-165 dBm/Hz, Normalize to 1 Hz (typ.)
<-98 dBc/Hz@1 GHz, 10 kHz offset
1 Hz ~ 3 MHz, in 1-3-10 sequence
Comparison
0
/
3

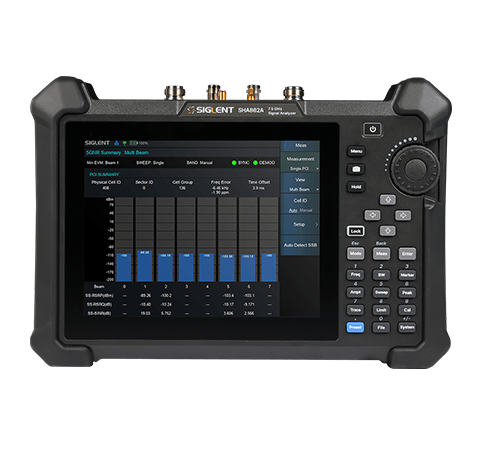

SHA860A
9 kHz~7.5 GHz
-165 dBm/Hz
-104 dBc/Hz
40/110 MHz
1 Hz ~ 10 MHz, in 1-3-10 sequence
Comparison
0
/
3

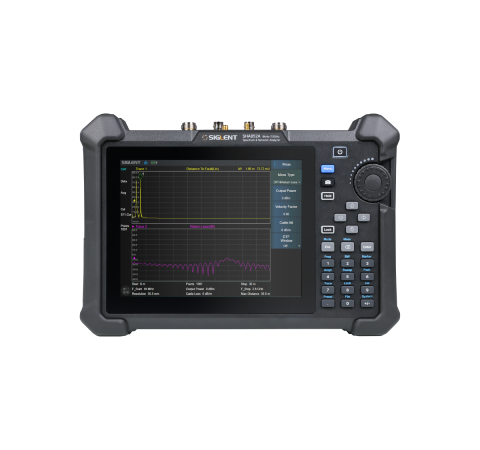

SHA850A
9 kHz - 7.5 GHz
-165 dBm/Hz
< -104 dBc/Hz
-
1 Hz ~ 3 MHz, in 1-3-10 sequence
Options
SSA3000-Refl
Reflection Measurement activation license (SSA3000X-R)
SSA3000XR-AMK
Advanced Measurement Kit (SSA3000X-R Series)
SSA3000XP-TG
Tracking Generator
SSA3000XR-RT40
40 MHz Real-Time BandWidth
Accessories
SSA3000X QuickGuide
SSA3000X QuickGuide
USB Cable
USB-A to USB-B. Used to connect instrument to PC for communication.
Power cord
The instrument comes standard with one power cord that meets the standards of the user's country. Additional power cords for different regions can be purchased separately.

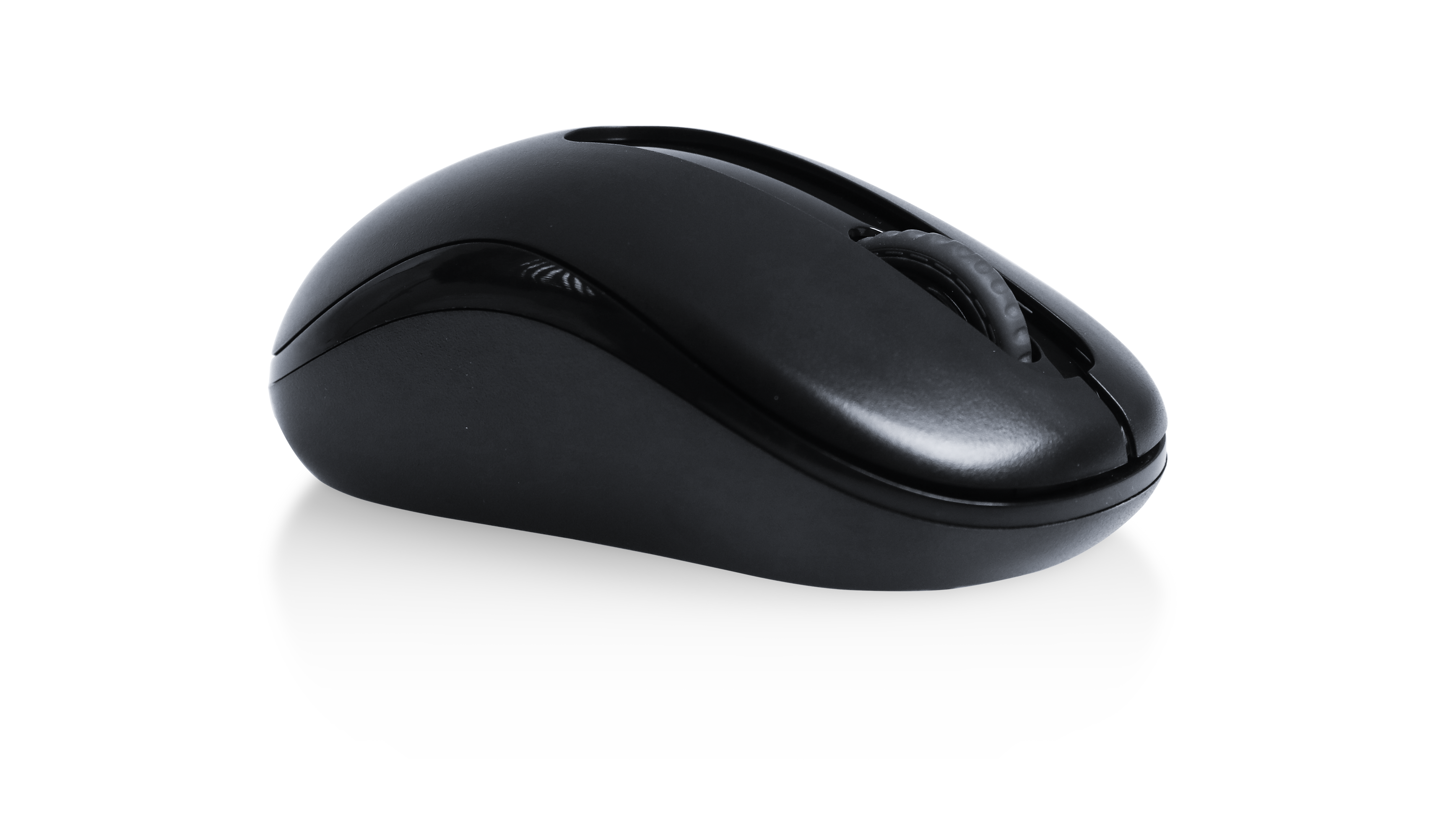

Wireless Mouse
Improve operation efficiency.
