Spectrum Analyzers
Siglent's spectrum analyzers offer a frequency range of 9 kHz to 1.5/2.1/3.2/7.5/13.6/26.5 GHz. With their light weight, small size, and friendly user interface, they present a bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features.
Siglent's spectrum analyzers include EasySpectrum software, which provides a remote control interface for SIGLENT SSA3000 Series of spectrum analyzers. It can be used to ease data collection, remote monitoring, and pre-compliance test sequencing.
Applications include research and development, education, production, maintenance, and pre-compliance.
Siglent's spectrum analyzers include EasySpectrum software, which provides a remote control interface for SIGLENT SSA3000 Series of spectrum analyzers. It can be used to ease data collection, remote monitoring, and pre-compliance test sequencing.
Applications include research and development, education, production, maintenance, and pre-compliance.
Options
SSA3000-Refl
Reflection Measurement activation license (SSA3000X-R)
SSA3000XR-AMK
Advanced Measurement Kit (SSA3000X-R Series)
SSA3000XP-TG
Tracking Generator
SSA3000XR-RT40
40 MHz Real-Time BandWidth
F604TS
Mechanical Calibration Kit: Open, Short, Match, Through, DC-9 GHz, 50Ω, 3.5 mm, Male and Female
SVA1000X-AMK
Unlocks on-screen measurements for common broadcast signal measurements with the SVA1000X series of analyzers.
This firmware license adds Channel Power, Adjacent Channel (ACPR), Occupied Bandwidth (OBW), Total Power (TP), Third Order Intercept (TOI), and a spectrum/waterfall monitor mode.
This firmware license adds Channel Power, Adjacent Channel (ACPR), Occupied Bandwidth (OBW), Total Power (TP), Third Order Intercept (TOI), and a spectrum/waterfall monitor mode.
RBSSA3X20
VSWR Bridge Kit： including Refl-SSA3000X
VSWR Bridge (1 MHz~2 GHz)
N(M)-N(M) adaptor (2 pcs)
VSWR Bridge (1 MHz~2 GHz)
N(M)-N(M) adaptor (2 pcs)
SSA3000XP-EMI
EMI Measurement Kit: EMI Filter and Quasi Peak Detector, EMI Receiver Mode in EasySpectrum Software
SSA3000XR-EMI
EMI activation license (SSA3000X-R series)
F604FS
Mechanical Calibration Kit: Open(F), Short(F), Match(F,50), Through(F-F), DC-9 GHz, 3.5mm SMA-type
AMK-SSA3000X
Unlocks common broadcast measurements for the SSA3000X series of spectrum analyzers. Includes: Channel Power, Adjacent Channel Power, Occupied Bandwidth, Total Power, Third-Order-Intercept, and an onscreen waterfall/spectrum analysis chart.
SVA1000X-DMA
Unlocks ASK/FSK modulation analysis and eye diagram capabilities.
SDS3000XP-AMK
Advanced Measurement Kit
SSA3000XR-AMA
Analog modulation analysis (AM/FM) activation license (SSA3000X-R)
F604MS
Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-9 GHz, 3.5mm SMA-type
EMI-SSA3000X
Unlocks the EMI measurement kit for SSA3000X spectrum analyzers. Includes Quasi-peak detector, RBW bandwidths of 200/9k/120kHz, and a 6dB filter used for EMI pre-compliance measurements.
SVA1000X-EMI
This firmware licensed option adds a 6 dB EMI Filter, FCC  bandwidths (200 Hz, 9 kHz, and 120 kHz), and Quasi Peak Detector for additional accuracy when performing EMI/EMC pre-compliance tests with the SVA1000X series of analyzers.
F603FE
Mechanical Calibration Kit: Open(F), Short(F), Match(F,50), Through(F-F), 4.5 GHz, 3.5mm SMA-type
SSA3000XR-WDMA
Digital modulation analysis activation license (SSA3000X-R)
SSA3000-REFL
Unlocks the Reflection/VSWR option for the SSA3000X and the SSA3000X Plus series of Spectrum Analyzers.
Requires an external return loss bridge or SIGLENT RBSSA return loss bridge for full functionality.
Requires an external return loss bridge or SIGLENT RBSSA return loss bridge for full functionality.
SVA1000X-DTF
Troubleshoot cabling and connections.
Firmware licensed option that adds FDR (frequency domain reflectometry) capabilities that can be used to determine damaged or degraded cabling to the SVA1000X series of analyzers.
Firmware licensed option that adds FDR (frequency domain reflectometry) capabilities that can be used to determine damaged or degraded cabling to the SVA1000X series of analyzers.
SSA3000XP-AMA
Modulation Analysis Options: AM, FM
F603ME
Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-4.5 GHz, SMA-type
SVA1000X-AMA
Unlocks AM/FM modulation analysis.
SSA3000XP-DMA
ASK, FSK, MSK, PSK, QAM
F504TS
Mechanical Calibration Kit: Open, Short, Match, Through, DC-9 GHz, 50Ω, N-type, Male and Female
SRF5030T Near Field Probe Set
Three magnetic field near-field probes and one electric field near field probe
.png)
F504FS
Mechanical Calibration Kit: Open(F), Short(F), Match(F,50), Through(F-F), DC-9 GHz, N-type
F504MS
Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-9 GHz, N-type
SSA-RMK
Rack mount kit for the SSA and SVA series of analyzers
F503FE
Mechanical Calibration Kit: Open(F), Short(F), Match(F,50), Through(F-F), DC-4.5 GHz, N-type
F503ME
Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-4.5 GHz, N-type
Utility Kit
Includes coaxial cables, adapters, attenuator. See list below.
SSA5000-B40
| 40 MHz analysis bandwidth |
UKitSSA3X
Accessory Kit.
Includes coaxial cables, adapters, attenuator. See list below.
Includes coaxial cables, adapters, attenuator. See list below.

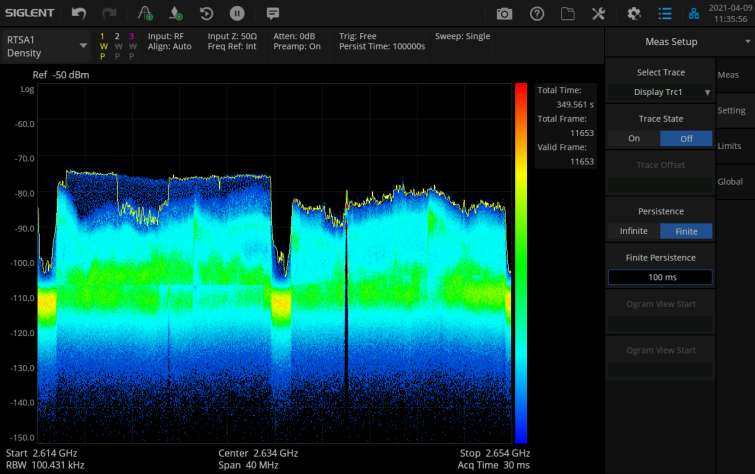

SSA5000-RTA1
| Real-Time Spectrum Analysis |
SSA5000-AMK
| Advanced Measurement Kit |
BAG-S2
Soft Carry Case for SDS2000X, SDS5000X, SDS6000A SDS1000X, SSA3000X, SVA1000X, SSA3000X Plus.
N-SMA-6L
6 GHz bandwidth, Length 0.7 m (27.6 inches).
SSA5000-F5
SSA5083A upgrade to SSA5085A
SSA5000-P3
Pre-Amplifier, 9 kHz~13.6 GHz
Pre-Amplifier, 9 kHz~13.6 GHz

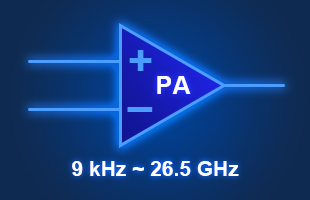

SSA5000-P5
Pre-Amplifier, 9 kHz~26.5 GHz
Pre-Amplifier, 9 kHz~26.5 GHz
N-N-6L
6 GHz bandwidth, Length 0.7 m (27.6 inches)
10M_OCXO_L
Precision Frequency Reference
Assembled and calibrated in factory only
Assembled and calibrated in factory only
USB-GPIB Adapter
For expanding the tripod with two handles instrument GPIB function, compatible to third party GPIB bus controller.
N-BNC-2L
2 GHz bandwidth, Length 0.7 m (27.6 inches)
RB3X20
Reflect measurement Kit : Software (Refl-SSA3000X), RB (1 MHz~2 GHz), N (M) -N (M) adaptor (2 pcs)
RB3X20（Discontinued）
Full kit for measuring VSWR with the SSA3000X Plus series of spectrum analyzers. Includes: Activation license for Reflection/VSWR kit (SSA3000XP-REFL), Return Loss Bridge (1 MHz to 2 GHz), N-type(M) to N-type(M) adaptor (2 pcs)
RB3X25
Reflect Bridge (1 MHz~2.5 GHz), N (M) -N (M) adaptor (2 pcs)
RBSSA3XP25
Reflection measurement kit, including Refl-SSA3000XP(SW) & RB3X25(HW)
N-N-18L
18 GHz bandwidth, Length 1.0 m
N-SMA-18L
18 GHz bandwidth, Length 1.0 m
.jpg)
RBSSA3XR25
SSA3000XR reflection measurement kit, including Refl-SSA3000XR(SW) & RB3X25(HW)

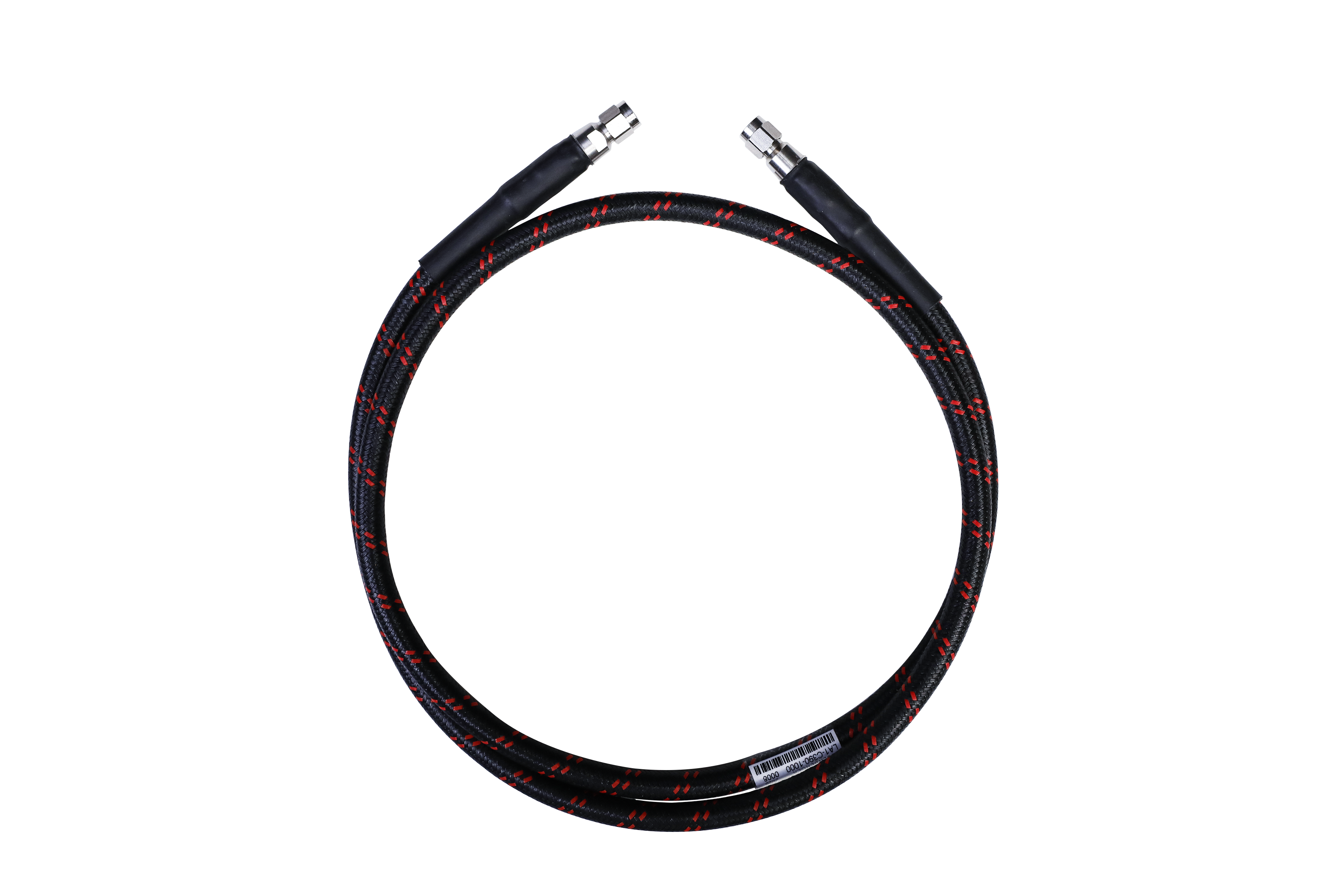

SMA-SMA-18L
18 GHz bandwidth, Length : 1000 + 10 (mm)
SMA-SMA-26L
SMA(M)-SMA(M) cable, 26.5 GHz, 1000 mm
SMAF-SMA-26L
SMA(F)-SMA(M) cable, 26.5 GHz, 1000 mm

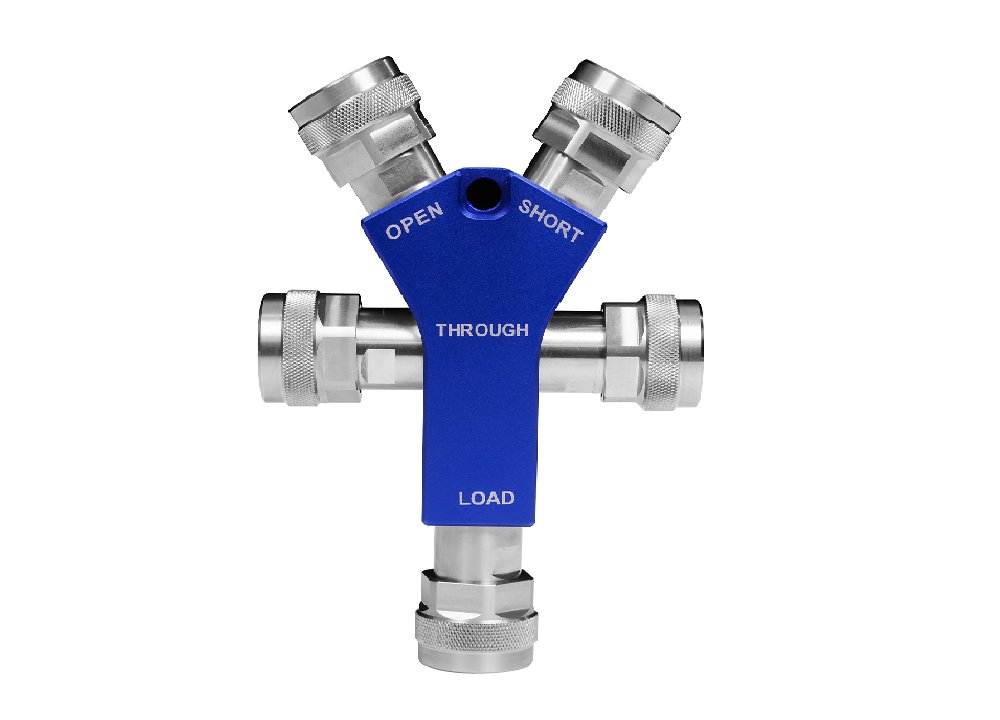

Y504MS
Mechanical Calibration Kit for Vector Network Analyzers:
Open (M), short (M), Match/Load(M, 50 Ohms), Through (M-M ) DC - 9 GHz
Open (M), short (M), Match/Load(M, 50 Ohms), Through (M-M ) DC - 9 GHz

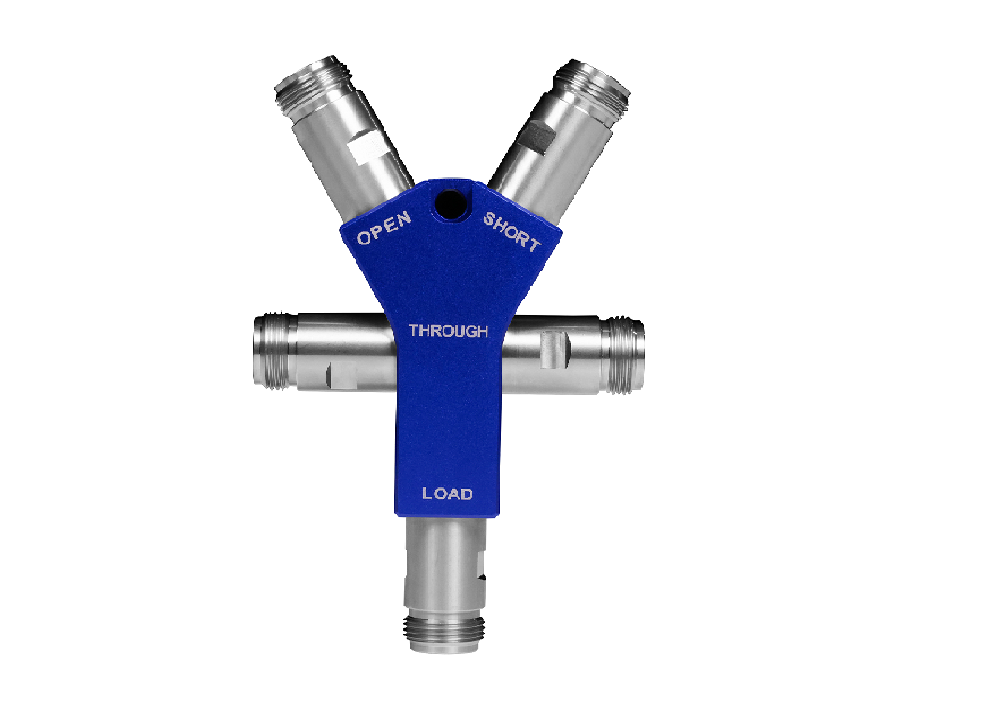

Y504FS
Mechanical Calibration Kit for Vector Network Analyzers:
Open (F), short (F), Match/Load(F, 50 Ohms), Through (F-F ) DC - 9 GHz
Open (F), short (F), Match/Load(F, 50 Ohms), Through (F-F ) DC - 9 GHz

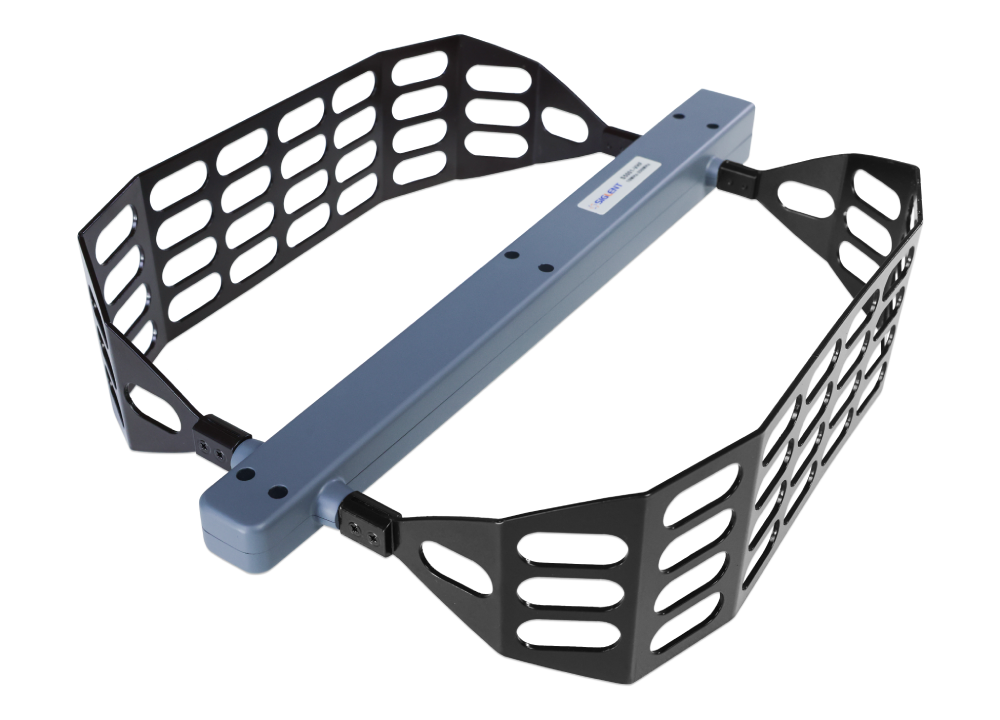

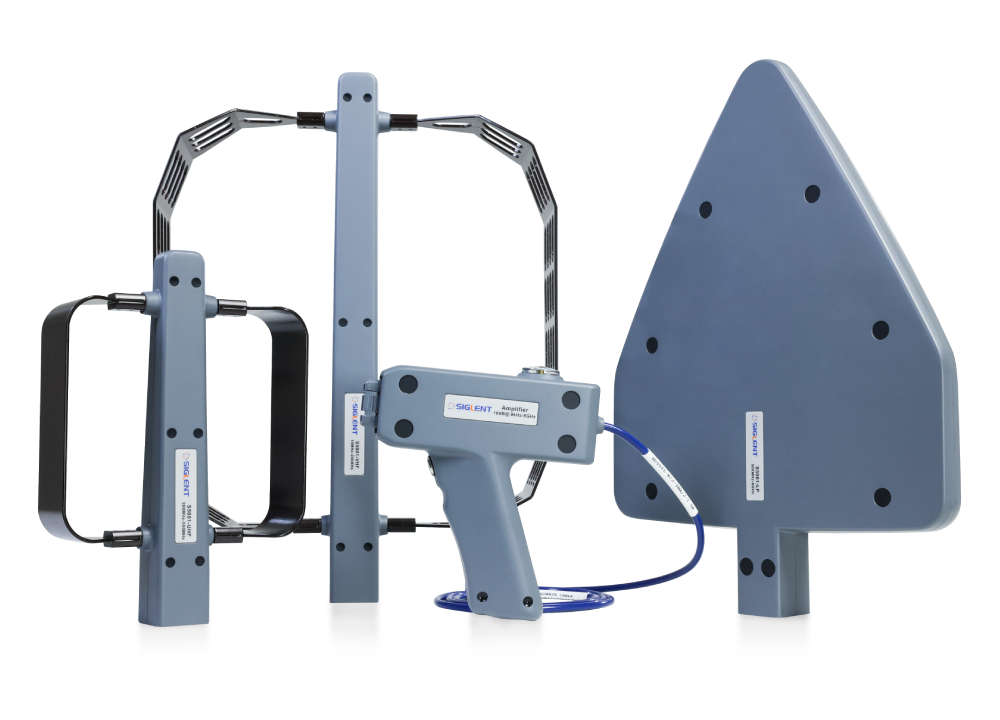

ANT-DA11
Contains amplifier handle and 10MHz ~ 200MHz antenna. Antenna gain 10dB (typical value); SWR <1:1.9 (typical value); 50Ω/N type, female; polarization direction horizontal and vertical.
To know more，click the 《Directional Antenna》
To know more，click the 《Directional Antenna》

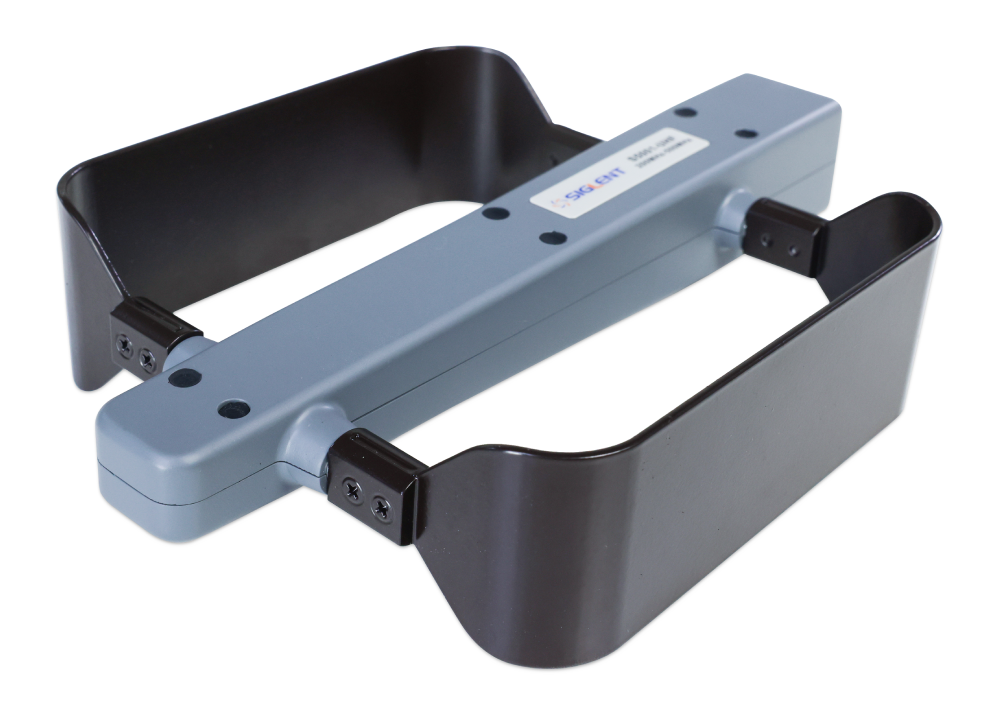

ANT-DA12
Contains amplifier handle and 200MHz ~ 500MHz antenna. Antenna gain 10dB (typical value); SWR <1:1.9 (typical value); 50Ω/N type, female; polarization direction horizontal and vertical.
To know more，click the 《Directional Antenna》
To know more，click the 《Directional Antenna》

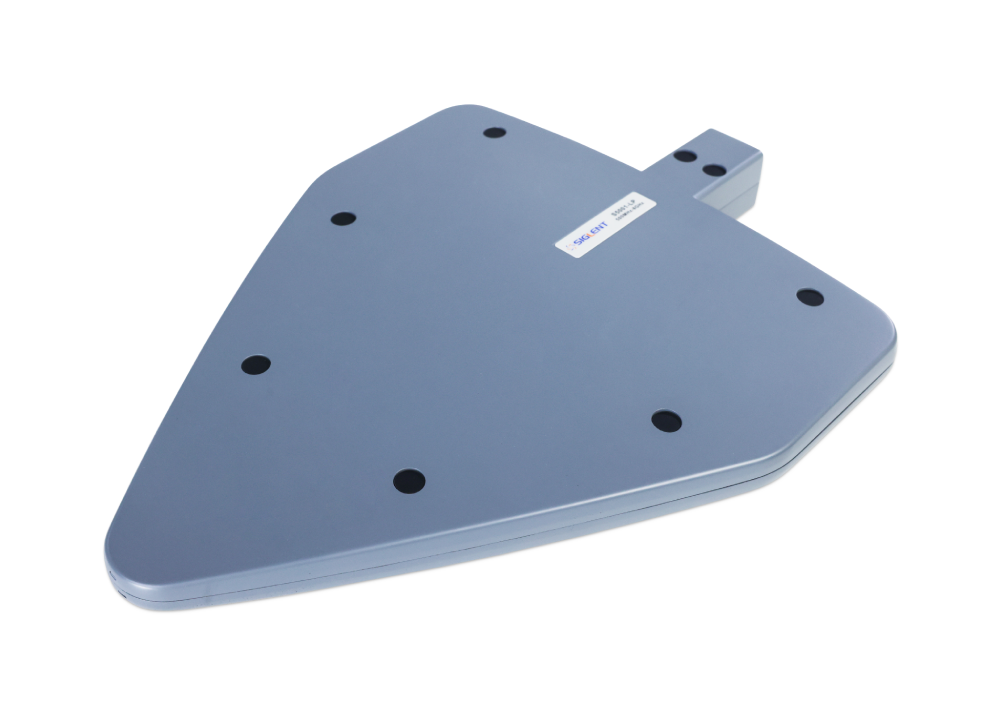

ANT-DA13
Contains amplifier handle and 500MHz ~ 8GHz antenna. Antenna gain 10dB (typical value); SWR <1:1.9 (typical value); 50Ω/N type, female; polarization direction horizontal and vertical.
To know more，click the 《Directional Antenna》
To know more，click the 《Directional Antenna》

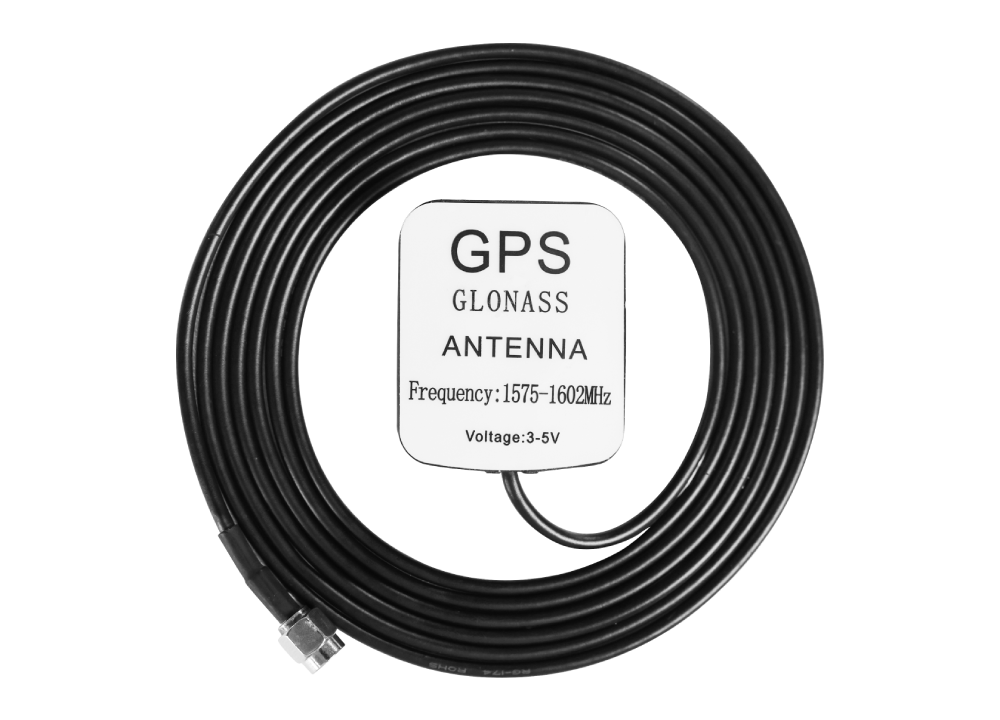

ANT-GPS1
GPS antenna, SMA(M), 100cm

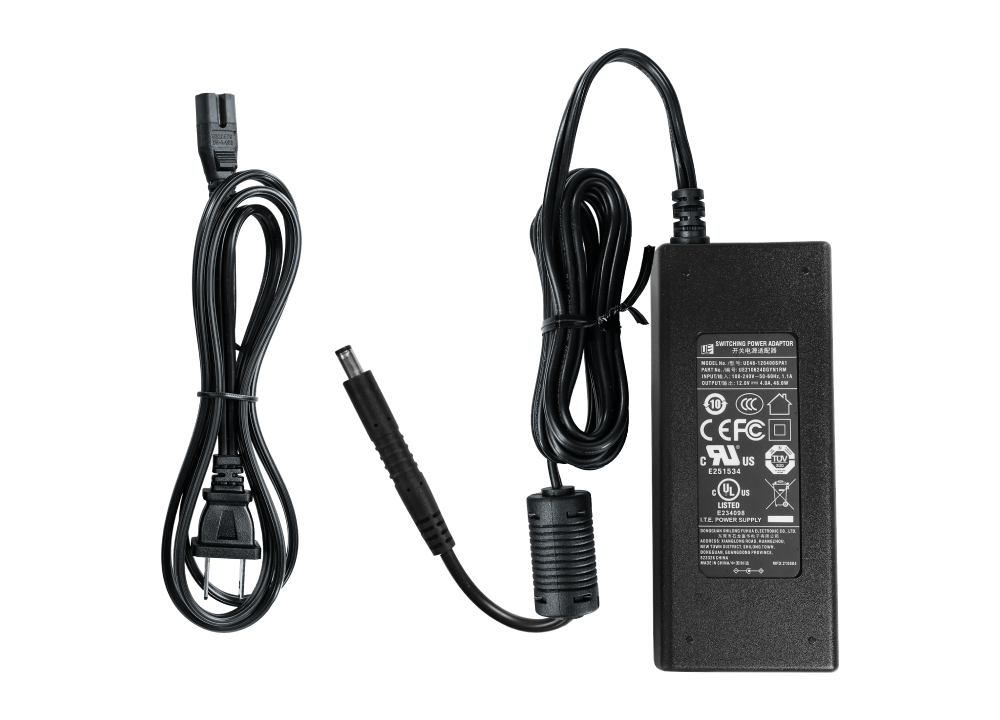

12V_AP_4A
AC-DC adapter

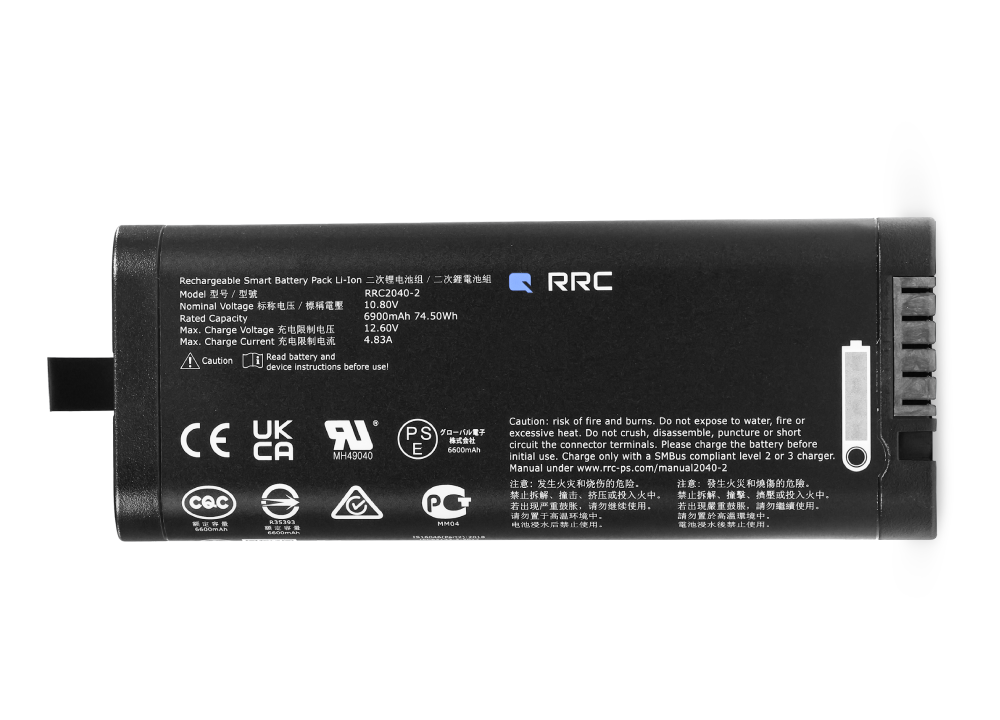

10V8_BAT
Rechargeable lithium battery

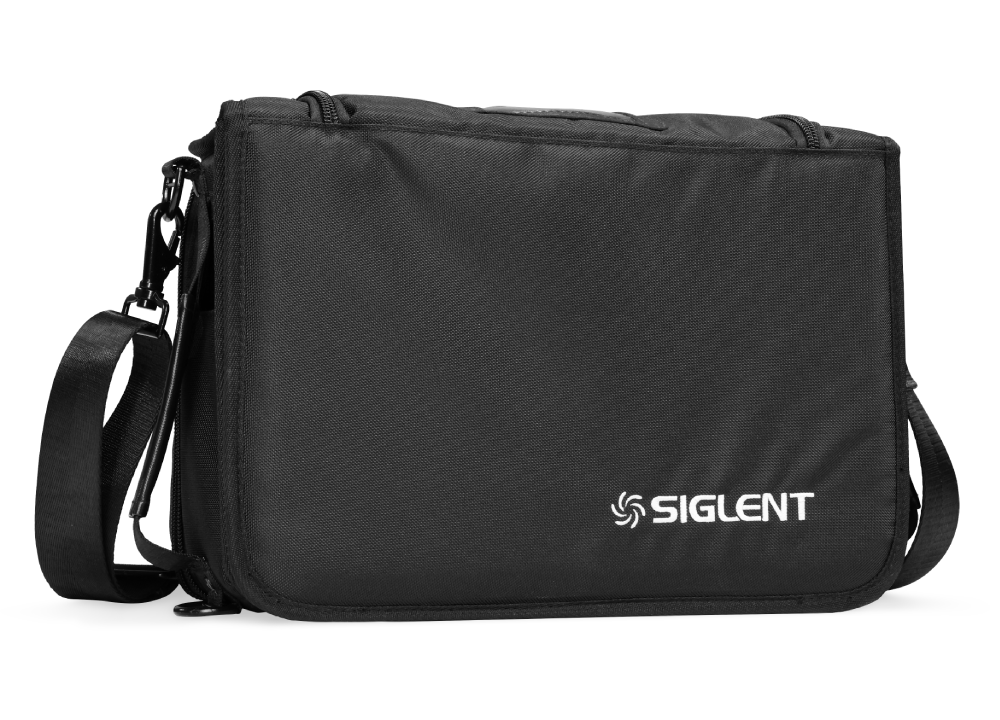

BAG-H2
Portable bag

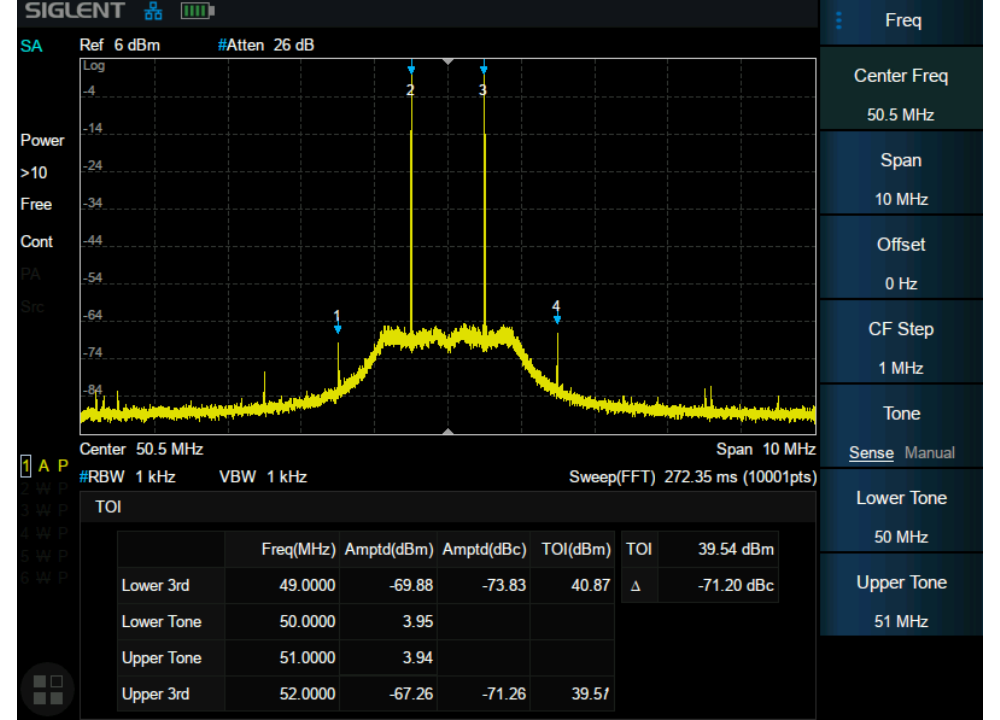

SHA850-AMK
Advanced Measurement Kit (SW)

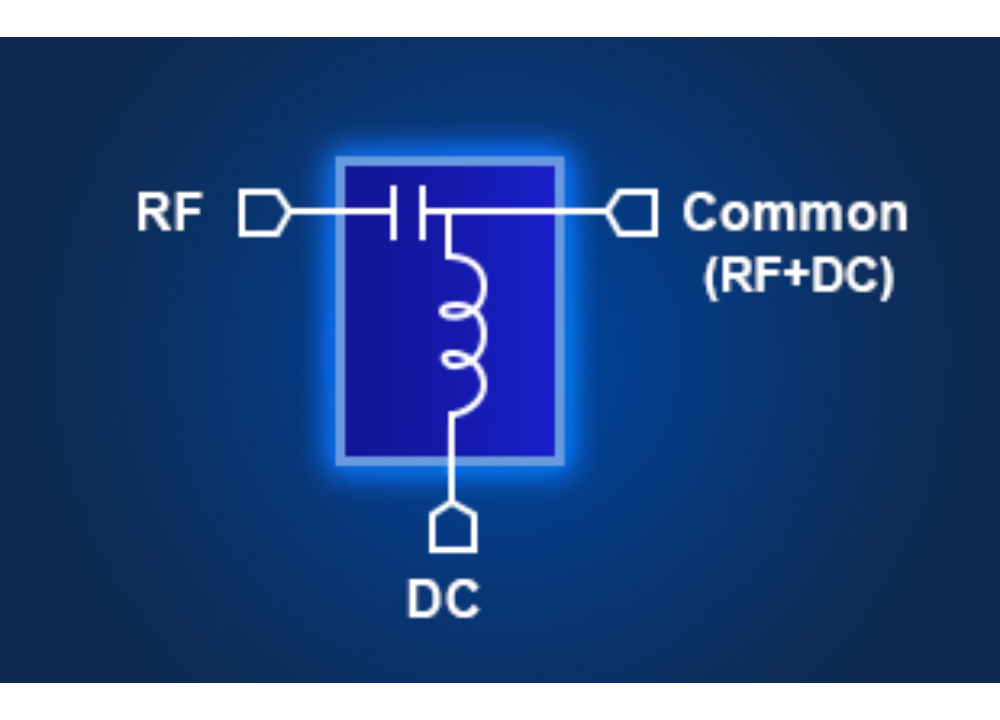

SHA850-BIAS
DC Bias Out, 12V-32V (SW)

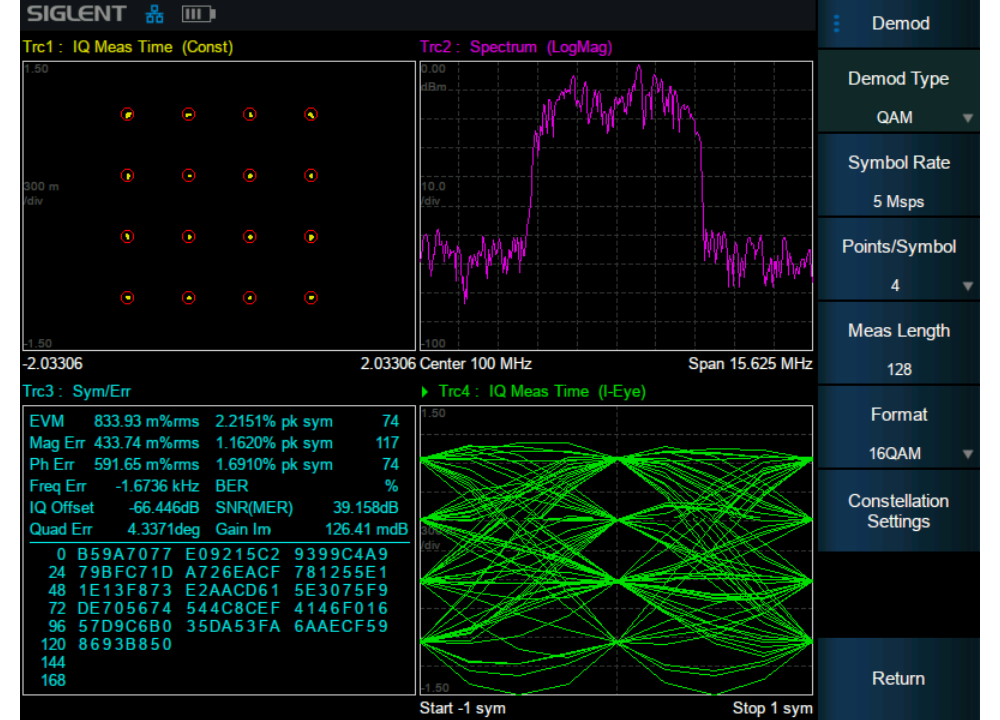

SHA850-DMA
Digital Modulation Analysis (SW)
SHA850-F2
Upgrade SHA851A to SHA852A (SW)

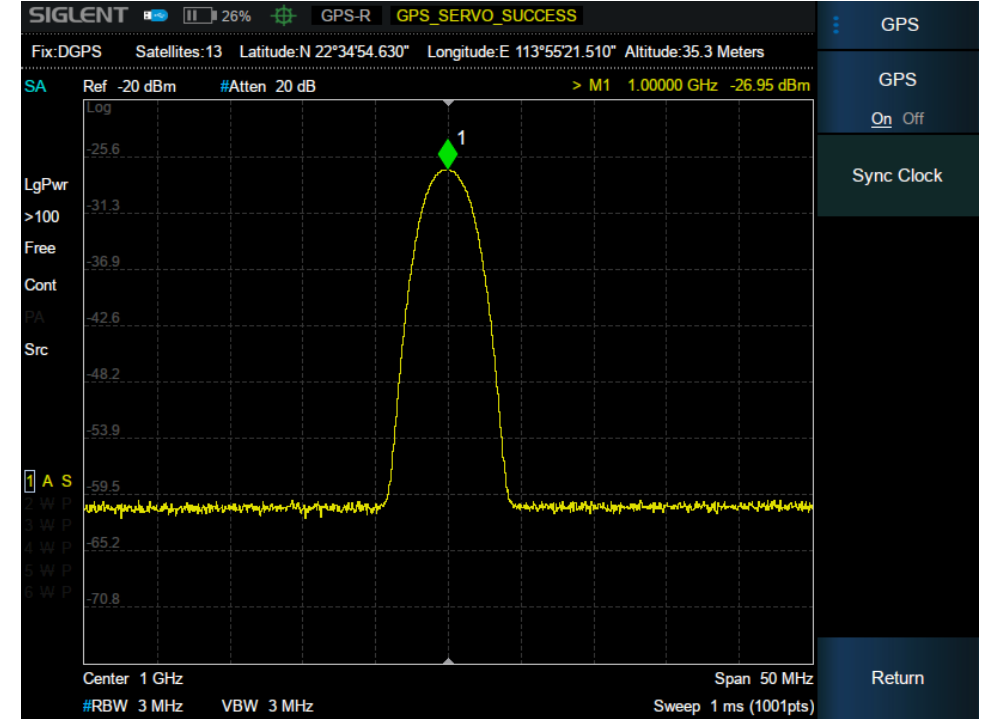

SHA850-GPS
GPS Receiver (SW)

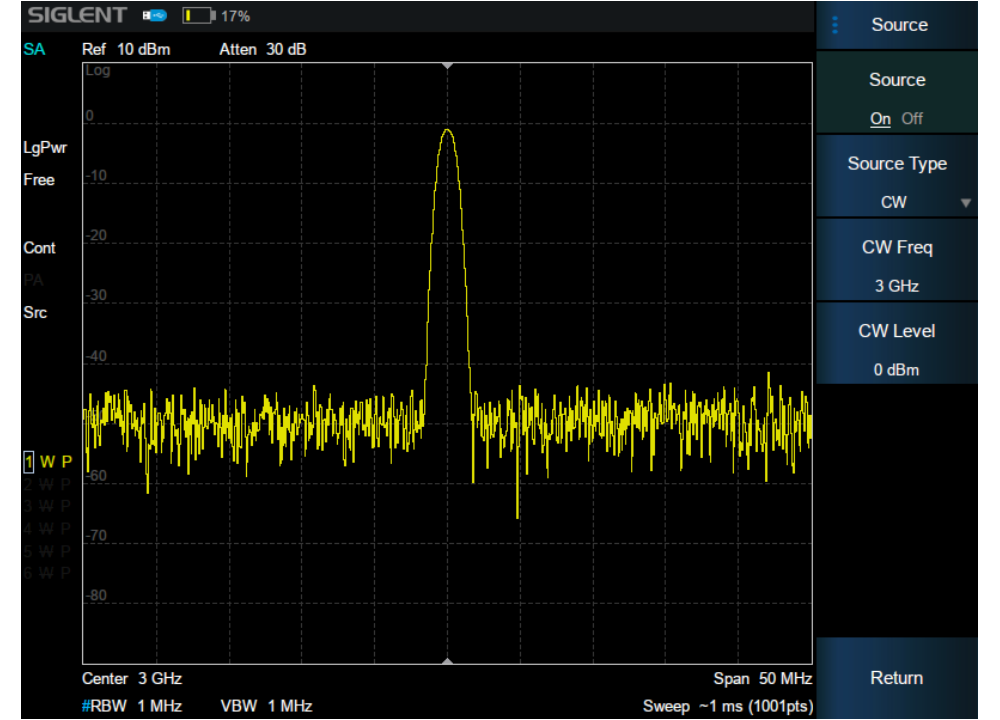

SHA850-SOR
100 kHz~3.6/ 7.5 GHz independent source, -40 dBm ~ 0 dBm (SW)

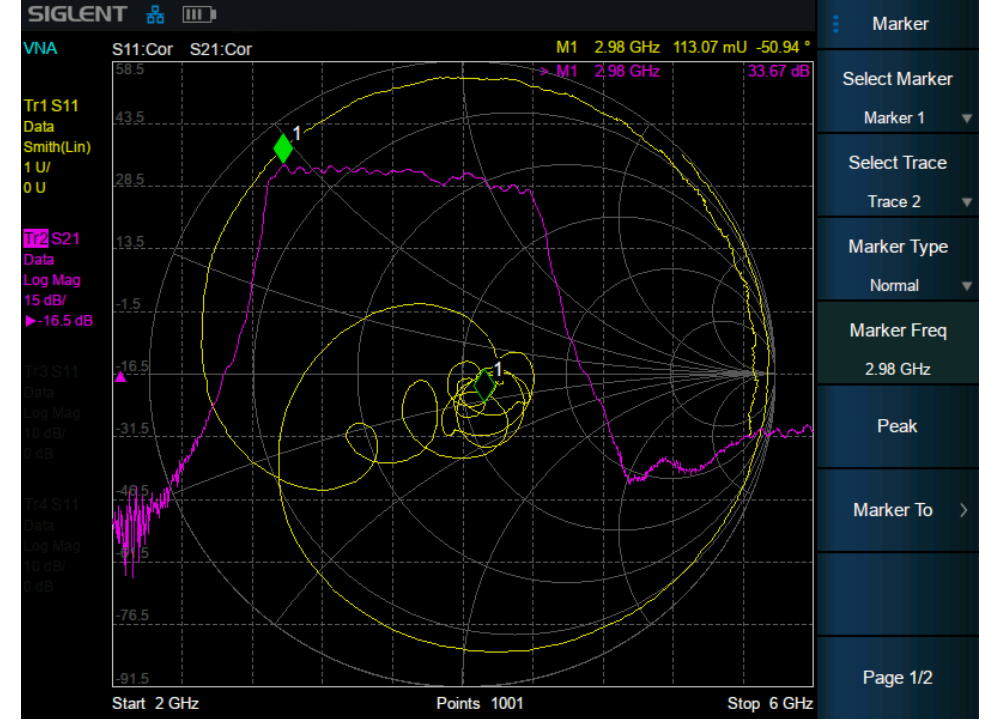

SHA850-VNA
100 kHz-3.6/7.5 GHz vector network analyzer, vector S11 and S21 measurement (SW)

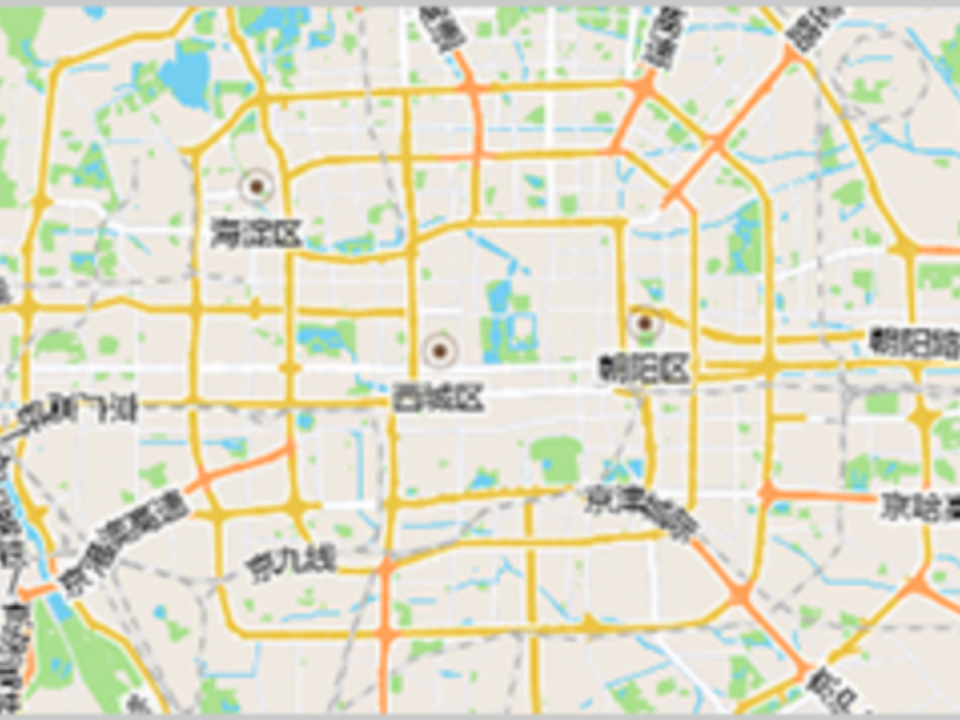

SHA850-MAP
GPS Logging (need GPS Receiver) (SW)

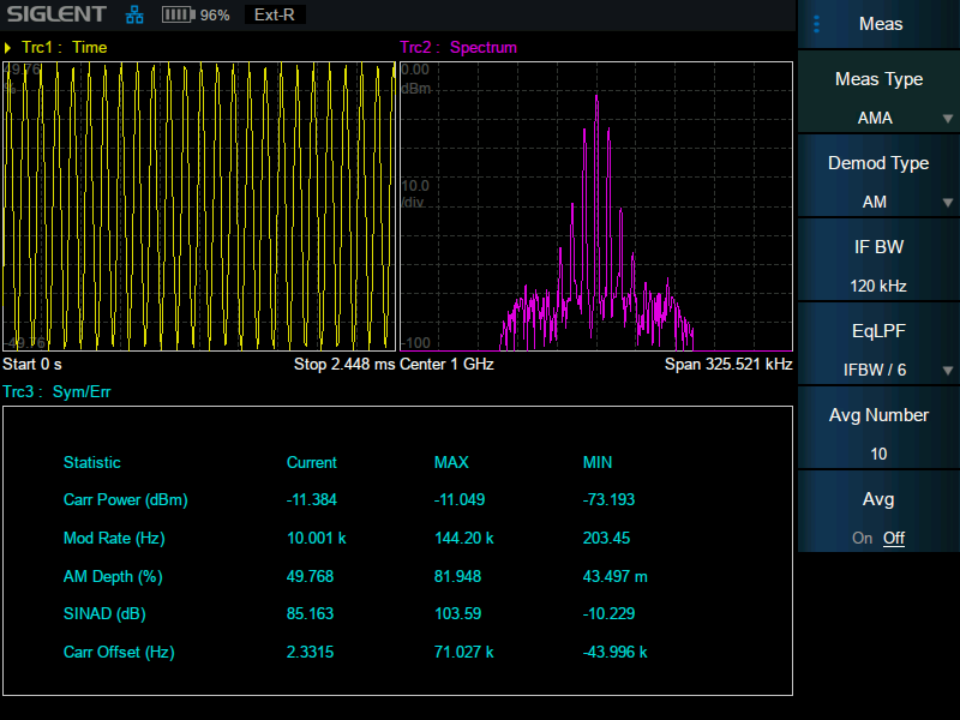

SHA850A AMA
Analog Modulation Analysis (SW)
CASE-S1
Transport protective box，suitable for SNA5000A，SDS6000A ，SSA5000A，SDS5000X and SDS3000X-HDseries.
SEM5000A
Electronic Calibration Kit: frequency range up to 4.5/9/13.5/26.5GHz, the RF connectors come in three forms: SMA female, 3.5mm female, and Type-N female.
NSD28
Noise source driver(hardware), connect spectrum analyzer to noise source
SSA5000-BT
Bluetooth Analysis
SSA5000-NF
Noise Figure Measurement
SSA5000-PN
Phase Noise Measurement
SSA5000-PU
Pulse Measurement
SSA5000-EMI
Unlocks the EMI measurement kit for SSA5000A spectrum analyzers. Includes Quasi-peak detector, RBW bandwidths of 200/9k/120kHz/1MHz, and a 6dB filter used for EMI pre-compliance measurements.
SHA850-EMI
Unlocks the EMI measurement kit for SHA850A spectrum analyzers. Includes Quasi-peak detector, RBW bandwidths of 200/9k/120kHz/1MHz, and a 6dB filter used for EMI pre-compliance measurements.
