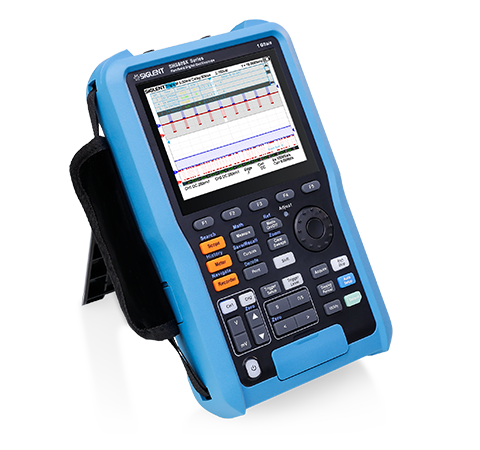

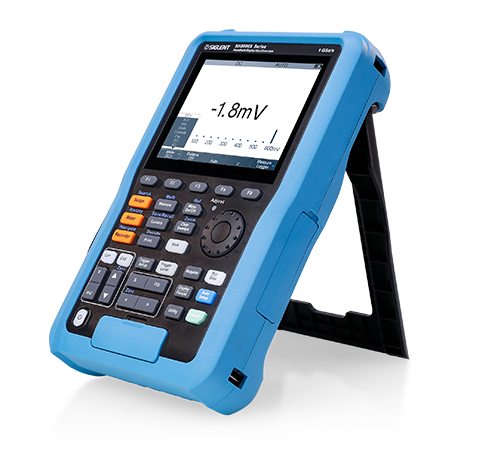

SHS800X Handheld Oscilloscope

  • Integrate oscilloscope, serial trigger and decoder, spectrum analysis, data logger and multimeter functions into a convenient and portable design
  • 100 MHz or 200 MHz bandwidth models
  • Sampling rate of 1 GSa/s (single-channel),  500 MSa/s (two-channels)
  • Record length up to 12 Mpts
  • Waveform recording up to 22 hours
  • IP Rating: IP51
×

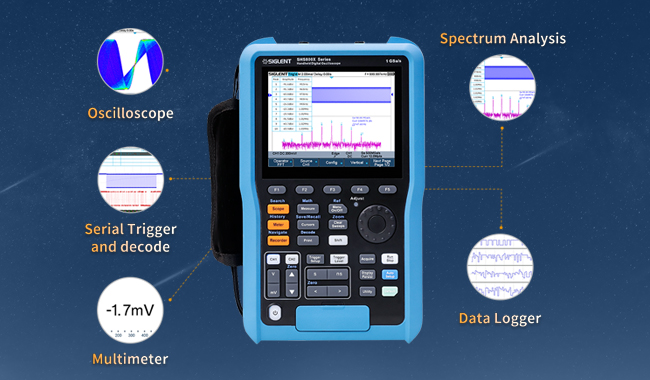

Five in one
1. 2 CH Oscilloscope
2. True RMS Multi-meter
3. Recorder
  •       Sample Logger
  •       Measurement Logger
4. Serial Trigger and decode
5. FFT spectrum analysis

Portable and Easy to Use

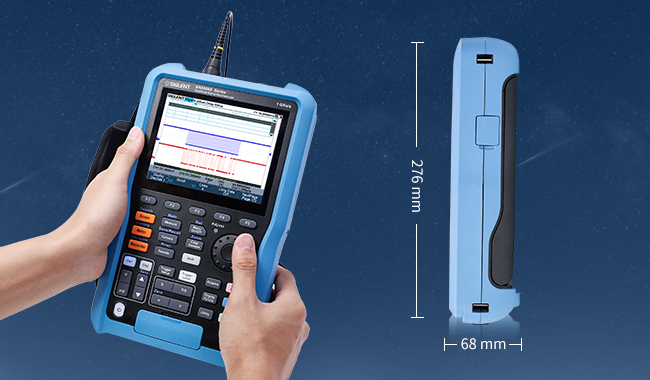

The front panel size smaller than A4 paper reduces the size of the instrument, the rear panel support frame supports vertical placement, and the side nylon handles are convenient for handheld operation. The included carrying case has ample room for the instrument, probes and other accessories. Perfect for field work and carrying on business trips.


Higher protection level, longer battery life

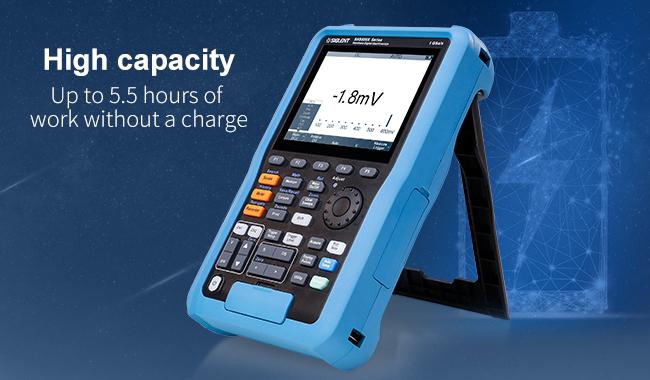

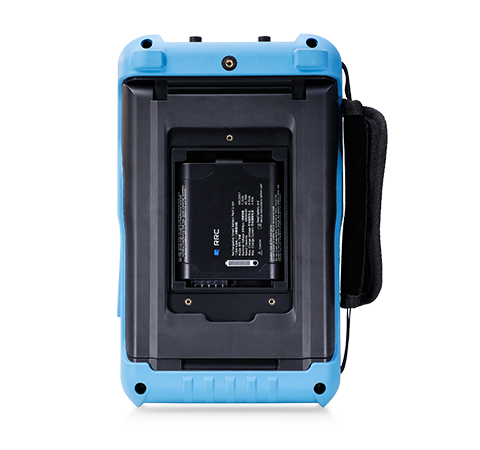

The  rechargeable 6900 mA high-capacity lithium battery is UL certified and delivers up to 5.5 hours of work without a charge, greatly improving safety and battery life. The battery can be charged in the cabin or removed and charged with an external charger.

IP51 certified
The handheld oscilloscopes feature a sealed IP51 dust and drip-proof housing and has been tested to IEC60529 to guarantee the ruggedness that is needed to survive harsh environments. A rubberized surface with large keys also makes it easy to use in difficult environments.

Specifications
  Scope Specification
  SHS810X SHS820X
  100 MHz 200 MHz
Sample rate (Max.) Two-channel share a single 1 GSa/s ADC. When two channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel is active, that channel has a sample rate of 1 GSa/s
Channels 2 analog oscilloscope channels, 1 multimeter channel
Memory depth (Max.) 6 Mpts/CH (dual-channel mode),12 Mpts/CH (single channel mode)
Waveform capture rate (Max.) 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Trigger type Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
Serial Trigger and decoder IIC, SPI, UART, CAN, LIN

Data Logger(Recorder)
Sample Logger. The Max sample rate is 25 kSa/s, the Min sample rate is 1 Sa/s
Measurement Logger. The Max interval is 10 minutes, the Min interval is 0.1second. The Max items of logging is 4
I/O USB Host, USB Device

Max input Voltage (Scope)
CAT II 300 Vrms Between BNC Signal and Protecting Earth CAT II 30 Vrms Between BNC GND and Protecting Earth CAT II 300 Vrms Between BNC Signal and BNC GND
Max input Voltage (Meter) CAT III 300 Vrms, CAT II 600 Vrms
Probe PP510 PP215
  Multimeter Specification
Maximum Resolution 6000
DC Voltage 60 mV
600 mV-600 V
±1%±15 digit
±1%±5 digit
AC Voltage(45 Hz~400 Hz) 60 mV-750 V ±1.5%±15 digit
DC Current 60 mA-600 mA
6 A-10 A
±1.5%±5 digit
±2%±5 digit
AC Current (45 Hz~400 Hz) 60 mA
600 mA
6 A-10 A
±1.5%±5 digit
±2%±5 digit
±3%±5 digit
Capacitance 40 nF
400 nF-400 μF
±3%±10 digit
±4%±5 digit)
Resistance 600 Ω-6 MΩ
60 MΩ
±1%±5 digit
±3%±5 digit
Continuity Continuous beep when resistance < 50 Ω
Diode 0~2 V

  Other Specification
Display 5.6-inch TFT-LCD (640x480)
Power Supply Rechargeable 6900 mA high-capacity lithium battery
Weight Without package 1.75 kg. With package 3.5 kg
Domesion 276 mm * 168 mm * 68 mm
Accessories Two Passive Probes,Multimeter pen,USB data cable,DC adapter,Power cord
Model
Bandwidth
Channels
Max real time sampling rate
Multimeter
Isolation level
Memory depth
SHS810X
100 MHz
2 CH
1 GSa/s
Voltage, current, resistance and other eight common functions
No
12 Mpts
SHS820X
200 MHz
2 CH
1 GSa/s
Voltage, current, resistance and other eight common functions
No
12 Mpts
