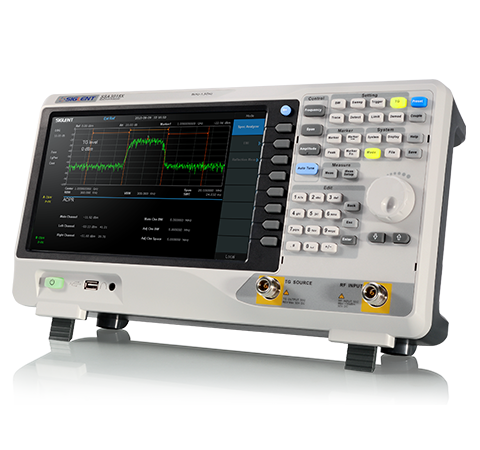

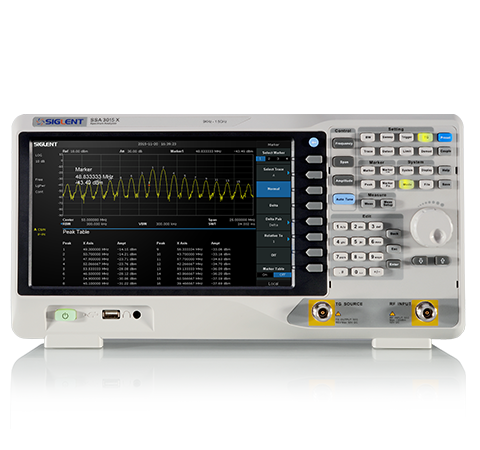

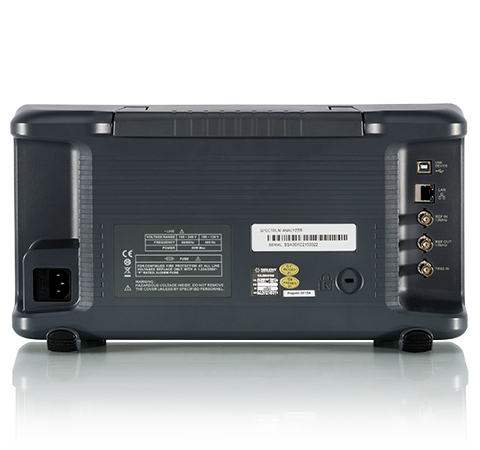

SSA3000X Series Spectrum Analyzers
  • Frequency range from 9 kHz to 2.1/3.2 GHz
  • -161 dBm/Hz Displayed average noise level (typical)
  • -98 dBc/Hz @10 kHz Offset Phase Noise  (1 GHz, Typ.)
  • Total Amplitude Accuracy < 0.7 dB
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Tracking generator (TG) is currently included at no charge
×
Economical Spectrum Analyzer with Excellent Performance
With their light weight, small size, and friendly user interface, the SSA3000X present a large, bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications include research and development, education, production, maintenance, and pre-compliance testing.

  • Bandwidth 9 kHz to 2.1 GHz / 3.2 GHz, minimum resolution bandwidth 1 Hz
  • Display average noise level below -161 dBm/Hz, full amplitude accuracy better than 0.7 dB
  • Standard preamplifier, remote control instruction set, EasySpectrum PC software
  • Free tracking generator, transmission response, VSWR measurement, signal power measurement, EMI pre-compliance test
Low-cost EMI Pre-compliance Solution
Extensive features and accessory support for EMI diagnostics and EMI pre-compliance testing, including:

  • Test compensation Correction, frequency response compensation for probe, antenna, LISN, cable
  • Support Limit line , Including EMI international standard limit template, or user-defined limit line
  • Compliant CISPR 16 EMI filter and quasi-peak detector for quasi-peak measurement dwell time

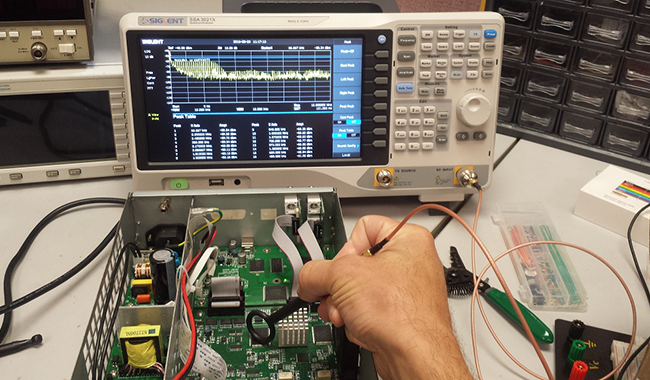

  • Support SRF5030T near-field probe set to find interference sources for radiation, cables, PCBs, etc.
  • Provide SEM5040A artificial power network for single-phase device conducted disturbance voltage measurement
  • EasySpectrum PC software, supports complete EMI pre-compliance test automation implementation process
  • The PC software also supports the file configuration of the whole process, which is convenient for project management.

SWR and Transmission Response Measurement
The SSA3000X can be used as a network analyzer:
  • With the tracking generator, the filter transmission response and the cable insertion can be measured
  • With tracking source and external directional coupler (RB3X20), it can measure antenna and cable standing wave ratio VSWR, return loss

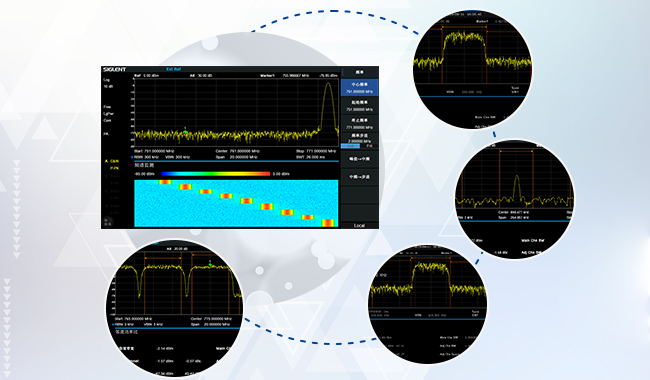

Abundant Power Measurement
With a wealth of wireless communication signal power measurement capabilities:

  • CHP, Channel Power
  • ACPR, Adjacent Channel Power Ratio
  • OBW, Occupied Bandwidth
  • T-Power, Time Domain Power
  • TOI, Third-Order Intercept
  • Spectrum Monitor



Specifications
Frequency Range SSA3032X:9 kHz~3.2 GHz
SSA3021X:9 kHz~2.1 GHz
Resolution Bandwidth SSA3032X:1 Hz~1 MHz
SSA3021X:1 Hz~1 MHz
Displayed Average Noise Level SSA3032X:-161 dBm/Hz, Normalize to 1 Hz (typ.)
SSA3021X:-161 dBm/Hz, Normalize to 1 Hz (typ.)
Phase Noise < -98 dBc/Hz@1 GHz, 10 kHz offset
Tracking Generator SSA3032X:100 kHz~3.2 GHz
SSA3021X:100 kHz~2.1 GHz
Amplitude Precision SSA3032X:< 0.7 dB
SSA3021X:< 0.7 dB
Standard Function Preamplifer
Optional Function Tracking Generator Kit
Reflection Measurement Kit
Advanced Measurement Kit
EMI Pre-compliance Test Kit
Display 10.1 inch(1024x600)display
Model
Frequency range
DANL
Phase noise
Real time analysis bandwidth
Resolution bandwidth
SSA3032X
9 kHz ~ 3.2 GHz
-161 dBm/Hz, Normalize to 1 Hz (typ.)
<-98 dBc/Hz@1 GHz, 10 kHz offset
-
1 Hz ~ 1 MHz, in 1-3-10 sequence
SSA3021X
9 kHz ~ 2.1 GHz
-161 dBm/Hz, Normalize to 1 Hz (typ.)
<-98 dBc/Hz@1 GHz, 10 kHz offset
-
1 Hz ~ 1 MHz, in 1-3-10 sequence
