SSG6082A-V Series RF Vector Signal Generator
Main Features
- Frequency up to 8 GHz
- 0.001 Hz frequency setting resolution
- Level setting range: -140 dBm to 30 dBm
- Phase noise: < -132 dBc/Hz @ 1 GHz, offset 10 kHz (typ.)
- RF modulation bandwidth 1 GHz
- Support vector mode S-parameter compensation
- Support common protocols such as LTE, 5G NR and WLAN, etc.

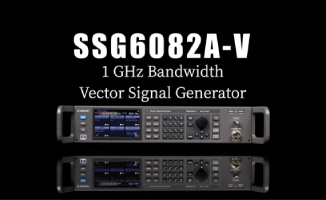

SIGLENT Expands RF Test Capabilities with the New SSG6082A-V Vector Signal Generator
The SSG6082A-V Vector Signal Generator delivers an output frequency range of 9 kHz to 8 GHz, supporting AM, FM, and PM analog modulation, as well as pulse modulation and pulse sequence generation. Equipped with an internal 500 MHz bandwidth IQ baseband source, it combined with SigIQPro PC software to generate common digital modulated signals and communication protocol signals such as 5G NR, WLAN, LTE, BLUETOOTH, and IoT protocols. With factory calibration, the RF output exhibits excellent 1 GHz broadband characteristics and good ACPR performance, making it suitable for various applications in R&D, production, and other scenarios.
