SigIQPro Signal Generation Software
Main Features
Click to download and try it now！
- A comprehensive PC-based software for general and standards-based signals creation
- Support Bluetooth, IoT, Custom OFDM, Custom IQ, 5G NR, LTE and WLAN, and more
- Compatible with conversion of various data formats
- Simplify signal creation and accelerate testing, lower overall test costs as well as speeds up time-to-market in the design cycle
- Meet the requirements of IoT and other wireless cellular communications
- TRY BEFORE YOU BUY!
- SigIQPro provides 30 free trials of each feature for unrestricted use of the functions with your existing compatible signal generators.
Click to download and try it now！
×
LTE/LTE-A FDD/TDD
• Support the generation and download of signals conforming to 3GPP LTE and LTE-A specifications, and has undergone strict verification and performance optimization.
• Support E-UTRA test model (E-TM) predefined settings conforming to the latest 3GPP protocol.
• Support predefined settings of PUCCH test model conforming to the latest 3GPP protocol.
• Support fixed reference channel (FRC) predefined settings in line with the latest 3GPP protocol.
• Support the predefined setting of reference measurement channel (RMC) conforming to the latest 3GPP protocol.
• Support. arb file waveform export and. sta file parameter export, for users to quickly preset parameters and signal demodulation.
• Support E-UTRA test model (E-TM) predefined settings conforming to the latest 3GPP protocol.
• Support predefined settings of PUCCH test model conforming to the latest 3GPP protocol.
• Support fixed reference channel (FRC) predefined settings in line with the latest 3GPP protocol.
• Support the predefined setting of reference measurement channel (RMC) conforming to the latest 3GPP protocol.
• Support. arb file waveform export and. sta file parameter export, for users to quickly preset parameters and signal demodulation.

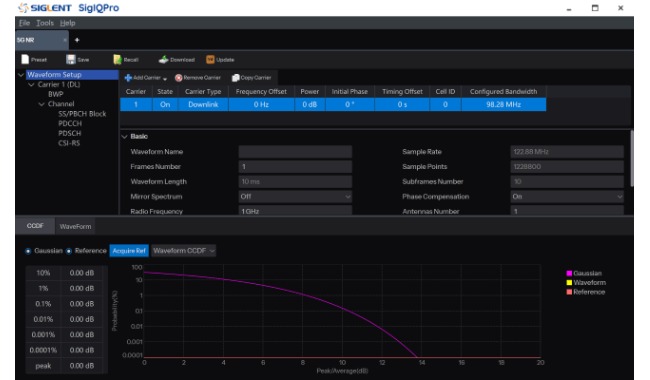

5G NR
• Support the generation and download of cellular protocol standard signals conforming to 3GPP 5G NR specifications, covering 5G NR FR1/FR2-1/FR2-2 frequency bands.
• Parameter preset of NR reference measurement channel (RMC), fixed reference channel (FRC) and Test Model defined by 3GPP standard.
• Support NTN (non-terrestrial network) test mode preset in accordance with 3GPP NR-NTN specification, including RMC\FRC\Test Model test mode.
• Parameter configuration supporting single-carrier and multi-carrier signals
• Support the generation of complex scene signals, and can add parameters such as phase noise and frequency offset to simulate real channel environment.
• Support the multi-channel configuration of downlink PDC \ PUCH \ CSI-RS and uplink PUCH \ PUCH \ SRS, and support the PRACH and downlink SS\BPCH Block channels.
• Support. arb file waveform export and. sta file parameter configuration export, for users to quickly preset parameters and signal demodulation.
• Parameter preset of NR reference measurement channel (RMC), fixed reference channel (FRC) and Test Model defined by 3GPP standard.
• Support NTN (non-terrestrial network) test mode preset in accordance with 3GPP NR-NTN specification, including RMC\FRC\Test Model test mode.
• Parameter configuration supporting single-carrier and multi-carrier signals
• Support the generation of complex scene signals, and can add parameters such as phase noise and frequency offset to simulate real channel environment.
• Support the multi-channel configuration of downlink PDC \ PUCH \ CSI-RS and uplink PUCH \ PUCH \ SRS, and support the PRACH and downlink SS\BPCH Block channels.
• Support. arb file waveform export and. sta file parameter configuration export, for users to quickly preset parameters and signal demodulation.
.png)
IEEE 802.11ax/be
• Strictly follow the IEEE 802.11ax(Wi-Fi 6) and 802.11be(Wi-Fi 7) standards to generate high-precision reference signals, which are strictly verified and optimized.
• Flexible allocation of OFDMA resource units (RUs) is supported, and RU types such as 26/52/106/242/484/996-tone are dynamically allocated to meet the needs of multi-user scenarios and spectrum fragmentation.
• Support 20/40/80/160/320MHz bandwidth and discontinuous channel aggregation, and is compatible with 20MHz subchannel Puncturing to maximize spectrum utilization.
• Support BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM and 4096QAM modulation and dual-carrier aggregation modulation (DCM) to improve single-stream rate and anti-interference ability.
• Support BCC (Binary Convolutional Code) and LDPC (Low Density Parity Check Code), covering 1/2 to 5/6 coding rate.
• Flexible allocation of OFDMA resource units (RUs) is supported, and RU types such as 26/52/106/242/484/996-tone are dynamically allocated to meet the needs of multi-user scenarios and spectrum fragmentation.
• Support 20/40/80/160/320MHz bandwidth and discontinuous channel aggregation, and is compatible with 20MHz subchannel Puncturing to maximize spectrum utilization.
• Support BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM and 4096QAM modulation and dual-carrier aggregation modulation (DCM) to improve single-stream rate and anti-interference ability.
• Support BCC (Binary Convolutional Code) and LDPC (Low Density Parity Check Code), covering 1/2 to 5/6 coding rate.
Bluetooth
• Create signals for BR, EDR, LE specifications
• Support 2 Ms/s symbol rate for higher data rate
• Basic and enhanced data rate modulated data streams
• Fully-coded Bluetooth packets with 2-DHx, 2-EVx, 3-DHx, and 3-EVx packet types
• Support 2 Ms/s symbol rate for higher data rate
• Basic and enhanced data rate modulated data streams
• Fully-coded Bluetooth packets with 2-DHx, 2-EVx, 3-DHx, and 3-EVx packet types
IoT
• A principally outdoor, low data rate wireless network
• Typically employ mesh or peer-to-peer multi-hop technology to communicate with an access point
• Create signals for IEEE 802.15.4 SUN FSK and IEEE 802.15.4 SUN OFDM specifications
• Create signals for IEEE 802.15.4 O-QPSK / BPSK ZigBee and ITU-T G.9959 FSK / GFSK Z-Wave specifications
• Typically employ mesh or peer-to-peer multi-hop technology to communicate with an access point
• Create signals for IEEE 802.15.4 SUN FSK and IEEE 802.15.4 SUN OFDM specifications
• Create signals for IEEE 802.15.4 O-QPSK / BPSK ZigBee and ITU-T G.9959 FSK / GFSK Z-Wave specifications
Custom Modulation
• Custom IQ and Custom OFDM, including Digital modulation, Custom modulation, Multitone and LFM sweep.
• Modulation Format:
• Modulation Format:
-2ASK, PR-ASK
-2FSK, 4FSK to 16FSK, MSK
-8QAM, 16QAM to 4096QAM
-BPSK, OQPSK, QPSK, 8PSK, DBPSK, DQPSK, D8PSK, PI/4-DQPSK, PI/8-D8PSK, 16APSK, 32APSK
-8QAM, 16QAM to 4096QAM
-BPSK, OQPSK, QPSK, 8PSK, DBPSK, DQPSK, D8PSK, PI/4-DQPSK, PI/8-D8PSK, 16APSK, 32APSK
Toolkit
• A file conversion tool, compatible with conversion of various data formats
• Export waveform files (*.arb), project file (*.project) or state files (*.state)
• Import SIGLENT encrypted waveforms (*.arb) or user defined waveforms ( *.txt/.csv/.dat, *.mat, *.project, *.state, etc)
• Export waveform files (*.arb), project file (*.project) or state files (*.state)
• Import SIGLENT encrypted waveforms (*.arb) or user defined waveforms ( *.txt/.csv/.dat, *.mat, *.project, *.state, etc)
SIGLENT Bluetooth signal generation and signal analysis solution
Together with SigIQPro signal generation software and SDG7000A/SSG5000X-V, SSA5000A forms an economical and efficient SIGLENT Bluetooth signal generation and signal analysis solution, which accelerates the process from signal generation to data information to evaluation conclusion.
Model
Description
Price
SigIQPro-BT
Bluetooth Signals generation
＄5130
SigIQPro-IOT
IoT Signals generation
＄5130
SigIQPro-OFDM
Custom OFDM signal generation
＄5130
SigIQPro-5G NR
5G NR signal generation
Call For Quote
SigIQPro-LTE FDD
LTE FDD signal generation
Call For Quote
SigIQPro-LTE TDD
LTE TDD signal generation
Call For Quote
SigIQPro-IEEE.802.11.ax
IEEE.802.11.ax signal generation
Call For Quote
SigIQPro-IEEE.802.11.be
IEEE.802.11.be signal generation
Call For Quote
SigIQPro-lEEE.802.11 b/g/a/n/ac
lEEE.802.11 b/g/a/n/ac signal generation
Call For Quote
SigIQPro-GSM/EDGE
GSM/EDGE signal generation
Call For Quote
SigIQPro-WCDMA/HSPA+
WCDMA FDD HSPA/ /HSPA+ signal generation
Call For Quote
