Digital Oscilloscopes
SIGLENT oscilloscopes provide the perfect balance between features and price. With bandwidths from 50 MHz to 4 GHz, low noise vertical scales down to 500 uV/div, and features like compliance test，serial decoding, sequence function, Eye diagram / Jitter analysis and MSO capabilities, SIGLENT will quickly become your scope of choice.
Options
SDS2000XP-CANFD
CAN FD trigger & decode (software)
SDS2000XP-FlexRay
FlexRay trigger & decode (software)
SDS6000Pro-FG
25 MHz waveform generator function software license ( Need to use with SAG1021I hardware)
SAG1021I
Isolated USB function/arbitrary waveform generator.
The frequency depends on the frequency defined by the oscilloscope FG option.
The frequency depends on the frequency defined by the oscilloscope FG option.

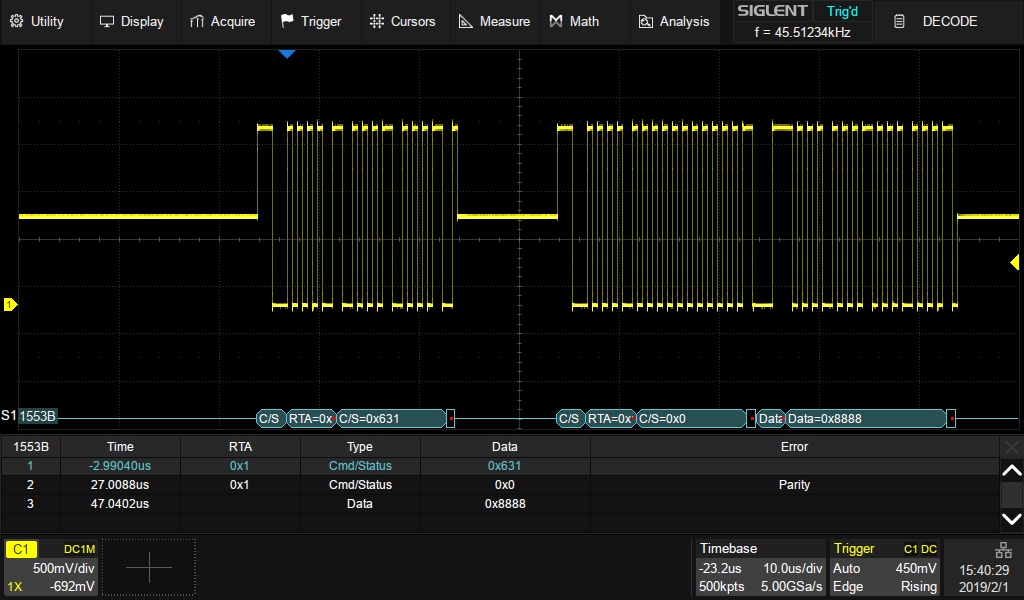

SDS2000XP-1553B
MIL-STD-1553B trigger & decode (software)

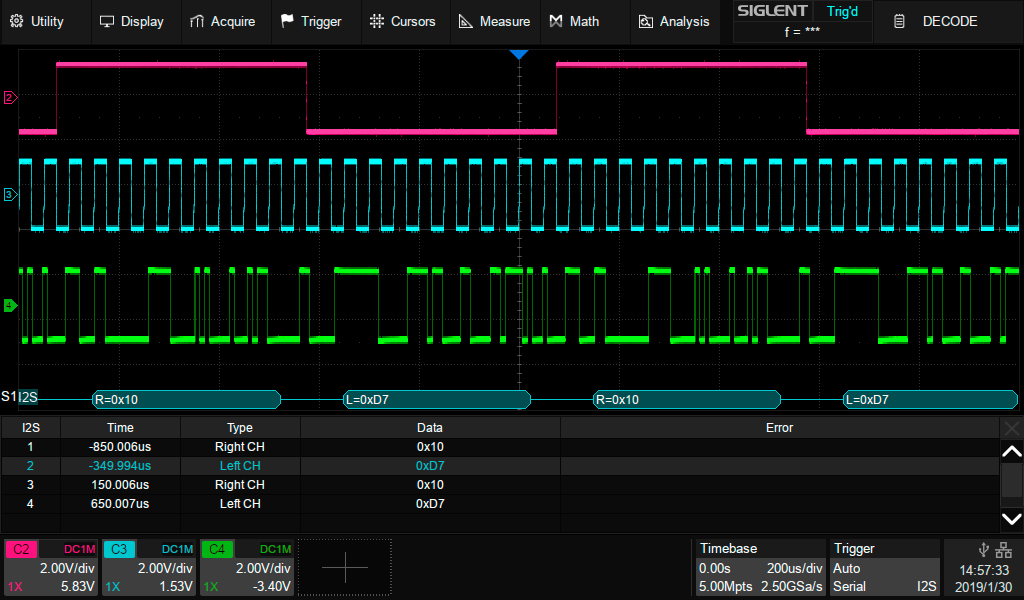

SDS2000XP-I2S
I2S trigger & decode (software)
SDS6000Pro-16LA
16 digital channels (software), need to use with SPL2016 logic probe
SPL2016
Logic Probe hardware kit for the SDS2000X/SDS2000X Plus/SDS5000X/SDS6000A/SDS7000A series of oscilloscopes.

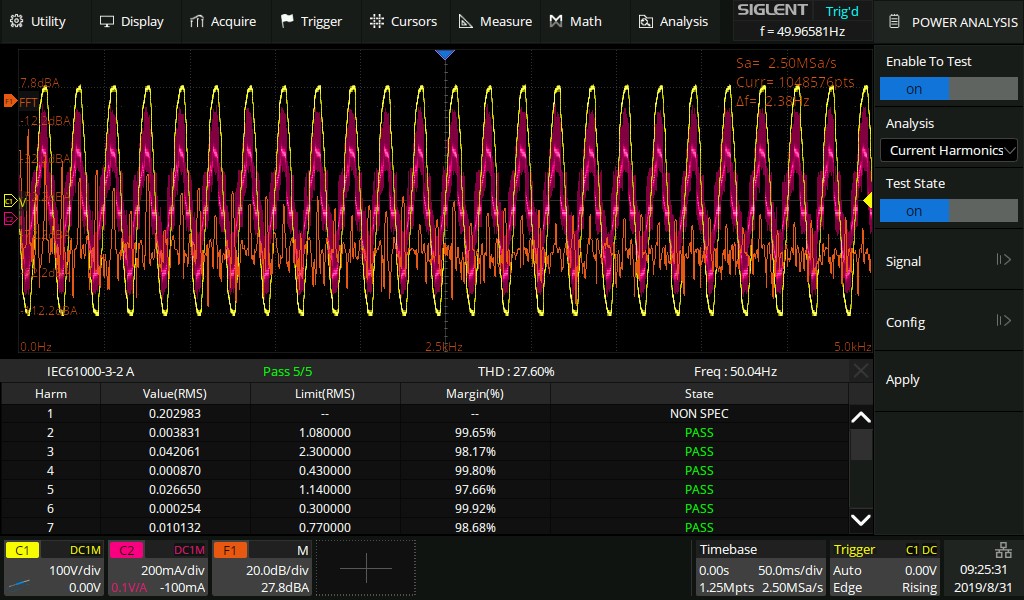

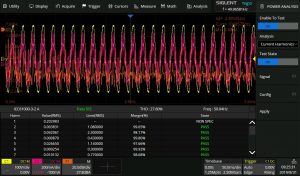

SDS2000XP-PA
Power Analysis (software)
SDS-5000X-PA
Unlock the power analysis option for the SDS5000X series of oscilloscopes. Requires a 4 channel SDS5000X, DF2001A deskew fixture, and at least one current probe for complete functionality.
SDS2000XP-16LA
16 digital channels (software)

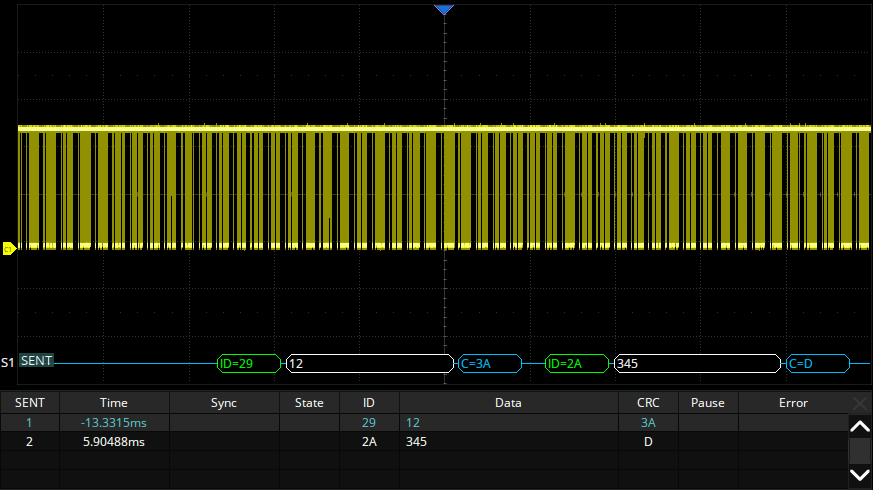

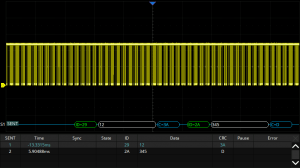

SDS2000XP-SENT
SENT trigger and decode (SW)
SDS6000Pro-PA
Unlock the power analysis option for the SDS6000A series oscilloscope. Requires DF2001A deskew fixture, and at least one current probe for complete functionality.
SDS-5000X-16LA
Unlocks 16 digital channel control for the SDS5X series of oscilloscopes. Requires SPL2016 wiring harness for operation.
DF2001A Deskew Fixture
Power analysis deskew fixture.
For use with voltage and current probes and the Power Analysis option available on the 4 channel units of the SDS2000X,SDS2000X Plus, SDS5000X, SDS6000L，SDS6000A and SDS7000A series oscilloscopes.
For use with voltage and current probes and the Power Analysis option available on the 4 channel units of the SDS2000X,SDS2000X Plus, SDS5000X, SDS6000L，SDS6000A and SDS7000A series oscilloscopes.

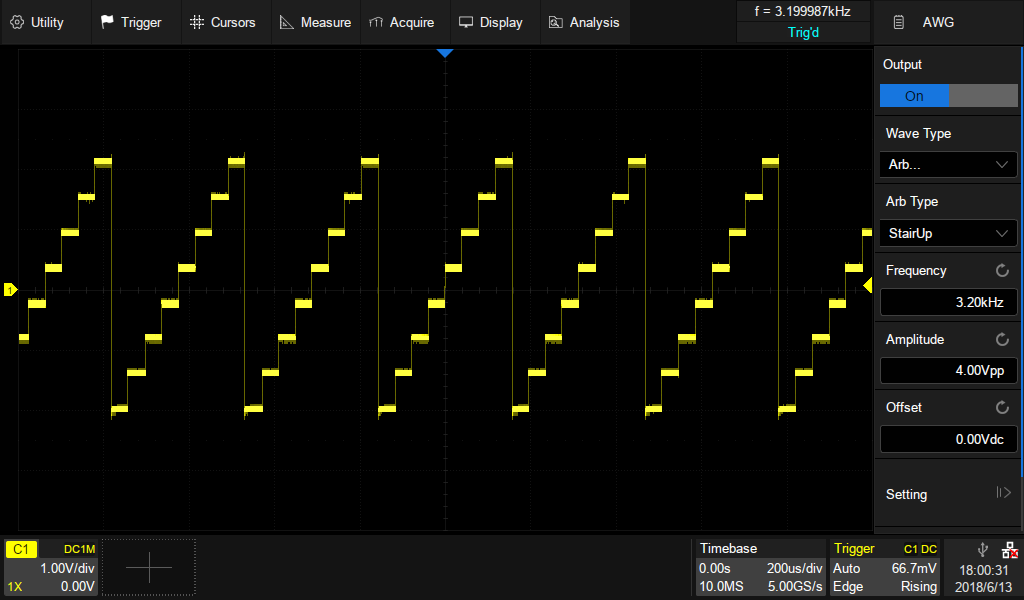

SDS2000XP-FG
Waveform generator option(software)

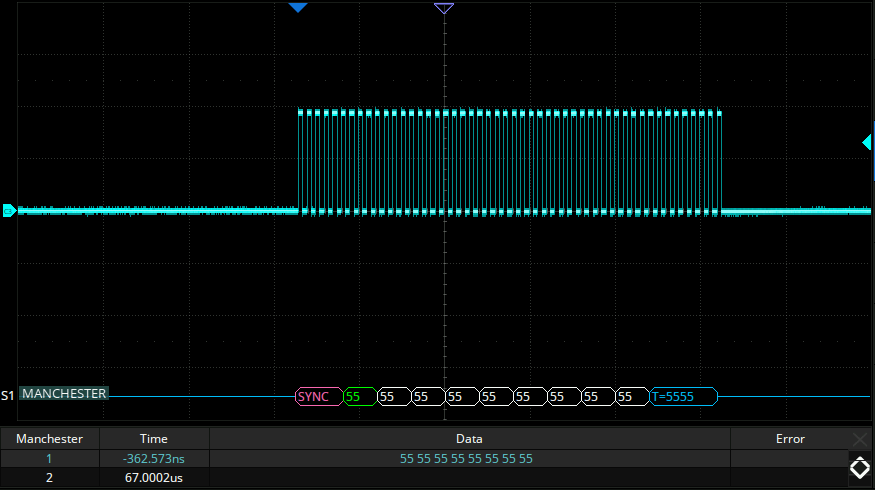

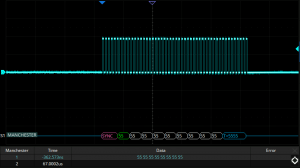

SDS2000XP-Manch
Manchester decode (SW)
SDS-5000X-1553B
MIL-STD-1553B trigger & decode for the SDS5000X series oscilloscopes
SDS2000XP-2BW03
100 MHz to 350 MHz bandwidth upgrade (2-ch model) (software)

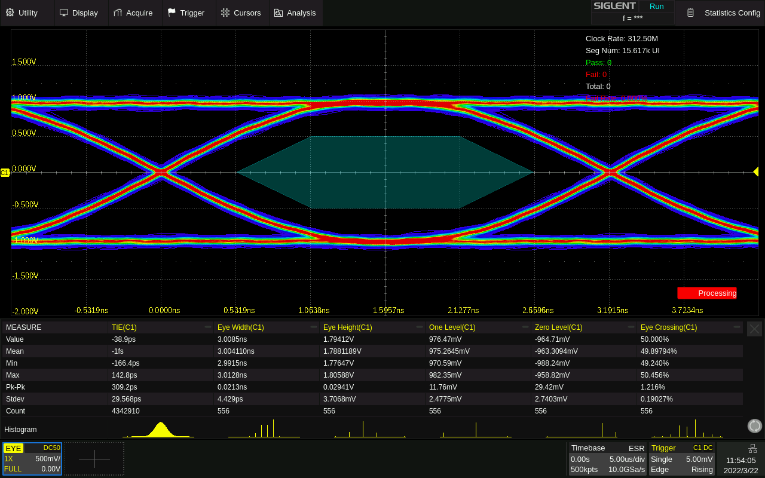

SDS6000Pro-EJ
Eye Diagram/Jitter Analysis (software)

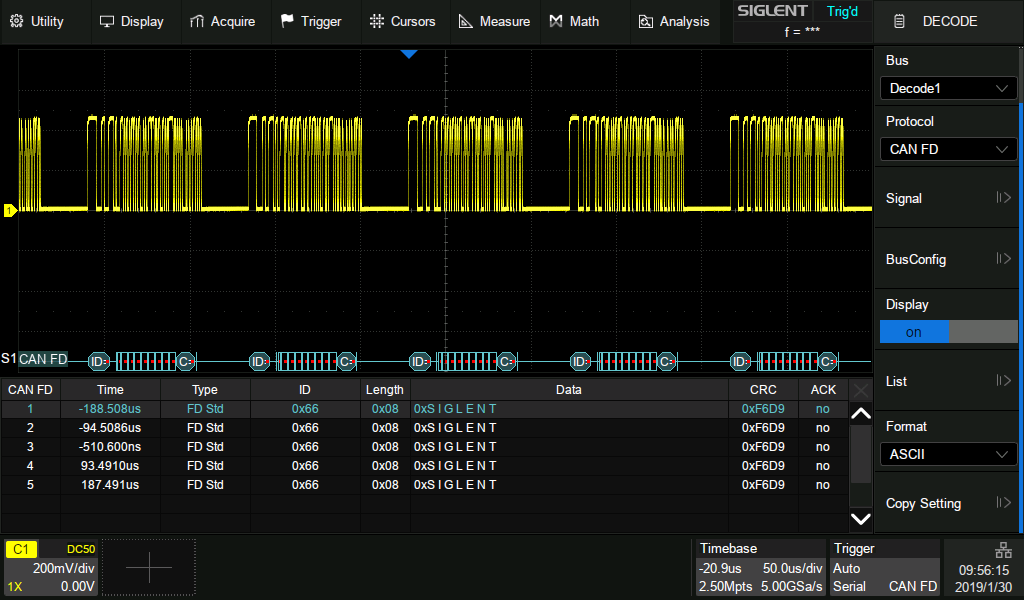

SDS-5000X-CANFD
CAN FD trigger & decode for the SDS5000X series oscilloscopes
SDS2000XP-4BW05
350 MHz to 500 MHz bandwidth upgrade (4-ch model) (software)
SDS-5000X-Manch
Manchester decode for the SDS5000X series oscilloscopes
SDS-5000X-SENT
SENT trigger & decode for the SDS5000X series oscilloscopes
SDS6000Pro-I2S
I2S trigger & decode (software)
SDS-5000X-FG
Unlocks external function generator control for the SDS5X series of oscilloscopes. Requires external generator hardware (SAG1021, SAG1021I) for operation.
SDS2000XP-4BW03
200 MHz to 350 MHz bandwidth upgrade (4-ch model) (software)
SDS6000Pro-1553B
MIL-STD-1553B trigger & decode (software)
SDS-5000X-FlexRay
FlexRay trigger & decode for the SDS5000X series oscilloscopes
SDS2000XP-4BW02
100 MHz to 200 MHz bandwidth upgrade (4-ch model) (software)
SDS6000Pro-FlexRay
FlexRay trigger & decode (software)
SDS-5000X-IIS
I2S trigger & decode for the SDS5000X series oscilloscopes
SDS2000X-E-16LA
Unlocks MSO/digital logic function for the SDS2X-E oscilloscope series.
Requires SLA1016 hardware for operation.
Requires SLA1016 hardware for operation.
SDS1000X-E-16LA
Unlocks MSO/digital logic function for the SDS1X-E oscilloscope series.
Requires SLA1016 hardware for operation.
Requires SLA1016 hardware for operation.
SDS6000Pro-CANFD
CAN FD trigger & decode (software)
SDS-5000X-2BW10
500 MHz to 1 GHz bandwidth upgrade (2-ch model)
SDS-2000X-PA (sw)
Unlock the power analysis option for the SDS2000X series of oscilloscopes. Requires a 4 channel SDS2000X, DF2001A deskew fixture, and at least one current probe for complete functionality.
SDS2000X-E-FG
Unlocks external function generator control for the SDS2X-E oscilloscope series.
Requires SAG hardware for operation.
Requires SAG hardware for operation.
SDS1000X-E-FG
Unlocks external function generator control for the SDS1X-E oscilloscope series.
Requires SAG hardware for operation.
Requires SAG hardware for operation.
SDS6000Pro-SENT
SENT trigger & decode (software)
SDS-5000X-4BW10
500 MHz to 1 GHz bandwidth upgrade (4-ch model)
SDS-2000X-16LA (sw)
Unlocks MSO/digital logic function for the SDS2X oscilloscope series. Requires SLA1016 hardware for operation.
SDS6000Pro-Manch
Manchester decode (software)
SDS-5000X-2BW05
350 MHz to 500 MHz bandwidth upgrade (2-ch model)
SDS-2000X-DC
IIC, SPI, UART/RS232, CAN, LIN decoding package for SDS2000X series oscilloscopes.
SLA1016
Mixed Signal hardware option for the four channel SDS1000X-E and SDS2000X-E oscilloscope series.
SDS6000-4BW10
500 MHz to 1 GHz bandwidth upgrade (software)
TL_WN725N
SIGLENT Approved  WiFi adapter for use with the four channel SDS1000X-E series and SDS2000X-E series oscilloscopes.
Requires SDS1000X-E-WiFi or SDS2000X-E-WiFi activation license for full functionality.
Requires SDS1000X-E-WiFi or SDS2000X-E-WiFi activation license for full functionality.
SDS-5000X-4BW05
350 MHz to 500 MHz bandwidth upgrade (4-ch model)
SDS-2000X-FG
Unlocks external function generator control for the SDS2X series of oscilloscopes. Requires external generator hardware (SAG1021, SAG1021I) for operation.
SDS6000-4BW20
1 GHz to 2 GHz bandwidth upgrade (software)
High Voltage Probe
Bandwidth: 40 MHz; Maximum input differential voltage DC：10 KV; AC（rms）：7 KV（sine）;AC（Vpp）：20 KV（Pulse）; attenuation ratio1:1000; Accuracy：≤3%
SDS-1000X-16LA
Activation license for the 16-channel MSO capability on the SDS1000X+ series of oscilloscopes.
Requires SPL1016 hardware option as well.
Requires SPL1016 hardware option as well.
High Voltage Differential Probe
DPB5150, DPB5150A, DPB5700, DPB5700A, DPB1300, DPB4080
SDS-1000X-DC
IIC, SPI, UART/RS232, CAN, LIN decoding package for SDS1000X/X+ oscilloscopes.
SAG1021 (Discontinued)
Accessory for use with the four channel SDS1000X-E, SDS2000X-E, and SDS5000X oscilloscopes. Output Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms.The arbitrary waveforms can be accessed and edited by the EasyWave PC software.
Requires the correct Function Generator Activation License for the specific oscilloscope (part number ends with -FG)

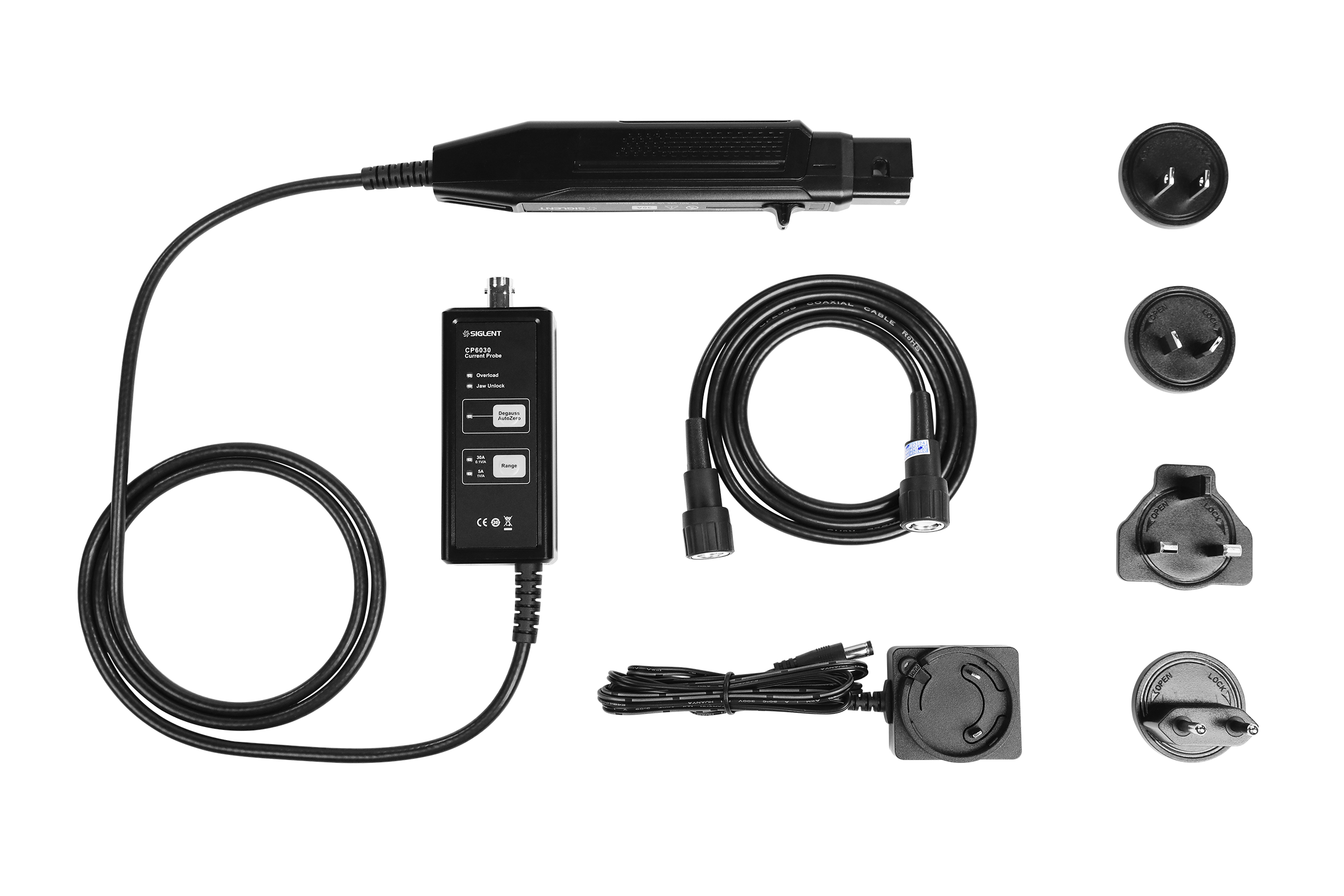

Current Probe
CPL5100/CP4020/CP4050/CP4070/CP4070A/CP6030
/CP6030A/CP6150/CP6500
See related manuals on the details page.
/CP6030A/CP6150/CP6500
See related manuals on the details page.
SPL1016 Logic Probe
Includes harness and micro-clips for adding MSO capability to the SDS1000X+ series of oscilloscopes. The oscilloscope requires the SDS-1000X-16LA activation license for full functionality.
CPL5100 Current Probe
L：50 mA~10 A Peak，0.1 V/A；H：1 A~100 A Peak，0.01 V/A
SAP1000 Single-ended Probe
1 GHz single-ended active probe for use with the SIGLENT SDS5000X, SDS6000A，SDS7000A series oscilloscope
SAP2500 Single-ended Probe
2.5 GHz High-speed single-ended active probe, SAPBus interface
SAP2500D Differential Probe
2.5 GHz High-speed differential probe
STB-3
The STB-3 was designed as a teaching / training aid used to demonstrate how to trigger and display complex signals on a modern oscilloscope. Signals include various sine and square waves, AM, burst, and common serial bus signals. Power is supplied by a standard USB cable.
BAG-S2
Soft Carry Case for SDS2000X, SDS5000X, SDS6000A SDS1000X, SSA3000X, SVA1000X, SSA3000X Plus.
SDS6000-RMK
Rack mount kit of SDS6000A
USB-GPIB Adapter
For expanding the tripod with two handles instrument GPIB function, compatible to third party GPIB bus controller.
SDS1X-E-RMK
Rackmount kit , compatible with the SDS1000X-E, SDS1000X-U, SDS2000X-E model; Height 4U
BAG-S1
Soft Carry Case for SDS2000X-E, SDS1000X/X+, SDS1000X-E/X-C, SDS1000CNL+/DL+.
SDS5000X-RMK
Rack mount kit for SDS5000X
SDS2000-RMK
Rackmount kit is designed for use with only one instrument, is compatible with the SDS2000X, SDS2000X Plus series Oscilloscope; Height 6U
Click here to download SDS2000-RMK installation guide
Click here to download SDS2000-RMK installation guide
SDS2000HD-FG
Waveform generator (software)
SDS2000HD-16LA
16 digital channels (software)
SDS2000HD-PA
Power Analysis (software)
SDS2000HD-I2S
I2S trigger & decode (software)
SDS2000HD-1553B
MIL-STD-1553B trigger & decode (software)
SDS2000HD-FlexRay
FlexRay trigger & decode (software)
SDS2000HD-CANFD
CAN FD trigger & decode (software)
SDS2000HD-SENT
SENT trigger & decode (software)
SDS2000HD-Manch
Manchester decode (software)
SDS2000HD-BW1T2
100 MHz to 200 MHz bandwidth upgrade (software)
SDS2000HD-BW1T3
100 MHz to 350 MHz bandwidth upgrade (software)
SDS2000HD-BW1T5
100 MHz to 500 MHz bandwidth upgrade (software)
SDS2000HD-BW2T3
200 MHz to 350 MHz bandwidth upgrade (software)
SDS2000HD-BW2T5
200 MHz to 500 MHz bandwidth upgrade (software)
SDS2000HD-BW3T5
350 MHz to 500 MHz bandwidth upgrade (software)
TPA10
SDS5000X/SDS600A Series Active Probe Adapter, Bandwidth 4 GHz, supports Tektronix TekProbe interface level II probes.
Waveform generator (software)
25 MHz Function/Arbitrary Waveform Generator
16 digital channels (software)
16 digital channels (software), need to use with SPL2016 logic probe
Power Analysis (software)
Power Analysis
Eye Diagram/Jitter Analysis (software)
Eye Diagram and Jitter Analysis (software)
I2S trigger & decode (software)
I2S trigger & decode (software)
MIL-STD-1553B trigger & decode (software)
MIL-STD-1553B trigger & decode (software)
FlexRay trigger & decode (software)
FlexRay trigger & decode
CAN FD trigger & decode (software)
CAN FD trigger & decode
SENT trigger & decode (software)
SENT trigger & decode
Manchester decode (software)
Manchester decode

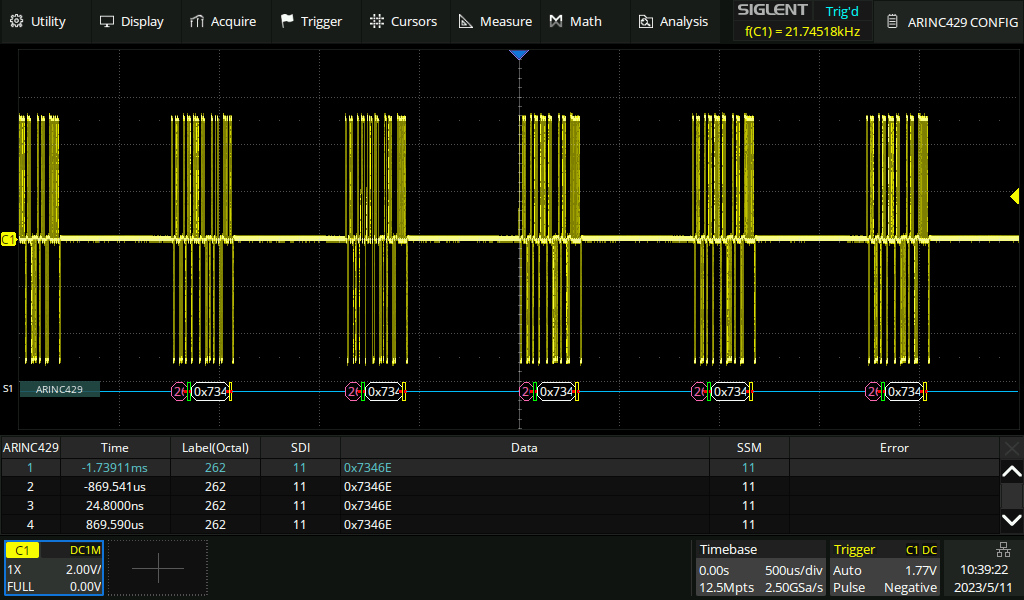

SDS5000X-ARINC
ARINC429 decode for the SDS5000X series oscilloscopes
CASE-S1
Transport protective box，suitable for SNA5000A，SDS6000A ，SSA5000A，SDS5000X and SDS3000X-HDseries.
SDS7000A-ARINC
ARINC429 trigger & decode (software)
SDS7000A-USB2
USB 2.0 decode (software)
SDS7000A-CT-USB2
USB 2.0 compliance test (software)
SDS7000A-CT-100BASE-T
100Base-TX compliance test (software)
FX-ETH
Ethernet test fixture
SDS7000A-CT-100BASE-T1
100Base-T1 compliance test (software)
SDS7000A-FG
Waveform generator (software)
SDS7000A-16LA
16 digital channels (software)
SDS7000A-PA
Power Analysis (software)
SDS7000A -EJ
Eye Diagram/Jitter Analysis (software)
SDS7000A-I2S
I2S trigger & decode (software)
SDS7000A-1553B
MIL-STD-1553B trigger & decode (software)
SDS7000A-FlexRay
FlexRay trigger & decode (software)
SDS7000A-CANFD
CAN FD trigger & decode (software)
SDS7000A-SENT
SENT trigger & decode (software)
SDS7000A-Manch
Manchester decode (software)
SDS7000A-1GPTS
1Gpts memory depth（software）
10M_OCXO_L
OCXO timebase (Assembled and calibrated in factory only)
SDS7000A-CT-1000BASE-T
1000Base-T compliance test (software)
FX-USB2
USB 2.0 test fixture
SAP5000D Differential Probe
The bandwidth is 5GHz, the rise time is 80ps, the differential input capacitance is 400fF, and the attenuation ratio is 10:1.
SDS3000HD-FG
Waveform generator (software)
SDS3000HD-16LA
16 digital channels (software)
SDS3000HD-PA
Power Analysis (software)
SDS3000HD-I2S
I2S trigger & decode (software)
SDS3000HD-1553B
MIL-STD-1553B trigger & decode (software)
SDS3000HD-FlexRay
FlexRay trigger & decode (software)
SDS3000HD-CANFD
CAN FD trigger & decode (software)
SDS3000HD-SENT
SENT trigger & decode (software)
SDS3000HD-Manch
Manchester decode (software)
SDS3000HD-ARINC
ARINC429 trigger & decode (software)
SDS3000HD-BW3T5
350 MHz to 500 MHz bandwidth upgrade (software)
SDS3000HD-BW3TA
350 MHz to 1 GHz bandwidth upgrade (software)
SDS3000HD-BW5TA
500 MHz to 1 GHz bandwidth upgrade (software)
SDS1000XHD-FG
AWG Software
SDS1000XHD-16LA
16 Channels MSO Software
SDS1000XHD-PA
Power Analysis Software
SDS800XHD-FG
AWG Software
SDS800XHD-16LA
16 Channels MSO Software
SDS800XHD-PA
Power Analysis Software
SCP5000 Series Current Probe
Powered by oscilloscope via SAPBUS
Including: SCP5030, SCP5030A,SCP5150, SCP5500
Compatible with SDS7000A/SDS6000A/SDS6000L
/SDS5000X/SDS3000X HD series of oscilloscopes.
Including: SCP5030, SCP5030A,SCP5150, SCP5500
Compatible with SDS7000A/SDS6000A/SDS6000L
/SDS5000X/SDS3000X HD series of oscilloscopes.
