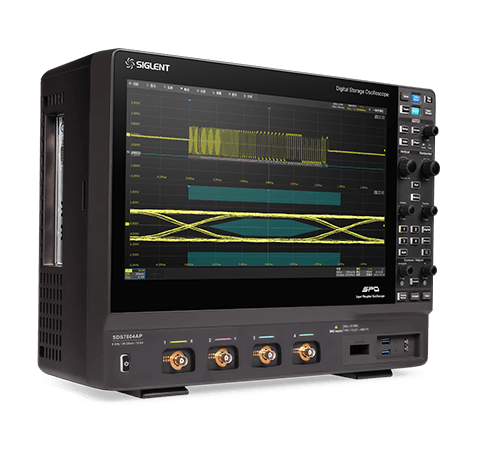

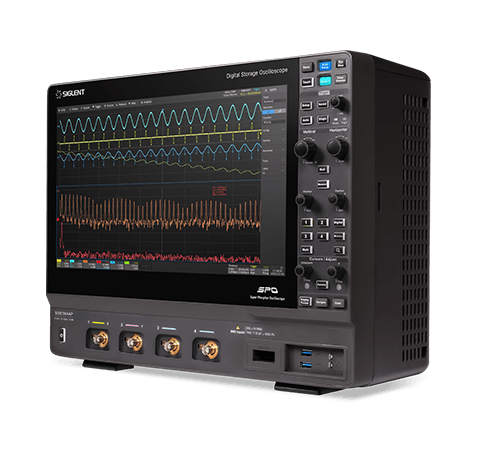

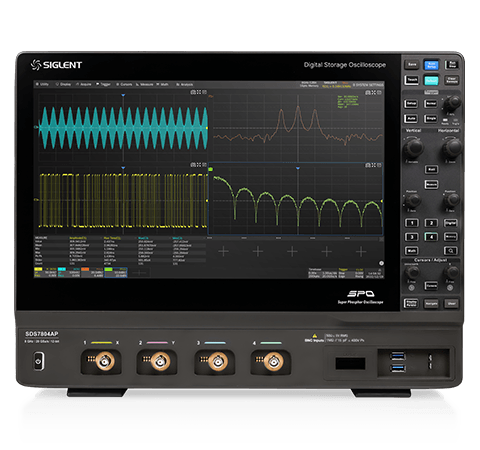

SDS7000A Digital Storage Oscilloscope
Main Features
- Bandwidth up to 8 GHz, 12-bit ADC resolution
- Real-time sampling rate up to 20 GSa/s
- Record Length up to 2 Gpts/ch
- Waveform capture rate up to 1,000,000 wfm/s
- RTSA, SigVSA, Eye diagram, Jitter analysis, Compliance Test, Power analysis, Bode plot, MSO, AWG
- SAP5000D, 5 GHz High-speed differential probe
×
Model
Bandwidth
Channel
Sampling Rate
Waveform Update Rate
Memory Depth
SDS7304A H12
3 GHz
4 + EXT
20 GSa/s (dual-channel)
1,000,000 wfm/s
Standard: 500 Mpts/ch Optional: 1 Gpts/ch
SDS7404A H12
4 GHz
4 + EXT
20 GSa/s (dual-channel)
1,000,000 wfm/s
Standard: 500 Mpts/ch Optional: 1 Gpts/ch
SDS7604A H12
6 GHz
4 + EXT
20 GSa/s (dual-channel)
1,000,000 wfm/s
Standard: 500 Mpts/ch Optional: 1 Gpts/ch
SDS7804A H12
8 GHz
4 + EXT
20 GSa/s (dual-channel)
1,000,000 wfm/s
Standard: 500 Mpts/ch Optional: 1 Gpts/ch
SDS7604AP
6 GHz
4 + EXT
20 GSa/s(all channel)
1,000,000 wfm/s
Standard: 1 Gpts/ch
Optional: 2 Gpts/ch
Optional: 2 Gpts/ch
SDS7804AP
8 GHz
4 + EXT
20 GSa/s(all channel)
1,000,000 wfm/s
Standard: 1 Gpts/ch
Optional: 2 Gpts/ch
Optional: 2 Gpts/ch
