SDG1000 Series Function/Arbitrary Waveform Generators (Discontinued)
Main Features
- Sine wave frequency up to 50 MHz
- 125 MSa/s Sampling Rate
- 16 kpts Arbitrary Waveform Length
- Abundant Modulation types: AM\DSB-AM\FM\PM\FSK\ASK\PWM\SWEEP\BURST
- Standard Arbitrary wave edit software
- 3.5 inch display

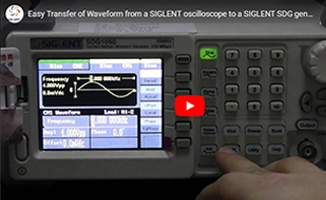

Easy Transfer of Waveform from a SIGLENT oscilloscope to a SIGLENT SDG generator
This video shows a SIGLENT DS1000 series oscilloscope capturing a waveform. The waveform is saved to an external flash drive then the drive is plugged in to a SIGLENT function generator. The waveform easily uploads to the generator and with a few keystrokes you now have that waveform stored in your function generator. A very powerful tool to be able to capture one real-world waveform and quickly save it and regenerate it, manipulate and edit it, etc.
