Vector Network Analyzer
Siglent's Vector Network Analyzer offer a frequency range of 9 kHz to 8.5 GHz, 2 or 4 ports.  It includes digital and analog modulation analysis, Cable and antenna measurement,  power analysis, EMI pre-compliance test.Applications include research and development, education, production, maintenance, and pre-compliance.
Options
SNA5000-TDR
Enhanced Time-Domain analysis
SNA5000-TDA
Time-Domain analysis
SNA5000-SA
Spectrum analysis
SNA5000-HPR
High performance reference source

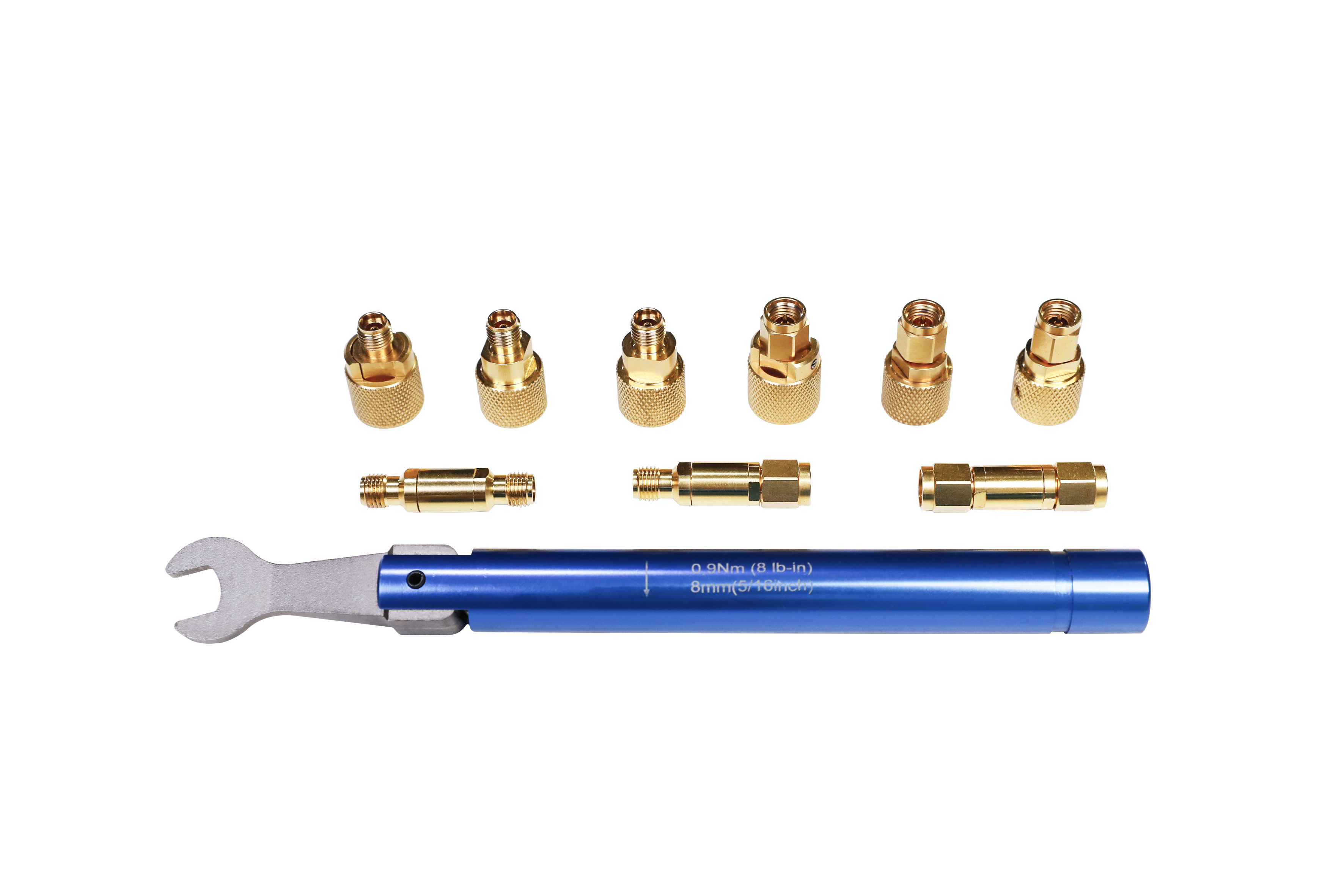

F604TS
Mechanical Calibration Kit: Open, Short, Match, Through, DC-9 GHz, 50Ω, 3.5 mm, Male and Female
F604FS
Mechanical Calibration Kit: Open(F), Short(F), Match(F,50), Through(F-F), DC-9 GHz, 3.5mm SMA-type
F604MS
Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-9 GHz, 3.5mm SMA-type
F603FE
Mechanical Calibration Kit: Open(F), Short(F), Match(F,50), Through(F-F), 4.5 GHz, 3.5mm SMA-type
F603ME
Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-4.5 GHz, SMA-type
F504TS
Mechanical Calibration Kit: Open, Short, Match, Through, DC-9 GHz, 50Ω, N-type, Male and Female
F504FS
Mechanical Calibration Kit: Open(F), Short(F), Match(F,50), Through(F-F), DC-9 GHz, N-type
F504MS
Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-9 GHz, N-type
F503FE
Mechanical Calibration Kit: Open(F), Short(F), Match(F,50), Through(F-F), DC-4.5 GHz, N-type
F503ME
Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(M-M), DC-4.5 GHz, N-type
USB-GPIB Adapter
For expanding the tripod with two handles instrument GPIB function, compatible to third party GPIB bus controller.
N-N-18L
18 GHz bandwidth, Length 1.0 m
N-SMA-18L
18 GHz bandwidth, Length 1.0 m
SMA-SMA-18L

18 GHz bandwidth, Length : 1000 + 10 (mm)

SMA-SMA-26L
SMA(M)-SMA(M) cable, 26.5 GHz, 1000 mm

SMAF-SMA-26L
SMA(F)-SMA(M) cable, 26.5 GHz, 1000 mm
V26-N35MN35F-25IN
NMD 3.5 female-NMD 3.5 Male DC-26.5 GHz,635 mm
V26-N35FA35F-25IN
NMD 3.5 female-APC 3.5 female DC-26.5 GHz,635 mm
F606TS
3.5 mm, Male and Female, 50Ω Calibration Kit, 0-26.5GHz

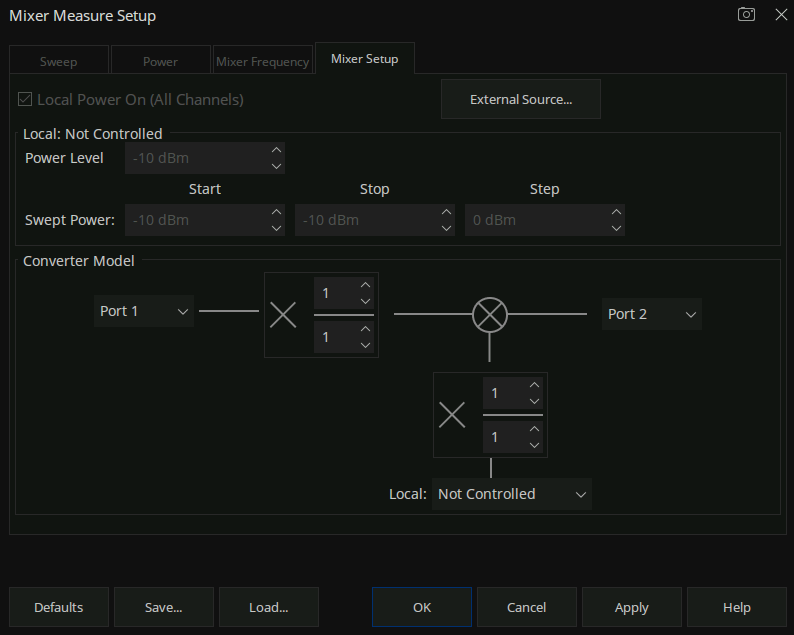

SNA5000-SMM
Scalar mixer measurement

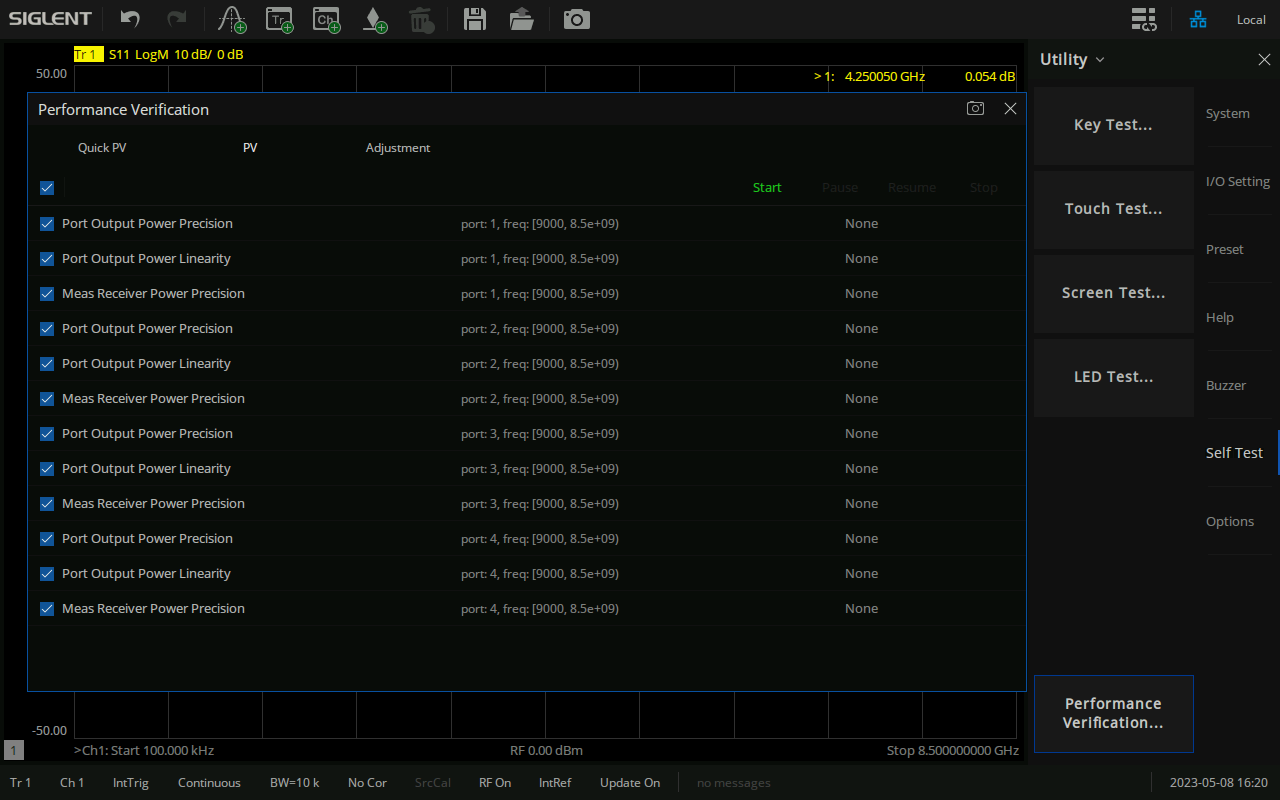

SNA5000-PV
Performance Tests,Performance verification script and guidance
Y504MS
Mechanical Calibration Kit for Vector Network Analyzers:
Open (M), short (M), Match/Load(M, 50 Ohms), Through (M-M ) DC - 9 GHz
Y504FS
Mechanical Calibration Kit for Vector Network Analyzers:
Open (F), short (F), Match/Load(F, 50 Ohms), Through (F-F ) DC - 9 GHz

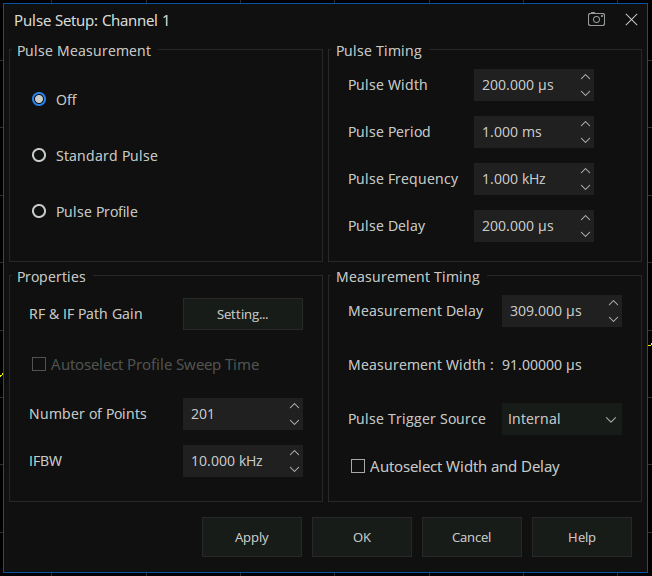

SNA5000-PM
Pulse measurement
SNA-TB01
RF demonstration board
ADP-18
Adjustable Differential TDR probe DC-18 GHz
ADP-26
Adjustable Differential TDR probe DC-26.5 GHz
ASP-18
Adjustable Single-end TDR probe DC-18 GHz
ASP-26
Adjustable Single-end TDR probe DC-26.5 GHz
Protective box
Transport protective box,suitable for SNA5000A,SDS6000A and SSA5000A series.
SEM5000A
Electronic Calibration Kit: frequency range up to 4.5/9/13.5/26.5GHz, the RF connectors come in three forms: SMA female, 3.5mm female, and Type-N female.
