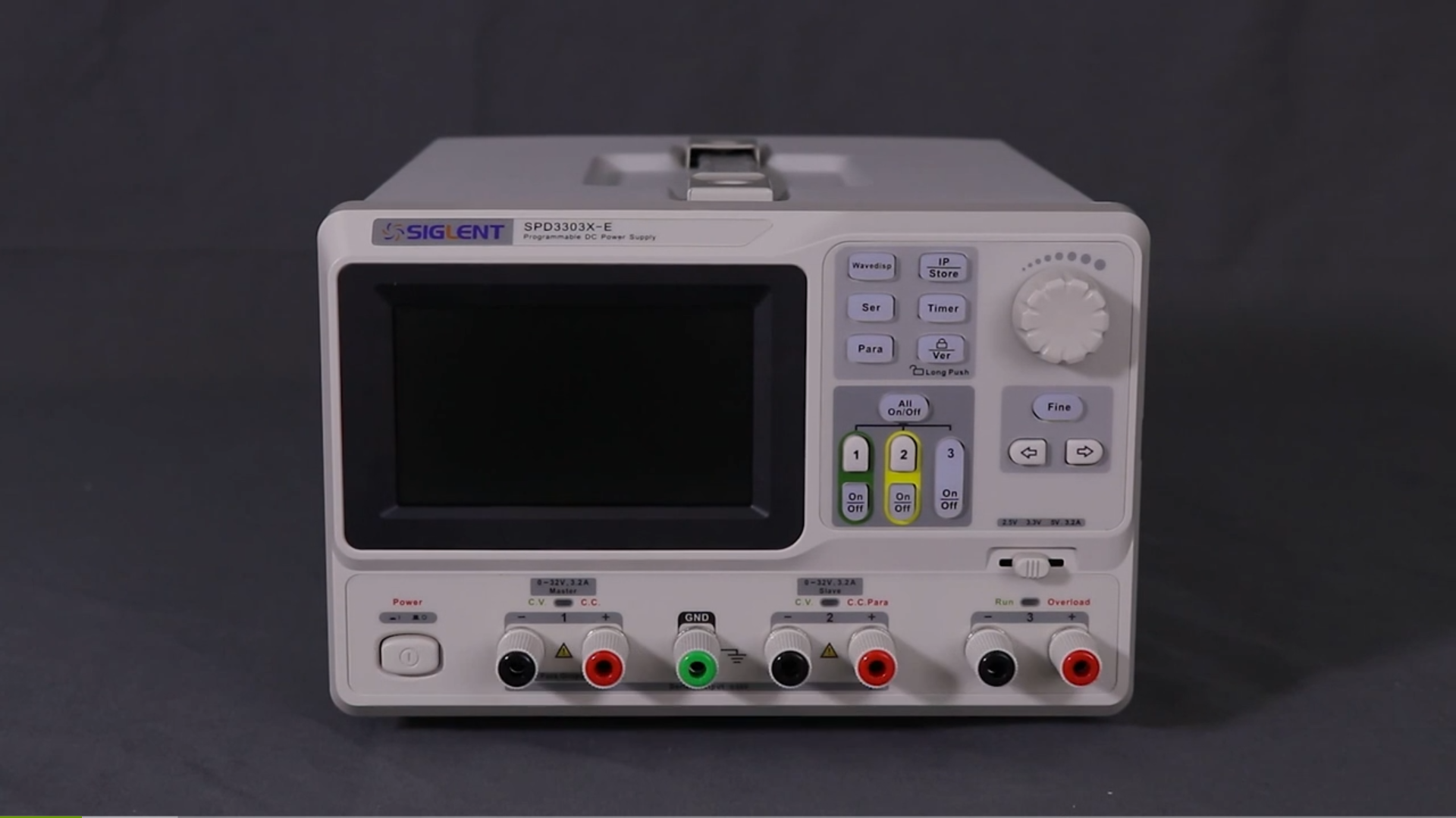

SPD3303X / X-E Series Programmable DC Power Supply
Main Features
- 3 independently controlled and isolated outputs: Two 32 V/3.2 A, one 2.5 V / 3.3 V / 5 V / 3.2 A × 1, total 220 W
- 5 digit Voltage/4 digit Current Display, Minimum Resolution: 1 mV/1 mA (SPD3303X)
- Timing function provides programmed output steps
- 4.3 inch true color TFT- LCD 480 x 272 display
- 3 types of output modes: independent, series (60 V max), and parallel (6.4 A max)
Dingyang Technology has released a total power of 220W linear programmable DC power supply SPD3303X
Dingyang SIGLENT SPD3303X/X-E series high-precision programmable DC power supply with powerful functions, with three and single output models, independent, series, and parallel output modes, comprehensive overvoltage, overcurrent, and over temperature protection, supporting panel programming, timing output, graphical interface display, temperature control fan, and upper computer remote control communication, compatible with 100/120/220/230V grid voltage design, with low ripple and noise Fast transient response capability, supporting USBTMC protocol, LAN port, providing SCPI remote control command set and LabView driver, providing multiple solutions for users' testing needs
