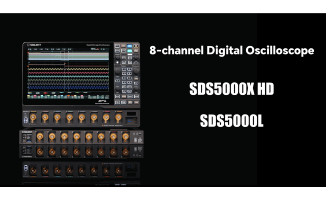

SDS5000L Low Profile Digital Storage Oscilloscope
Main Features
- 350 MHz, 500 MHz, 1GHz models
- 8 analog channels + 1 external trigger
- Sampling rate up to 5 GSa/s
- Waveform capture rate up to 650,000 wfm/s (Sequence mode)
- Up to 2.5 Gpts/ch waveform length
- SYNC-64 to Synchronize 64 x SDS5000L
Siglent Launches 8-Channel 1 GHz Bandwidth High-Resolution Oscilloscope
SDS5000L are available in 8 channels, bandwidths of 350 MHz, 500 MHz and 1 GHz, have 12-bit ADCs with sample rate up to 5 GSa/s, maximum record length of 2.5 Gpts/ch. SDS5000L series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 160,000 wfm/s, 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, as well as serial decoding are also features of them.
