SDG8000A Arbitrary Waveform Generator
Main Features
- 2/4 channels, maximum output frequency is 4 GHz (10 GSa/s sampling rate)/5 GHz (12 GSa/s sampling rate).
- Supports multi-layer sequence wave playback function, with a maximum waveform memory of 4 Gpts per channel
- 16-bit vertical resolution
- It can output vector signals with a bandwidth of up to 2 GHz
- Supports PRBS up to 1.25 Gbps
- Support Bluetooth, OFDM, IOT, LTE and WIFI signal output.

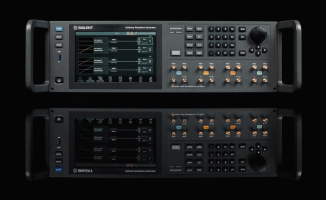

SIGLENT Introduces the SDG8000A Series
The SDG8000A Series function/arbitrary waveform generators are available in 2-channel and 4-channel configurations, all featuring 16-bit vertical resolution, an interpolated sampling rate of up to 12 GSa/s, a maximum output frequency of 5 GHz, and a modulation bandwidth of 2 GHz.
