SNA6000A Vector Network Analyzer
Feature
- Frequency Range: 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz
- Range of IFBW: 1 Hz to 10 MHz
- Dynamic Range: 135 dB
- Setting Range of Output Level: -55 dBm to +10 dBm
- Standard Bias-Tee connection and pulse hardware
- 4-port models include standard second source
- Jumpers / DRA (Source, Ref and Meas) standard on SNA61xxA models
×
Measurement of Dielectric Material Properties
Download
More

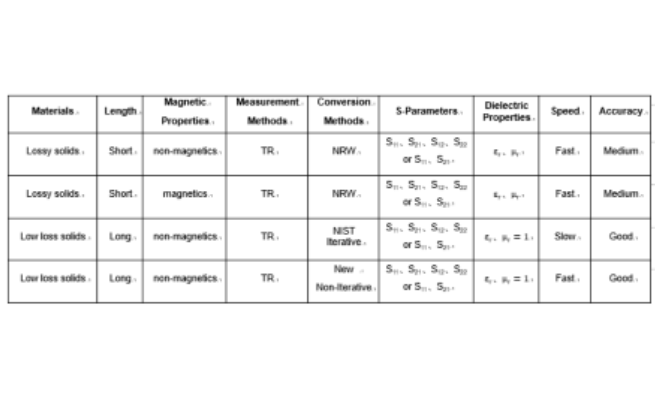

Material measurement is integral when developing solutions in the millimeter-wave (mmWave) frequency range, it can provide the electrical or magnetic characteristics of the materials, which proved useful in many research and development fields. PCB, anten

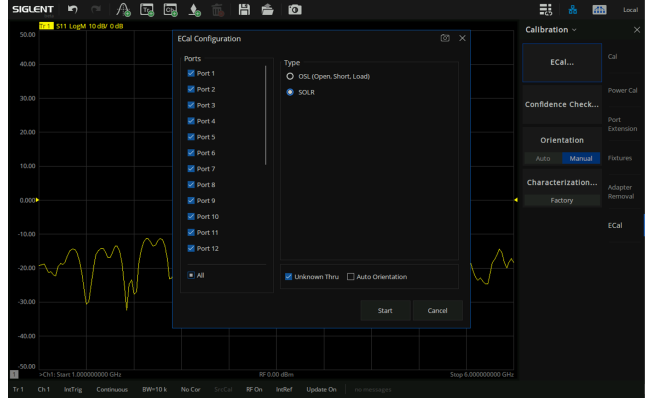

SNA Extended N-port and Full-N-port Calibration Steps
Download
More

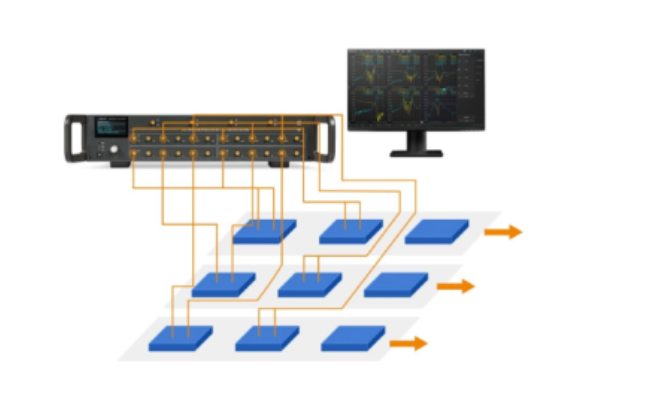

SNA is connected with SSM switch matrix to expand into N-port network analyzer. For example, vector network analyzer SNA5032A is expanded to 16 ports by using switch matrix SSM5124A, and perform full 16 ports calibration. The expansion process involves the following steps
How to Make Multi-Port Measurements
Download
More
With the increasing number of ports on components, testers need to perform accurate and fast multi-port network analysis. Optimizing the configuration of vector network analyzer (VNA) is the key to minimize test cost during the manufacturing stage.
