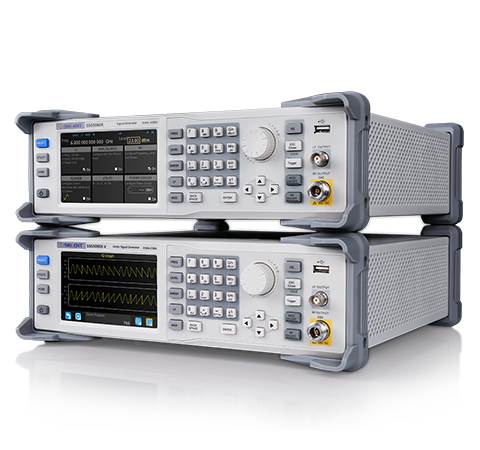

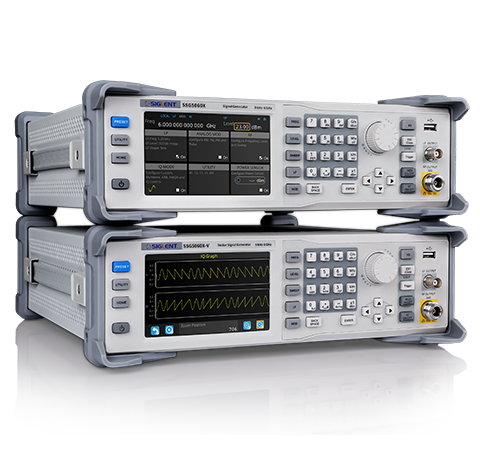

SSG5000X Series RF Signal Generator
Main Features
- Frequency up to 4 GHz / 6 GHz
- 0.001 Hz frequency setting resolution
- Maximum output power up to +26 dBm (typ.)
- Phase Noise: -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.)
- Standard AM & FM & PM & Pulse modulation
- Pulse train Generator (option)
- External IQ signal Generator (option)
×
Simplify signal creation and accelerate test

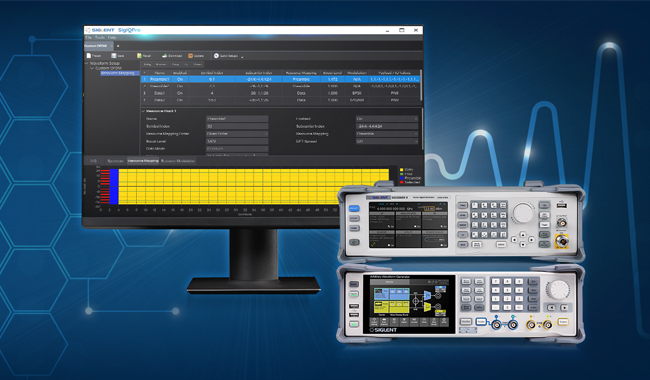

• SSG5000X-V and SigIQPro signal generation software integrate simulation, design and test to easily meet the needs of users at all stages of design, R&D, and production.
• SigIQPro is a flexible PC-based signal generation software that takes signal generation to a whole new level, supporting Bluetooth, IoT, Custom OFDM, Custom IQ, and in the future, 5G NR, LTE and WLAN, and more.
• SigIQPro is specially developed for easy generation of protocol and modulated signals, with a user interface that supports intuitive operation and provides relevant documentation that makes it easy to create standards-compliant waveforms for a wide range of applications.
• TRY BEFORE YOU BUY! SigIQPro provides 30 free trials of each feature for unrestricted use of the functions with your existing compatible signal generators.
• Click to view more SigIQPro signal generation software configuration, pricing, and device details.
• SigIQPro is a flexible PC-based signal generation software that takes signal generation to a whole new level, supporting Bluetooth, IoT, Custom OFDM, Custom IQ, and in the future, 5G NR, LTE and WLAN, and more.
• SigIQPro is specially developed for easy generation of protocol and modulated signals, with a user interface that supports intuitive operation and provides relevant documentation that makes it easy to create standards-compliant waveforms for a wide range of applications.
• TRY BEFORE YOU BUY! SigIQPro provides 30 free trials of each feature for unrestricted use of the functions with your existing compatible signal generators.
• Click to view more SigIQPro signal generation software configuration, pricing, and device details.
Powerful ARB Mode
SSG5000X supports playback protocol files and has built-in common protocol files, such as 5G NR, LTE, WLAN, WCDMA, GSM, BLUETOOTH. It is the right generator doing verification works.
With ARB mode, SSG5000X can also build and replay waveform sequences, generate multi-carrier signals. Multi-carrier signals are widely used with the introduction of OFDM (Orthogonal Frequency Division Multiplexing), which is used for systems such as wireless/ cellular telecommunications and networking standards such as WiMAX, Wi-Fi 802.11, LTE.
With ARB mode, SSG5000X can also build and replay waveform sequences, generate multi-carrier signals. Multi-carrier signals are widely used with the introduction of OFDM (Orthogonal Frequency Division Multiplexing), which is used for systems such as wireless/ cellular telecommunications and networking standards such as WiMAX, Wi-Fi 802.11, LTE.
CUSTOM Mode – Quickly create waveforms meet test standards
IQ modulation is a very effective way to transmit information. SSG5000X can output common modulation signals like QAM, PSK, ASK, FSK. The symbol rate can be set to as high as 120 Msps.
Multi-tone Mode
Multi-tone signal consists of several sine waves. SSG5000X supports up to 20 tones. It is widely used in audio measurements, amplifier and receiver non-linear distortion tests, ground and satellite communications tests.
Cable Loss Compensation
The longer the transmission line, the larger the cable loss. In order to ensure good flatness before the signal arrives at the DUT, a flatness correction is needed to compensate for the loss caused by the transmission line and switch impedance. SSG5000X supports flatness correction with an external power sensor (not included).
Model
Frequency range
Frequency
IQ modulation
Max output power
Phase noise
Display
SSG5040X
CW MODE 9 kHz ~ 4 GHz
0.001 Hz
NO
+26 dBm (typ.)
-120 dBc/Hz @1 GHz, offset 20 kHz (typ.)
5 inch capacitance touch screen, RGB (800*480)
SSG5060X
CW MODE 9 kHz ~ 6 GHz
0.001 Hz
NO
+26 dBm (typ.)
-120 dBc/Hz @1 GHz, offset 20 kHz (typ.)
5 inch capacitance touch screen, RGB (800*480)
SSG5040X-V
CW MODE 9 kHz ~ 4 GHz; IQ MODE 10 MHz ~ 4 GHz
0.001 Hz
YES
+26 dBm (typ.)
-120 dBc/Hz @1 GHz, offset 20 kHz (typ.)
5 inch capacitance touch screen, RGB (800*480)
SSG5060X-V
CW MODE 9 kHz ~ 6 GHz; IQ MODE 10 MHz ~ 6 GHz
0.001 Hz
YES
+26 dBm (typ.)
-120 dBc/Hz @1 GHz, offset 20 kHz (typ.)
5 inch capacitance touch screen, RGB (800*480)
