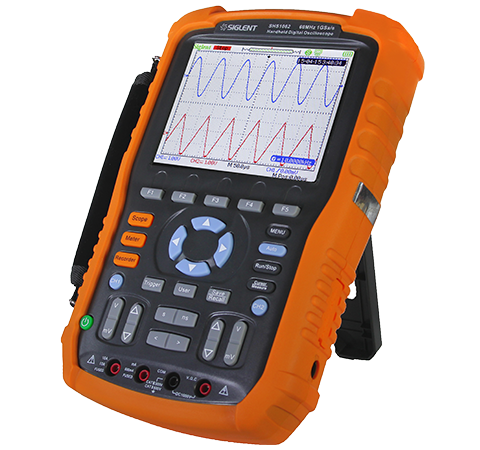

SHS1000 Isolated Handheld Digital Oscilloscope (Discontinued)
Main Features
- Completely isolated oscilloscope input channels, including oscilloscope and multimeter channels
- Combines the functions of an oscilloscope, multimeter and recorder in-one
- Oscilloscope isolation level: CAT II 1000 V and CAT III 600 V
- Quick waveform printing and USB storage
- 60/100 MHz bandwidths, 2 input channels, 2 Mpts memory depth
×
Safe Measurement

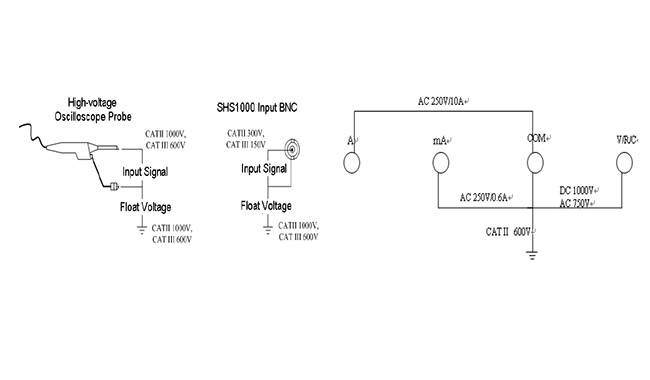

SHS1000 Employs the latest patented broadband isolation technology, the channel and channel are isolated from each other, suitable for safe floating measurement
Higher Performance, Better Experience
· Bandwidth up to 100 MHz with a sampling rate of 1GSa/s
· Memory depth up to 2 Mpts
· Support 4 kinds of digital filtering

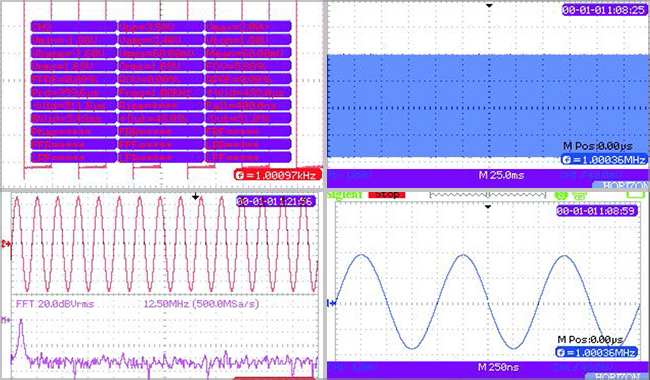

· Support 32 kinds of parameter measurement, 5 trigger types
· Memory depth up to 2 Mpts
· Support 4 kinds of digital filtering
· Support 32 kinds of parameter measurement, 5 trigger types
Abundant Application Scenario

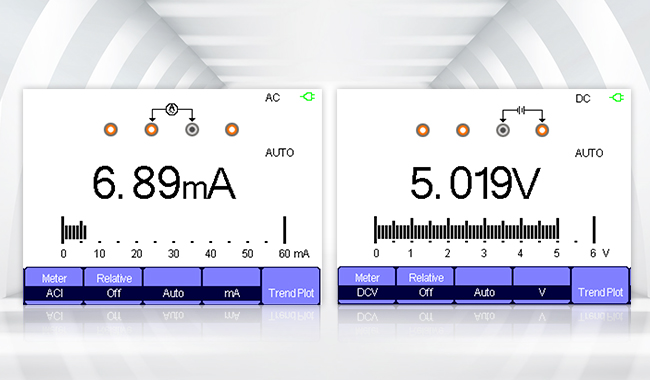

3-instruments-in-1, Oscilloscope, DMM, and data logger/recorder in one convenient portable package
It is powered by battery, hand-held, light weight and easy to carry. It is suitable for various complex scenes such as automotive electronics, industrial field electrical debugging and field testing.
It is powered by battery, hand-held, light weight and easy to carry. It is suitable for various complex scenes such as automotive electronics, industrial field electrical debugging and field testing.

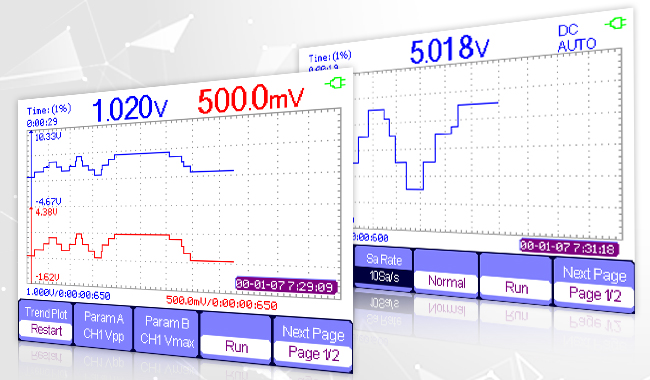

Trend Plot
You can draw a picture to display the changes of a parameter value (measured in oscilloscope or multimeter mode) in a specified period of to find the source of a problem quickly.

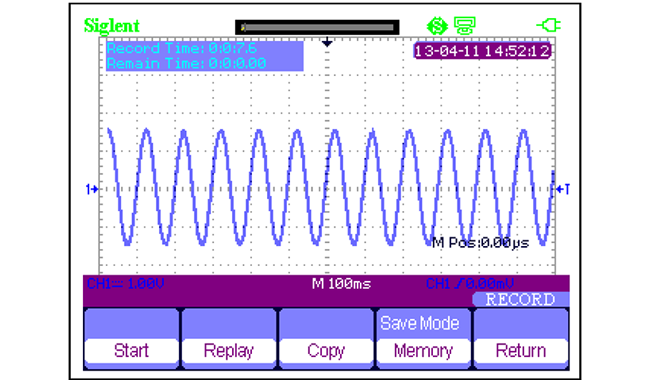

Data Recorder
· Continuously record waveforms
· Support recording and playback of waveforms
· Internal storage of up to 7 M points waveform data, with a maximum recording time of approximately 18 hours
· USB drive storage is up to 4 GB, and the maximum recording time is about 3000 hours
· Support recording and playback of waveforms
· Internal storage of up to 7 M points waveform data, with a maximum recording time of approximately 18 hours
· USB drive storage is up to 4 GB, and the maximum recording time is about 3000 hours

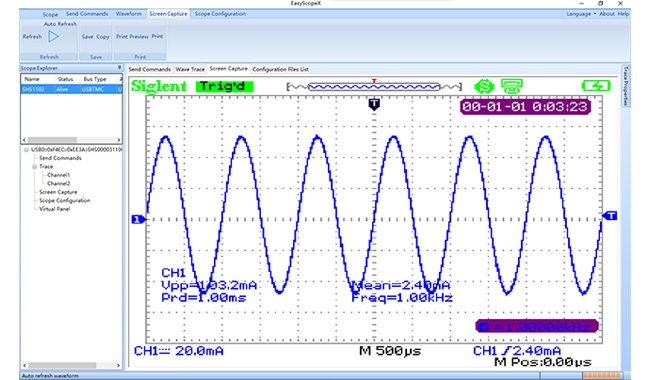

Support EasyScopeX PC Software
· Support remote control to facilitate instrument control and data transmission
Specifications
| SHS1062 | SHS1102 | |
| Bandwidth | 60 MHz | 100 MHz |
| Rise time | ≤5.8 ns | ≤3.5 ns |
| Real time sample rate | 1 GSa/s | |
| Equivalent samp rate | 50 GSa/s | |
| Time base range | 5 nS/DIV ～ 50 S/DIV | 2.5 nS/DIV ～ 50 S/DIV |
| Memory depth | 2 Mpts | |
| Vertical sensitivity | 5 mv~100 v/div | |
| Vertical Resolution | 8 bit | |
| Modulation Type | Edge,Pulse,Video,Slope,Alternative | |
| Data Recorder | 7 Mpts | |
| Trend plot | 800 Kpts | |
| Triggering Frequency Counter | 6 digits | |
| Interface | USB Device,USB Host | |
| Math Operation | +,-,*,/,FFT | |
| Maximum Resolution | 6000 | |
| DC Voltage | 60 mV-1000 V | ±1%±15 digit |
| AC Voltage | 60 mV-750 V | ±1.5%±15 digit |
| DC Current | 60 mA-10 A | ±5%±5 digit |
| AC Current | 60 mA-10 A | ±5%±5 digit |
| Capacitance | 40 nF 400 nF-400 μF |
±4%±10 digit ±5%±5 digit |
| Resistance | 600 Ω-6 MΩ 60 MΩ |
±1%±5 digit ±4%±5 digit |
| Continuity | <50 Ω | |
| Diode | 0-2 V | |
| Trend Plot | 1.2 Mpts | |
| Display | 5.7 inch color TFT-LCD,320*234 |
| Power Supply | With battery or apply DC adapter to get power from outside |
| Net Weight | 1.5 kg |
| Dimension | 163.2 mm * 259.5 mm * 53.3 mm |
| Accessories | Two Passive Probes,Multimeter pen,USB data cable,DC adapter,Manual,Toolbox |
Model
Bandwidth
Channels
Max real time sampling rate
Multimeter
Isolation level
Memory depth
SHS1102 (Discontinued)
100 MHz
2 CH
1 GSa/s
voltage,current,resistance.etc eight regular function
1000 V CATII，600 V CATIII
2 Mpts
SHS1062 (Discontinued)
60 MHz
2 CH
1 GSa/s
voltage,current,resistance.etc eight regular function
1000 V CATII，600 V CATIII
2 Mpts
